Topology

HCL IEM provides topology hierarchy view for entity corresponding to which actionable got created. This enables operators to understand what other entities can be impacted on due to this. Please follow the steps below to access the topology tab:

1. Click on a particular actionable on Data View-Actionable screen, a pop-up window will open that will show all information like related alerts, related changes, related problems, timeline view, topology view, service topology view etc.

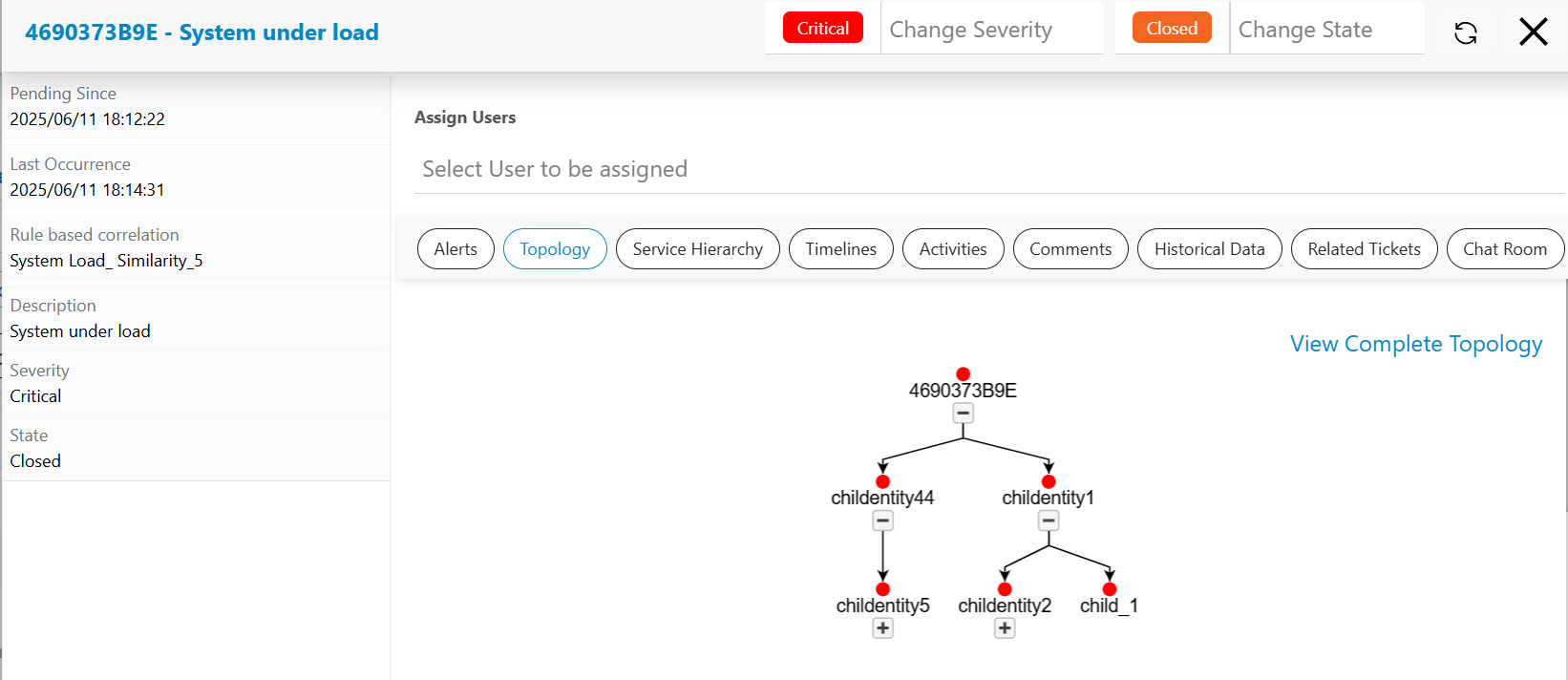

2. Click on the topology tab present in the actionable popup.
3. Topology provides visualization of entities relationships along with their impact based on current events in system.
4. Impacted entities can be highlighted as per configured color codes based on level of impact on Impacted entities.
