Integrating the BigFix Root Server DEX Plugin

This plugin integrates the BigFix Root Server with DEX components for data forwarding and management. As the name suggests, this component is applicable only on the Root Server.

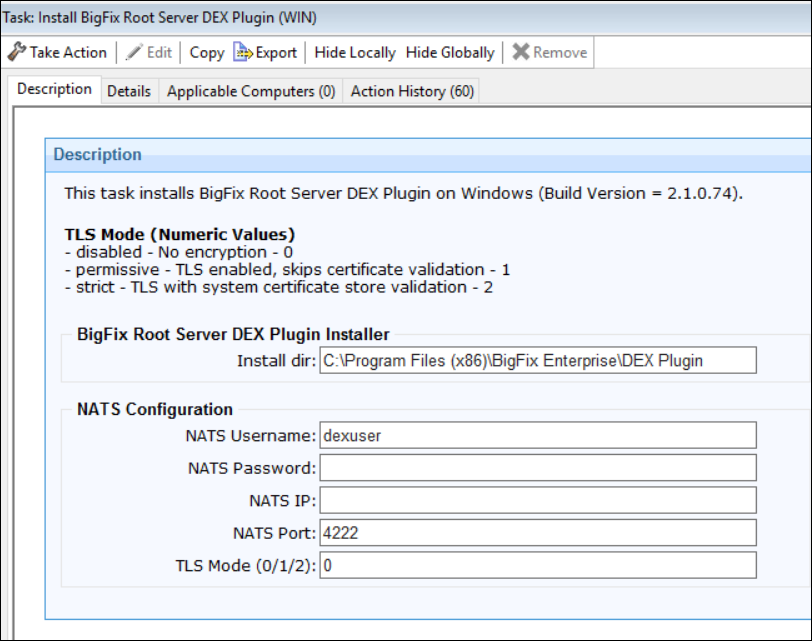

Install using # 29-Install BigFix Root Server DEX Plugin (WIN) Fixlet on the BigFix Root Server (Windows only).

Fixlet Input parameters:

Installation path: (Default: C:\\Program Files (x86)\\BigFix Enterprise\\DEX Plugin)
NATS: host, port (Default: 4222), TLS Mode (Default: 0), and user credentials (Default: dex_user)
BigFix Root Server directory: Default: C:\\Program Files (x86)\\BigFix Enterprise\\BES Server\\UploadManagerData\\TransientDir\\dex
