Deploying CDP RTS

Prerequisites:

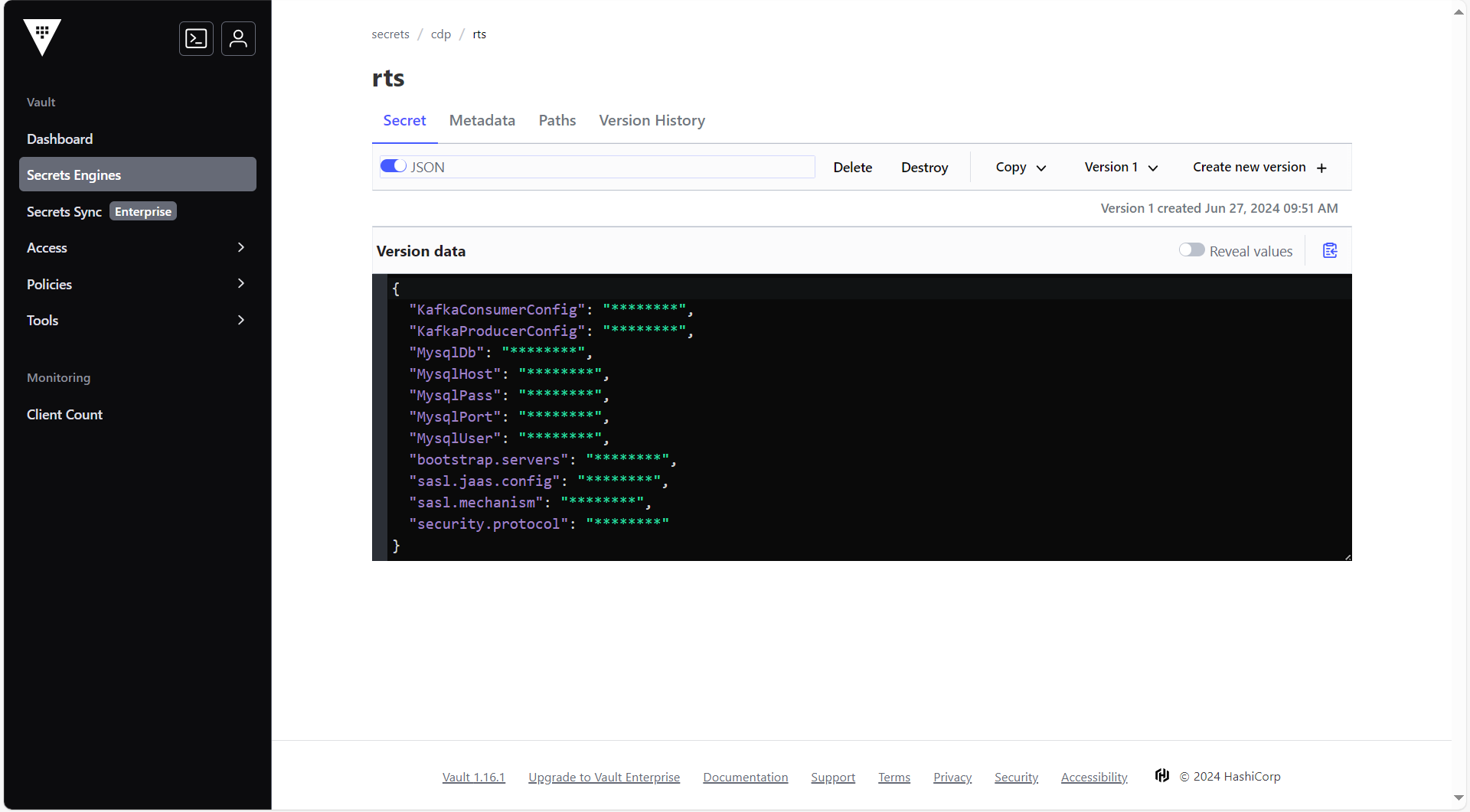

Make sure to create UI secret with required data in HashiCorp vault before deploying CDP RTS.

To create the UI secret in HashiCorp Vault, follow the steps below:

1. Create a UI secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "KafkaConsumerConfig": "<KafkaConsumerConfig>",
     "KafkaProducerConfig": "<KafkaProducerConfig>",
     "MysqlDb": "<MysqlDb>",
     "MysqlHost": "<MysqlHost>",
     "MysqlPass": "<MysqlPass>",
     "MysqlPort": "<MysqlPort>",
     "MysqlUser": "<MysqlUser>",
     "bootstrap.servers": "<bootstrap.servers>",
     "sasl.mechanism": "<sasl.mechanism>",
     "security.protocol": "<security.protocol>"
   }

Deploying CDP RTS

To deploy the CDP RTS, follow these steps below:

1. Navigate to the Devtron Chart Store, and select the cdp-rts chart to deploy.



2. Now, configure and deploy the CDP RTS charts.

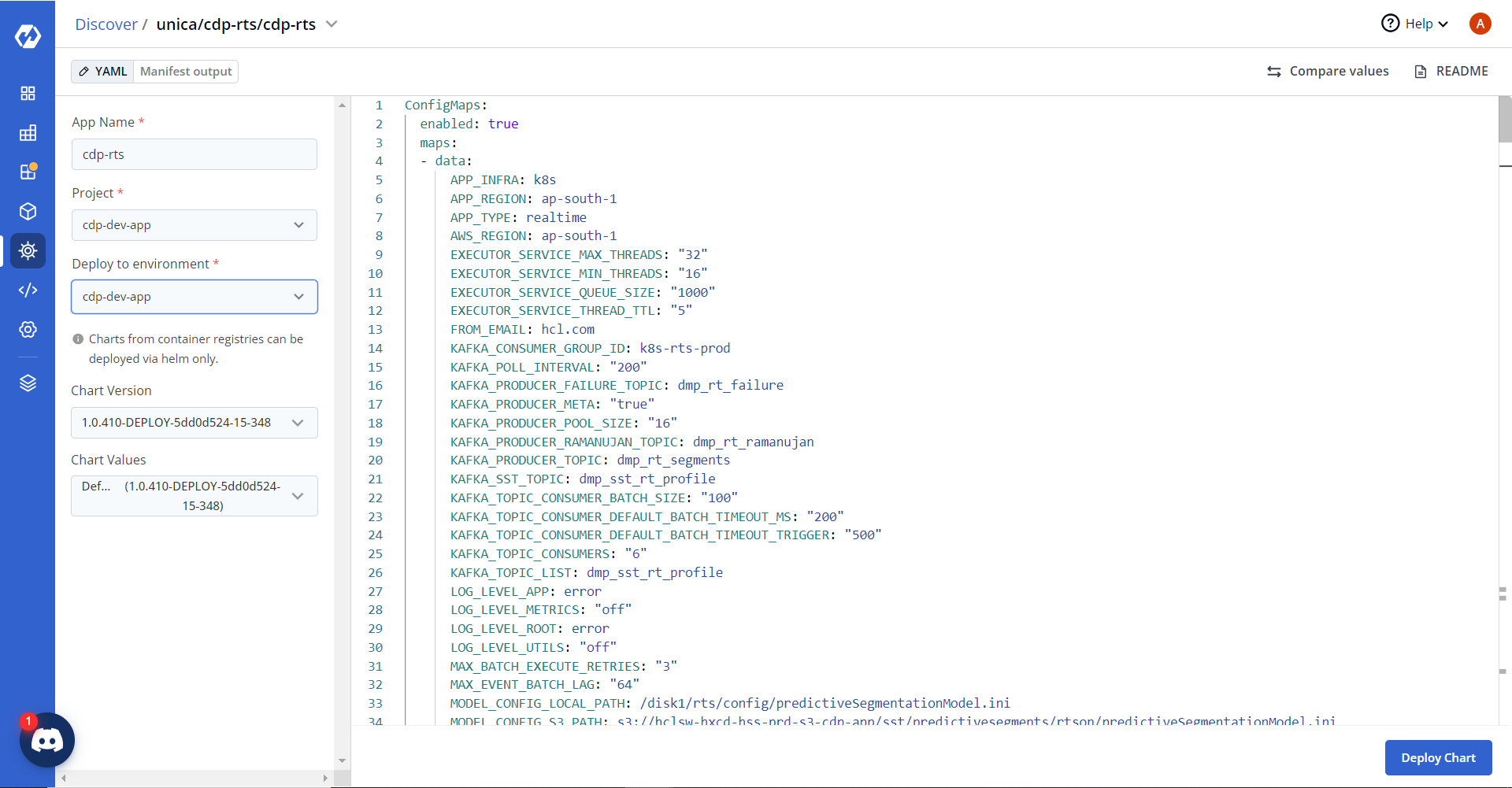

3. In the YAML section, update the ConfigMap using below details, and deploy the charts.

   FROM_EMAIL: <FROM_EMAIL>
   KAFKA_CONSUMER_GROUP_ID: <k8s-rts-prod>
   KAFKA_PRODUCER_FAILURE_TOPIC: <dmp_rt_failure>
   KAFKA_PRODUCER_RAMANUJAN_TOPIC: <dmp_rt_ramanujan>
   KAFKA_PRODUCER_TOPIC: <dmp_rt_segments>
   KAFKA_SST_TOPIC: <dmp_sst_rt_profile>
   KAFKA_TOPIC_LIST: <dmp_sst_rt_profile>
   MODEL_CONFIG_LOCAL_PATH: /disk1/rts/config/predictiveSegmentationModel.ini
   MODEL_CONFIG_S3_PATH: s3://<s3_bucket_name>/sst/predictivesegments/rtson/predictiveSegmentationModel.ini
   MODEL_CUTOFFS_LOCAL_PATH: /disk1/rts/config/predictiveSegmentationCutoffs.ini
   MODEL_CUTOFFS_S3_PATH: s3://<s3_bucket_name>/sst/predictivesegments/rtson/predictiveSegmentationCutoffs.ini
   PMML_MODEL_CONFIG_LOCAL_PATH: /disk1/rts/config/predictivesegments/pmml_model_config/
   PMML_MODEL_CONFIG_S3_PATH: s3://<s3_bucket_name>/sst/predictivesegments/pmml_model_config/rtson/
   PMML_MODEL_DIRECTORY_LOCAL_PATH: /disk1/rts/config/predictivesegments/pmml_models/
   PMML_MODEL_DIRECTORY_S3_PATH: s3://<s3_bucket_name>/sst/predictivesegments/pmml_models/rtson/
   TO_EMAIL: <TO_EMAIL>
   TSDB_HOST: <TSDB_HOST>
   TSDB_PORT: <TSDB_PORT>

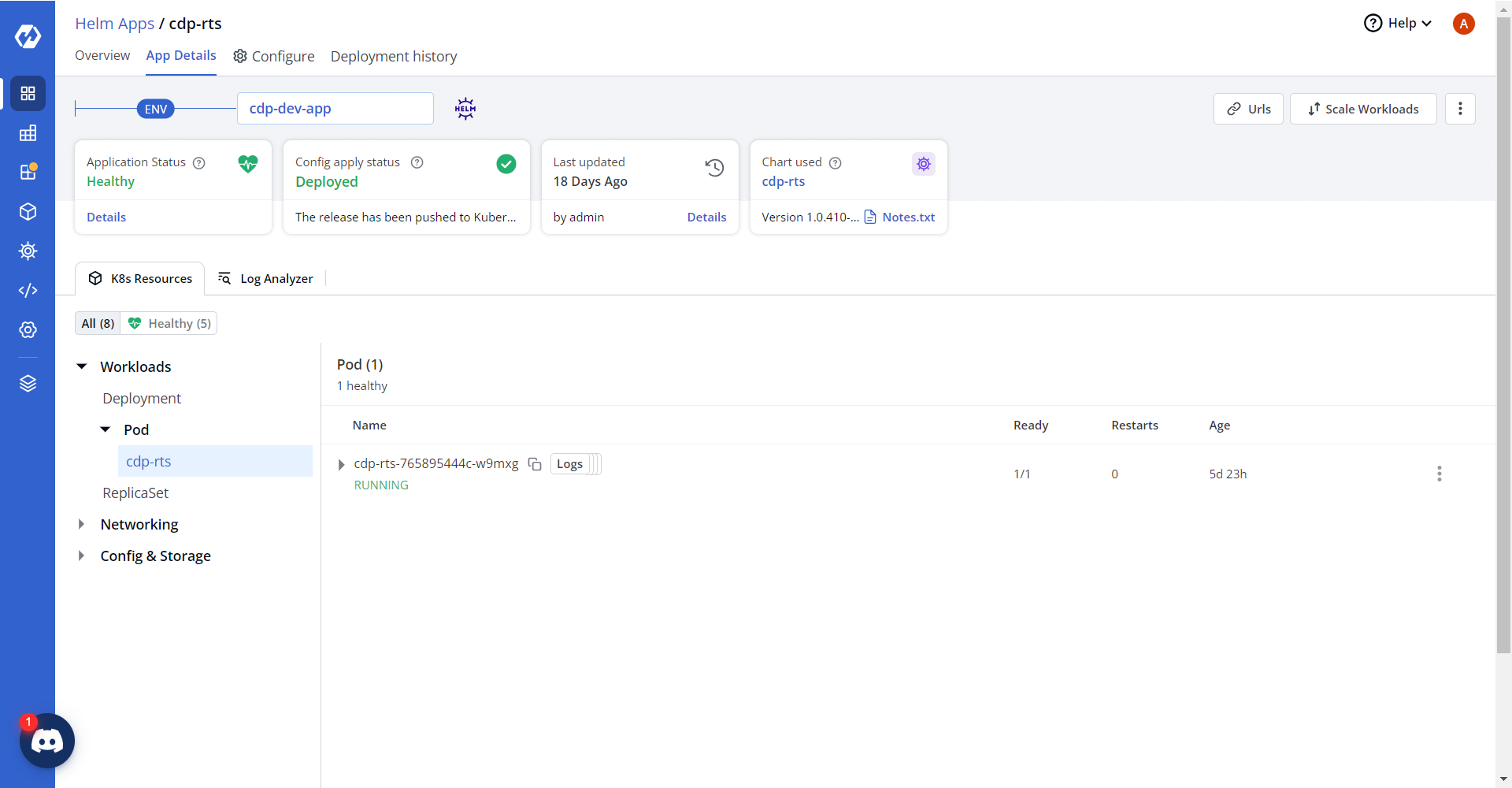

4. On successful deployment, validate the deployment as shown below.
