Deploying CDP DMP SST Maps

Prerequisites:

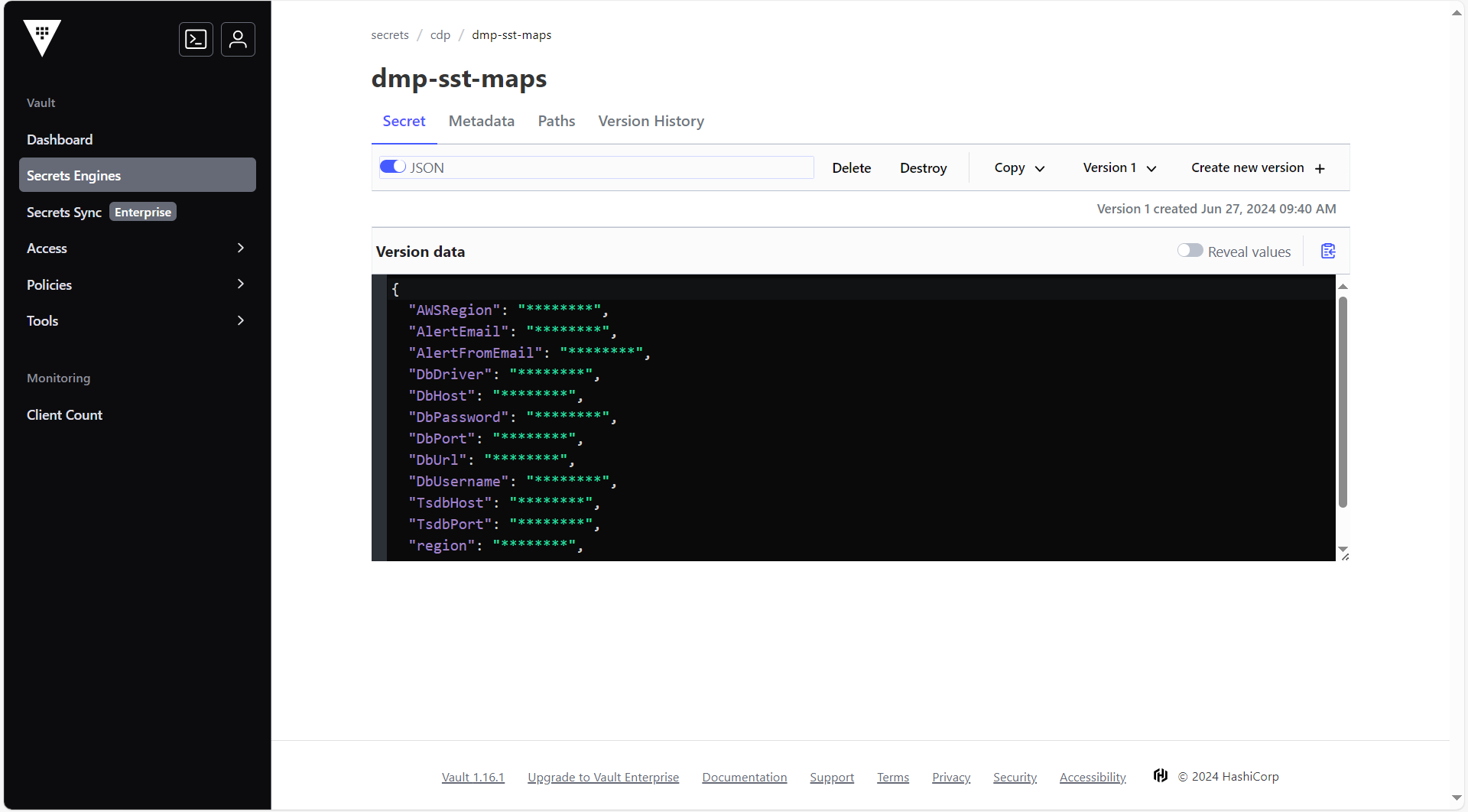

Make sure to create UI secret with required data in HashiCorp vault before deploying CDP DMP SST Maps.

To create the UI secret in HashiCorp Vault, follow the steps below:

1. Create a UI secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "AWSRegion": "<AWSRegion>",
     "AlertEmail": "",
     "AlertFromEmail": "",
     "DbDriver": "<com.mysql.cj.jdbc.Driver>",
     "DbHost": "<DbHost>",
     "DbPassword": "<DbPassword>",
     "DbPort": "<DbPort>",
     "DbUrl": "jdbc:mysql://ip:port/dbName",
     "DbUsername": "<DbUsername>",
     "TsdbHost": "<TsdbHost>",
     "TsdbPort": "<TsdbPort>",
     "region": "<region>",
     "type": "<b-aero-7-nodes>"
   }

Deploying CDP DMP Maps

To deploy the CDP DMP Maps, follow these steps below:

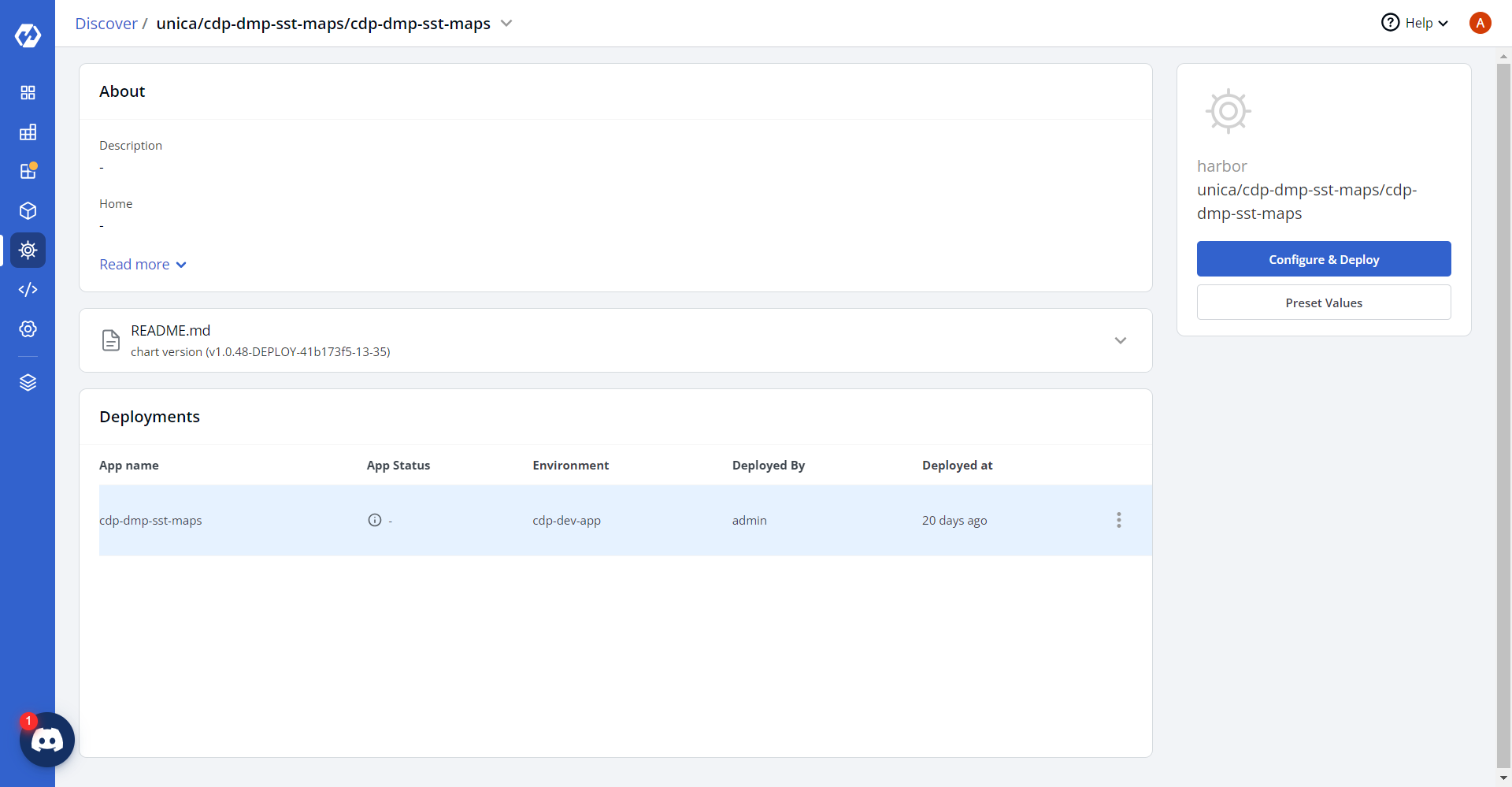

1. Navigate to the Devtron Chart Store, and select the cdp-dmp-sst-maps chart to deploy.



2. Now, configure and deploy the CDP DMP SST Maps charts.

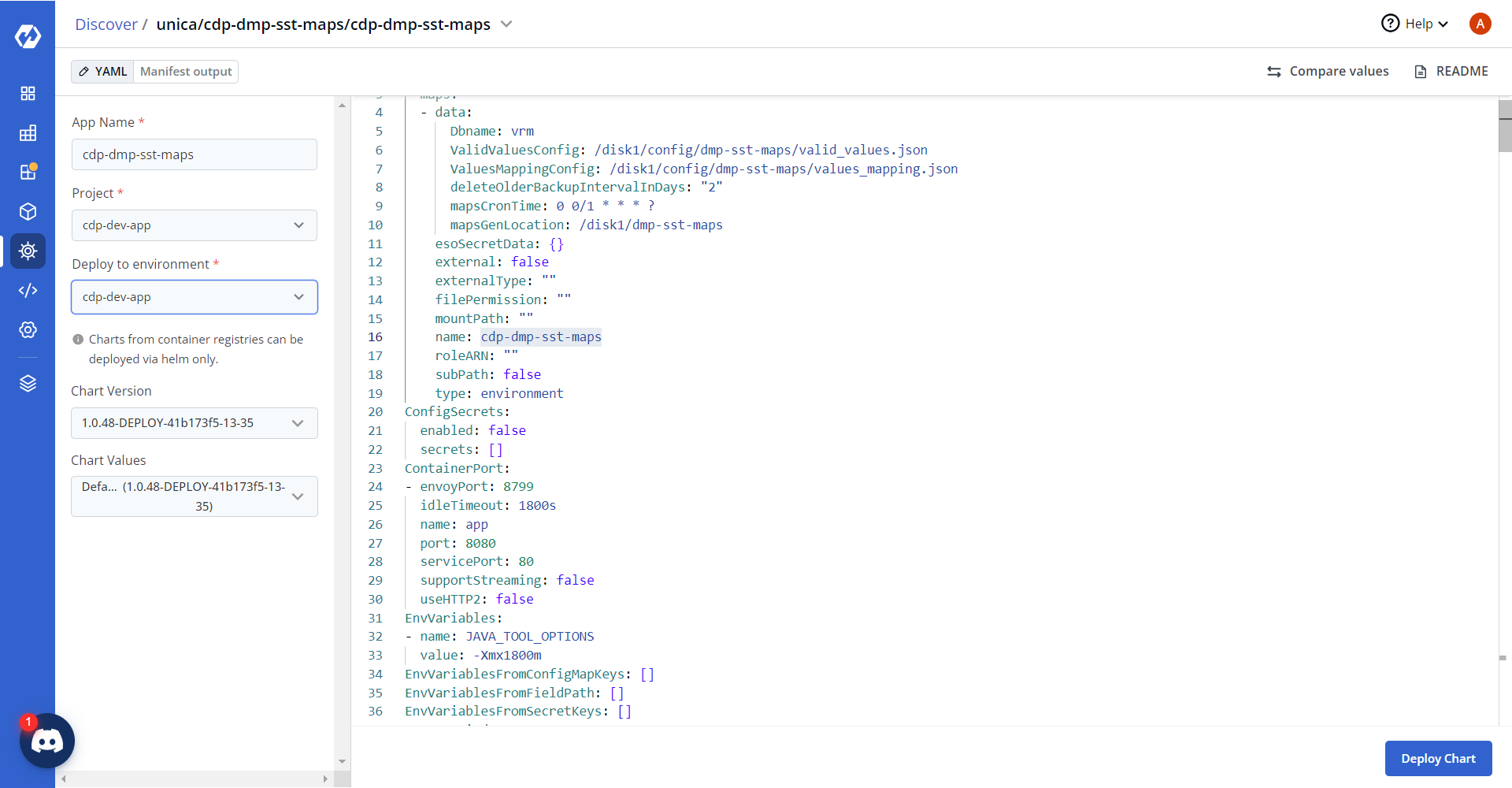

3. In the YAML section, update the ConfigMap using below details, and deploy the charts.

   ValidValuesConfig: /disk1/config/dmp-sst-maps/valid_values.json
   ValuesMappingConfig: /disk1/config/dmp-sst-maps/values_mapping.json
   mapsGenLocation: /disk1/dmp-sst-maps
   DbName: <DbName>

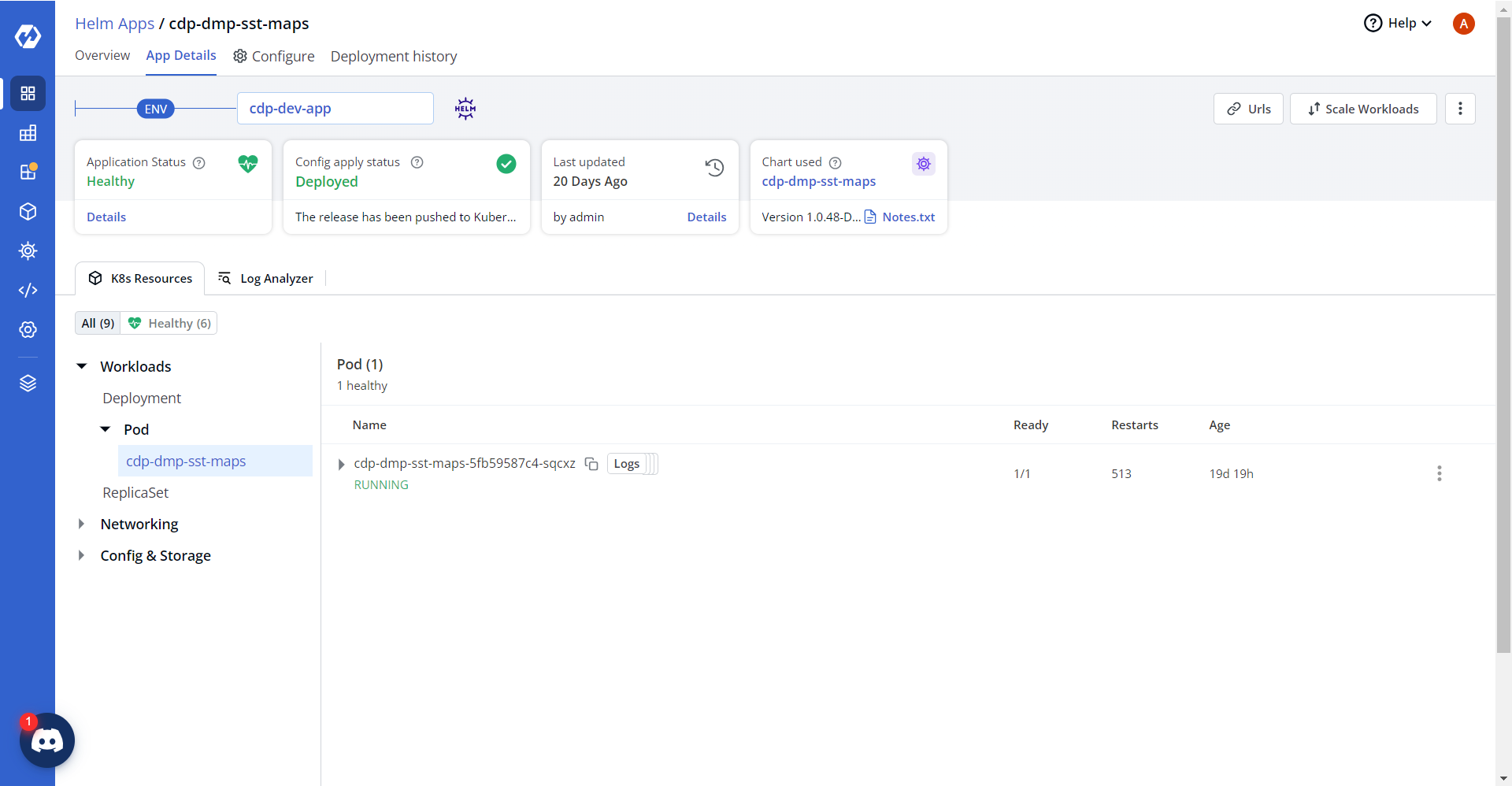

4. On successful deployment, validate the deployment as shown below.
