Deploying CDP KMS Service

Prerequisites:

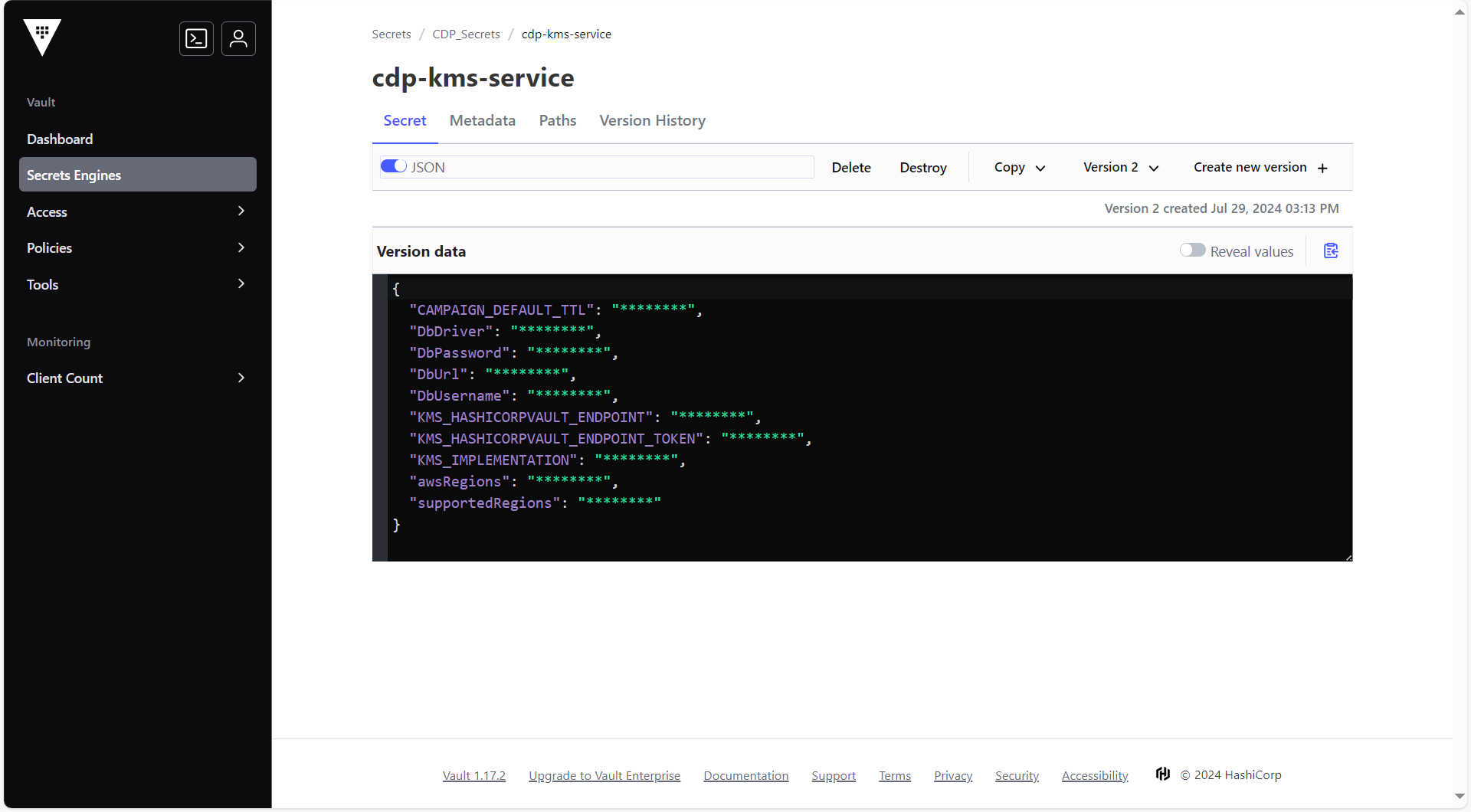

Make sure to create UI secret with required data in HashiCorp vault before deploying CDP KMS Service.

To create the UI secret in HashiCorp Vault, follow the steps below:

1. Create a UI secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "CAMPAIGN_DEFAULT_TTL": "21600",
     "DbDriver": "<DbDriver>",
     "DbPassword": "<DbPassword>",
     "DbUrl": "<DbUrl>",
     "DbUsername": "<DbUsername>",
     "KMS_HASHICORPVAULT_ENDPOINT": "<KMS_HASHICORPVAULT_ENDPOINT>",
     "KMS_HASHICORPVAULT_ENDPOINT_TOKEN": "<KMS_HASHICORPVAULT_ENDPOINT_TOKEN>",
     "KMS_IMPLEMENTATION": "HashiCorpVault",
     "awsRegions": "ap-south-1",
     "supportedRegions": "aps1"
   }

Deploying CDP KMS Service

To deploy the CDP KMS Service, follow these steps below:

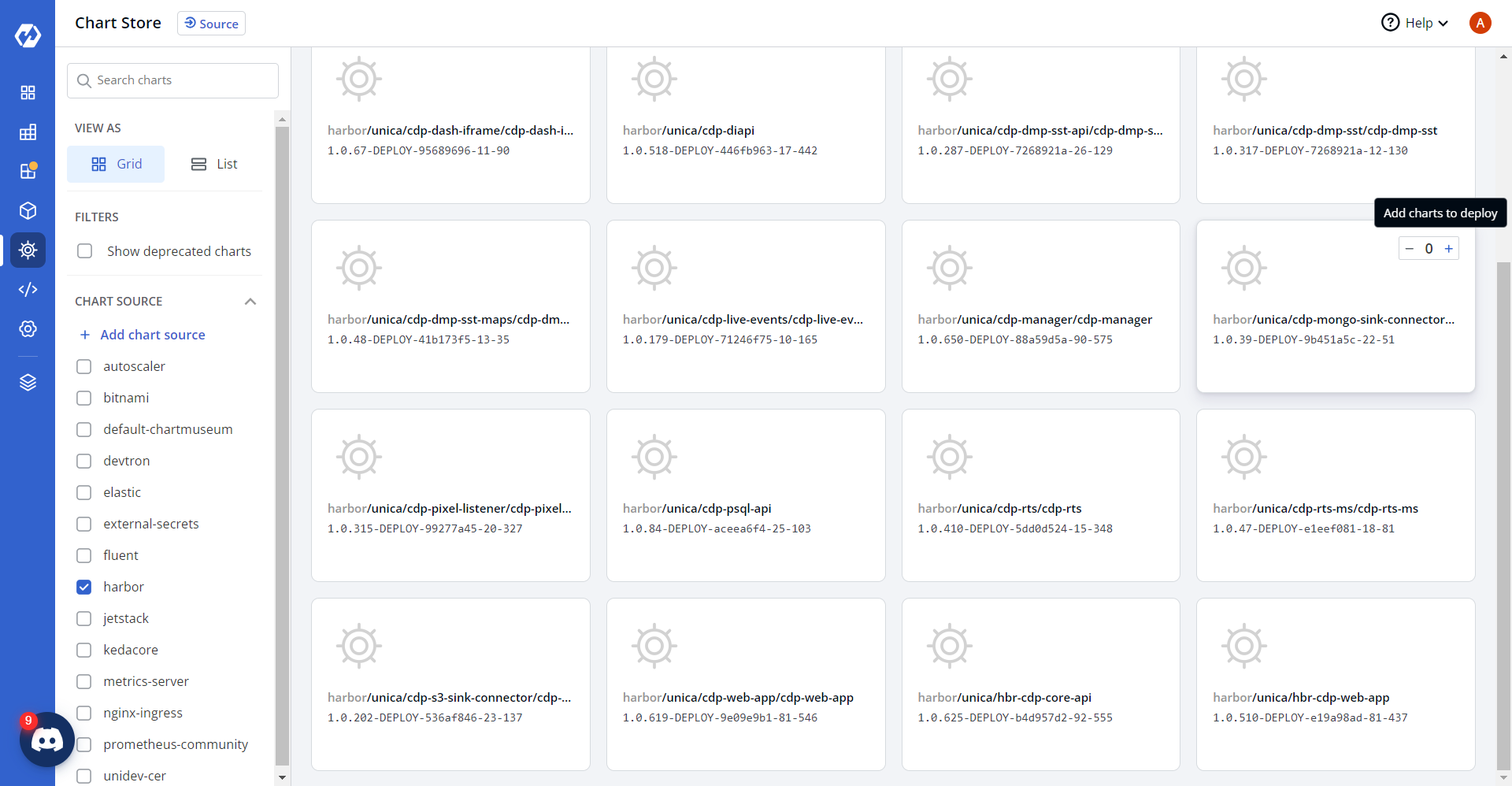

1. Navigate to the Devtron Chart Store, and select the cdp-mongo-sink-connector chart to deploy.



2. Now, configure and deploy the CDP KMS Service.

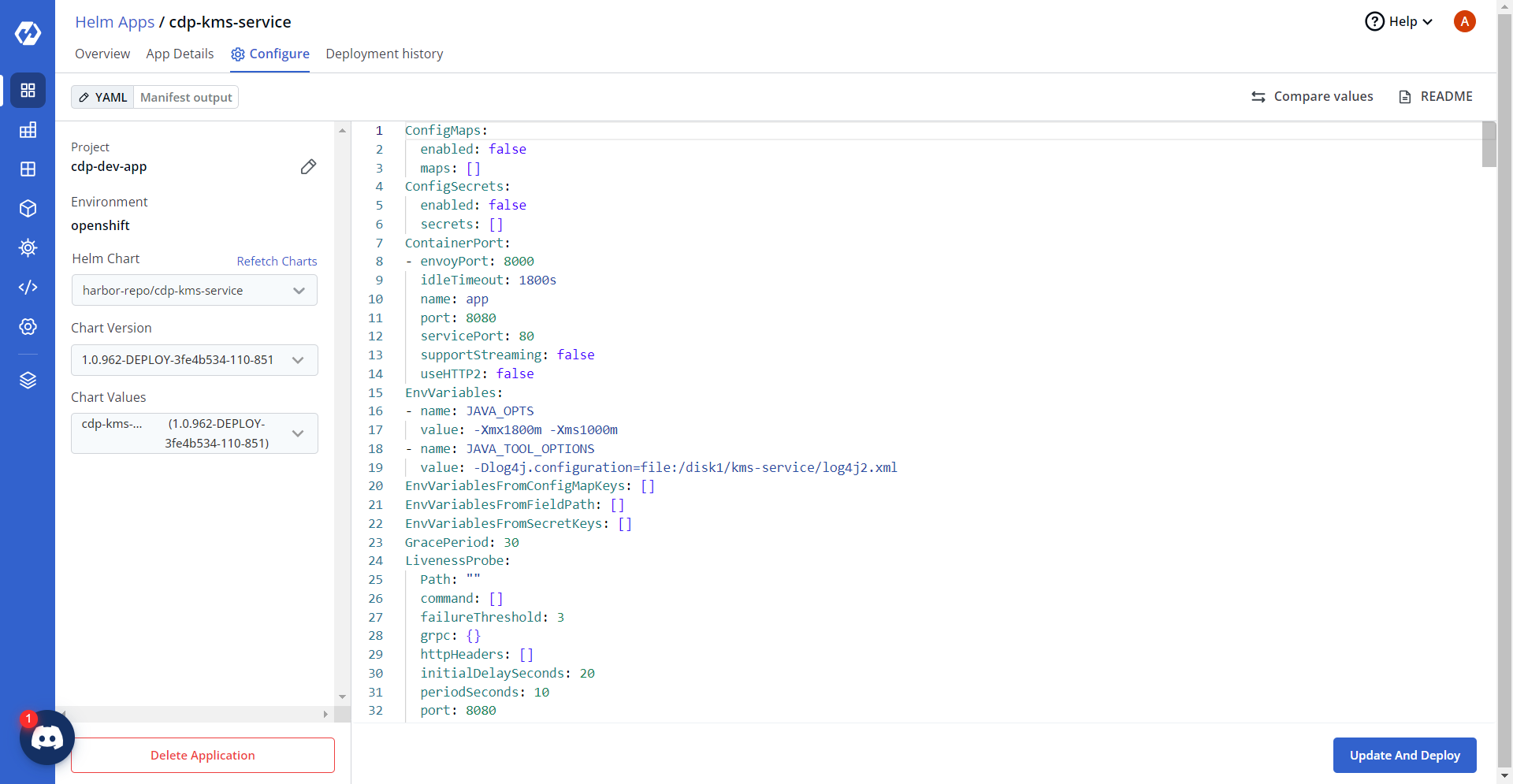

3. In the YAML section, update the ConfigMap using below details, and deploy the charts.

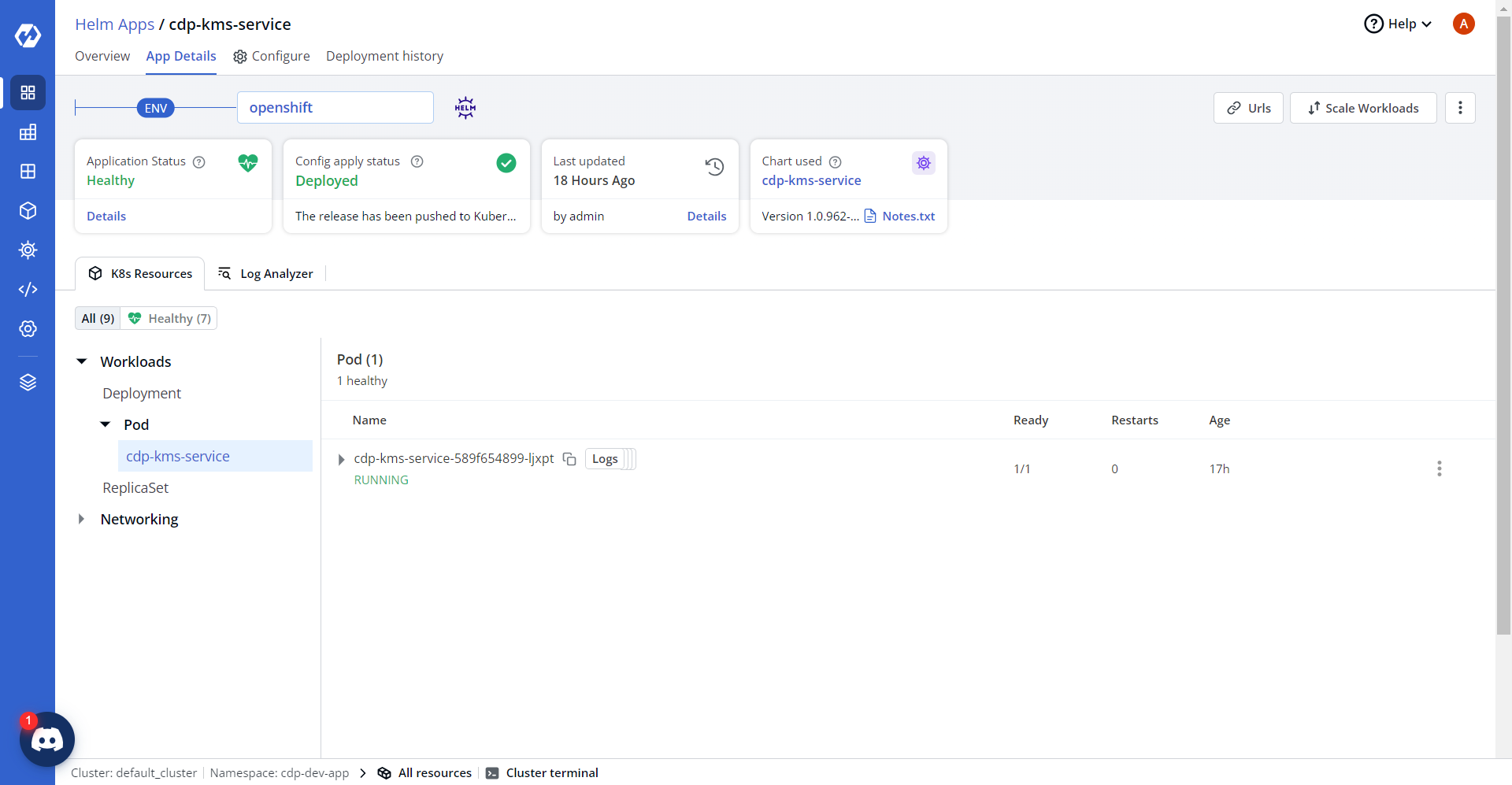

4. On successful deployment, validate the deployment as shown below.
