Deploying CDP Admin UI Backend

This section provides detailed instructions on how to deploy HCL CDP Admin UI Backend using the Devtron in the OpenShift.

Prerequisites:

Make sure to create UI secret with required data in HashiCorp vault before deploying CDP admin UI.

To create the UI secret in HashiCorp Vault, follow the steps below:

  1. Create a UI secret sample key and value in the UI secret shown below, and update the actual values.
    {
  "AKAMAI_HOST": "",
  "AKAMAI_KEY": "",
  "AKAMAI_KEY_NAME": "",
  "AKAMAI_PATH": "",
  "AKAMAI_PURGE_AUTH_KEY": "",
  "API_KEY_1": "",
  "API_KEY_2": "",
  "API_KEY_3": "",
  "API_KEY_4": "",
  "API_KEY_5": "",
  "API_KEY_6": "",
  "API_SECRET_1": "",
  "API_SECRET_2": "",
  "API_SECRET_3": "",
  "API_SECRET_4": "",
  "API_SECRET_5": "",
  "API_SECRET_6": "",
  "AUTH_TOKEN": "",
  "NEXT_PUBLIC_CLIENT_ID": "",
  "NEXT_PUBLIC_CLIENT_SECRET": "",
  "NEXT_PUBLIC_FROALA_SECRET": "",
  "NEXT_PUBLIC_GOOGLE_CLIENT_ID": "",
  "NEXT_PUBLIC_GOOGLE_CLIENT_SECRET": "",
  "NEXT_PUBLIC_RECAPTCHA_KEY": "",
  "REACT_APP_CLIENT_ID": "",
  "REACT_APP_S3_ACCESS_KEY_ID": "",
  "REACT_APP_S3_SECRET_KEY": "",
  "auAuthKey": "",
  "auEndpoint": "",
  "host": "",
  "muAuthKey": "",
  "muEndpoint": "",
  "password": "",
  "sesEmail": "",
  "sesPassword": "",
  "smtpFrom": "",
  "smtpHost": "",
  "smtpPassword": "",
  "smtpPort": "",
  "smtpUser": "",
  "usAuthKey": "",
  "usEndpoint": "",
  "user": ""
}
  2. Create a Kubernetes Secret with Vault credentials to fetch the secrets from the vault.
    apiVersion: v1
kind: Secret
metadata:
  name: vault-creds
  namespace: cdp-dev-app
type: Opaque
data:
  username: <vault username>
  password: <vault password>
  3. Create separate service account say cdp-dev-app-sa, with appropriate roles and permissions, and update ConfigMaps data with actual values.

Deploying CDP Admin UI Backend

To deploy the CDP admin UI backend, follow these steps below:

  1. Navigate to the Devtron Chart Store, and select the cdp-admin-ui-backend chart to deploy.
  2. Now, configure and deploy the admin UI charts.

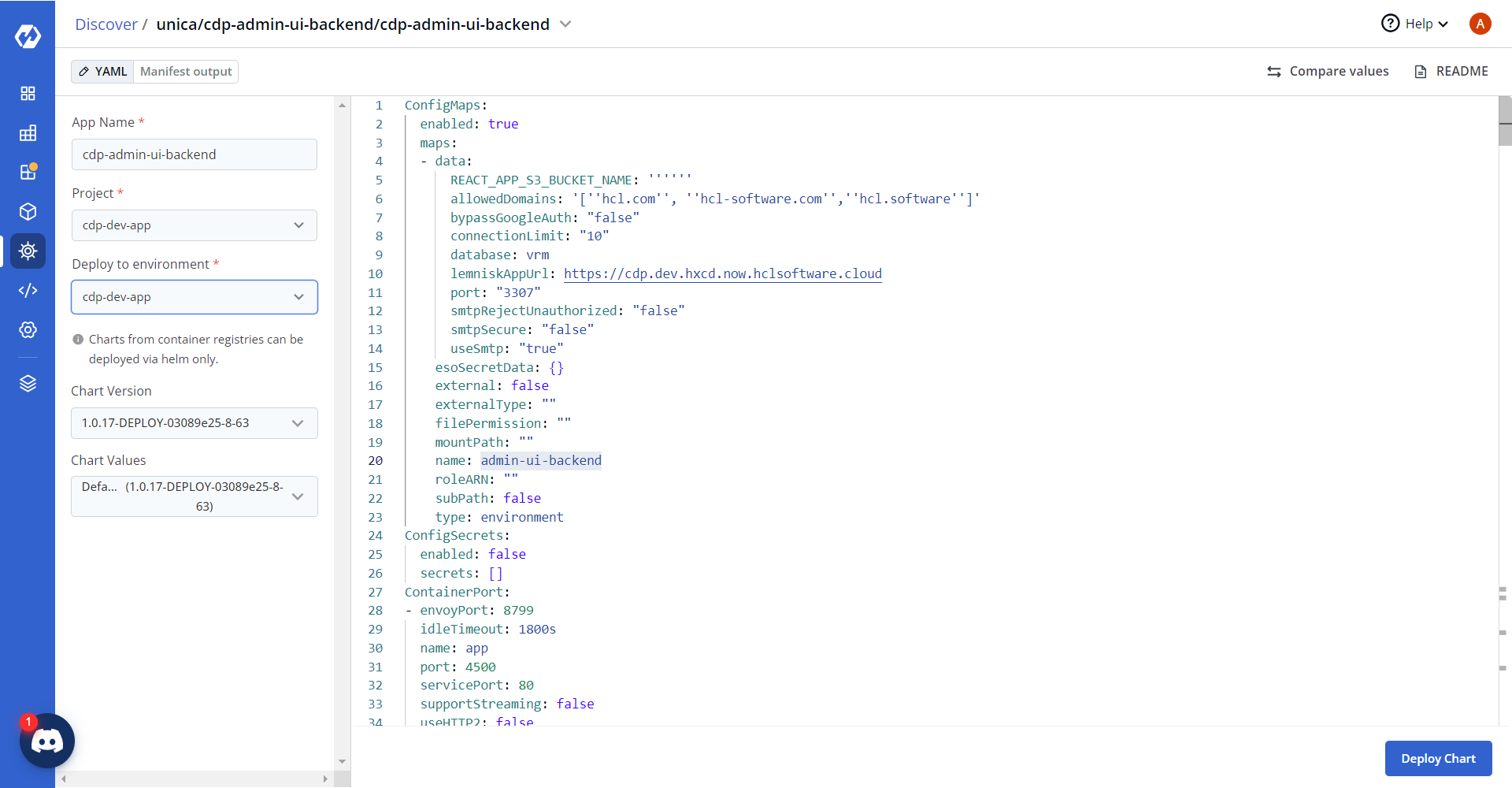

  3. In the YAML section, update the ConfigMap using below details and deploy the charts.
    REACT_APP_S3_BUCKET_NAME: ''''''
allowedDomains: '[''hcl.com'', ''hcl-software.com'',''hcl.software'',''hclpnp.com'']'
bypassGoogleAuth: "false"
connectionLimit: "10"
database:< MySQL_DB_Name>
lemniskAppUrl: <WebApp_URL>
port: "<3306>"
smtpRejectUnauthorized: "false"
smtpSecure: "false"
useSmtp: "true"

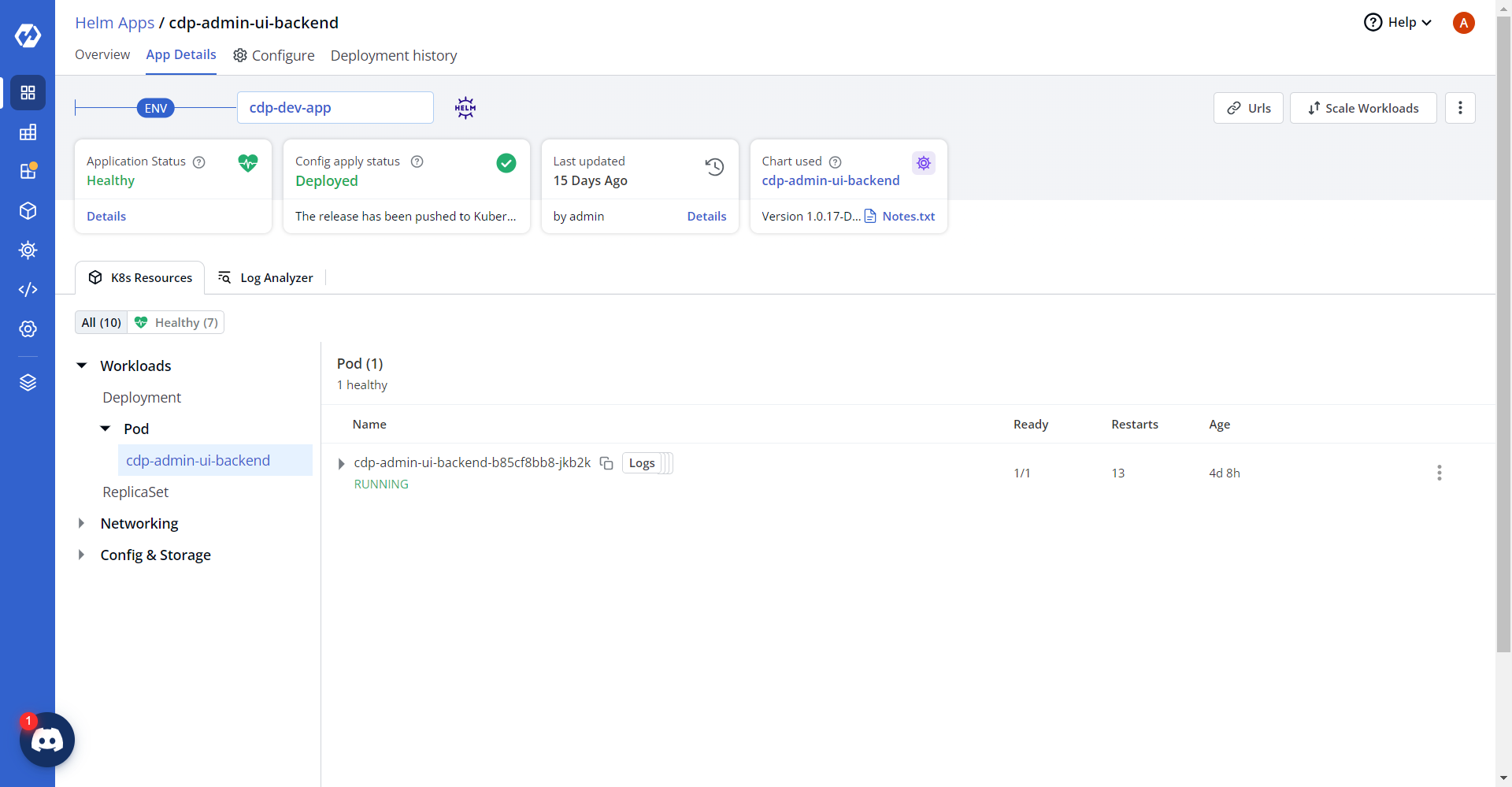

  4. On successful deployment, validate the deployment as shown below.
