Deploying CDP Dash IFrame

This section provides detailed instructions on how to deploy HCL CDP Dash IFrame using the Devtron in the OpenShift.

Prerequisites:

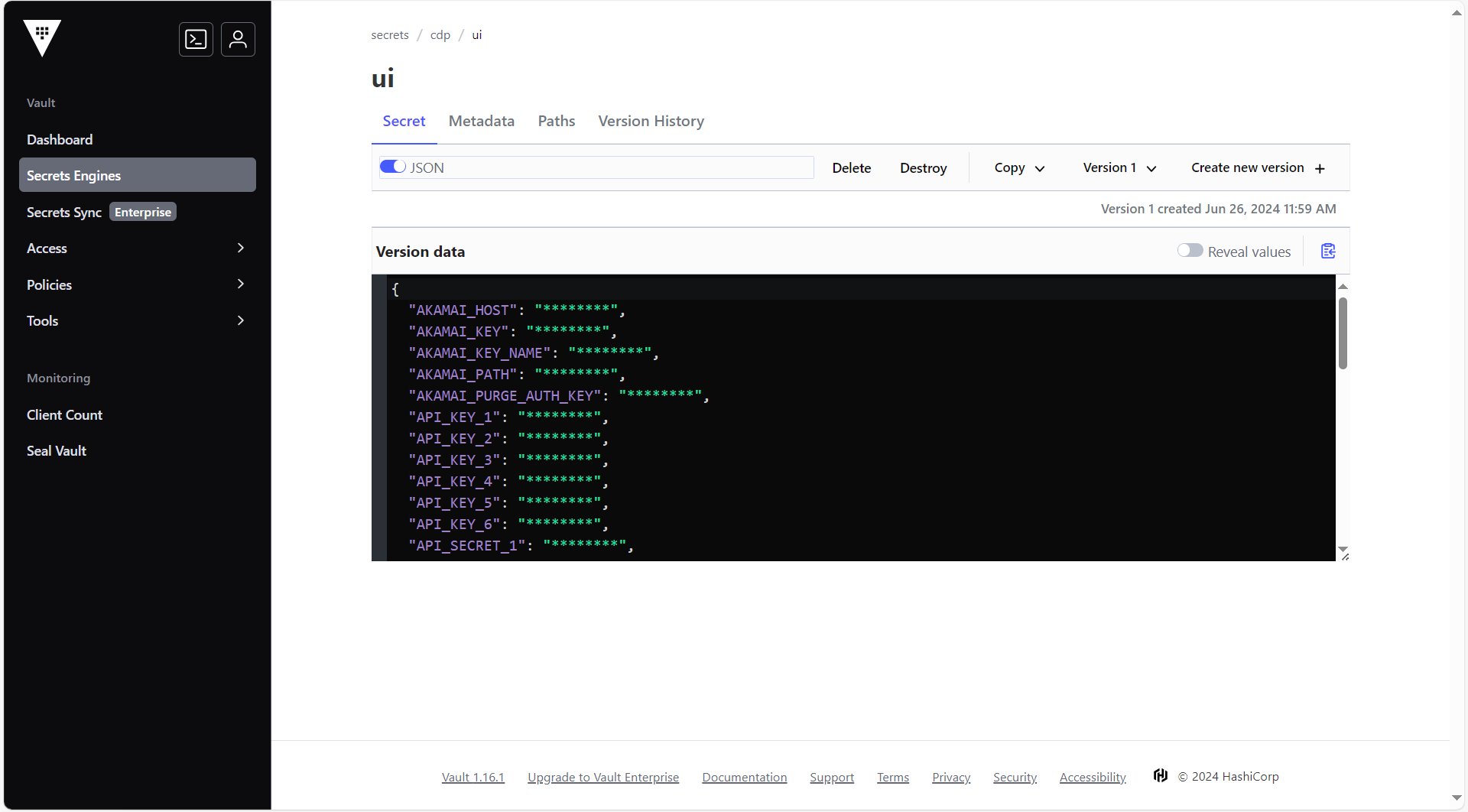

Make sure to create UI secret with required data in HashiCorp vault before deploying CDP Dash IFrame.

Deploying CDP Dash IFrame

To deploy the CDP Dash IFrame, follow these steps below:

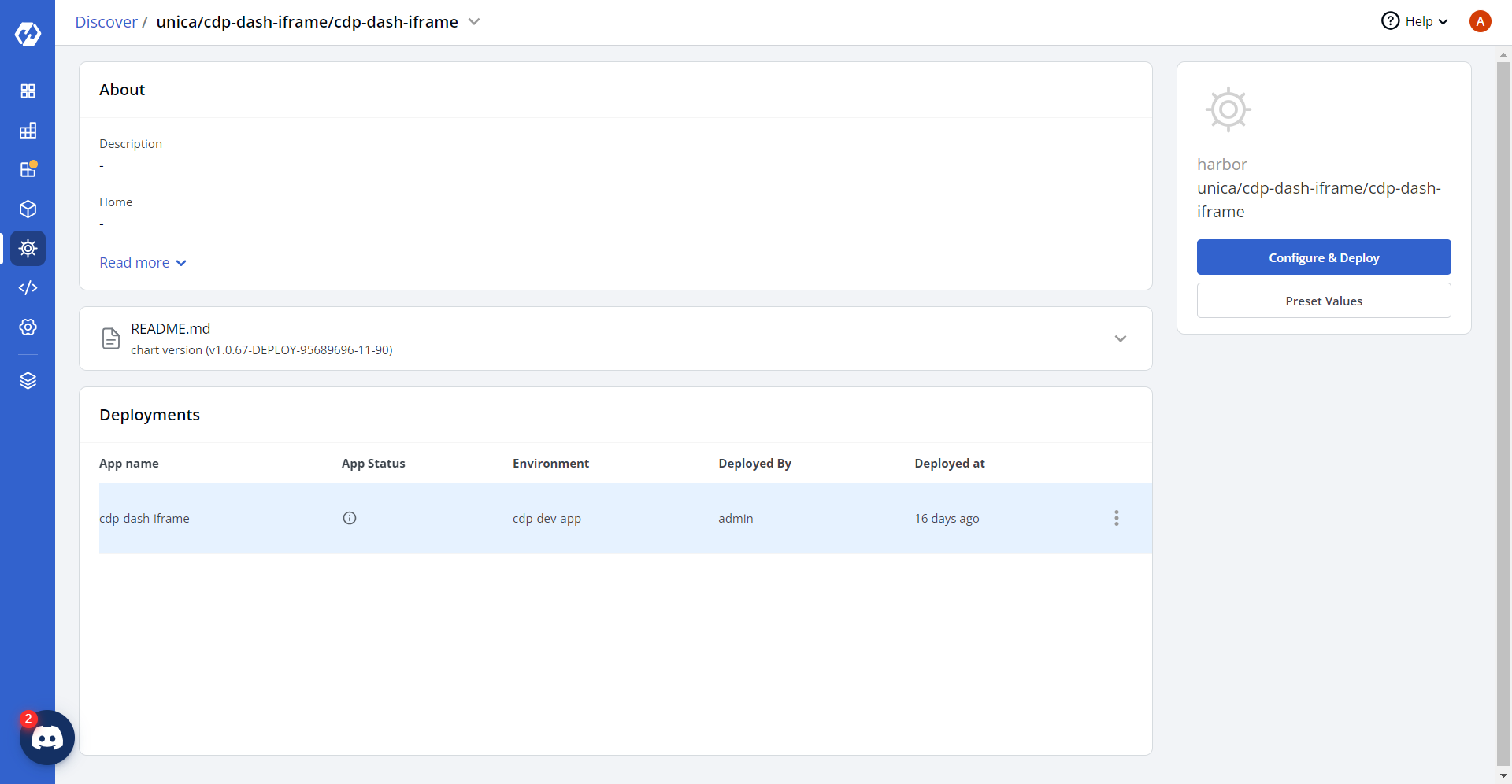

  1. Navigate to the Devtron Chart Store, and select the cdp-dash-iframe chart to deploy.

  2. Now, configure and deploy the CDP Dash IFrame charts.

  3. In the YAML section, update the ConfigMap using below details and deploy the charts.
    NEXT_PUBLIC_CDN_PATH: '""'
 NEXT_PUBLIC_CORE_API_BASE_URL:<CORE_API_BASE_URL>
NEXT_PUBLIC_DASH_BACKEND_BASE_URL: <DASH_BACKEND_BASE_URL>
NEXT_PUBLIC_LIVE_EVENTS_URL: <LIVE_EVENTS_URL>
NEXT_PUBLIC_NODE_ENV: '""'
NEXT_PUBLIC_THINK_DESIGN_URL: '""'
cdn_path: '""'
core_api:<core_api_url>
dashbackend:<dashbackend_url>
lemui: '""'
live_event_url: <live_event_url>

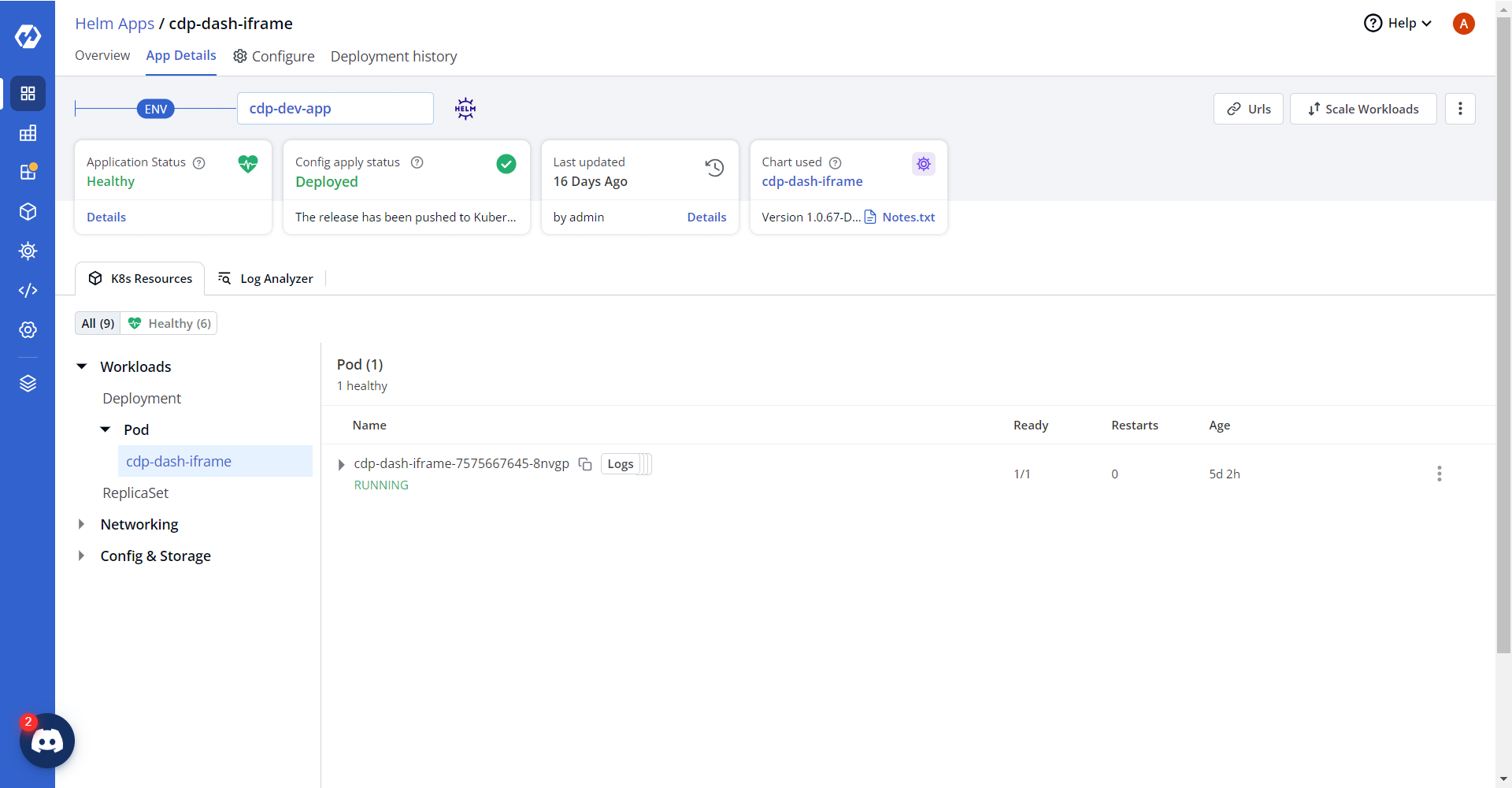

  4. On successful deployment, validate the deployment as shown below.
