Deploying CDP Core API

Prerequisites:

Make sure to create UI secret with required data in HashiCorp vault before deploying CDP core api.

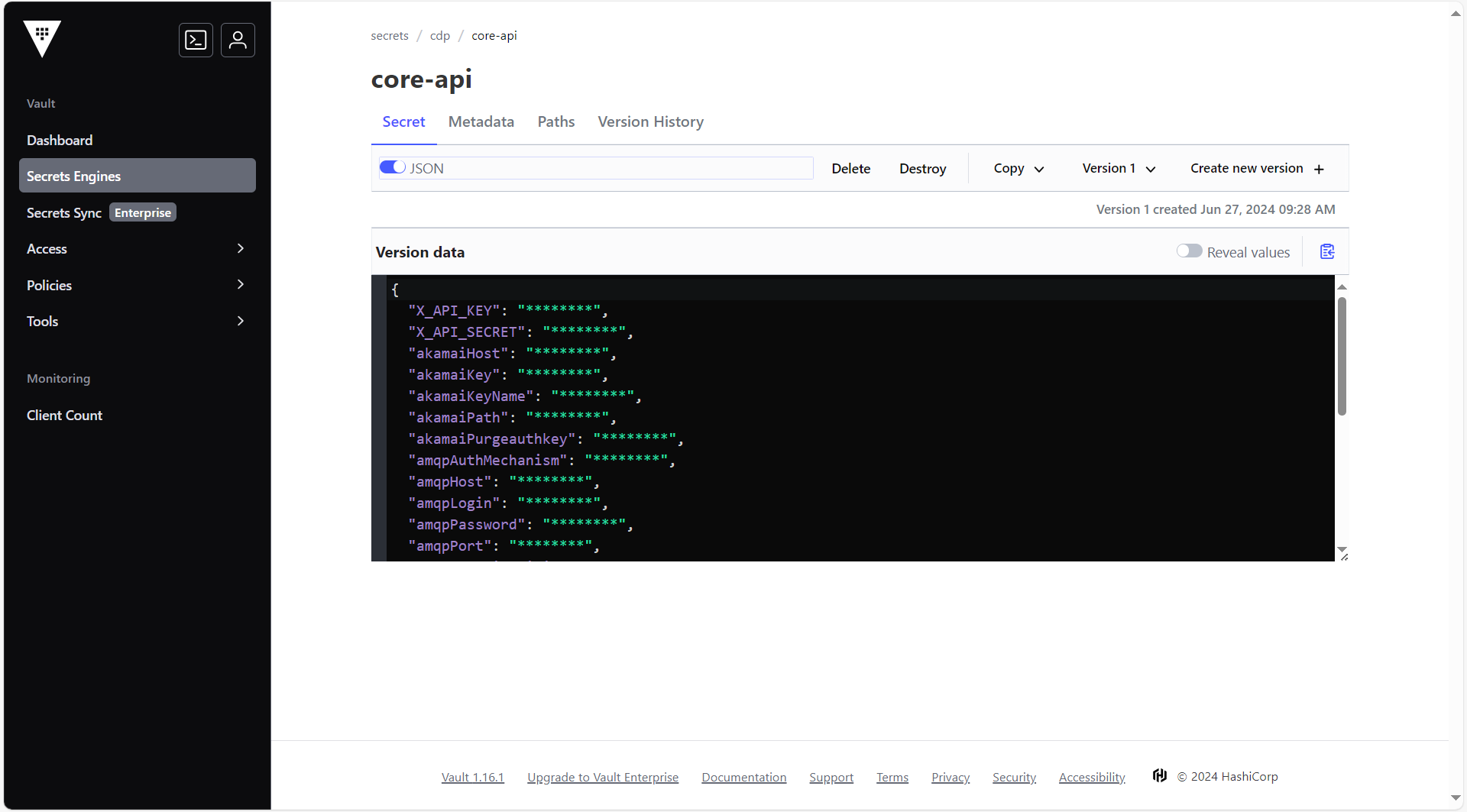

To create the UI secret in HashiCorp Vault, follow the steps below:

1. Create a UI secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "X_API_KEY": "\"\"",
     "X_API_SECRET": "\"\"",
     "akamaiHost": "\"\"",
     "akamaiKey": "\"\"",
     "akamaiKeyName": "\"\"",
     "akamaiPath": "\"\"",
     "akamaiPurgeauthkey": "\"\"",
     "amqpAuthMechanism": "\"\"",
     "amqpHost": "\"\"",
     "amqpLogin": "\"\"",
     "amqpPassword": "\"\"",
     "amqpPort": "\"\"",
     "dbConnectionLimit": "\"80\"",
     "dbDatabase": "\"<dbName>\"",
     "dbHost": "\"<dbHost>\"",
     "dbPassword": "\"<dbPassword>\"",
     "dbPort": "\"<dbPort>\"",
     "dbUser": "\"<dbUser>\"",
     "lemnisk_mailId": "\"\"",
     "lemnisk_mailPassword": "\"\"",
     "mailId": "\"\"",
     "mailPassword": "\"\"",
     "stagingS3AccessKey": "\"\"",
     "stagingSecretAccessKey": "\"\"",
     "userIdentifierAuthKey": "\"<userIdentifierAuthKey>\""
   }

Deploying CDP CORE API

To deploy the CDP core API, follow these steps below:

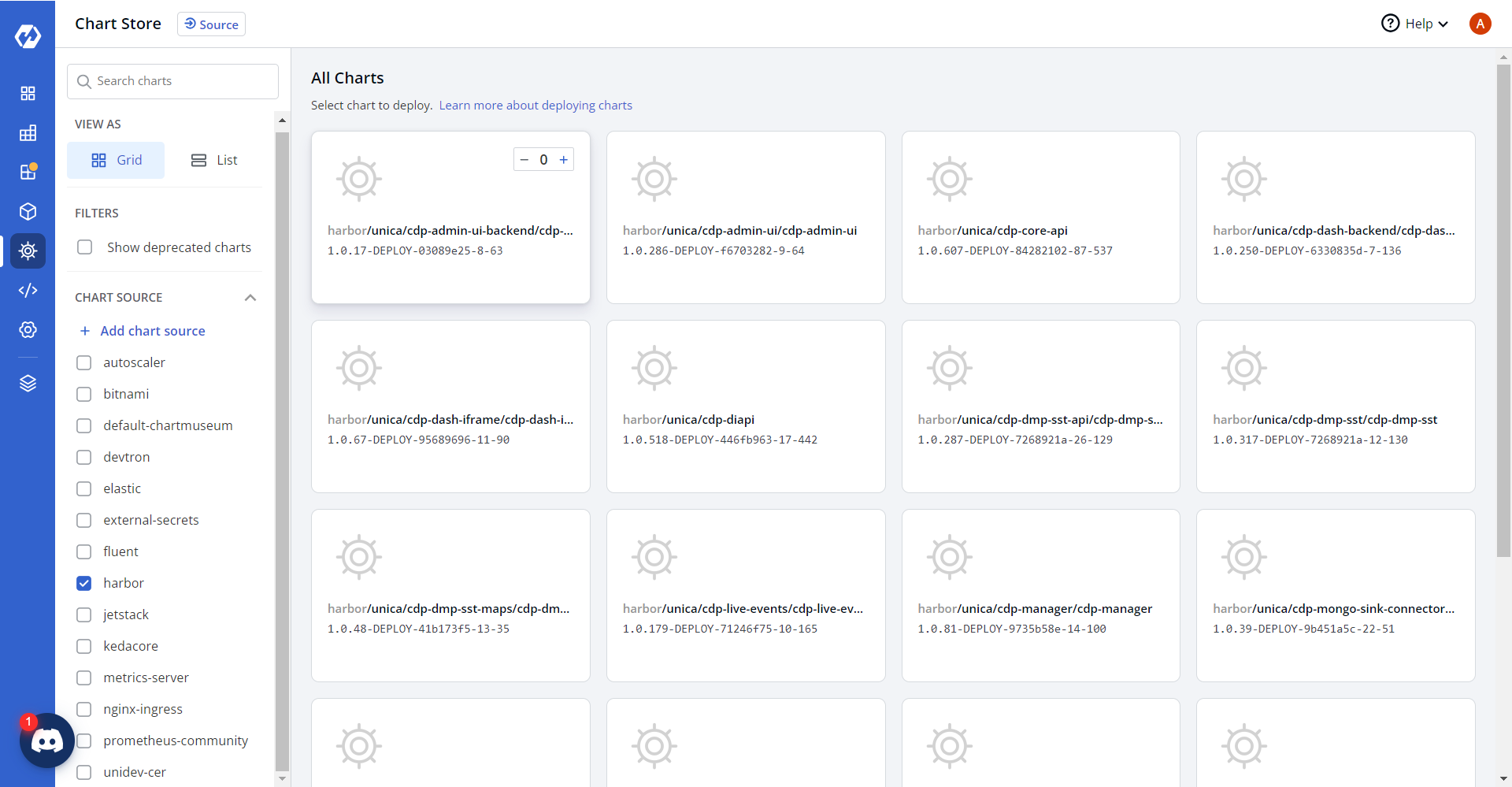

1. Navigate to the Devtron Chart Store, and select the cdp-core-api chart to deploy.

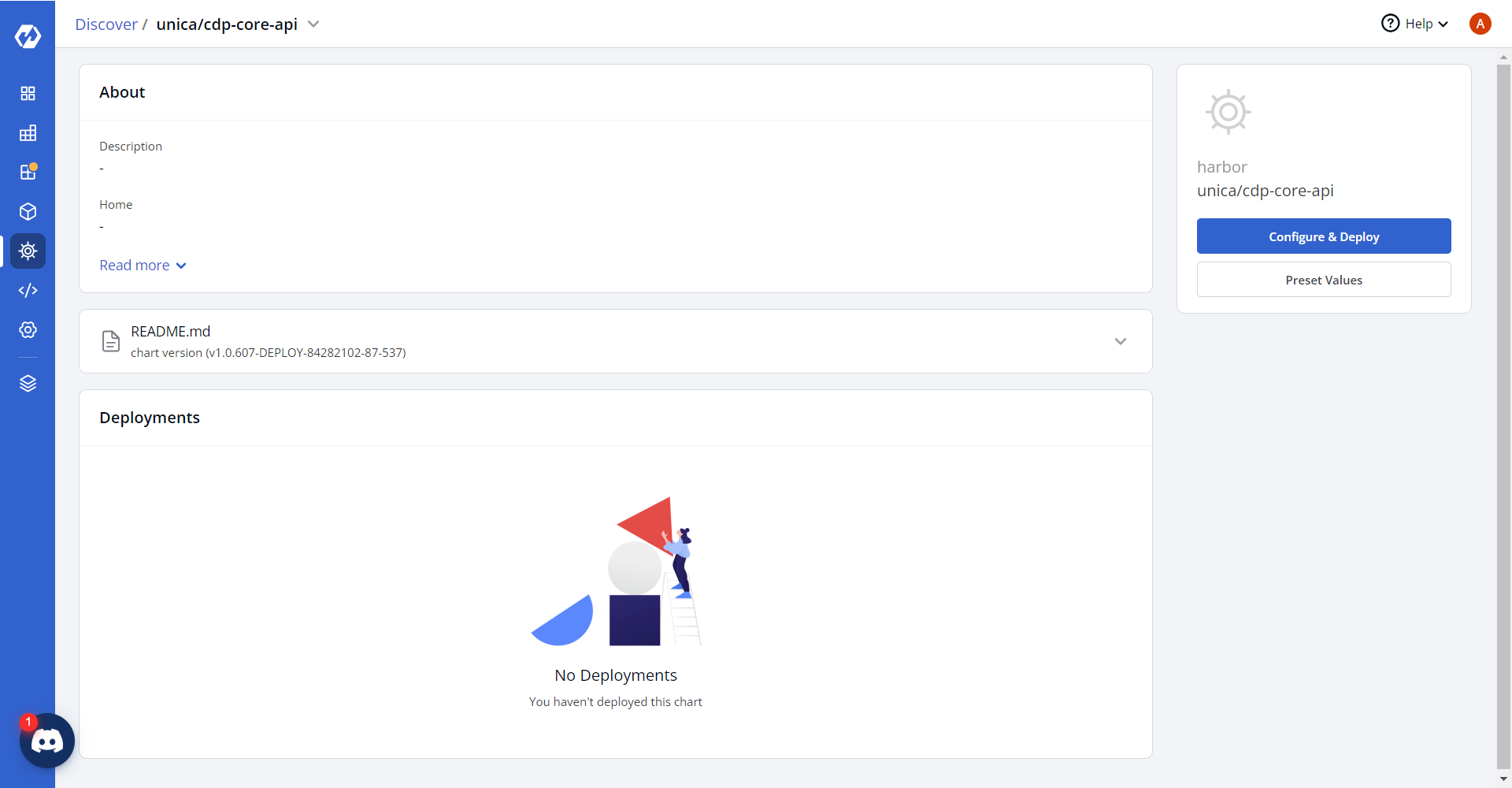

2. Now, configure and deploy the cdp core api charts.

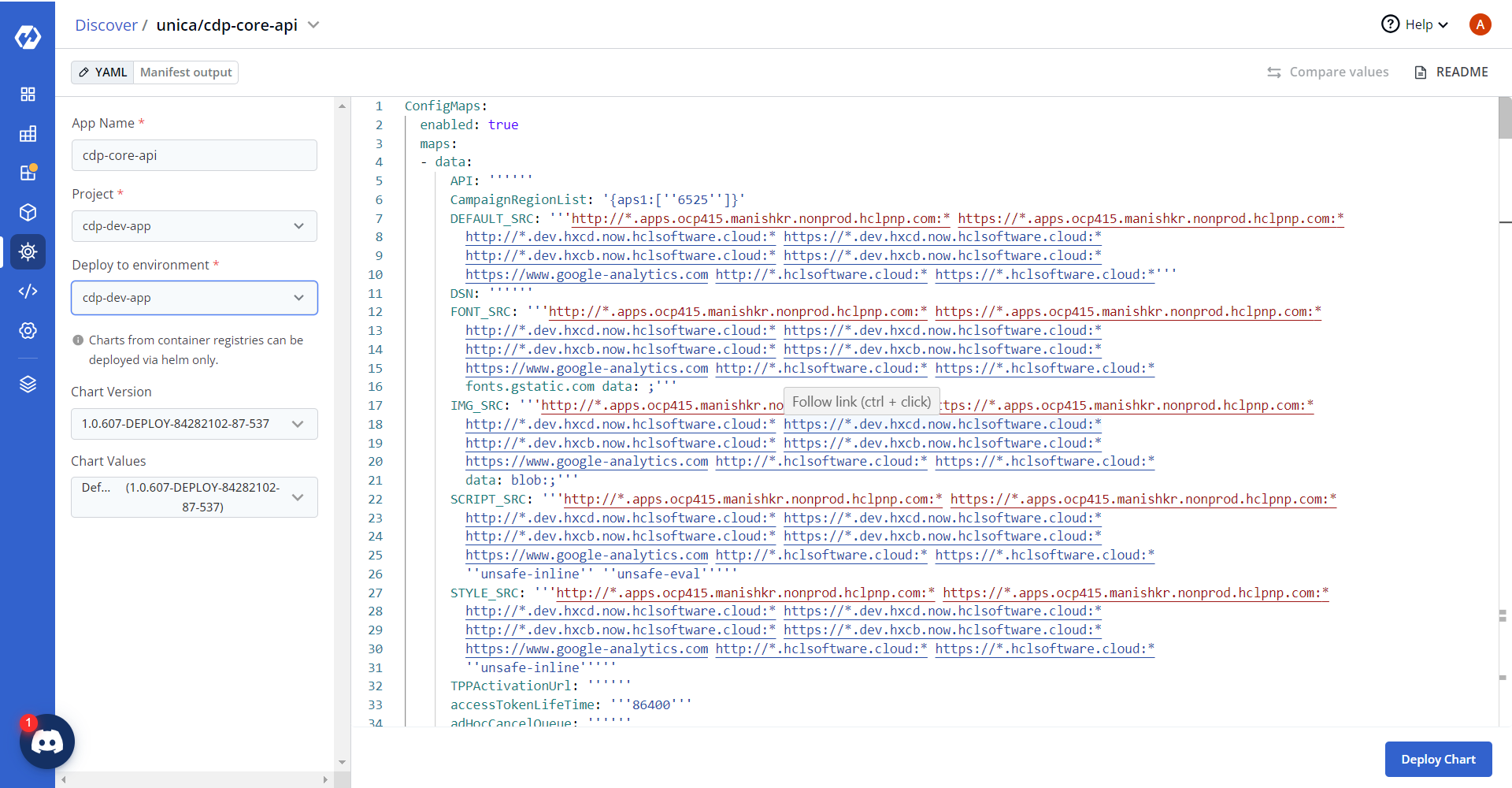

3. In the YAML section, update the ConfigMap using below details and deploy the charts.

   CampaignRegionList: '{aps1:[''6525'']}'
   DEFAULT_SRC:
   FONT_SRC:
   IMG_SRC:
   SCRIPT_SRC:
   STYLE_SRC:
   DOMAIN:
   cdpDashboardService:
   druidURL:
   kms_decrypt:
   kms_encrypt:
   kms_region:
   muUserIdentifierDomain:
   psql_endpoint:
   psql_host:
   rts_endpoint:
   s3Bucket:
   usUserIdentifierDomain:
   segmentUserListuploadsBucket:
   uploadsBucket

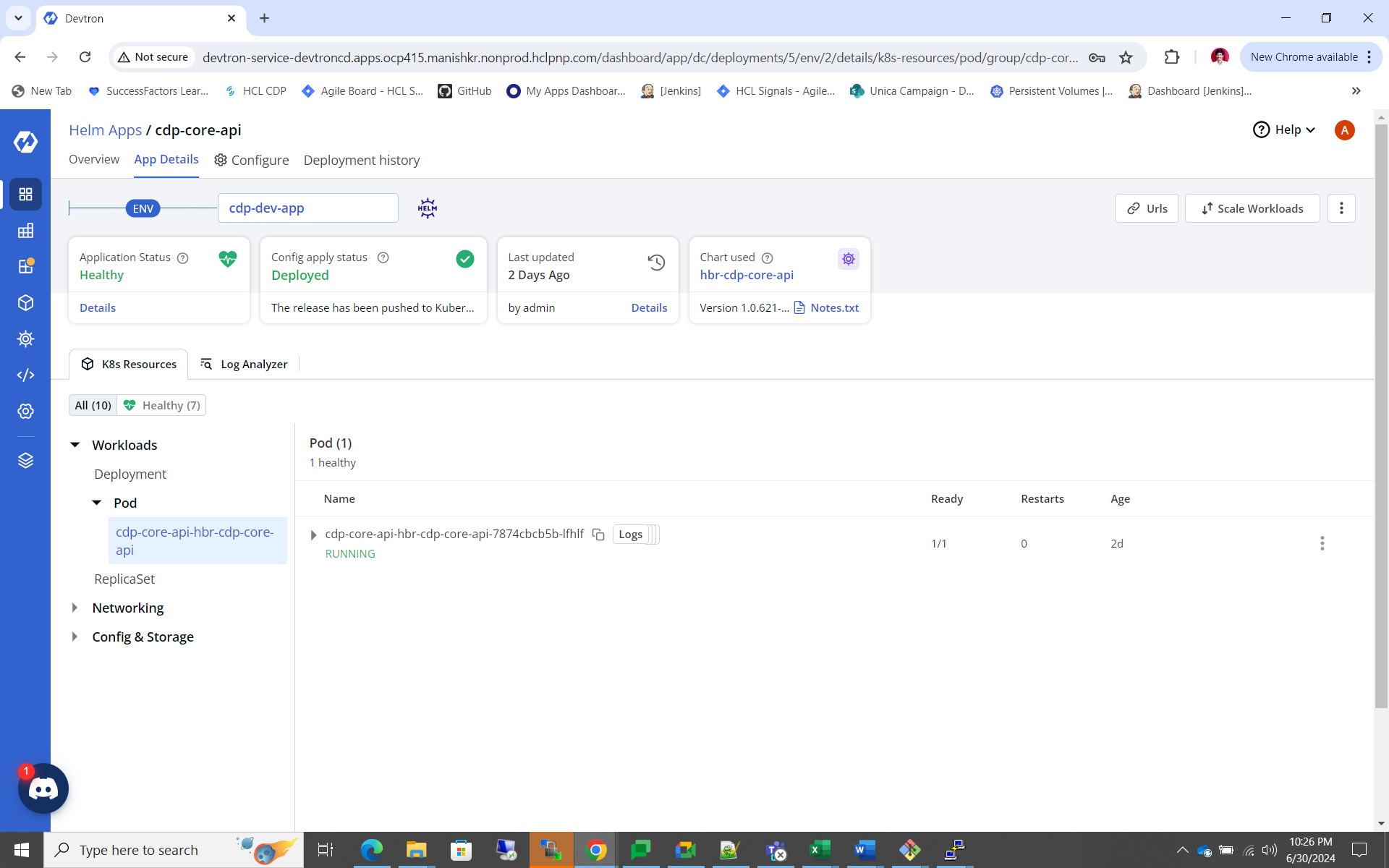

4. On successful deployment, validate the deployment as shown below.
