Generate Blocked WDAC Event Logs on Endpoint v2.x

This deprecated task extracts Windows Defender Application Control (WDAC) block events from two Windows event log sources — Microsoft-Windows-CodeIntegrity/Operational and Microsoft-Windows-AppLocker/MSI and Script — for a configurable timeframe of 1 to 14 days. It filters audit-mode event IDs 3076, 3034, and 8028 ("would be blocked") and enforced-mode event IDs 3077, 3033, 8029, and 8040 ("blocked"), then outputs a structured JSON report to BAC\WDAC_Reports\WDAC_Blocked_Events.json for dashboard ingestion, policy analysis, or BigFix Web Reports.

About this task

Important:
This task is deprecated and will be removed from BigFix Application Control v2.x in near future.
The task performs the following actions:
  • Collects events from:
    • Microsoft-Windows-CodeIntegrity/Operational
    • Microsoft-Windows-AppLocker/MSI and Script
  • Filters for block-related event IDs:
    • Audit mode (would be blocked): 3076, 3034, 8028
    • Enforced mode (blocked): 3077, 3033, 8029, 8040
  • Applies a configurable time frame of 1 to 14 days.
  • Extracts the following key event details:
    • Timestamp
    • Event ID
    • Mode (Audit / Enforced)
    • Log source
    • Machine name
    • User SID
    • Event message
  • Outputs the results as a structured JSON file to BAC\WDAC_Reports\WDAC_Blocked_Events.json file.
  • Writes the execution logs to the BAC\Logs\WDAC_Blocked_Events.log file.
Refer to the table below to know more about the task's exit code.
Table 1. Generate Blocked WDAC Event Logs v2.0: Task Exit Codes and Meanings
Exit Code Meaning
0 Success
10 Invalid time frame
20 BAC path not found
30 Event query failure
40 No events found
50 Report generation failure

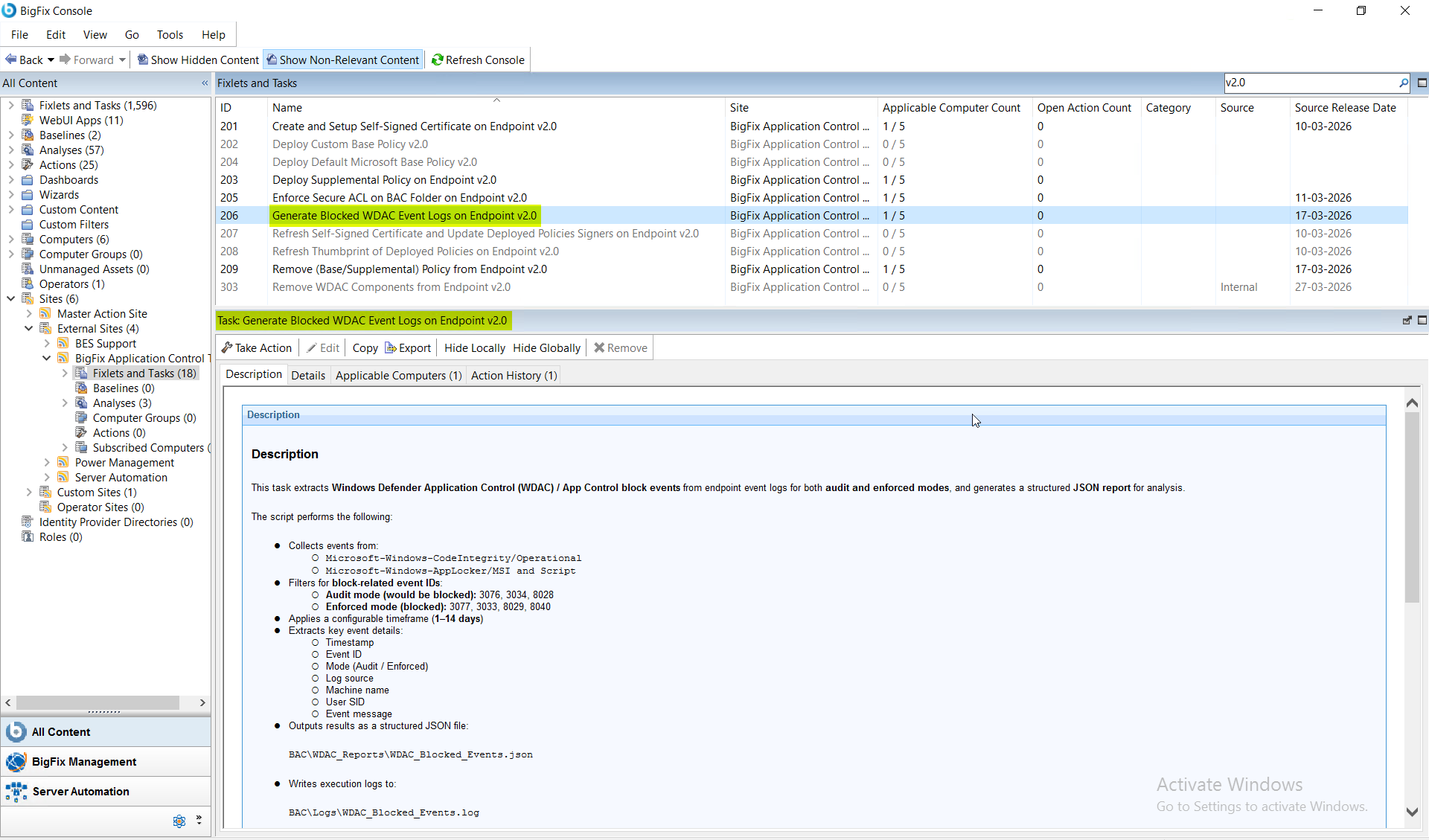

Figure 1. BigFix Console — Generate Blocked WDAC Event Logs on Endpoint v2.0 Task Overview

BigFix Console showing the Generate Blocked WDAC Event Logs on Endpoint v2.0 task in the Fixlets and Tasks pane, displaying the task workflow: event collection from Microsoft-Windows-CodeIntegrity/Operational and Microsoft-Windows-AppLocker/MSI and Script sources, filtering for audit-mode block event IDs 3076, 3034, and 8028 and enforced-mode block event IDs 3077, 3033, 8029, and 8040, applying a 1-to-14-day configurable timeframe, extracting seven event fields (timestamp, event ID, mode, log source, machine name, user SID, event message), and outputting a structured JSON report to BAC\WDAC_Reports\WDAC_Blocked_Events.json.

Procedure

  1. In the BigFix Console, navigate to All Content > BigFix Application Control > Fixlets and Tasks.
  2. From the Fixlets and Tasks pane, select Task: Generate Blocked WDAC Event Logs on Endpoint v2.0.
  3. From the Task: Generate Blocked WDAC Event Logs on Endpoint v2.0 pane, under Configuration Options, enter the following information:

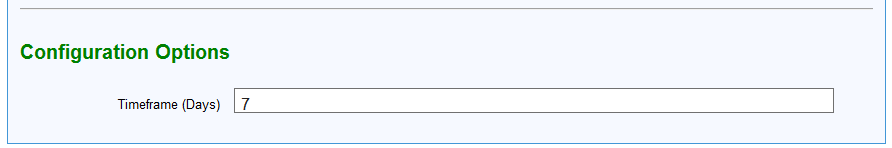

    Figure 2. BigFix Console — Generate Blocked WDAC Event Logs v2.0: Configuration Options Panel Showing Timeframe Days Input

    BigFix Console showing the Configuration Options panel for the Generate Blocked WDAC Event Logs on Endpoint v2.0 task, with the Timeframe (Days) input field where the administrator specifies the number of days (1 to 14) for which block events will be collected from the Microsoft-Windows-CodeIntegrity/Operational and Microsoft-Windows-AppLocker/MSI and Script event log sources and written to the WDAC_Blocked_Events.json report.
    Table 2. Generate Blocked WDAC Event Logs v2.0: Configuration Options Parameter Descriptions
    Field Name Description
    Timeframe (Days) Number of days for which the event logs will be generated.
  4. From the Task: Generate Blocked WDAC Event Logs on Endpoint v2.0 pane, click the Applicable Computers(n) tab and view the endpoints on which you want to run the task.
  5. Select the Take Actions tab and select the endpoints on which you want to apply this installer task.
  6. Click OK.

Results

A successful execution of this task results in the following outcomes:
  • WDAC block events, both audit and enforced are extracted.
  • Clean, structured JSON report is generated in the BAC folder.
  • Data ready for ingestion into dashboards, analysis, or for BigFix® reporting.
