Deploy a Default Microsoft WDAC Base Policy on Endpoint v2.x

This deprecated task deploys a signed Windows Defender Application Control (WDAC) base policy on the endpoint using a secure, hash-validated workflow. Select from seven Microsoft-recommended baseline policy templates — including AllowAll, AllowMicrosoft, DefaultWindows (Audit or Enforced), and RecommendedDriverBlock — and the task converts, signs, and deploys the policy to the EFI partition for firmware-level persistence and enforcement across reboots.

About this task

Important:
This task is deprecated and will be removed from BigFix Application Control v2.x in near future.
This deployment ensures that the policy is trusted, enforced, and persisted at the firmware level by placing it in the EFI partition. This enables strong application control, protecting the system from unauthorized or untrusted code execution.
The task performs the following actions:
  • Allows the selection of a Microsoft WDAC base policy template from the predefined options.
  • Dynamically downloads only the selected policy file using secure hash validation (SHA1/SHA256).
  • Copies the selected XML policy to the working directory.
  • Initializes or replaces the existing base policy with a new policy id.
  • Converts the policy from XML format to binary *.cip format.
  • Signs the policy using a trusted code-signing certificate.
  • Validates the signed output to ensure integrity.
  • Mounts the EFI system partition.
  • Deploys the signed policy to EFI\Microsoft\Boot\CiPolicies\Active location.
  • Triggers a policy refresh (if supported) or applies on reboot.
  • Logs all execution details (success/failure) to BAC\Logs\Deploy_WDAC_BasePolicy.log location.
Refer to the table below to know more about the task's exit code.
Table 1. Deploy Default Microsoft Base Policy v2.0: Task Exit Codes and Descriptions
Exit Code Meaning Description
0 Success The WDAC base policy was successfully processed, signed, and deployed.
10 Working directory creation failed The BAC working directory could not be created or accessed.
11 Log directory creation failed The logging directory could not be created, preventing execution tracking.
12 Policy directory creation failed The policy storage directory could not be initialized.
20 Template missing The selected WDAC policy template file was not found or failed to download.
30 Policy processing failure Error occurred during policy preparation, version, or rule configuration.
40 Binary conversion failure Failed to convert the WDAC policy from XML format to binary (.cip).
50 Signing failure The policy signing process failed or the signed output was not generated correctly.
60 Deployment failure Failed to mount the EFI partition or copy the policy to the target location.
70 Policy refresh failure The policy refresh process failed after deployment. A reboot may be required.

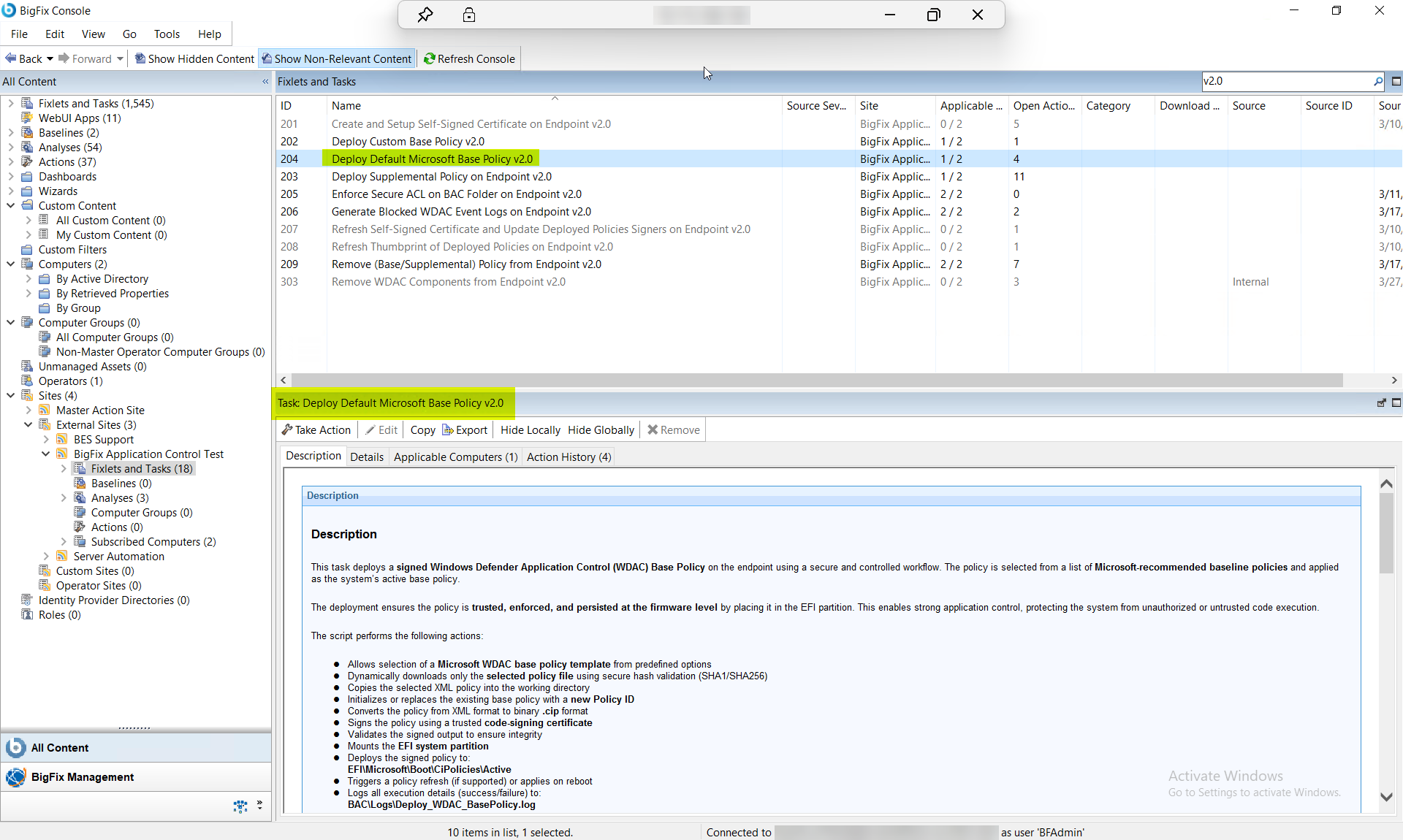

Figure 1. BigFix Console — Deploy Default Microsoft Base Policy v2.0 Task Overview

BigFix Console showing the Deploy Default Microsoft Base Policy v2.0 task in the Fixlets and Tasks pane, displaying the task description including the SHA1/SHA256 hash-validated download, XML-to-binary CIP conversion, code-signing certificate policy signing, EFI partition deployment to EFI\Microsoft\Boot\CiPolicies\Active, and BAC\Logs\Deploy_WDAC_BasePolicy.log execution logging.

Procedure

  1. In the BigFix Console, navigate to All Content > BigFix Application Control > Fixlets and Tasks.
  2. From the Fixlets and Tasks pane, select Task: Deploy Default Microsoft Base Policy v2.0.
  3. From the Task: Deploy Default Microsoft Base Policy v2.0 pane, under Configuration Options select one of the following policy options:
    Figure 2. BigFix Console — Deploy Default Microsoft Base Policy v2.0: Select Base Policy Configuration Options Panel

    BigFix Console showing the Configuration Options panel for the Deploy Default Microsoft Base Policy v2.0 task, with the Select Base Policy dropdown listing seven Microsoft-recommended WDAC base policy templates: AllowAll, AllowAll_EnableHVCI, AllowMicrosoft, DefaultWindows_Audit, DefaultWindows_Enforced, DenyAllAudit, and RecommendedDriverBlock_Enforced.
    Table 2. Deploy Default Microsoft Base Policy v2.0: Select Base Policy Options and Descriptions
    Field Name Options Description
    Select Base Policy AllowAll Permissive policy (allows all applications)
    AllowAll_EnableHVCI Permissive policy with HVCI support
    AllowMicrosoft Allows only Microsoft-signed binaries
    DefaultWindows_Audit Default Microsoft policy in audit mode
    DefaultWindows_Enforced Default Microsoft enforced policy (recommended baseline)
    DenyAllAudit Blocks all applications in audit mode
    RecommendedDriverBlock_Enforced Blocks known vulnerable drivers
  4. From the Task: Deploy Default Microsoft Base Policy v2.0 pane, click the Applicable Computers(n) tab and view the endpoints on which you want to run the task.
  5. Select the Take Actions tab and select the endpoints on which you want to apply this installer task.
  6. Click OK.

Results

A successful execution of this task results in the following outcomes:
  • The selected WDAC base policy is successfully deployed to the system.
  • The policy becomes the active enforcement policy for Application Control.
  • The system enforces or audits applications based on the selected policy type.
  • The policy persists across reboots via EFI deployment.
  • Execution logs become available for audit and troubleshooting.
