Deploy a Custom WDAC Base Policy on Endpoint v2.x

This deprecated task deploys a custom Windows Defender Application Control (WDAC) base policy on the endpoint from a user-provided XML configuration. The task automatically bumps the policy version if an older version exists, injects mandatory publisher rules for the BigFix Client, Refresh Tool, and SignTool, converts the policy from XML to binary CIP format, signs it with a trusted certificate, and deploys it to the EFI partition for firmware-level persistence and enforcement across reboots.

About this task

Important:

This task is deprecated and will be removed from BigFix Application Control v2.x in near future.

This deployment ensures that the custom policy is trusted, enforced, and persists at the firmware level by placing it in the EFI partition. The script also automatically handles version increments and injects necessary rules to ensure the BigFix client and deployment tools remain operational.

The task performs the following actions:

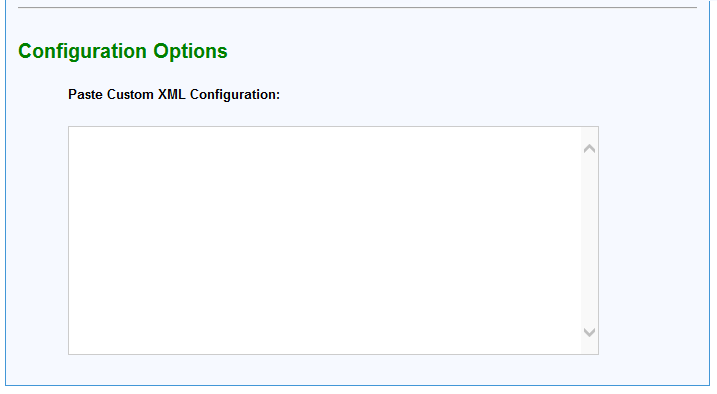

• Reads the user-provided Custom XML configuration.
• Dynamically bumps the policy version (if an older version already exists).
• Injects mandatory publisher rules (BigFix Client, Refresh Tool, SignTool).
• Configures rule options (adds 16, 17, 18 and removes 6).
• Converts the policy from XML format to binary *.cip format.
• Signs the policy using a trusted code-signing certificate.
• Validates the signed output to ensure integrity.
• Mounts the EFI system partition.
• Deploys the signed policy to EFI\Microsoft\Boot\CiPolicies\Active loaction.
• Triggers a policy refresh and safely dismounts the EFI partition.
• Logs all execution details (success/failure) to the BAC\Logs\Deploy_WDAC_CustomBase.log location.

Refer to the table below to know more about the task's exit code.

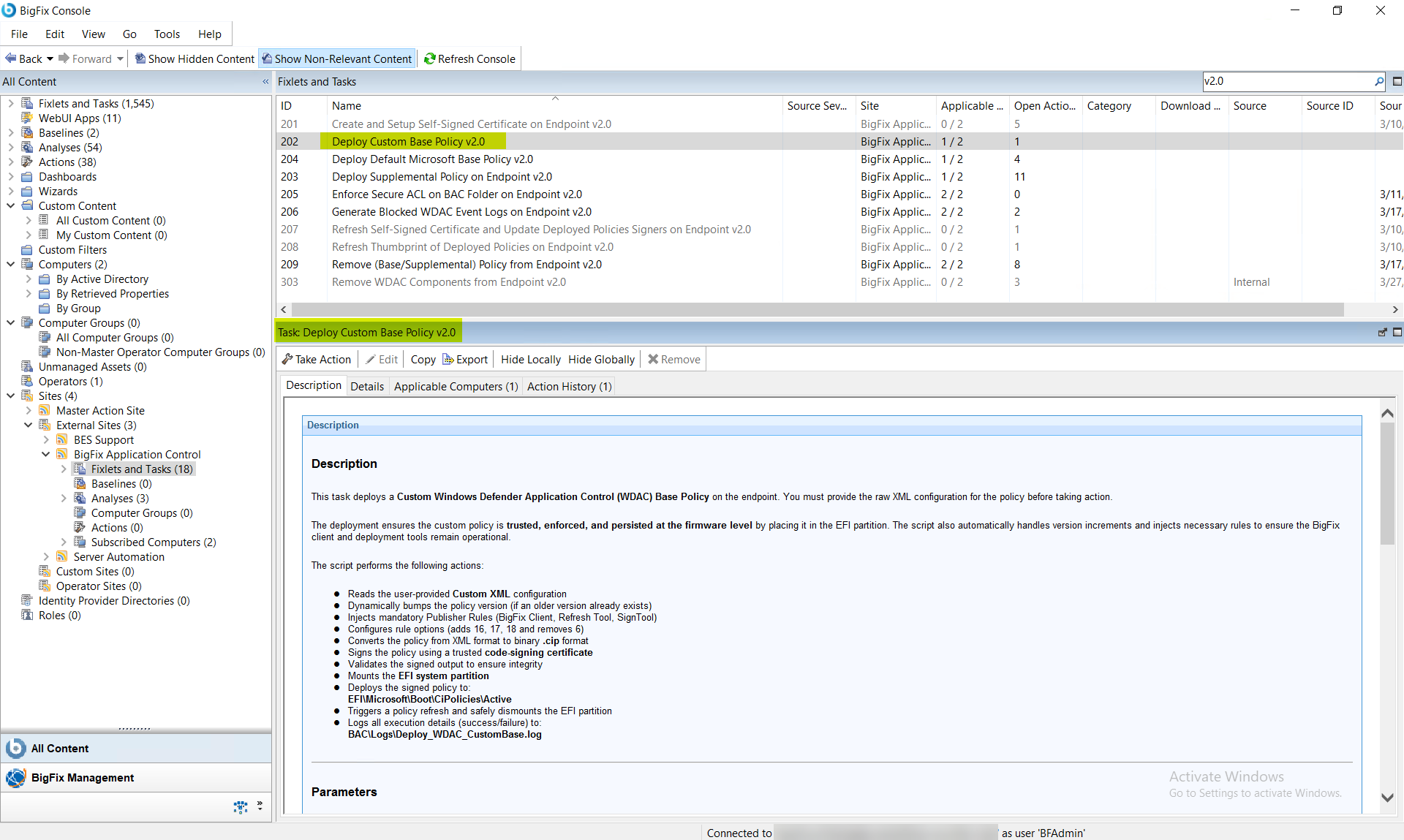

Table 1. Deploy Custom Base Policy v2.0: Task Exit Codes and Descriptions

Exit Code	Meaning	Description
0	Success	The WDAC base policy was successfully processed, signed, and deployed.
10	Working directory creation failed	The BAC working directory could not be created or accessed.
11	Log directory creation failed	The logging directory could not be created, preventing execution tracking.
12	Policy directory creation failed	The policy storage directory could not be initialized.
30	Policy processing failure	Error occurred during policy preparation, version bumping, or rule injection.
40	Binary conversion failure	Failed to convert the WDAC policy from XML format to binary (.cip).
50	Signing failure	The policy signing process failed or generated an invalid signature.
60	Deployment failure	Failed to mount the EFI partition or copy the policy to the target location.
70	Policy refresh failure	The policy refresh process or EFI dismount failed.
