Deploying HCL CDP Celery Kafka eta Consumer

Prerequisites

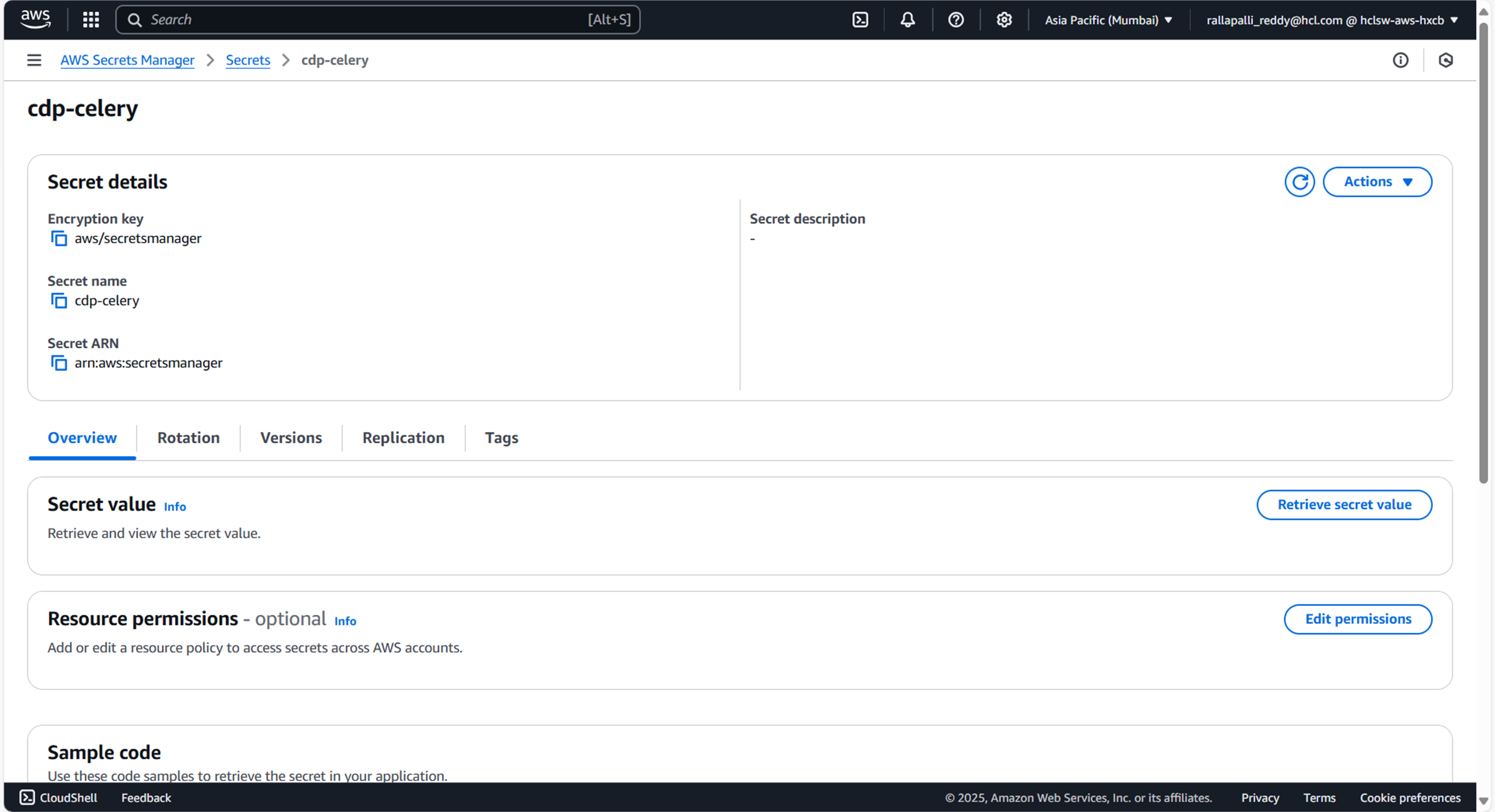

Make sure to create cdp-Celerykafkaetaconsumer secret in the AWS secret manager before deploying CDP Celery Kafka eta Consumer.

To create CDP Celerykafkaetaconsumer secret in the AWS secret manager , follow the steps below:

1. Create a cdp-Celerykafkaetaconsumer secret sample key and value, and update the actual values as shown below.

   {
   "bootstrap_servers":"",
   "RABBITMQ_USERNAME":"",
   "RABBITMQ_HOST":"",
   "RABBITMQ_PORT":"5672"
   }

2. Update ConfigMaps data with actual values, and create required Kafka topics before deployment.

Deploy CDP Celerykafkaetaconsumer

To deploy CDP cdp-Celerykafkaetaconsumer using Devtron in the AWS platform, follow the steps below:

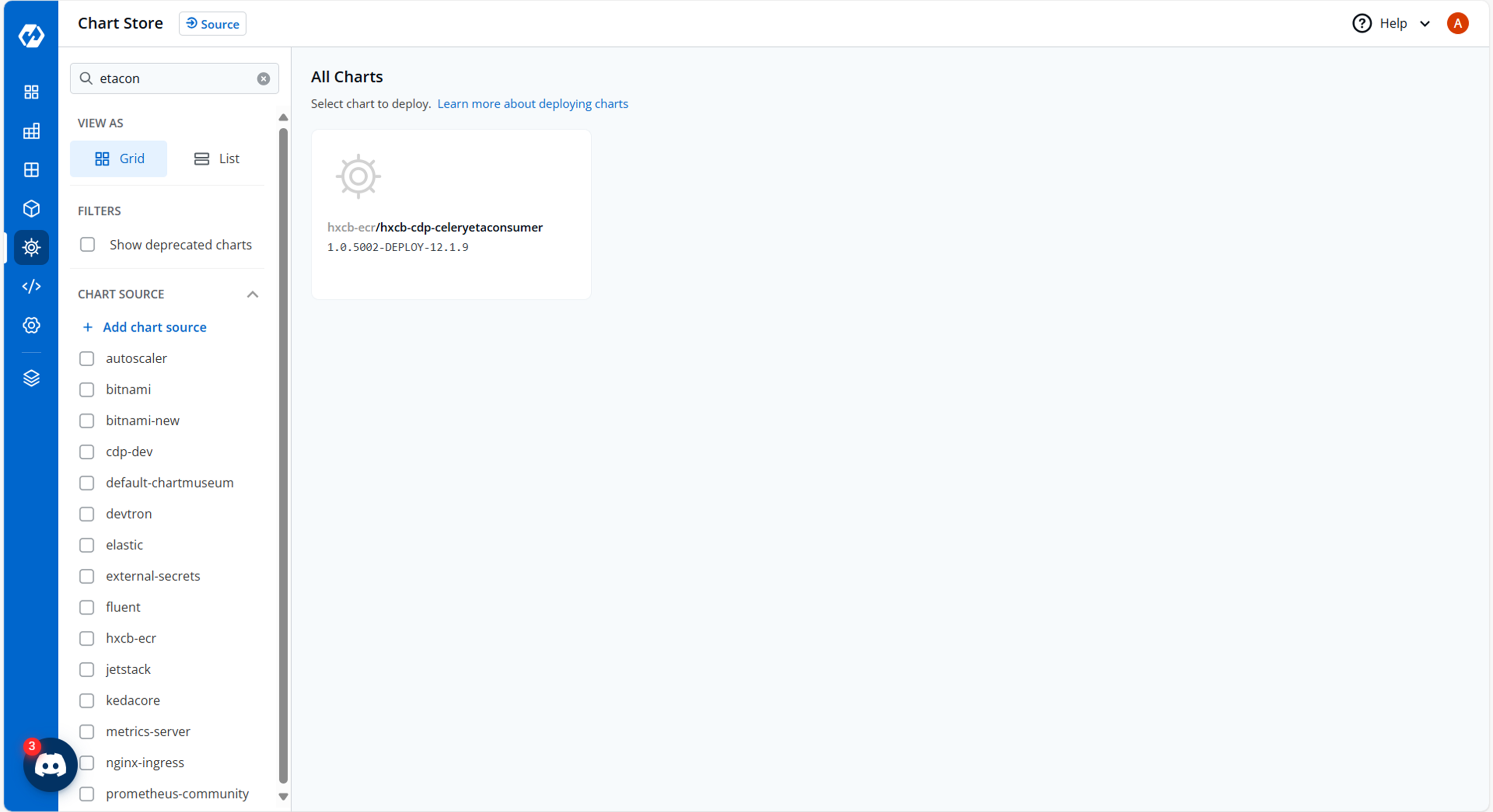

1. Navigate to the Devtron Chart Store, and select the cdp-Celerykafkaetaconsumer chart to deploy.

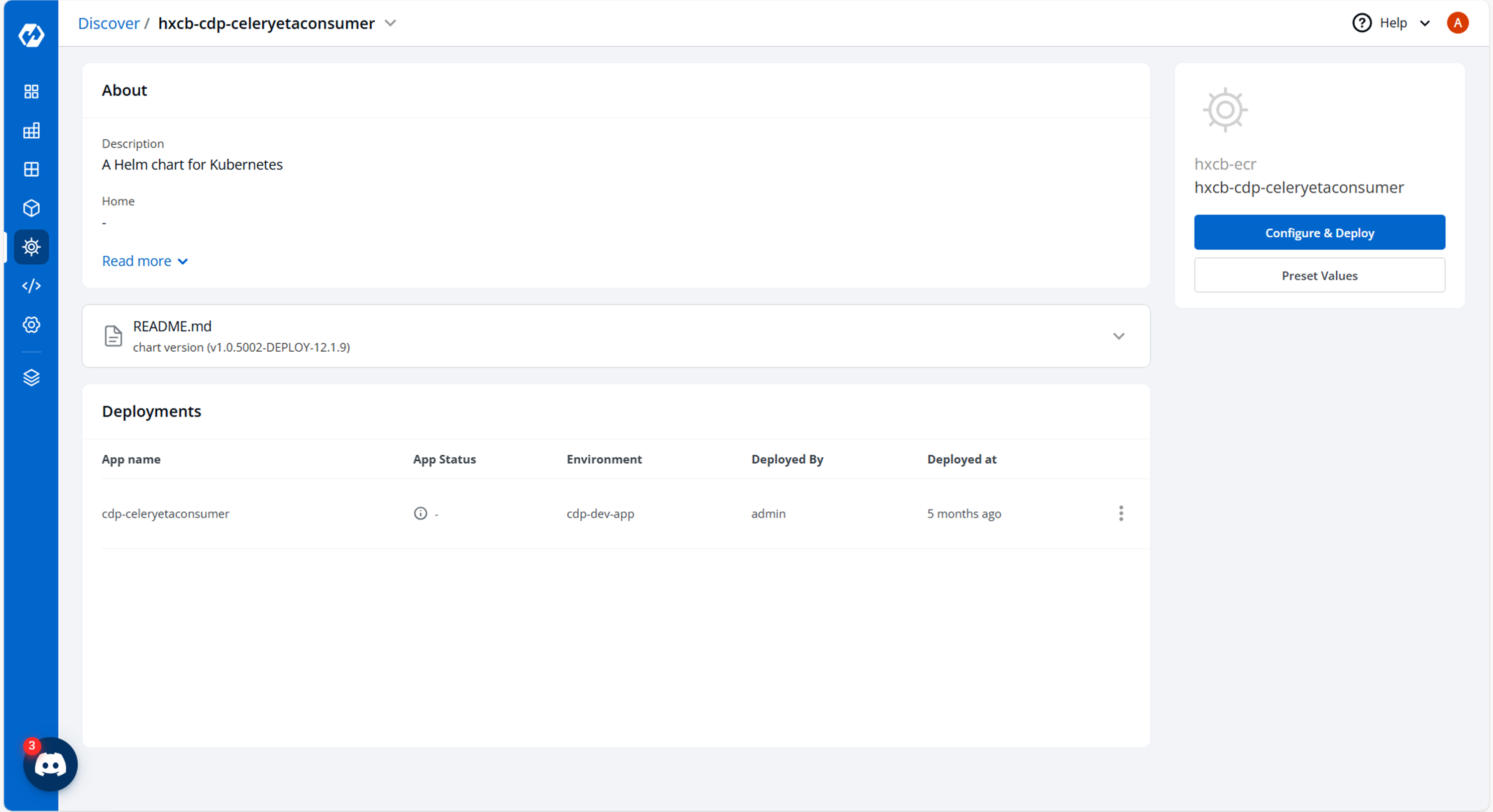

2. Now, configure and deploy the cdp-Celerykafkaetaconsumer charts.

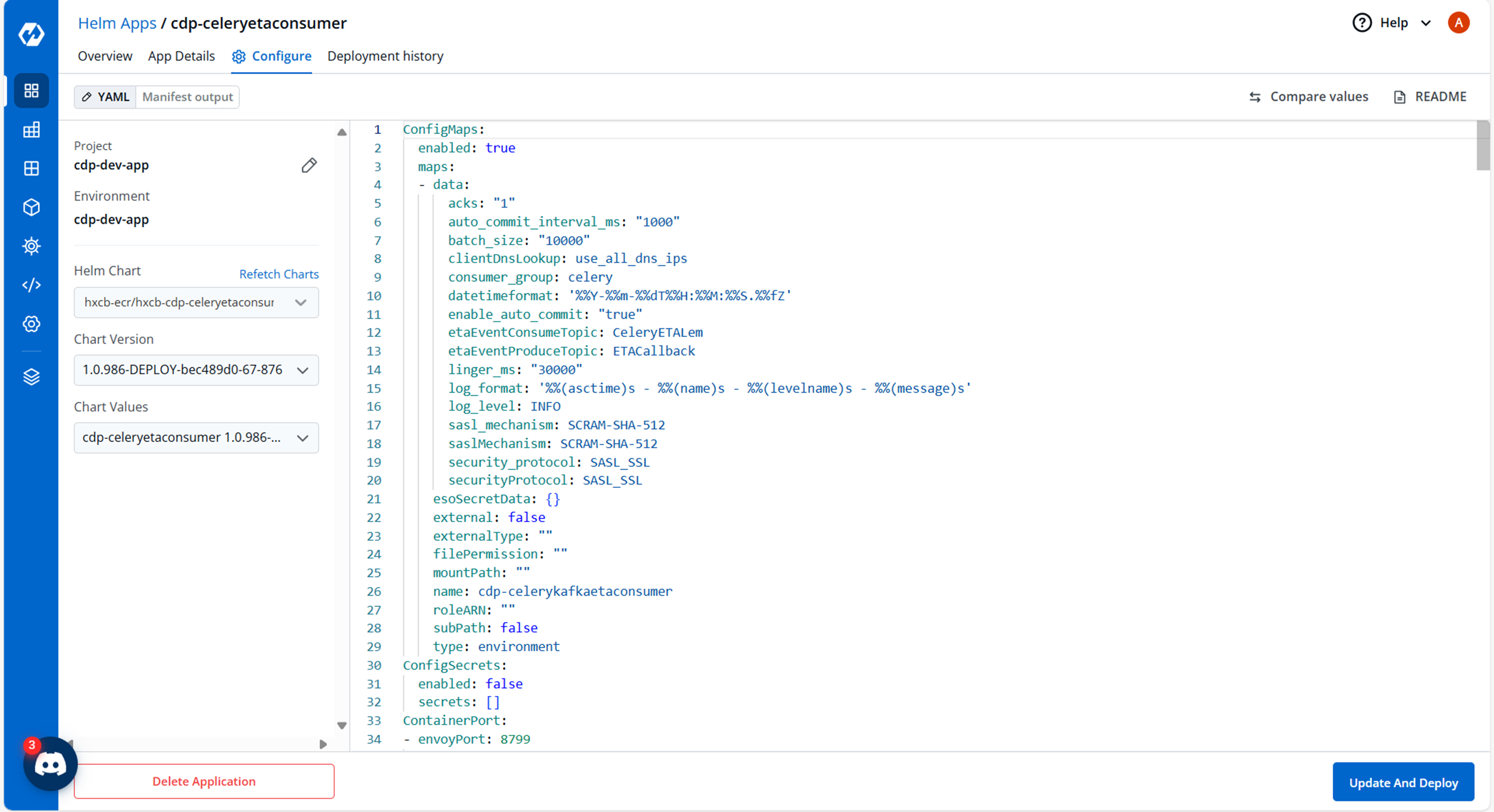

3. In the YAML section, update the ConfigMap using the below details and deploy the chart.

   batch_size: "10000"
   linger_ms: "30000"
   etaEventProduceTopic: ETACallback
   securityProtocol: SASL_SSL
   saslMechanism: SCRAM-SHA-512
   acks: "1"
   consumer_group: celery
   enable_auto_commit: "true"
   auto_commit_interval_ms: "1000"
   etaEventConsumeTopic: CeleryETALem
   security_protocol: SASL_SSL
   sasl_mechanism: SCRAM-SHA-512
   clientDnsLookup: use_all_dns_ips
   datetimeformat: "%%Y-%%m-%%dT%%H:%%M:%%S.%%fZ"
   log_level: INFO
   log_format: "%%(asctime)s - %%(name)s - %%(levelname)s - %%(message)s"

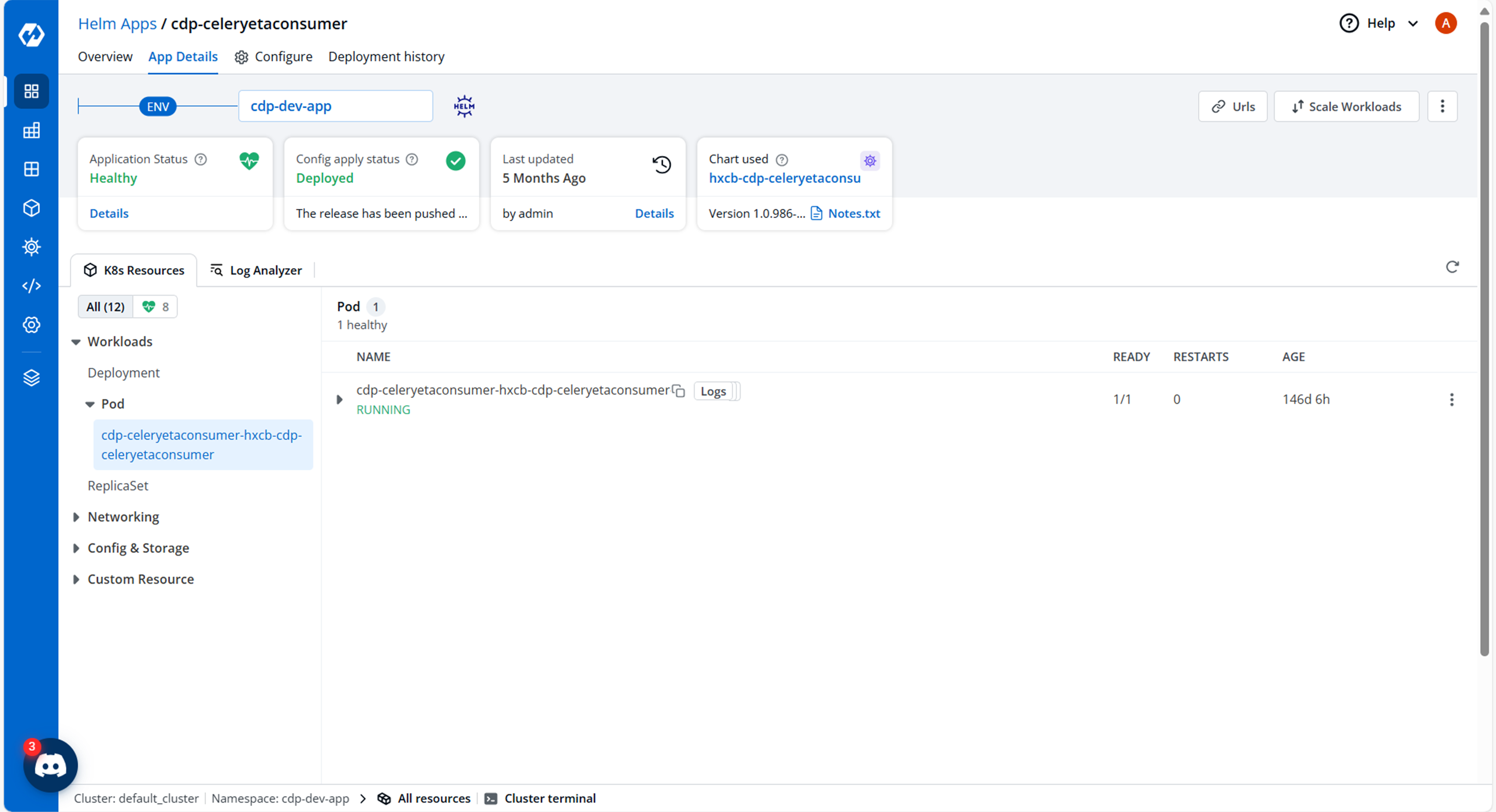

4. On successful deployment, validate the deployment as shown below.
