Run Pre-Requisite Checker

This section describes the procedure to check if all iAutomate installation prerequisites have been met before the installation. The Prerequisite Checker identifies all the missing pre-requisite software and utilities. User will have to ensure that the identified prerequisites are installed manually before proceeding further.

To run the Prerequisite Checker, perform the following steps:

  1. Click Run .
    Figure 1. Prerequisite Checker
    Note:
    The Pre-requisite Checker always runs as part of the iAutomate setup.
  2. A progress bar appears while the Pre-Requisite Checker runs.

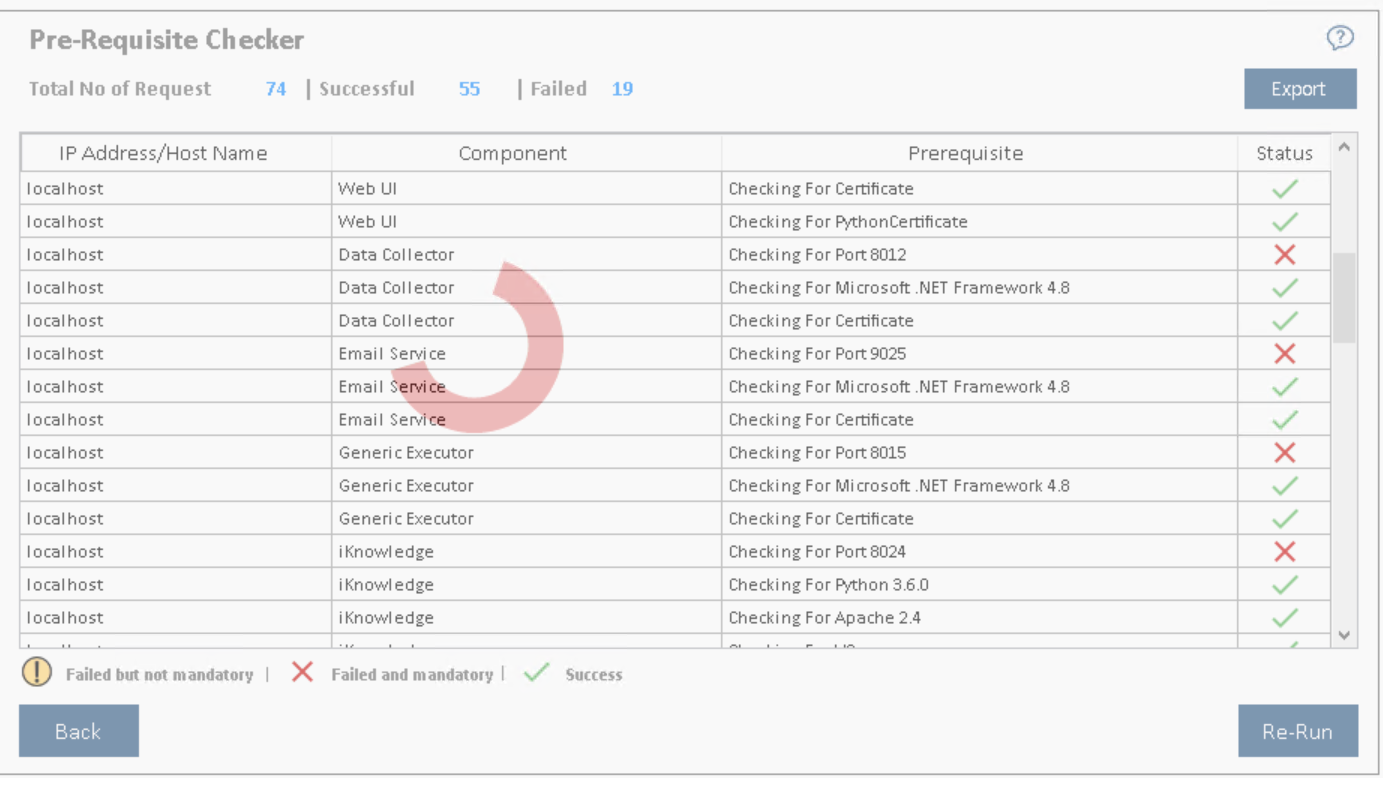

    Figure 2. Pre-Requisite Checking in Progress
    Graphical user interface, application, table Description automatically generated
  3. In the Status column, each prerequisite is marked a success or a failure.

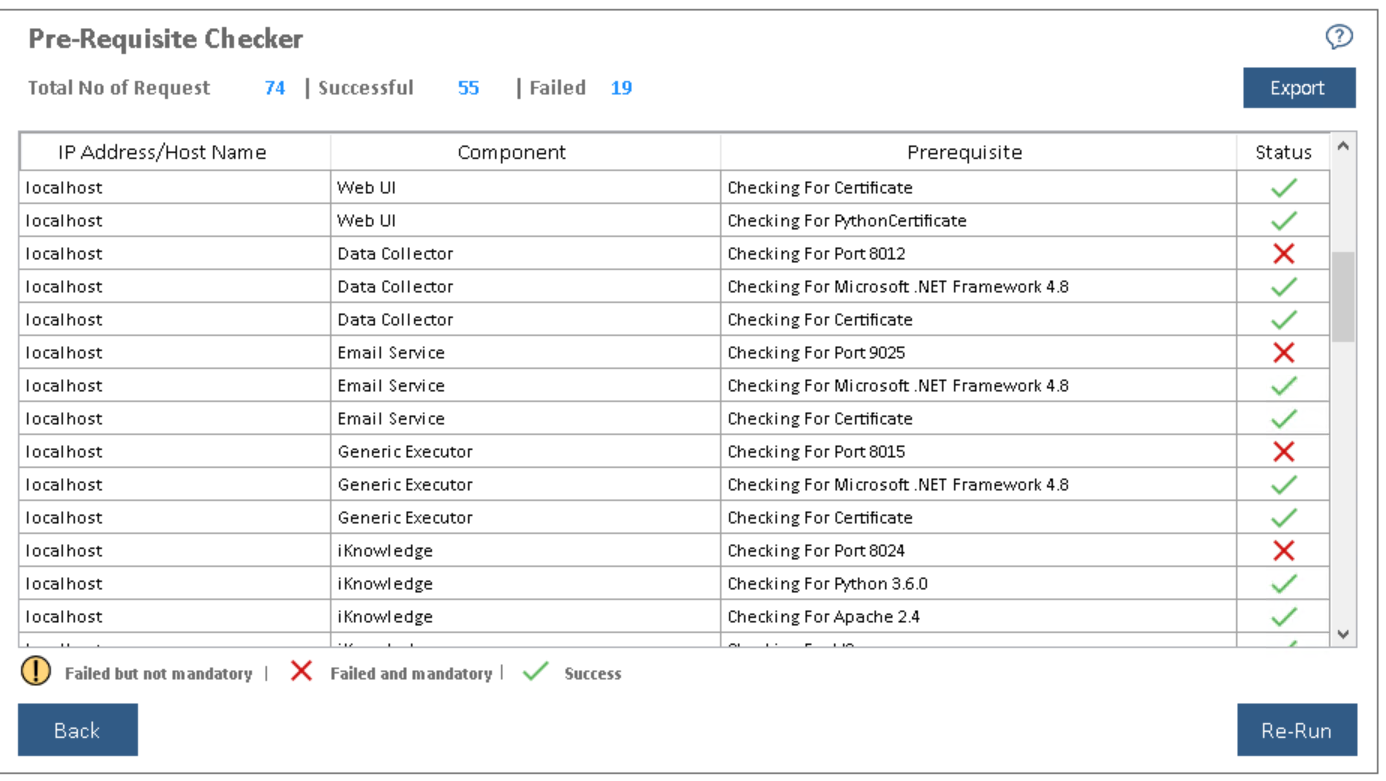

    Figure 3. Pre-Requisite Checker Status
    Graphical user interface, application Description automatically generated
    Note:
    In case of failure, Re-Run button appears.

    Please ensure that the identified issue is resolved and re-run the pre-requisite checker.

  4. Upon successful validation of all the pre-requisites, Next button is enabled.
  5. Click Export to export the Pre-Requisite Checker report, if required.

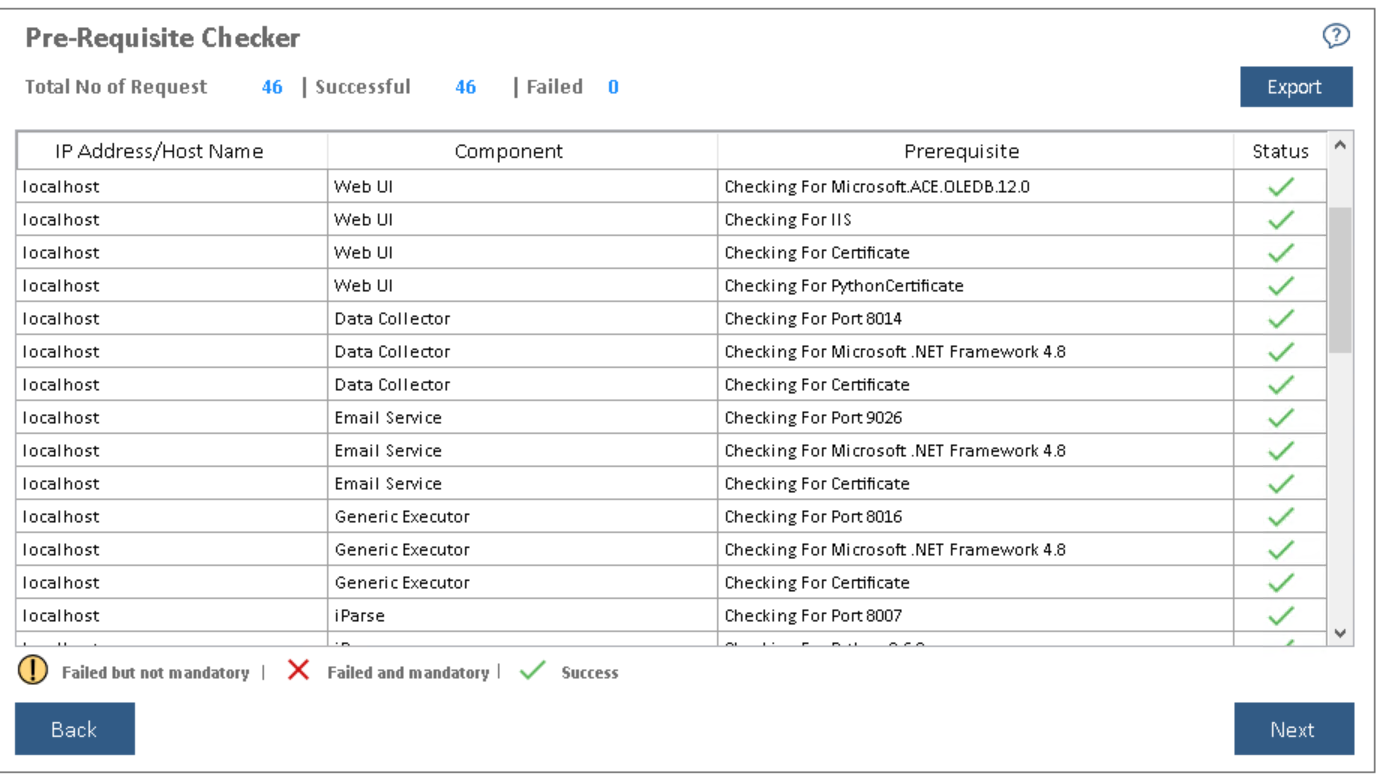

    Figure 4. Prerequisite Checker Report
    Note:
    Use Back to go to the previous page.
  6. Click Next. The Configure Admin Details page appears.
