Deployment Details page
The Deployment Details page provides detailed information on a deployment, allowing for tracking of status, troubleshooting of failures, and performance monitoring. It includes widgets for Status, Composition, Configuration, Device, and Fixlets, each providing specific insights such as real-time statuses, device compositions, configuration details, device lists, and fixlet information.

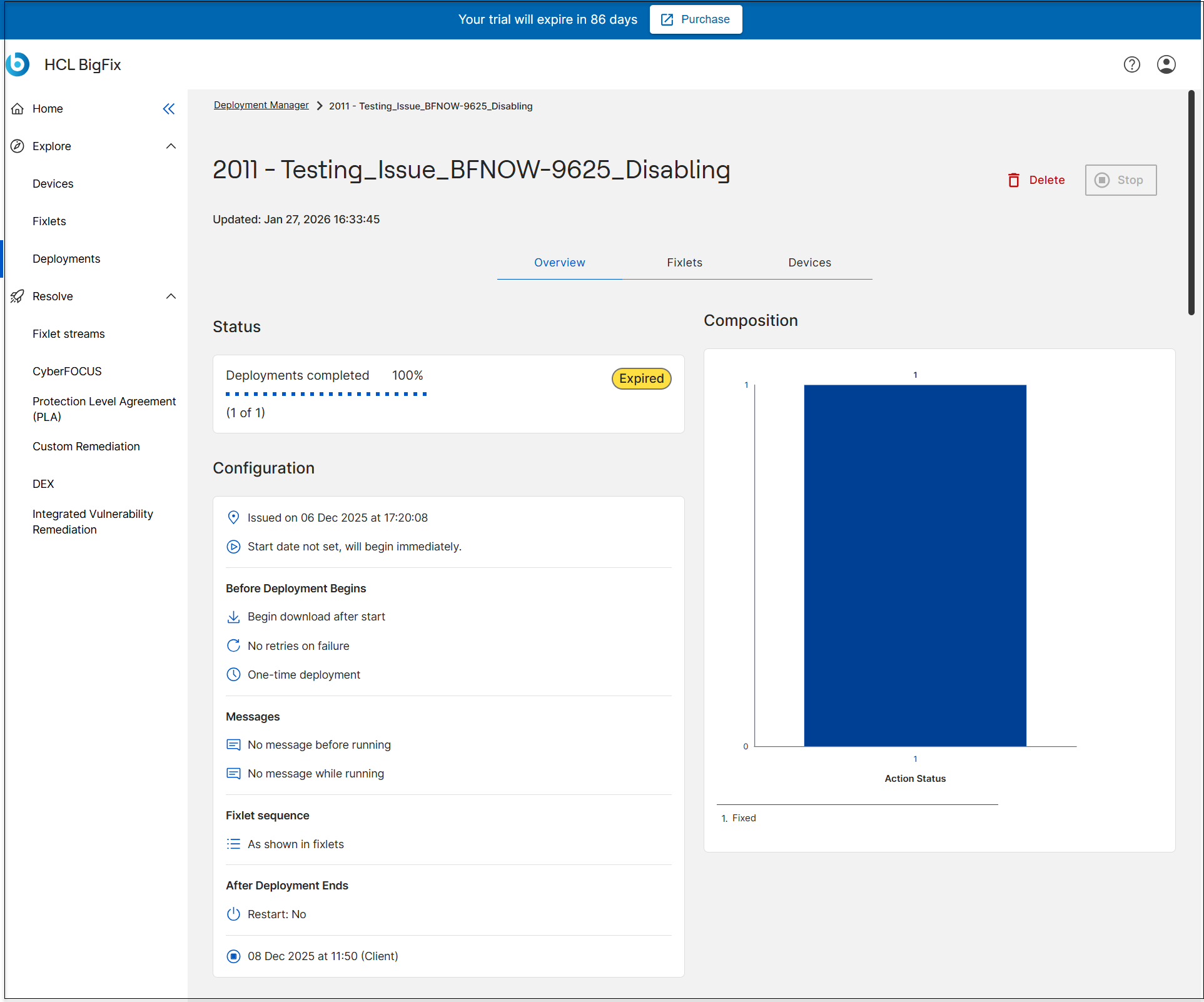

The Deployment Detail page contains various pieces of information displayed in widgets.
Status

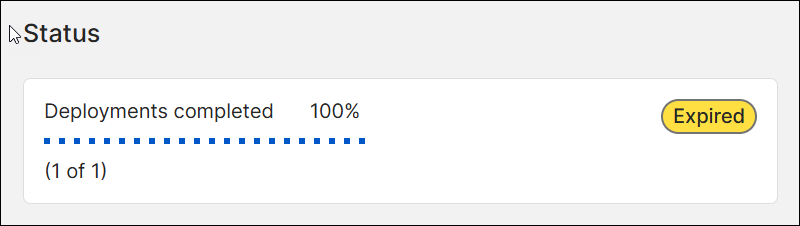

The Status widget displays real-time information about the statuses related to devices in the deployment. It includes the deployment progress and failure rate. Example statuses are pending restart, complete, and failed.
Composition
Besides the high-level status of completed or failed, a device can have multiple statuses like pending restart, waiting to download, etc. The Composition widget displays a treemap of all statuses for devices in the deployment being viewed. This information is particularly helpful for troubleshooting.
Configuration
The Configuration widget summarizes how users set up the initial deployment. At a glance, it shows all customizable parameters such as the issue date and start time, alongside specific settings for Before Deployment Begins, Messages, Fixlet sequence, Deployment options, and After Deployment Ends.
Devices
The Devices tab displays a subset of all devices in the selected deployment. The tab provides detailed deployment results, including the Exit Code, Start Time, End Time, Apply Count, and Retry Count columns. Select the link in the Status column to view the execution status of each relevance line. The tab also includes detailed information regarding actionscript progress. To see the full list of devices click More.
If there is only one device in the deployment, then the device properties are displayed in the widget.
Relevance
The Relevance widget displays the expressions evaluated to target devices for the deployment. It lists individual relevance clauses, enabling quick verification of the applicability criteria. You can use the Wrap long lines toggle to fit the code within the view, and the Copy code option to extract it. Use the Show More and Show Less options to expand or collapse long code blocks.
Actions
The Actions widget displays the scripts that execute on targeted devices during a deployment. Use the drop-down menu to switch between multiple actions such as Action 1, Action 2, and Action 3—to view their specific scripts. You can use the Wrap long lines toggle to fit the script within the view, and the Copy code option to extract it. Use the Show More and Show Less options to expand or collapse long scripts.
Fixlets
