Server Configuration

This section describes how to set up and configure a server for iAutomate installation.

To configure servers, provide the following details:

  1. All the server configuration is pre-populated based on the previously selected previously selected server host/IP.
    Note:
    User can only change the username and password.

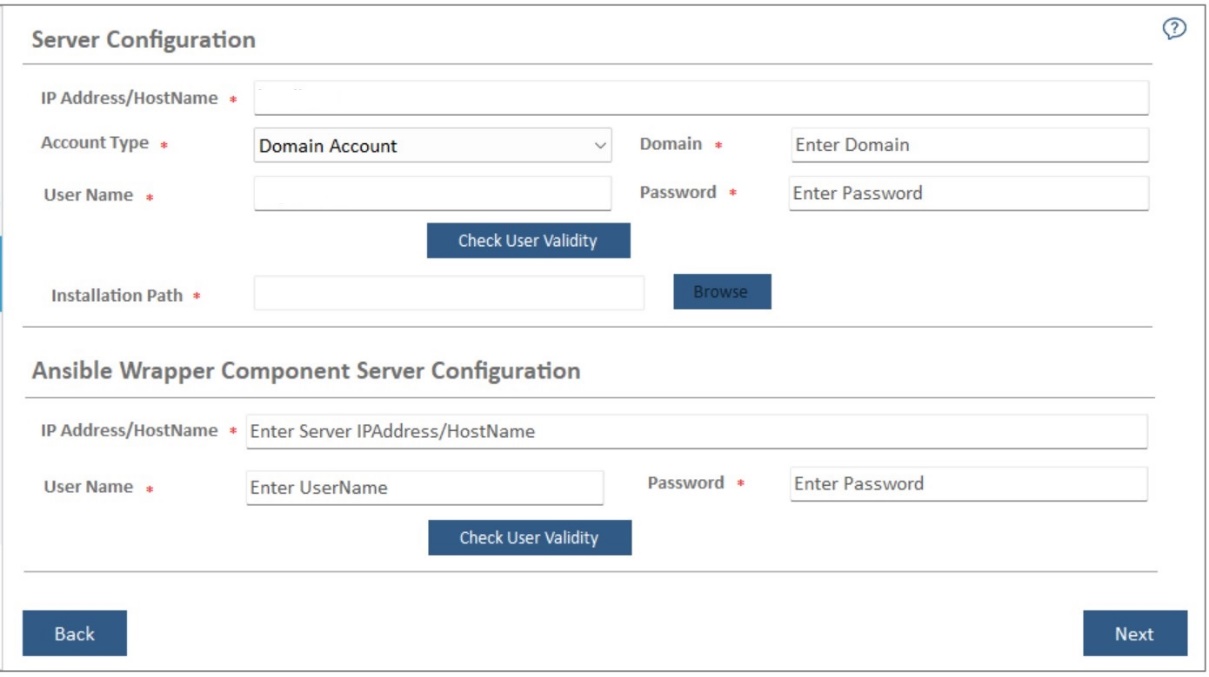

    Figure 1. Server Configuration
  2. Enter Password and Click Check User Validity to validate the user to connect to the server.
  3. On successful connection to the server, a Validation Successful message appears beside the Password field.

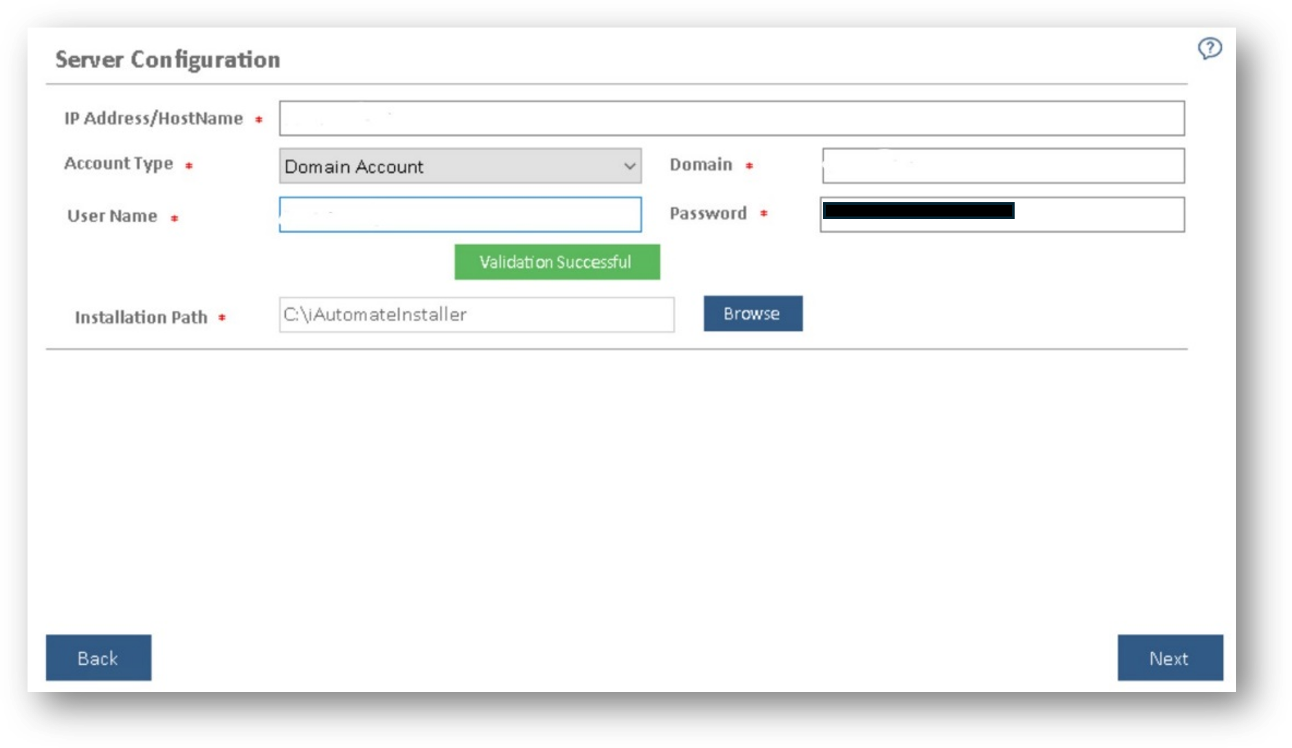

    Figure 2. Server Configuration (cont.)
  4. Click Next. The Pre-Requisite Checker page appears.
    Note:
    All fields marked with an asterisk (*) are mandatory.
  5. If “Ansible CLI Wrapper Component” has been chosen below screen appear,
    Figure 3. Server Configuration
  6. Ansible Wrapper Component Server Configuration: -
    1. The IP Address/Host Name, where user wants to install the components.
    2. In the User Name and Password fields, type the login credentials to access the server.
    3. Click Check User Validity to validate the user to connect to the server.
    4. On successful connection to the server, a Validation Successful message appears beside the Password field.
    Remember:
    The Ansible CLI Wrapper install on server where Ansible Wrapper is installed.

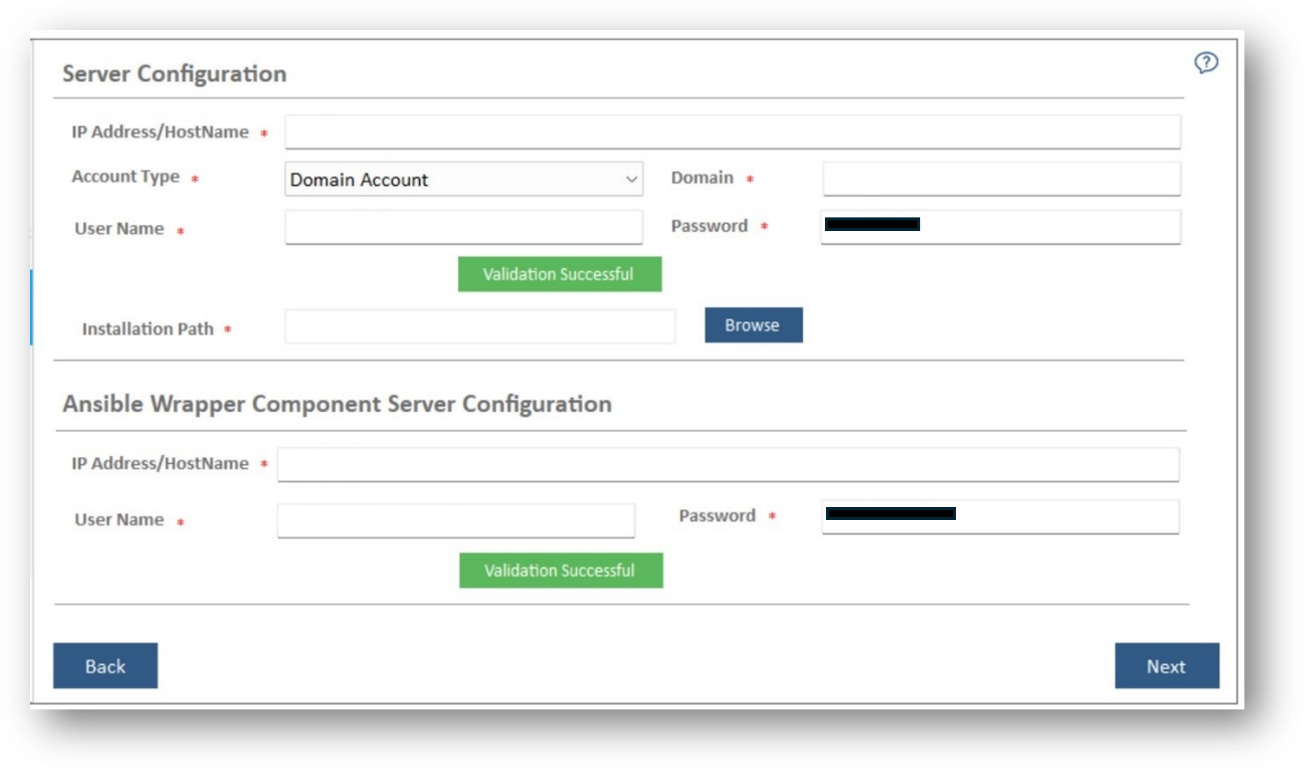

    Figure 4. Successful Validation

  7. Click Next.

    The Pre-Requisite Checker page appears.

Note:
All fields marked with an asterisk (*) are mandatory.
