Deploying CDP DMP SST Maps

This section provides detailed instructions on how to deploy HCL CDP DMP SST Maps using the Devtron in the OpenShift.

Before you begin

Make sure to create a dmp-sst-maps secret with required data in the HashiCorp Vault before deploying the CDP DMP SST Maps.

To create the dmp-sst-maps secret in the HashiCorp Vault, follow the steps below:

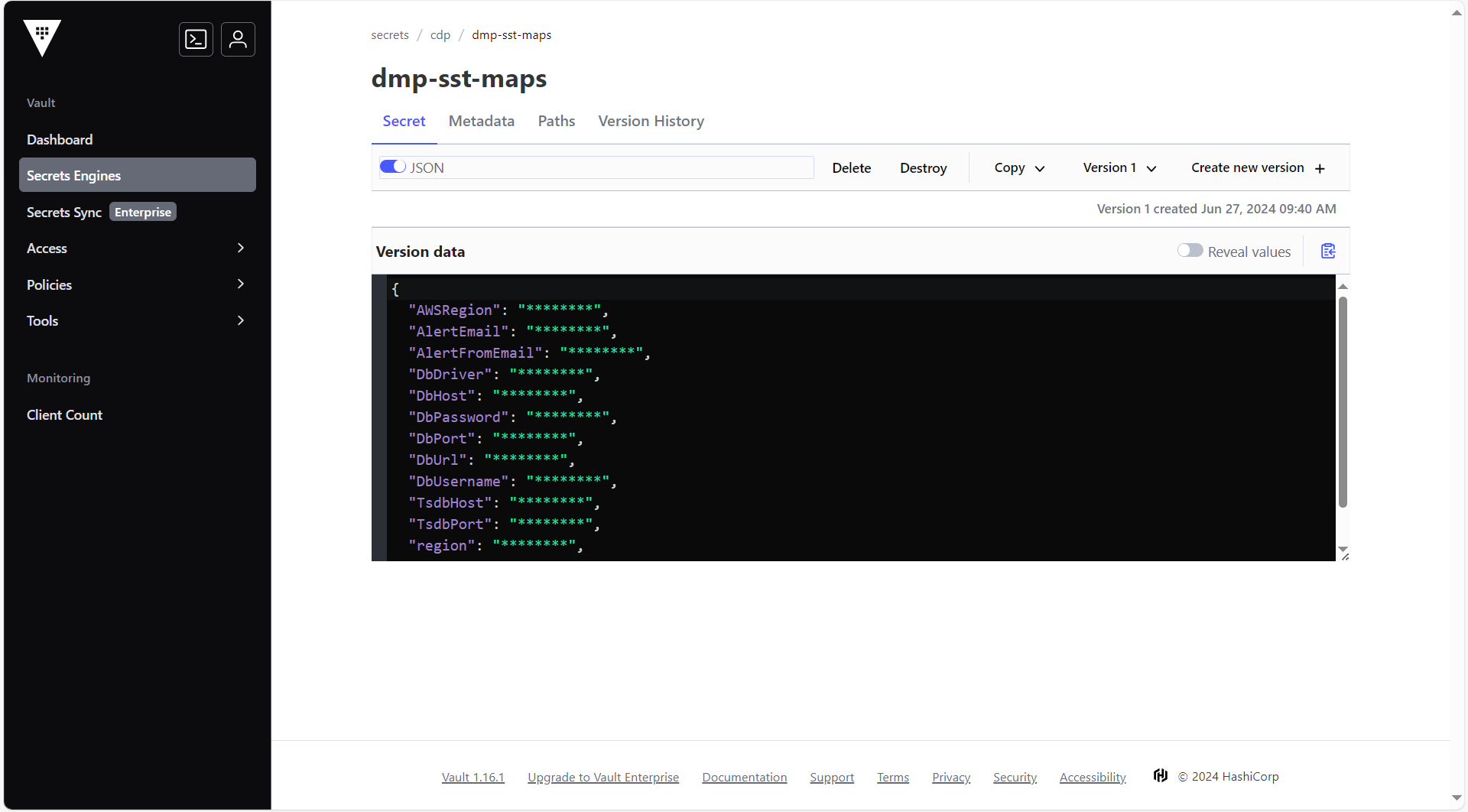

  1. Create a dmp-sst-maps secret sample key and value in the UI secret, and update ConfigMaps data with actual values.
    {
  "DbUsername": "<DB_USER>",
  "DbPassword": "<DB_PASSWORD>",
  "DbUrl": "jdbc:mariadb://<DB_HOST>:3307/vrm",
  "DbDriver": "org.mariadb.jdbc.Driver",
  "AlertEmail": "",
  "DbHost": "<DB_HOST>",
  "DbPort": "3307",
  "TsdbHost": "<TSDB_HOST>",
  "TsdbPort": "80",
  "type": "b-aero-7-nodes",
  "region": "ap-south-1",
  "AlertFromEmail": "",
  "AWSRegion": "ap-south-1"
}

Procedure

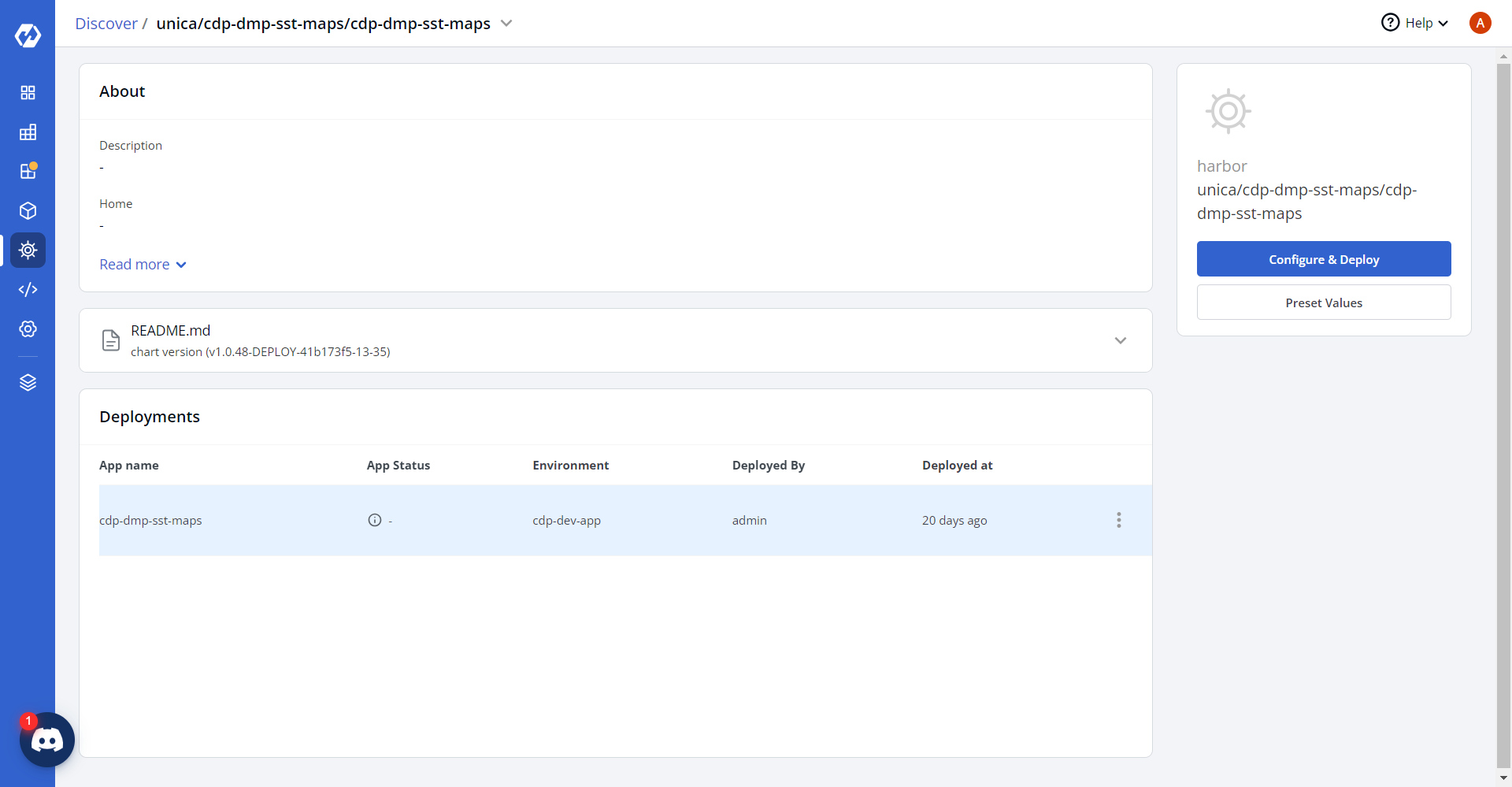

  1. Navigate to the Devtron Chart Store, and select the cdp-dmp-sst-maps chart to deploy.
  2. Now, configure and deploy the CDP DMP SST Maps charts.

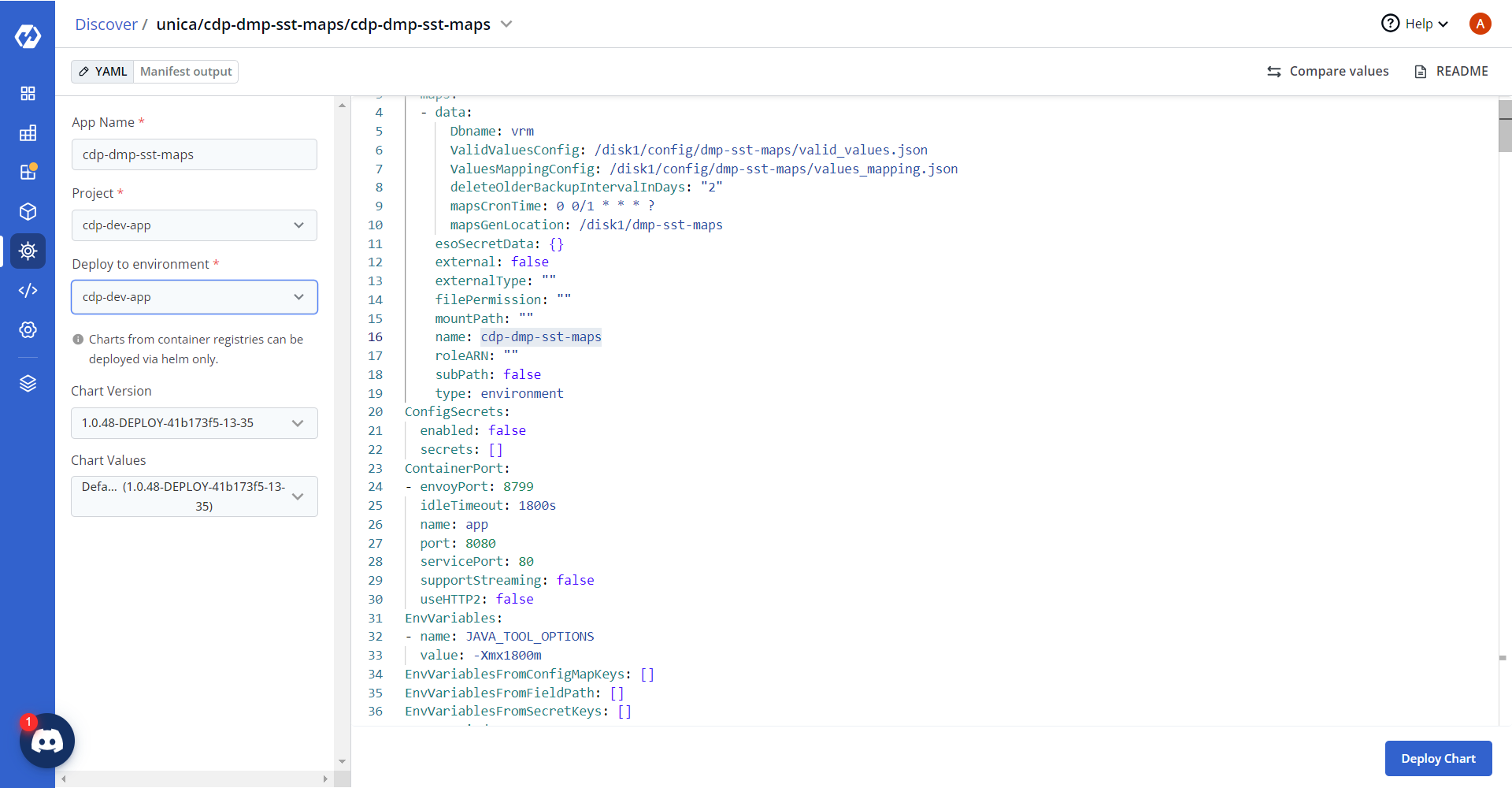

  3. In the YAML section, update the ConfigMap using below details, and deploy the charts.
    ValidValuesConfig: /disk1/config/dmp-sst-maps/valid_values.json
ValuesMappingConfig: /disk1/config/dmp-sst-maps/values_mapping.json
mapsGenLocation: /disk1/dmp-sst-maps
DbName: <DbName>

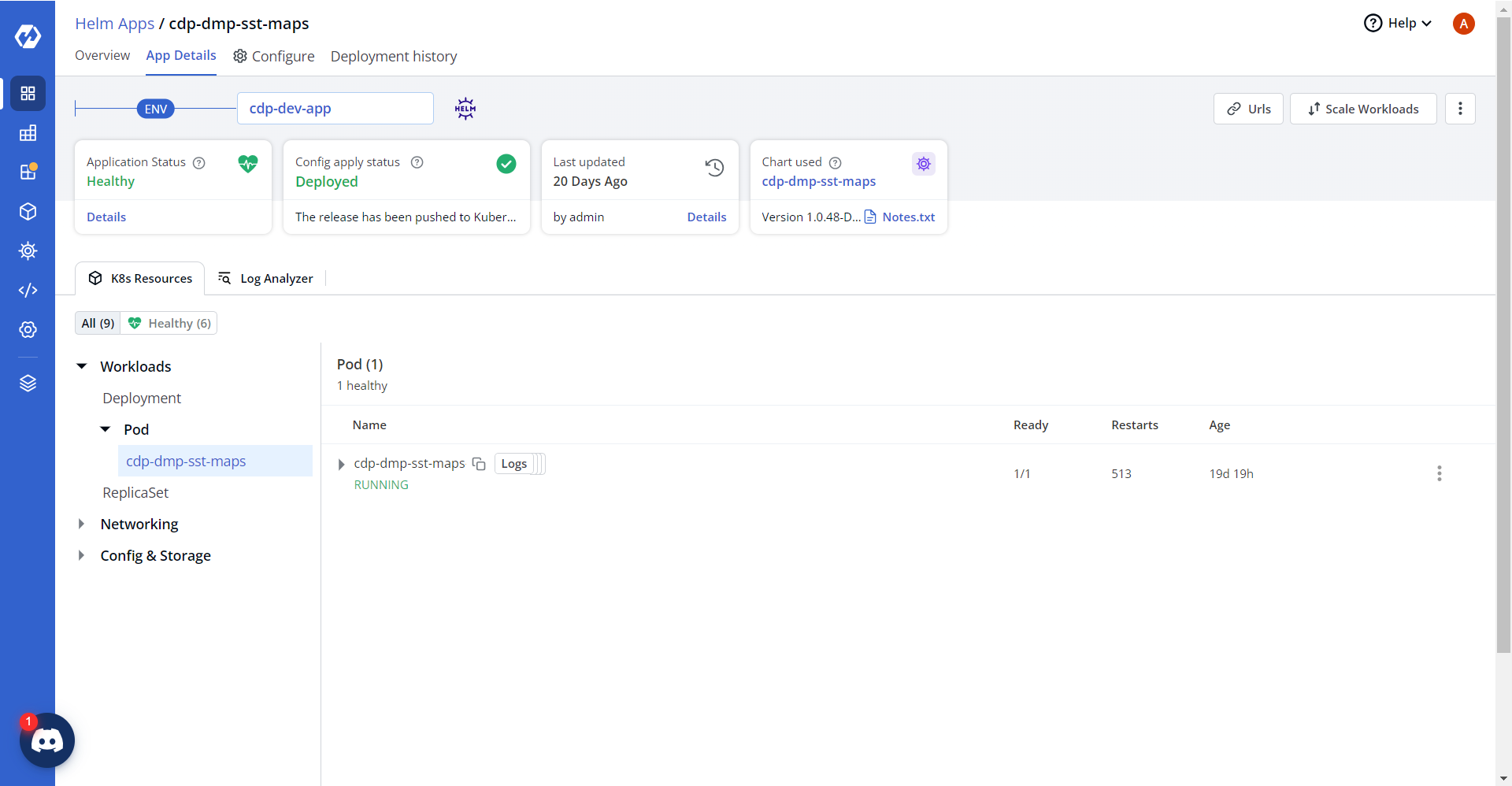

  4. On successful deployment, validate the deployment as shown below.
