Deploying CDP DMP SST API

This section provides detailed instructions on how to deploy HCL CDP DMP SST API using the Devtron in the OpenShift.

Before you begin

Make sure to create a cdp-dmp-sst-api secret with required data in the HashiCorp Vault before deploying CDP DMP SST API.

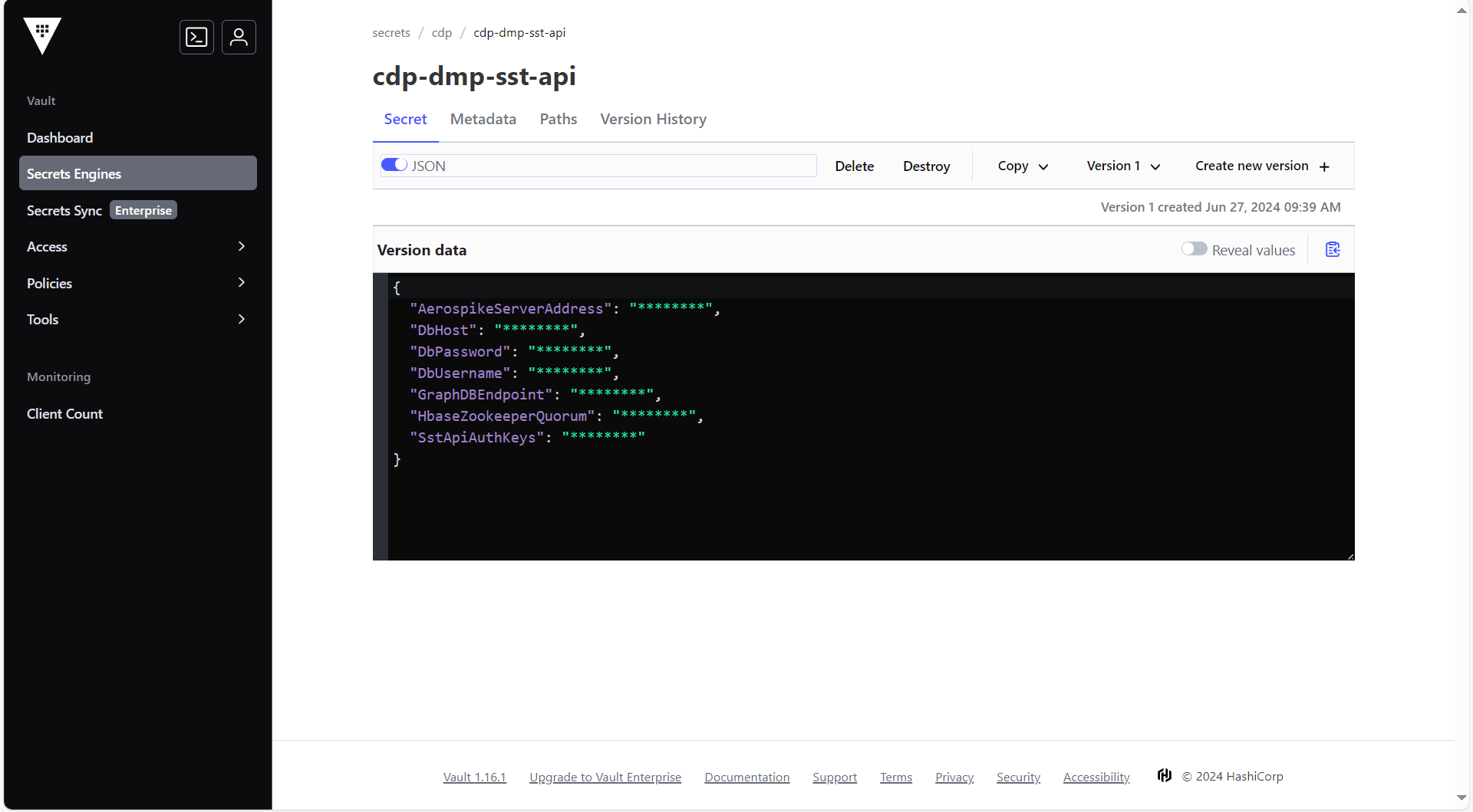

To create the cdp-dmp-sst-api secret in the HashiCorp Vault, follow the steps below:

  1. Create a cdp-dmp-sst-api secret sample key and value in the UI secret, and update ConfigMaps data with actual values.
    {
  "AerospikeServerAddress": "",
  "DbUsername": "",
  "DbPassword": "",
  "DbHost": "",
  "SstApiAuthKeys": "",
  "HbaseZookeeperQuorum": "",
  "GraphDBEndpoint": "",
  "VrmDbUrl": "jdbc:mysql://<vrm-host>:3307/vrm?autoReconnect=true",
  "VrmDbUsername": "",
  "VrmDbPassword": "",
  "VrmDbDriver": "com.mysql.cj.jdbc.Driver",
  "AerospikeUsername": "",
  "AerospikePassword": "",
  "KafkaBootstrapServer": "",
  "KafkaUsername": "",
  "KafkaPassword": "",
  "mongoUrl": "mongodb://rtsms:<password>@<mongo-host>:51090/?directConnection=true"
}

Procedure

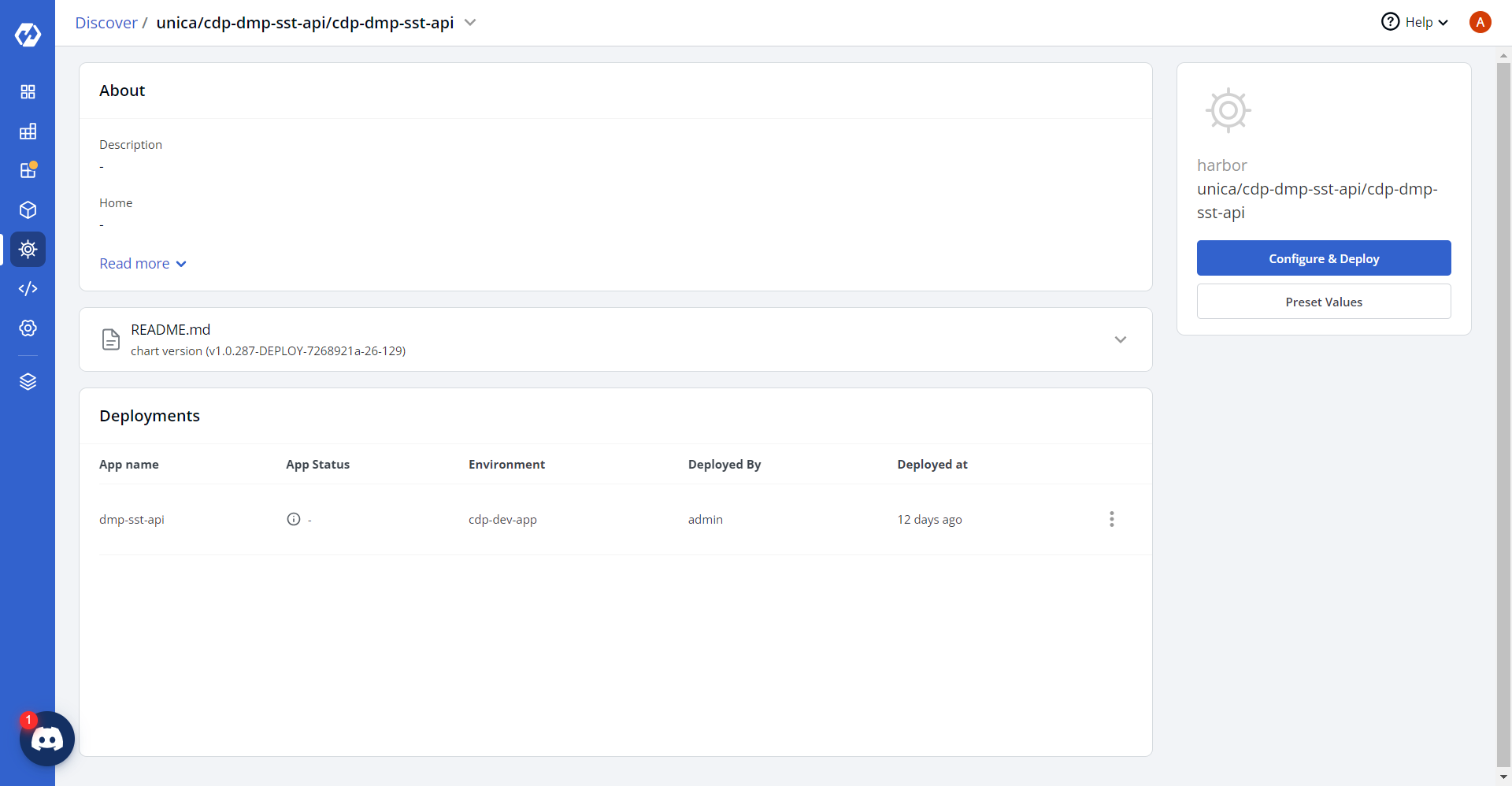

  1. Navigate to the Devtron Chart Store, and select the cdp-dmp-sst-api chart to deploy.
  2. Now, configure and deploy the CDP DMP SST API charts.

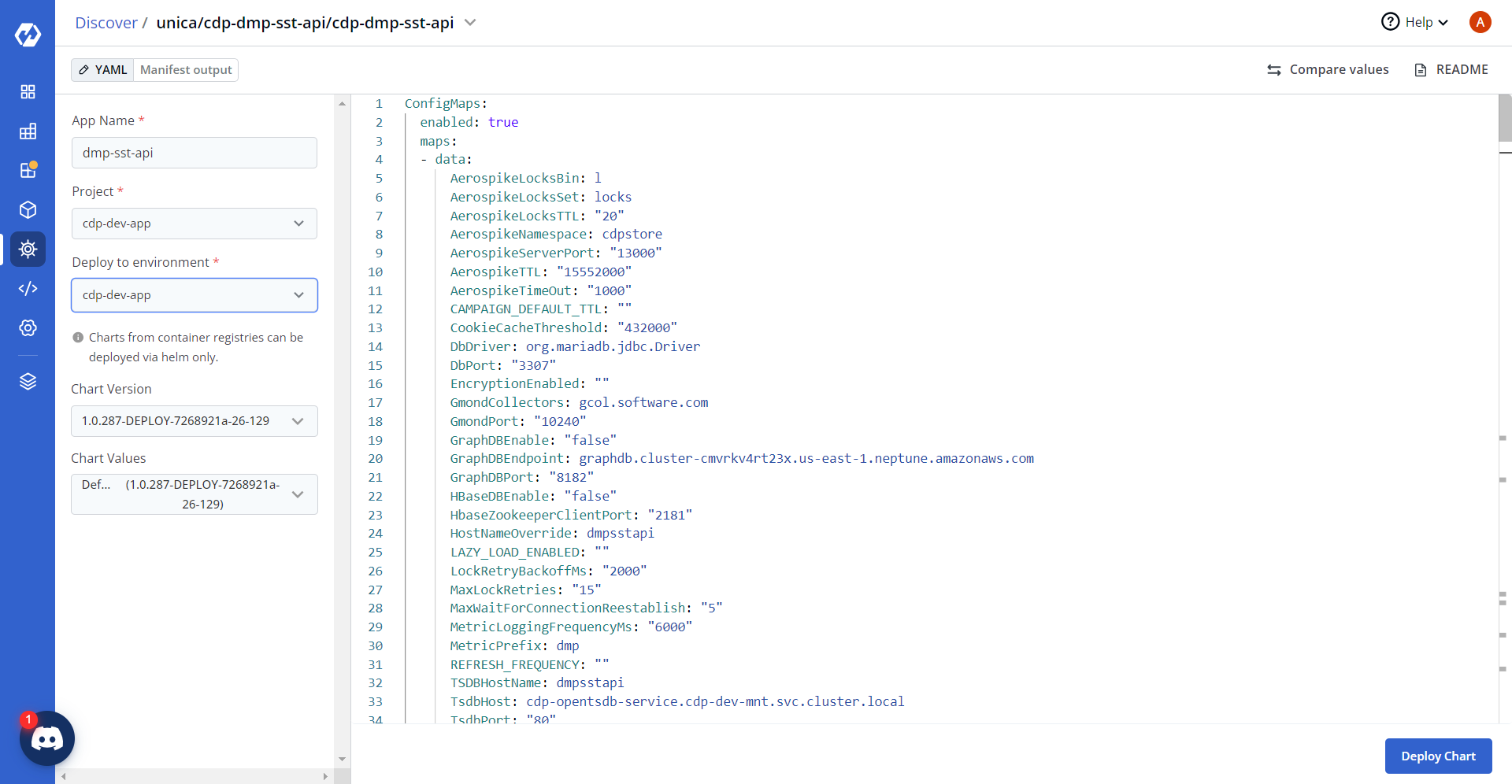

  3. In the YAML section, update the ConfigMap using below details, and deploy the charts.
    AerospikeServerPort: "13000"
AerospikeTimeOut: "1000"
AerospikeTTL: "15552000"
AerospikeNamespace: cdpstore
AerospikeLocksSet: locks
AerospikeLocksBin: l
AerospikeLocksTTL: "20"
MaxLockRetries: "15"
LockRetryBackoffMs: "2000"

UserAuthKeysFile: /mnt/sst/sst_api_user_auth_keys

MetricLoggingFrequencyMs: "6000"
MaxWaitForConnectionReestablish: "5"

TsdbHost: <internal-tsdb-service>
TsdbPort: "80"
TSDBHostName: <internal-host>

GmondCollectors: <monitoring-collector-host>
GmondPort: "10240"
HostNameOverride: <internal-host>

MetricPrefix: dmp

REFRESH_FREQUENCY: ""
CAMPAIGN_DEFAULT_TTL: ""
LAZY_LOAD_ENABLED: ""

DbPort: "3307"
DbDriver: org.mariadb.jdbc.Driver

HbaseZookeeperClientPort: "2181"
HBaseDBEnable: "false"

CookieCacheThreshold: "432000"
EncryptionEnabled: ""

GraphDBEndpoint: <graphdb-cluster-endpoint>
GraphDBPort: "8182"
GraphDBEnable: "false"

type: ""
region: ""

FROM_EMAIL_ID: user@domain.com
ALERT_TO_EMAIL_ID: user@domain.com

databasePlatform: org.hibernate.dialect.MySQL8Dialect
physicalStrategy: org.hibernate.boot.model.naming.PhysicalNamingStrategyStandardImpl

LOG_LEVEL_ROOT: info

SECURITY_PROTOCOL: SASL_SSL
SASL_MECHANISM: SCRAM-SHA-512

campaigns: VIZVRM6543:30
cron: 0 0 0 * * *

KafkaProducerHostName: <internal-kafka-host>
KafkaProducerEventType: "100"
KafkaProfileDeleteTopic: dmp_sst_rt_profile_delete

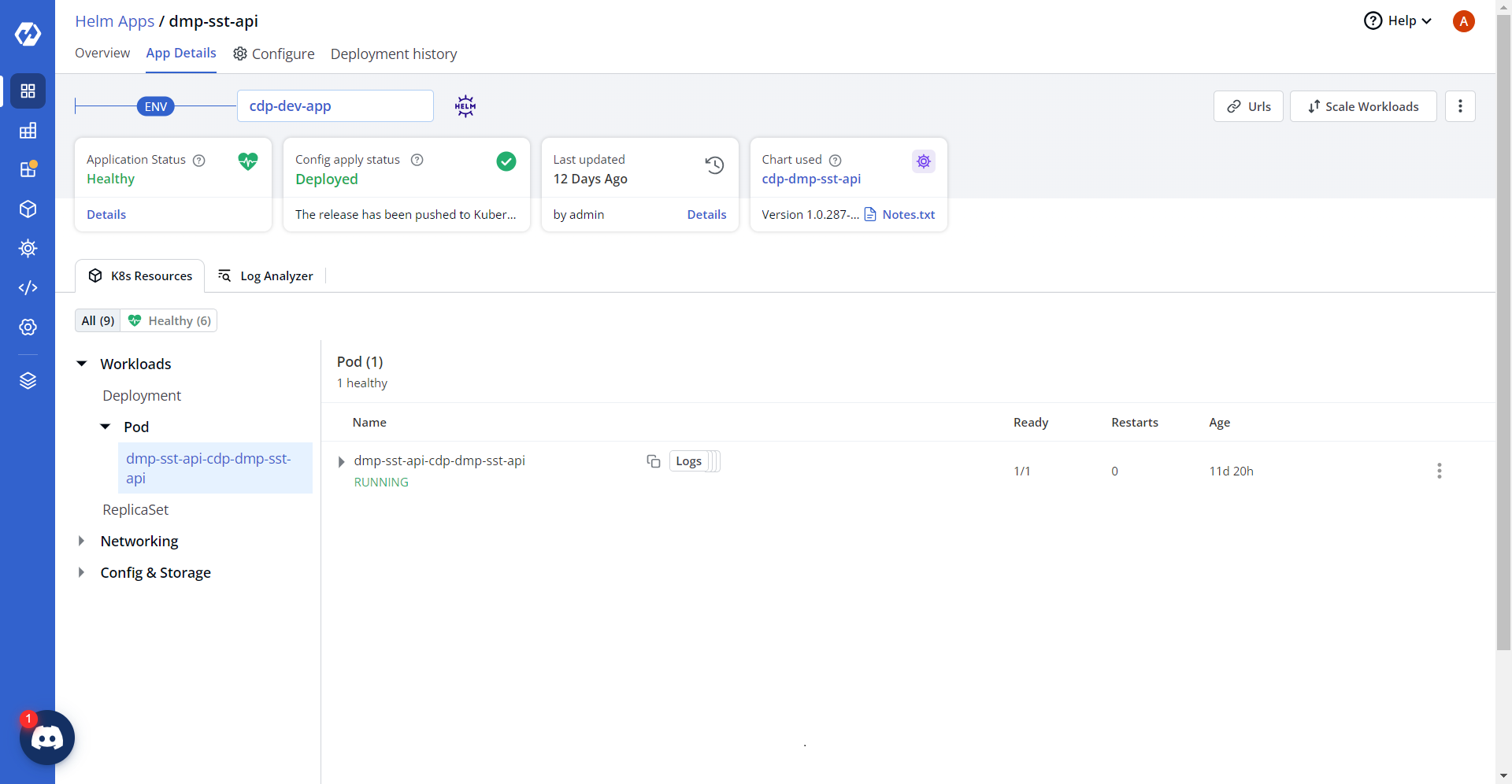

  4. On successful deployment, validate the deployment as shown below.
