Deploying CDP DI API

Prerequisites:

Make sure to create the di-api secret with required data in the HashiCorp vault before deploying the CDP DI API.

To create the di-api secret in the HashiCorp Vault, follow the steps below:

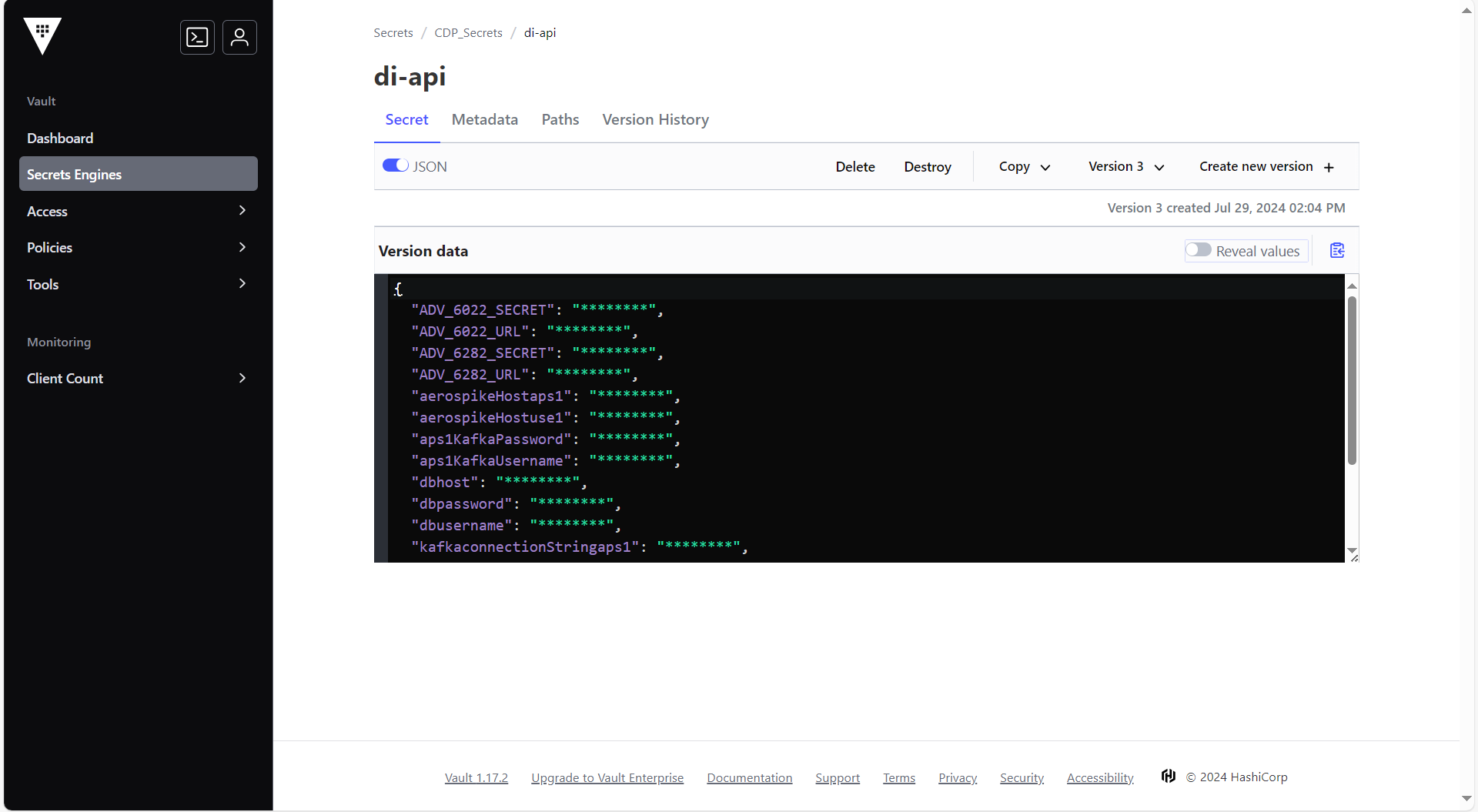

1. Create a di-api secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "ADV_6022_SECRET": "\"\"",
     "ADV_6022_URL": "\"\"",
     "ADV_6282_SECRET": "\"\"",
     "ADV_6282_URL": "\"\"",
     "aerospikeHostaps1": "\"<aerospikeHostaps1>\"",
     "aerospikeHostuse1": "\"\"",
     "aps1KafkaPassword": "\"<aps1KafkaPassword>\"",
     "aps1KafkaUsername": "\"<aps1KafkaUsername>\"",
     "dbhost": "\"<dbhost>\"",
     "dbpassword": "\"<dbpassword>\"",
     "dbusername": "\"<dbusername>\"",
     "kafkaconnectionStringaps1": "\"<kafkaconnectionStringaps1>\"",
     "kafkaconnectionStringuse1": "\"\"",
     "kmsUrl": "\"<kmsUrl>\"",
     "tdsbHost": "'<tdsbHost>'",
     "use1KafkaPassword": "\"\"",
     "use1KafkaUsername": "\"\""
   }

Deploying CDP DI API

To deploy the CDP DI API, follow the steps below:

1. Navigate to the Devtron Chart Store, and select the cdp-di-api chart to deploy.



2. Now, configure and deploy the CDP DI API charts.



3. In the YAML section, update the ConfigMap using below details, and deploy the charts.

   dbconnectionLimit: "1"
   dbport: "3307"
   database: <database-name>
   use1KafkaClientId: <use1-kafka-client-id>
   use1KafkaConnectionTimeout: "3000"
   use1KafkaAuthenticationTimeout: "5000"
   use1KafkaReauthenticationThreshold: "10000"
   aps1KafkaClientId: <aps1-kafka-client-id>
   aps1KafkaConnectionTimeout: "3000"
   aps1KafkaAuthenticationTimeout: "5000"
   aps1KafkaReauthenticationThreshold: "10000"
   kafkatopic: <kafka-topic>
   cdpSenderTopic: <cdp-sender-topic>
   kafkaProducerEventType: "104"
   kafkasource: <kafka-source>
   isEncryptionEnabled: "false"
   kafkaSaslMechanism: SCRAM-SHA-512
   fromEmail: <from-email>
   toEmail: <to-email>
   aerospikenamespaceaps1: <aerospike-namespace-aps1>
   aerospikenamespaceuse1: <aerospike-namespace-use1>
   nodeProcessMemoryLimit: 1500M
   kafkaRegions: '{"<aws-region>": "<region-short-name>"}'
   DEFAULT_SRC: "'http://*.domain.com:* https://*.domain.com:* <allowed-default-src>'"
   FONT_SRC: "'http://*.domain.com:* https://*.domain.com:* <allowed-font-src>'"
   IMG_SRC: "'http://*.domain.com:* https://*.domain.com:* <allowed-img-src>'"
   SCRIPT_SRC: "'http://*.domain.com:* https://*.domain.com:* <allowed-script-src>'"
   STYLE_SRC: "'http://*.domain.com:* https://*.domain.com:* <allowed-style-src>'"
   CAMPAIGN_IDS: <campaign-id-list>
   aps1KafkaSslEnabled: "true"
   use1KafkaSslEnabled: "true"
   CTEVENTS_CAMPAIGN_LIST: "[]"
   ctEventsKafkaTopics: <ct-events-kafka-topic>
   EVENTS_CAMPAIGN_LIST: "'[{\"<campaign-id>\":\"<event-topic>\"}]'"
   defaultLogLevel: '"error"'



4. On successful deployment, validate the deployment as shown below.
