Deploying CDP Dash Backend

This section provides detailed instructions on how to deploy HCL CDP Dash Backend using the Devtron in the OpenShift.

Prerequisites:

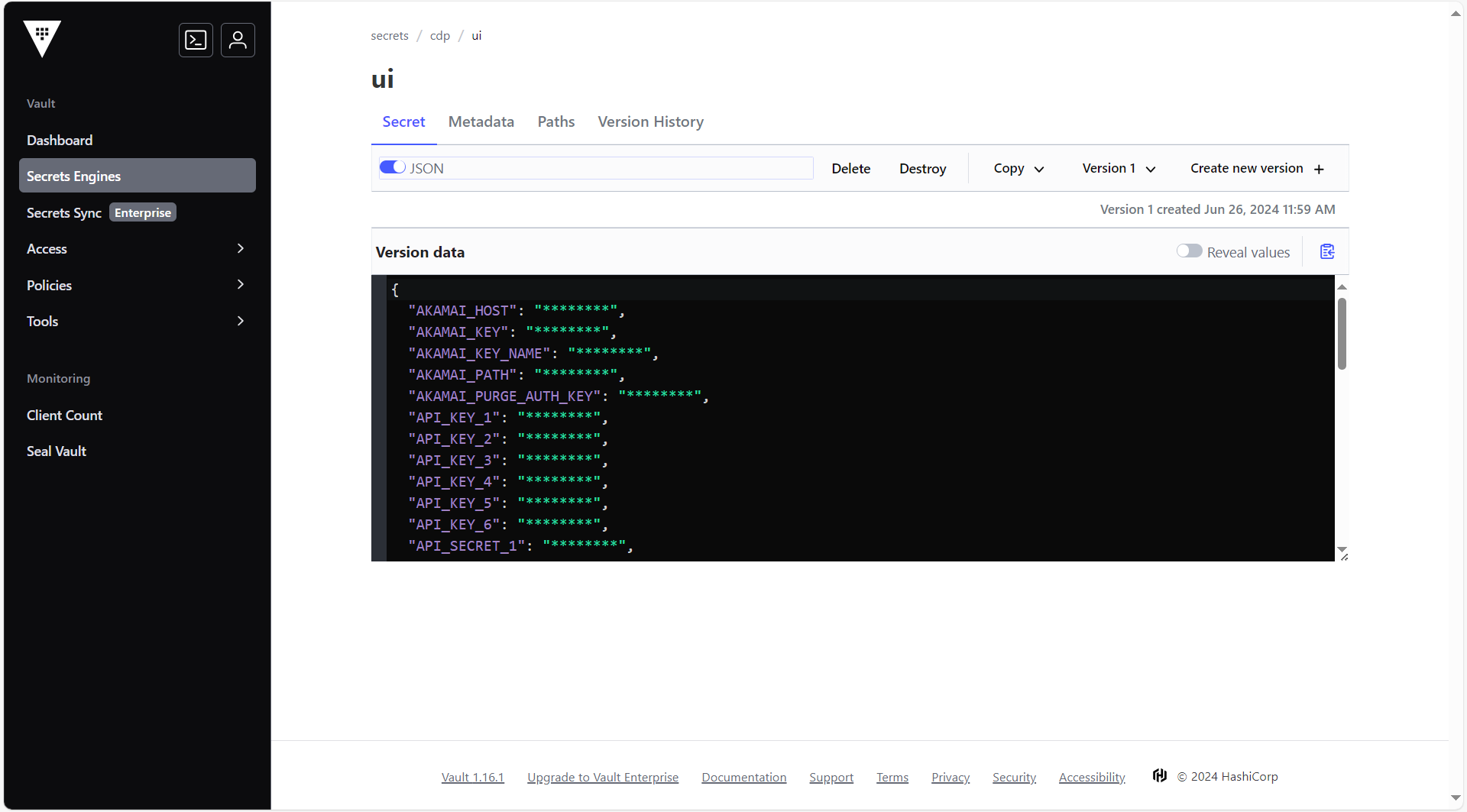

Make sure to create the UI secret with required data in the HashiCorp vault before deploying the CDP Dash Backend.

{
  "NEXT_PUBLIC_RECAPTCHA_KEY": "",
  "NEXT_PUBLIC_CLIENT_ID": "",
  "NEXT_PUBLIC_CLIENT_SECRET": "",
  "NEXT_PUBLIC_GOOGLE_CLIENT_ID": "",
  "NEXT_PUBLIC_GOOGLE_CLIENT_SECRET": "",
  "NEXT_PUBLIC_FROALA_SECRET": "",
  "REACT_APP_CLIENT_ID": "",
  "host": "",
  "user": "",
  "password": "",
  "sesEmail": "",
  "sesPassword": "",
  "REACT_APP_S3_ACCESS_KEY_ID": "",
  "REACT_APP_S3_SECRET_KEY": "",
  "AKAMAI_KEY": "",
  "AKAMAI_KEY_NAME": "",
  "AKAMAI_HOST": "",
  "AKAMAI_PATH": "",
  "AKAMAI_PURGE_AUTH_KEY": "",
  "usEndpoint": "",
  "muEndpoint": "",
  "muAuthKey": "",
  "auAuthKey": "",
  "auEndpoint": "",
  "usAuthKey": "",
  "API_KEY_1": "",
  "API_SECRET_1": "",
  "API_KEY_2": "",
  "API_SECRET_2": "",
  "API_KEY_3": "",
  "API_SECRET_3": "",
  "API_KEY_4": "",
  "API_SECRET_4": "",
  "API_KEY_5": "",
  "API_SECRET_5": "",
  "API_KEY_6": "",
  "API_SECRET_6": "",
  "smtpUser": "",
  "smtpPassword": "",
  "smtpHost": "",
  "smtpPort": "",
  "smtpFrom": "",
  "AUTH_TOKEN": ""
}

Deploying CDP Dash Backend

To deploy the CDP Dash Backend, follow the steps below:

Navigate to the Devtron Chart Store, and select the cdp-dash-backend chart to deploy.
Now, configure and deploy the CDP Dash Backend charts.

In the YAML section, update the ConfigMap using below details and deploy the charts.

PORT: "4398"
CORS: '["https://cdp.<domain>.cloud","https://cdp.<domain>.cloud/app","https://dash-iframe.<domain>.cloud","http://cdp.<domain>.cloud:8001","http://cdp.<domain>.cloud:8001/app"]'
CORE_API: https://coreapi.<domain>.cloud/-/v1/verifyUserAuthentication
DRUID_HOST: http://<internal-ip>:8888/druid/v2/sql
REGION: ap-south-1
LOGGING_MODE: live
DEMO_CAMPAIGN_ID: "[]"
FROM_EMAIL_ID: user@domain.com
ALERT_TO_EMAIL_ID: user@domain.com
ANALYTICS_BUCKET: hclsw-hxcd-hss-prd-s3-cdp-analytics
USE_TRINO: "false"
DEFAULT_SRC: "'http://*.dev.<domain>.cloud:* https://*.dev.<domain>.cloud:* https://www.google-analytics.com http://*.<domain>.cloud:* https://*.<domain>.cloud:*'"
FONT_SRC: "'http://*.dev.<domain>.cloud:* https://*.dev.<domain>.cloud:* https://www.google-analytics.com http://*.<domain>.cloud:* https://*.<domain>.cloud:* fonts.gstatic.com'"
IMG_SRC: "'http://*.dev.<domain>.cloud:* https://*.dev.<domain>.cloud:* https://www.google-analytics.com http://*.<domain>.cloud:* https://*.<domain>.cloud:*'"
SCRIPT_SRC: "'http://*.dev.<domain>.cloud:* https://*.dev.<domain>.cloud:* https://www.google-analytics.com http://*.<domain>.cloud:* https://*.<domain>.cloud:* unsafe-inline unsafe-eval'"
STYLE_SRC: "'http://*.dev.<domain>.cloud:* https://*.dev.<domain>.cloud:* https://www.google-analytics.com http://*.<domain>.cloud:* https://*.<domain>.cloud:* unsafe-inline'"
CDP_MANAGER: https://cdp-manager.<domain>.cloud
useMinio: "false"
dashboardResourceDirectory: dashboard
RTS_MS: https://rts-ms.<domain>.cloud
FUNNEL_QUERTY_TANENT_IDS: 6525,6578
USEATHENA_DB: 6525,6526,6527,6528,6529,6530,6531,6532,6533,6534,6536,6537,6538,6539,6540,6541,6542,6544,6545,6546,6547,6548,6549,6550
ALLOWED_HOSTS: |-
  '''dashbackend.<domain>.cloud'''
engagementsResourceDirectory: engagements
FUNNEL_PATH_ATHENA_TRINO_TENANT_IDS: 6550,6578
isClickhouseEnabled: "false"
MASTER_ID_FEATURE_ENABLED: 6543,6555,6556

On successful deployment, validate the deployment as shown below.
