Deploying HCL CDP SMSEmailSender

This section provides detailed instructions on how to deploy HCL CDP SMS Email Sender using the Devtron in the AWS.

Prerequisites

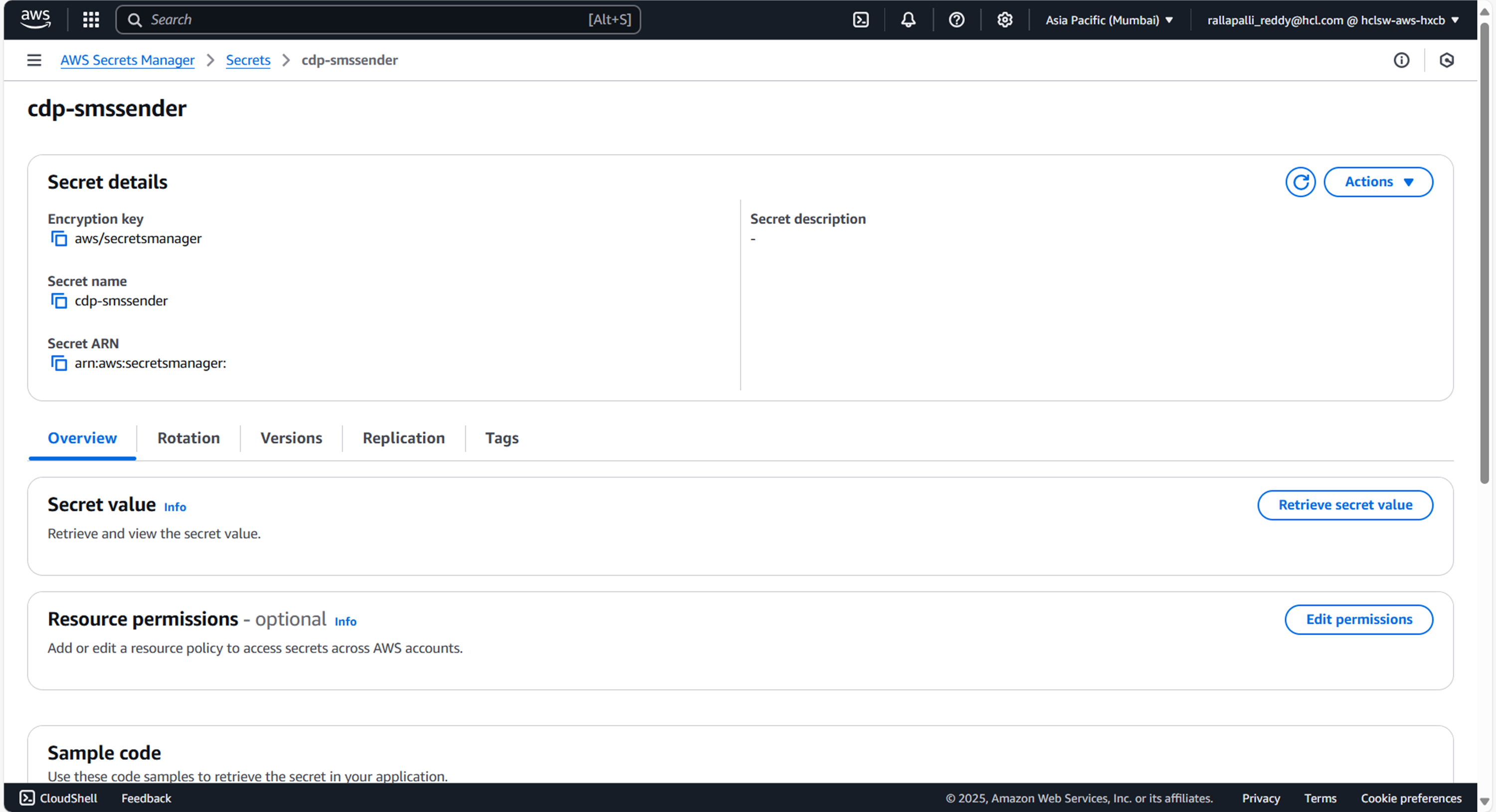

Make sure to create cdp-smsemailsender secret in the AWS secret manager before deploying CDP SMS Email Sender.

To create CDP SMS Email Sender secret in the AWS secret manager, follow the steps below:

  1. Create a cdp-smsemailsender secret sample key and value, and update the actual values as shown below.
    {
"KafkaBootstrapServer": "bootstrap.servers::<KAFKA_HOST_1>:9096,<KAFKA_HOST_2>:9096",
"KafkaUsername": "<KAFKA_USER>",
"KafkaPassword": "<KAFKA_PASSWORD>",
"VrmDbUsername": "<DB_USER>",
"VrmDbPassword": "<DB_PASSWORD>",
"KafkaProducerHostName": "trigger-sender-mu",
"ADCB_DEVMAG_CERTIFICATE_PASSWORD": "",
"ADCB_PRODMAG_CERTIFICATE_PASSWORD": "",
"s3.accessKeyId": "",
"s3.secretKey": "",
"s3.region": "ap-south-1",
"RedisIP": "<REDIS_HOST>",
"RedisPort": "6379",
"MysqlHost": "<DB_HOST>",
"MysqlPort": "3307",
"MysqlDb": "vrm?autoReconnect=true",
"5979_ACL_USER_ID": "",
"5979_ACL_PASS": "",
"5979_ACL_APP_ID": "",
"5979_ACL_SUB_APP_ID": "",
"BLOW_FISH_KEY": "<SECRET_KEY>",
"MGAGE_XML_API": "<API_KEY>",
"KENSCIO_CLIENT_END_POINT_URL": "",
"KENSCIO_USERNAME": "",
"KENSCIO_PASSWORD": "",
"KENSCIO_SYSTEM_ID_KEY": "",
"KENSCIO_SYSTEM_ID": "",
"KENSCIO_MESSAGE_ID_KEY": "",
"KENSCIO_MESSAGE_ID": "",
"AerospikeCluster": "<AERO_HOST_1>,<AERO_HOST_2>",
"AerospikePort": "13000",
"Namespace": "cdpstore",
"Expiry": "-1",
"Timeout": "3000",
"USAerospikeCluster": "",
"USAerospikePort": "13000",
"USNamespace": "",
"MUAerospikeCluster": "<AERO_HOST_1>,<AERO_HOST_2>",
"MUAerospikePort": "13000",
"MUNamespace": "cdpstore",
"SupportedRegion": "aps1",
"ExcludedCampaigns": "",
"KAFKA_TOPIC_LIST": "dmp_sms_core_aps1,dmp_email_core_aps1,dmp_wsap_core_aps1,dmp_trapi_core_aps1",
"KAFKA_TOPIC_CONSUMERS": "6,6,6,6",
"KAFKA_TOPIC_CONSUMER_BATCHSIZE": "10,10,10,10",
"KAFKA_TOPIC_CONSUMER_DEFAULT_BATCH_TIMEOUT_MS": "1000,1000,1000,1000",
"KAFKA_TOPIC_CONSUMER_DEFAULT_BATCHTIMEOUT_TRIGGER": "5000,5000,5000,5000",
"TSDB_HOST": "<TSDB_HOST>",
"allowTrafficForSpecificCampaign": "false",
"IncludedCampaigns": "4658,6035,6238,6037,6184,6349,6450,6455,6525",
"URL_SHORTENER_S3_BUCKET": "lem-url-shortener",
"URL_SHORTENER_S3_BUCKET_EMAIL": "lem-email-url-shortener",
"PII_MIN_IDLE_THREADS": "2",
"PII_MAX_IDLE_THREADS": "4",
"KafkaBootstrapServerUS": "",
"KafkaUsernameUS": "",
"KafkaPasswordUS": "",
"SesEnabled": "true",
"PIILookUpEnabled": "true",
"KafkaConsumerConfig": "bootstrap.servers::<KAFKA_HOST_1>:9096,<KAFKA_HOST_2>:9096|security.protocol::SASL_SSL|sasl.jaas.config::org.apache.kafka.common.security.scram.ScramLoginModule required username='<KAFKA_USER>' password='<KAFKA_PASSWORD>';|sasl.mechanism::SCRAM-SHA-512|client.dns.lookup::use_all_dns_ips|group.id::k8s-trigger-sender",
"KafkaProducerConfig": "bootstrap.servers::<KAFKA_HOST_1>:9096,<KAFKA_HOST_2>:9096|security.protocol::SASL_SSL|sasl.jaas.config::org.apache.kafka.common.security.scram.ScramLoginModule required username='<KAFKA_USER>' password='<KAFKA_PASSWORD>';|sasl.mechanism::SCRAM-SHA-512|client.dns.lookup::use_all_dns_ips|acks::all|max.block.ms::5000",
"KafkaProducerRegion": "aps1",
"KafkaProducerConfigaps1": "bootstrap.servers::<KAFKA_HOST_1>:9096,<KAFKA_HOST_2>:9096|security.protocol::SASL_SSL|sasl.jaas.config::org.apache.kafka.common.security.scram.ScramLoginModule required username='<KAFKA_USER>' password='<KAFKA_PASSWORD>';|sasl.mechanism::SCRAM-SHA-512|client.dns.lookup::use_all_dns_ips|acks::all|max.block.ms::5000",
"AerospikeUser": "<AERO_USER>",
"AerospikePassword": "<AERO_PASSWORD>"
}
  2. Update ConfigMaps data with actual values, and create required Kafka topics before deployment.

Deploy CDP SMS Email Sender

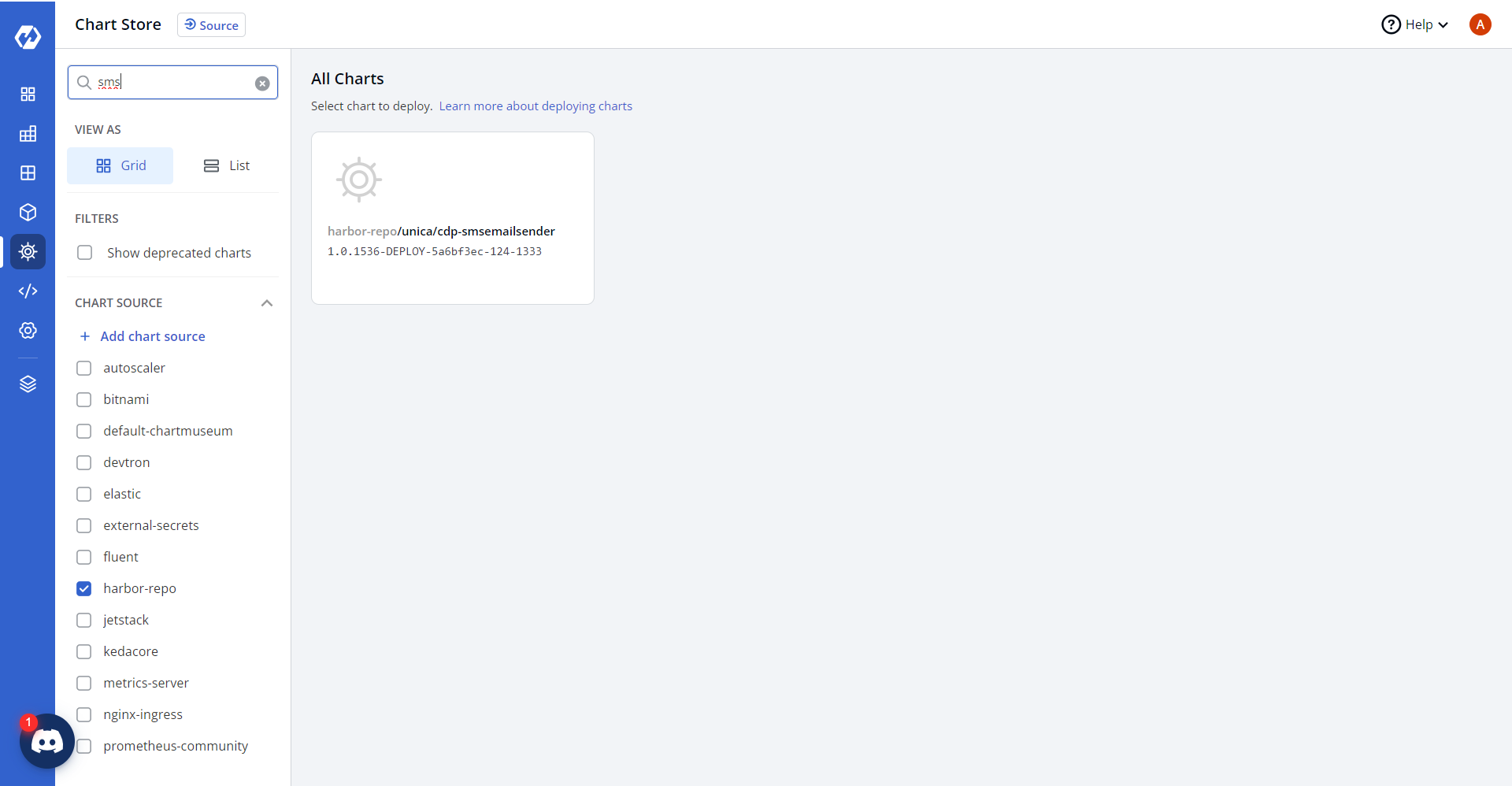

  1. Navigate to the Devtron Chart Store, and select the cdp-smsemailsender chart to deploy.

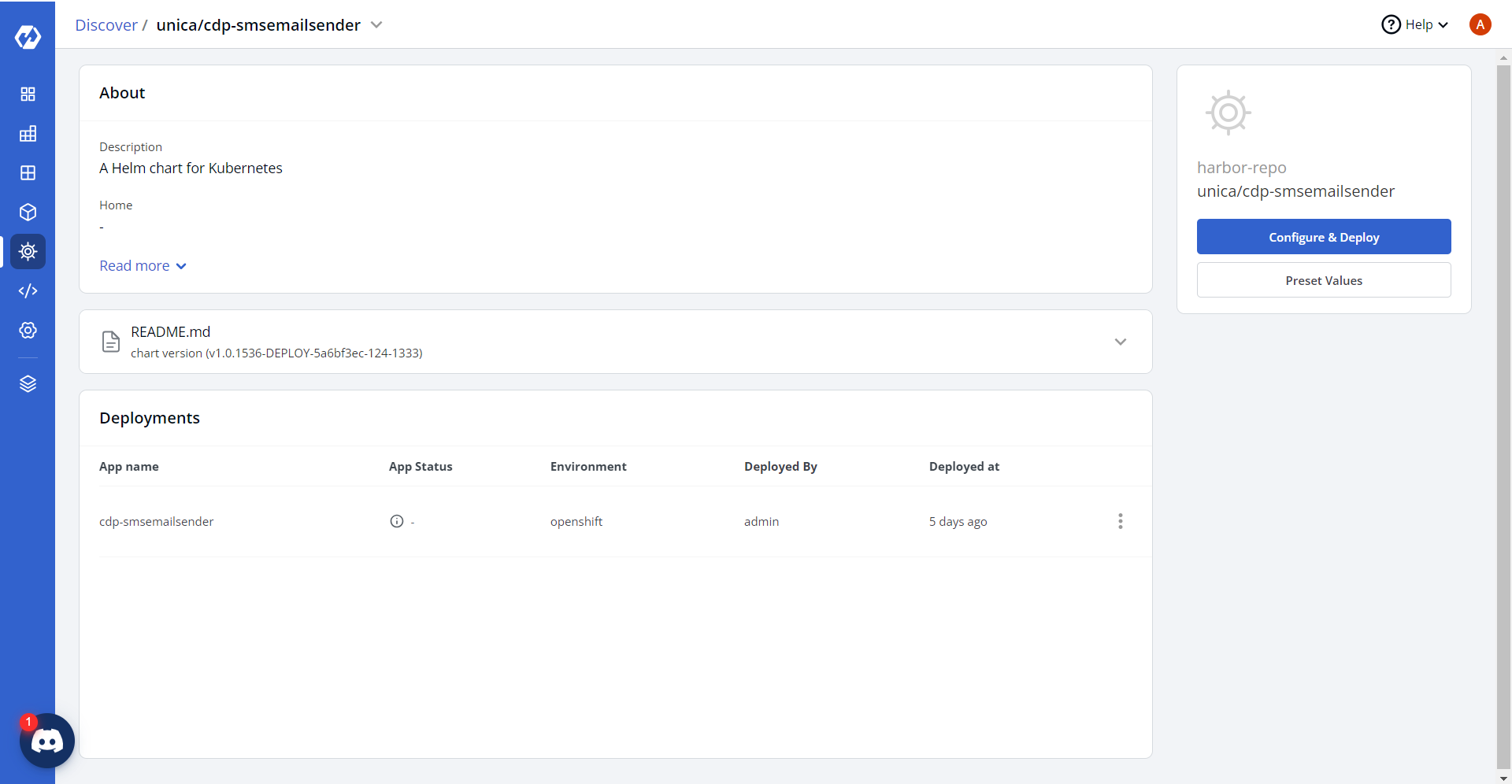

  2. Now, configure and deploy the cdp-smsemailsender charts.

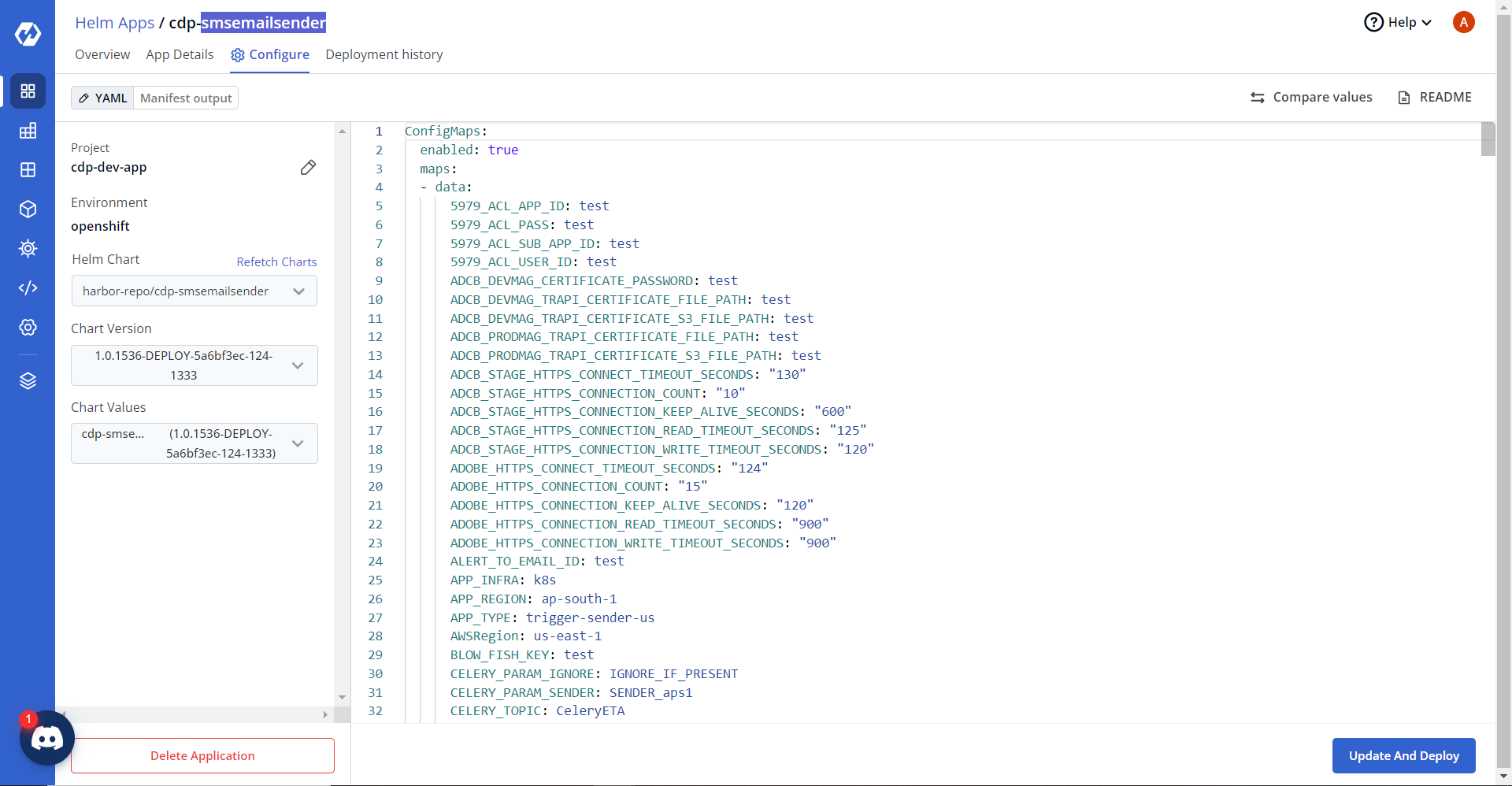

  3. In the YAML section, update the ConfigMap using the below details and deploy the chart.
    KAFKA_EXECUTOR_SERVICE_MIN_THREADS: "32"
KAFKA_EXECUTOR_SERVICE_MAX_THREADS: "64"
KAFKA_EXECUTOR_SERVICE_THREAD_TTL: "5"
KAFKA_EXECUTOR_SERVICE_QUEUES_SIZE: "1000"

TRAPI_KAFKA_EXECUTOR_SERVICE_MIN_THREADS: "32"
TRAPI_KAFKA_EXECUTOR_SERVICE_MAX_THREADS: "64"
TRAPI_KAFKA_EXECUTOR_SERVICE_THREAD_TTL: "5"
TRAPI_KAFKA_EXECUTOR_SERVICE_QUEUES_SIZE: "1000"

MAX_EVENT_BATCH_LAG: "16"
KAFKA_CONSUMER_GROUP: k8s-trigger-sender

EMAIL_HTTPS_CONNECTION_COUNT: "10"
EMAIL_HTTPS_CONNECTION_KEEP_ALIVE_SECONDS: "6000"

MANDRILL_CLIENT_END_POINT_URL: "<masked-email-provider>"

kMS_DECRYPT_TIMEOUT: "3"

FROM_EMAIL_ID: user@domain.com
ALERT_TO_EMAIL_ID: user@domain.com

SMS_HTTPS_CONNECTION_COUNT: "10"
SMS_HTTPS_CONNECTION_KEEP_ALIVE_SECONDS: "6000"

REDIS_MAX_CONNECTIONS: "20"
REDIS_KEY_TTL_IN_SEC: "7776000"

TRAPI_HTTPS_CONNECTION_COUNT: "45"
TRAPI_HTTPS_CONNECTION_KEEP_ALIVE_SECONDS: "4000"
TRAPI_HTTPS_CONNECTION_READ_TIMEOUT_SECONDS: "122"
TRAPI_HTTPS_CONNECTION_WRITE_TIMEOUT_SECONDS: "123"
TRAPI_HTTPS_CONNECT_TIMEOUT_SECONDS: "124"

CLICK_TRACKER: "<masked-tracker-url>"
CLICK_TRACKER_SMS: "<masked-tracker-url>"
OPEN_TRACKER: "<masked-tracker-url>"

PASS_THROUGH_SUPPORTED_VENDOR: Phonon

DB_REFRESH_INTERVAL_MS: "120000"
TRAPI_CONFIG_REFRESH_INTERVAL: "600000"

MINIMUM_IDLE_THREADS: "3"
MAXIMUM_IDLE_THREADS: "6"

TRAPI_TOPIC_PREFIX: dmp_trapi_core

S3_ENDPOINT: "<masked-s3-endpoint>"
S3_PROTOCOL: HTTPS
S3_MAX_ERROR_RETRY: "3"
S3_MAX_CONNECTIONS: "10"
S3_MAX_RW_RETRY: "3"
S3_TIMEOUT_SOCKET: "5000"
S3_TIMEOUT_CONNECTION: "10000"
S3_TIMEOUT_CLIENTEXECUTION: "50000"
S3_TIMEOUT_REQUEST: "5000"
S3_REQUEST_METADATA_FOLDER: trapi_req_metadata

URL_SHORTENER_DOMAIN: "<masked-shortener-domain>"
URL_SHORTENER_DOMAIN_EMAIL: "<masked-shortener-email-domain>"
URL_SHORTENER_AVOID_CONFLICT: "true"
URL_SHORTENER_CONFLICT_MAX_RETRIES: "3"
URL_SHORTENER_MULTIPLY_FACTOR: "10000"

SHORTEN_CLICK_TRACKER_EMAIL: "<masked-shortener-url>"

KAFKA_PRODUCER_POOL_SIZE: "10"
KAFKA_PRODUCER_META: "true"
PRODUCER_EVENT_TYPE: "1234"

CELERY_PARAM_SENDER: SENDER_aps1
CELERY_PARAM_IGNORE: IGNORE_IF_PRESENT
CELERY_TOPIC: CeleryETA

KAFKA_PRODUCER_CHANNELS: email,sms,trapi,wasp

EMAIL_IMPRESSION_TOPIC: sms_email_events
SMS_IMPRESSION_TOPIC: sms_email_events
TRAPI_IMPRESSION_TOPIC: trapi_events
TRAPI_FEEDBACK_IMPRESSION_TOPIC: sms_email_events
WASP_IMPRESSION_TOPIC: whatsapp_events

USER_FAILURE_KAFKA_TOPIC: sender_failure

ADCB_DEVMAG_TRAPI_CERTIFICATE_FILE_PATH: "<masked-cert-path>"
ADCB_DEVMAG_TRAPI_CERTIFICATE_S3_FILE_PATH: "<masked-cert-path>"
ADCB_PRODMAG_TRAPI_CERTIFICATE_S3_FILE_PATH: "<masked-cert-path>"
ADCB_PRODMAG_TRAPI_CERTIFICATE_FILE_PATH: "<masked-cert-path>"
TRAPI_CERTIFICATE_ENDPOINT: "<masked-cert-service>"
TRAPI_CERTIFICATE_CAMPAIGN_SUFFIX: "<masked-value>"

COMPONENT_NAME: trigger_sender_us

REPORTING_INTERVAL_IN_MIN: "55"

WHATSAPP_HTTPS_CONNECTION_COUNT: "120"
WHATSAPP_HTTPS_CONNECTION_KEEP_ALIVE_SECONDS: "10"

METRIC_FILE_PATH: /disk1/config/sms-email-sender/metrics.ini
METRIC_DUMPER_FILE_PATH: /disk1/config/sms-email-sender/metricDumper.ini

HTTPS_CONNECTION_COUNT: "10"
HTTPS_CONNECTION_KEEP_ALIVE_SECONDS: "60"

SERVER_PORT: "8085"

COMMON_HTTPS_CONNECTION_COUNT: "100"
COMMON_HTTPS_CONNECTION_KEEP_ALIVE_SECONDS: "60"

ADCB_STAGE_HTTPS_CONNECTION_COUNT: "10"
ADCB_STAGE_HTTPS_CONNECTION_KEEP_ALIVE_SECONDS: "600"
ADCB_STAGE_HTTPS_CONNECTION_READ_TIMEOUT_SECONDS: "125"
ADCB_STAGE_HTTPS_CONNECTION_WRITE_TIMEOUT_SECONDS: "120"
ADCB_STAGE_HTTPS_CONNECT_TIMEOUT_SECONDS: "130"

ADOBE_HTTPS_CONNECTION_COUNT: "15"
ADOBE_HTTPS_CONNECTION_KEEP_ALIVE_SECONDS: "120"
ADOBE_HTTPS_CONNECTION_READ_TIMEOUT_SECONDS: "900"
ADOBE_HTTPS_CONNECTION_WRITE_TIMEOUT_SECONDS: "900"
ADOBE_HTTPS_CONNECT_TIMEOUT_SECONDS: "124"

SENDER_FEEDBACK_TOPIC: dmp_sst_nba_di_api

LIVSPACE_IVR_LPEU_APID: "99"
LIVSPACE_IVR_BPEU_APID: "89"

APP_TYPE: trigger-sender-us
APP_REGION: ap-south-1
APP_INFRA: k8s

LOG_LEVEL_APP: debug
LOG_LEVEL_METRICS: info
LOG_LEVEL_UTILS: debug
LOG_LEVEL_PII_STORAGE: debug
LOG_LEVEL_KMS: debug
LOG_LEVEL_ROOT: info

S3_ACCESSKEYID: ""
S3_SECRETKEY: ""
S3_REGION: ap-south-1

defaultBusinessRegion: aps1
inboundKafkaTopic: sender_inbound

ergoLeadApi: "<masked-api>"

VRM_DRIVER: org.mariadb.jdbc.Driver
DBDRIVER: jdbc:mariadb

TSDB_PORT: "80"

KafkaProducerConfiguse1: "<masked>"
KafkaProducerConfigtaw1: "<masked>"

KENSCIO_USERNAME: "<masked>"
KENSCIO_PASSWORD: "<masked>"
KENSCIO_SYSTEM_ID_KEY: "<masked>"
KENSCIO_SYSTEM_ID: "<masked>"
KENSCIO_MESSAGE_ID_KEY: "<masked>"
KENSCIO_MESSAGE_ID: "<masked>"

ADCB_DEVMAG_CERTIFICATE_PASSWORD: "<masked>"
5979_ACL_USER_ID: "<masked>"
5979_ACL_PASS: "<masked>"
5979_ACL_APP_ID: "<masked>"
5979_ACL_SUB_APP_ID: "<masked>"

BLOW_FISH_KEY: "<masked>"

MGAGE_XML_API: "<masked>"

emailType: SES
KMS_IMPLEMENTATION: AWS

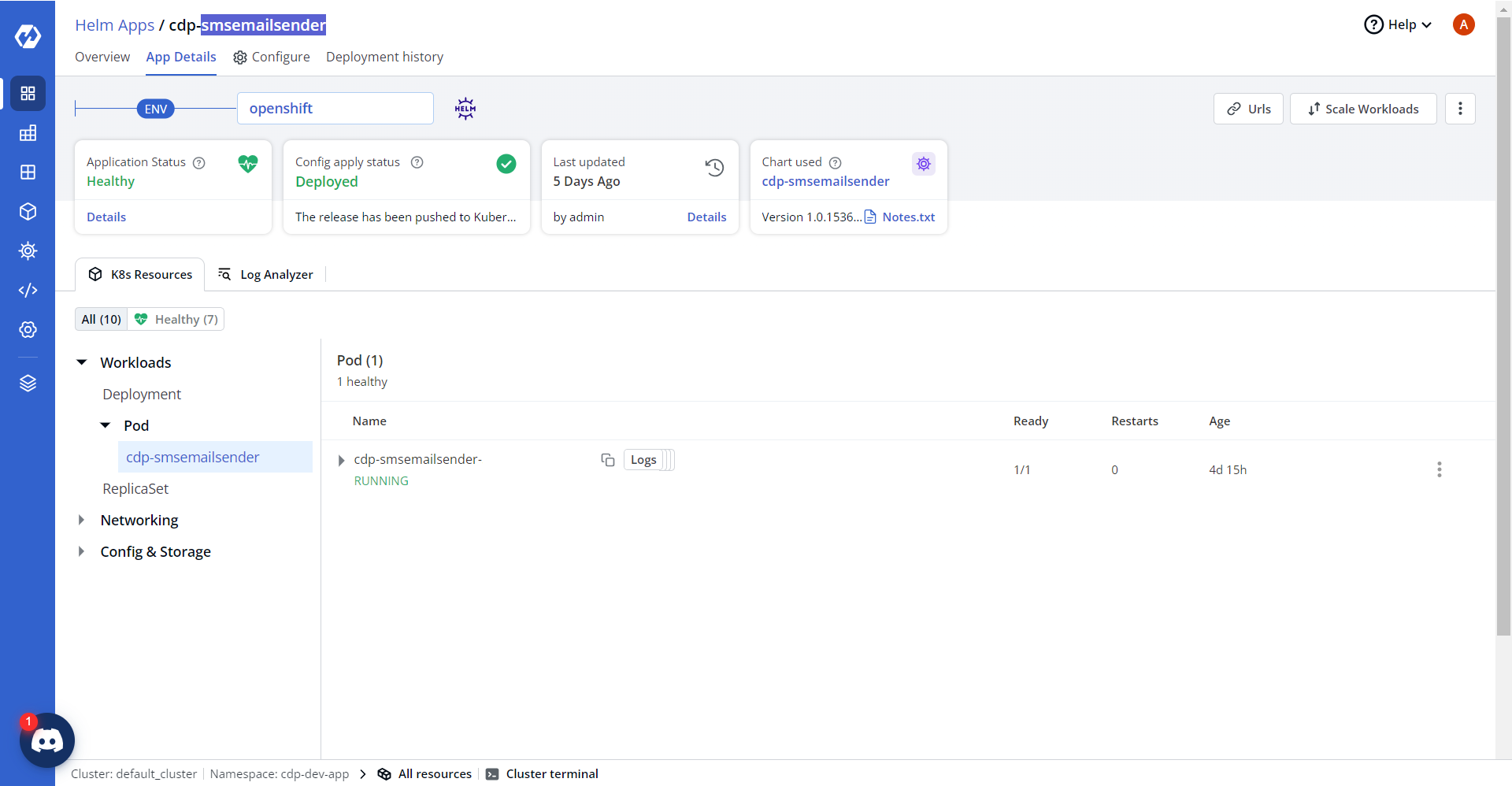

  4. On successful deployment, validate the deployment as shown below.
