Deploying HCL CDP Click Trackers

This section provides detailed instructions on how to deploy HCL CDP Clicktrackers using the Devtron in the AWS.

Before you begin

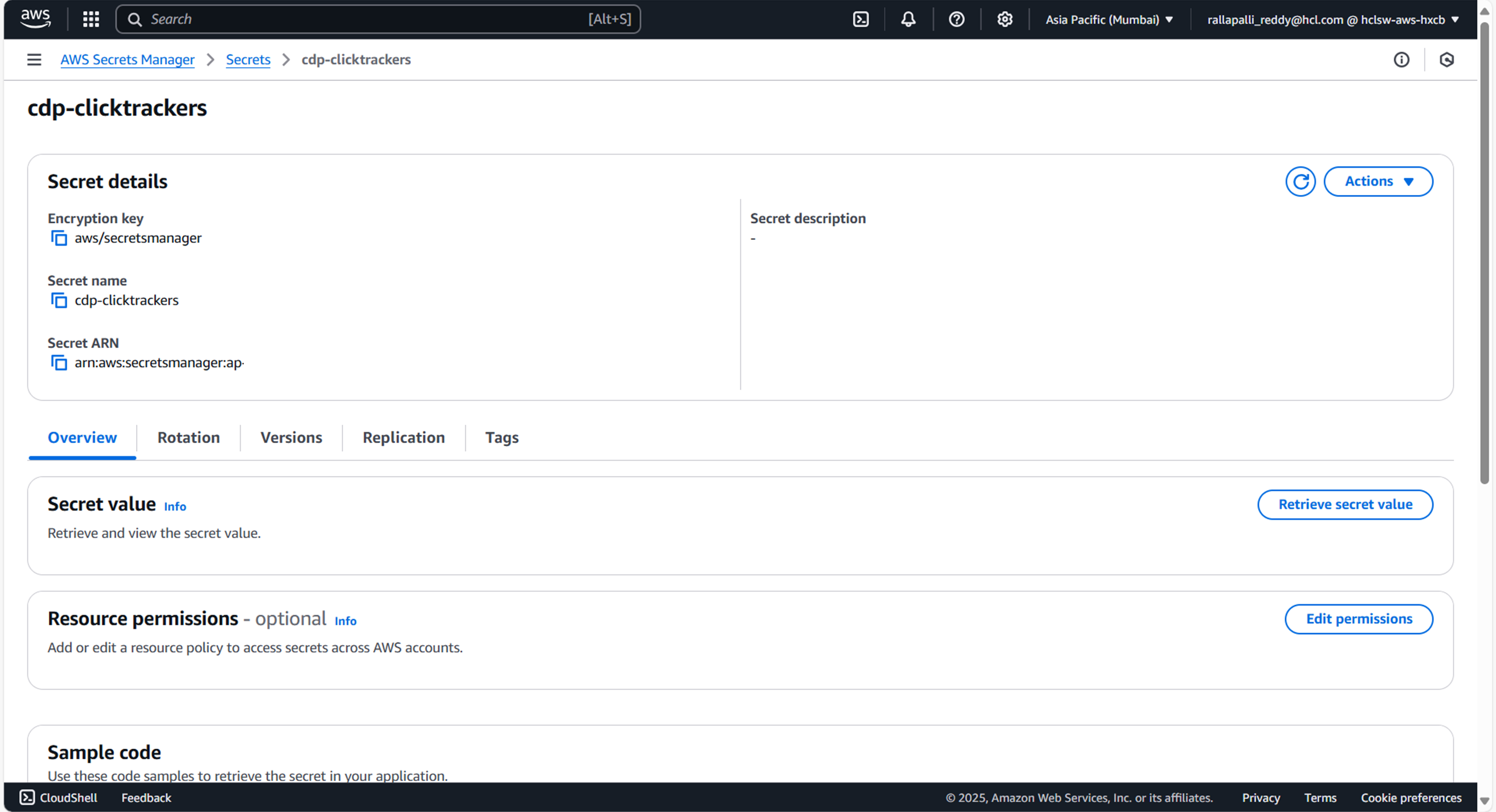

Make sure to create cdp-clicktrackers secret in the AWS secret manager before deploying CDP Click Trackers.

To create a CDP Clicktrackers secret in the AWS secret manager , follow the steps below:

  1. Create a cdp-clicktrackers secret sample key and value, and update the actual values as shown below.
    {
  "DbUsername": "",
  "DbPassword": "",
  "DbUrl": "jdbc:mariadb://:3307/vrm",
  "DbDriver": "org.mariadb.jdbc.Driver",
  "DbRefreshTimeMin": "5",
  "KafkaProducerConfigaps1": "",
  "KafkaProducerConfig": "",
  "KafkaSMSClickTopic": "clk_sms_click",
  "KafkaEmailClickTopic": "clk_email_click"
}
  2. Update ConfigMaps data with actual values, and create required Kafka topics before deployment.

Procedure

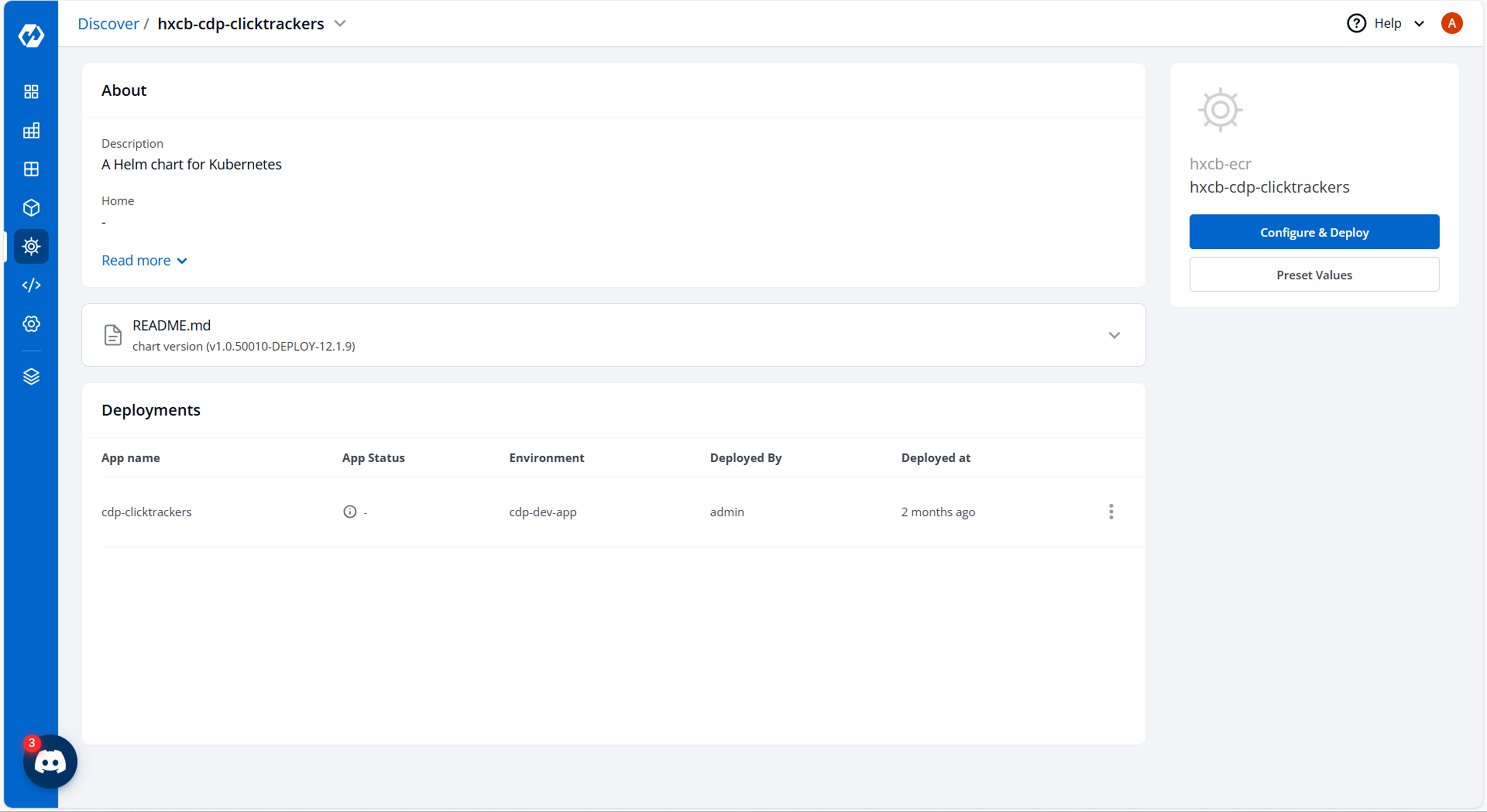

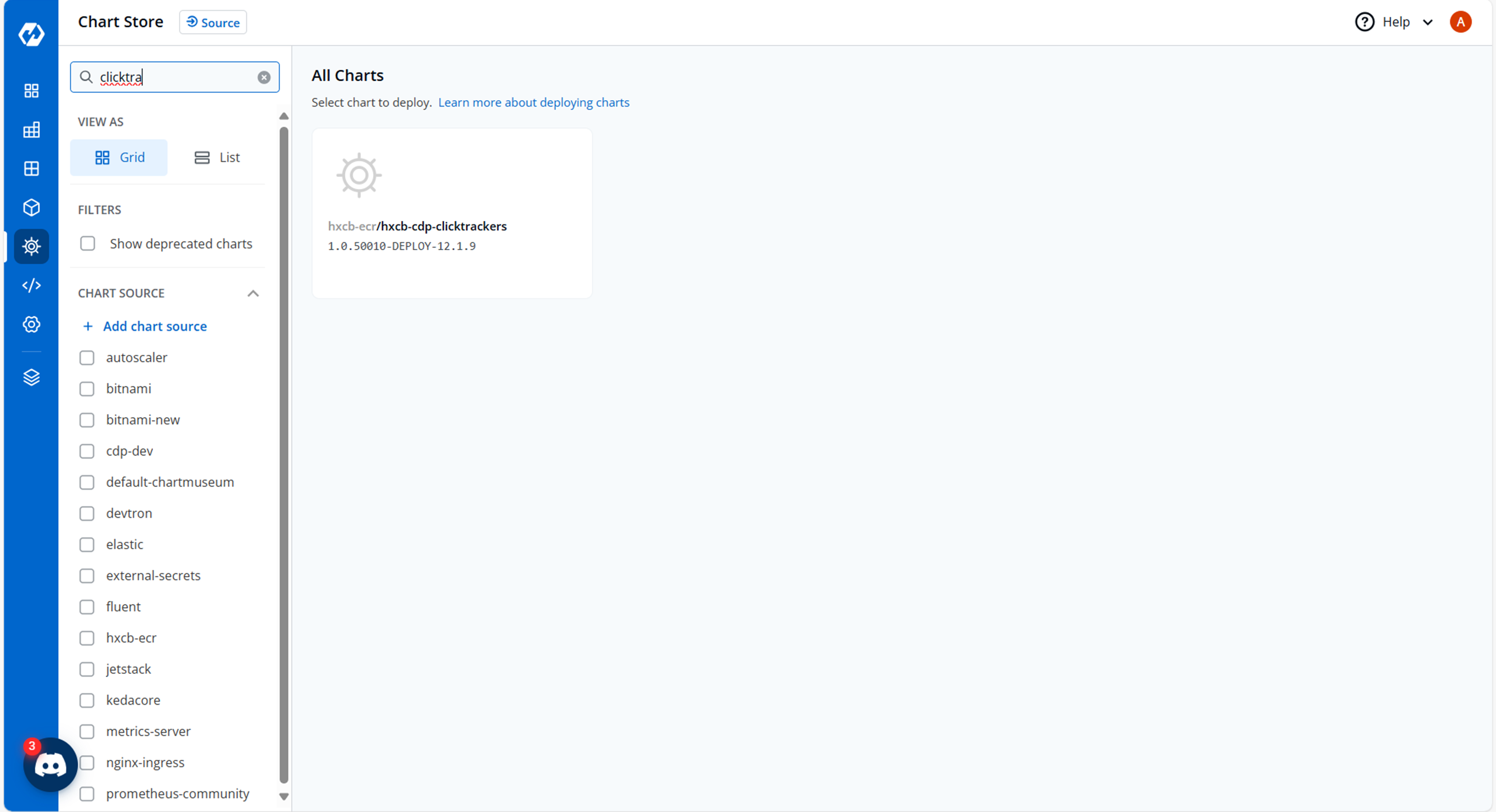

  1. Navigate to the Devtron Chart Store, and select the cdp-clicktrackers chart to deploy.
  2. Now, configure and deploy the cdp-clicktrackers charts.

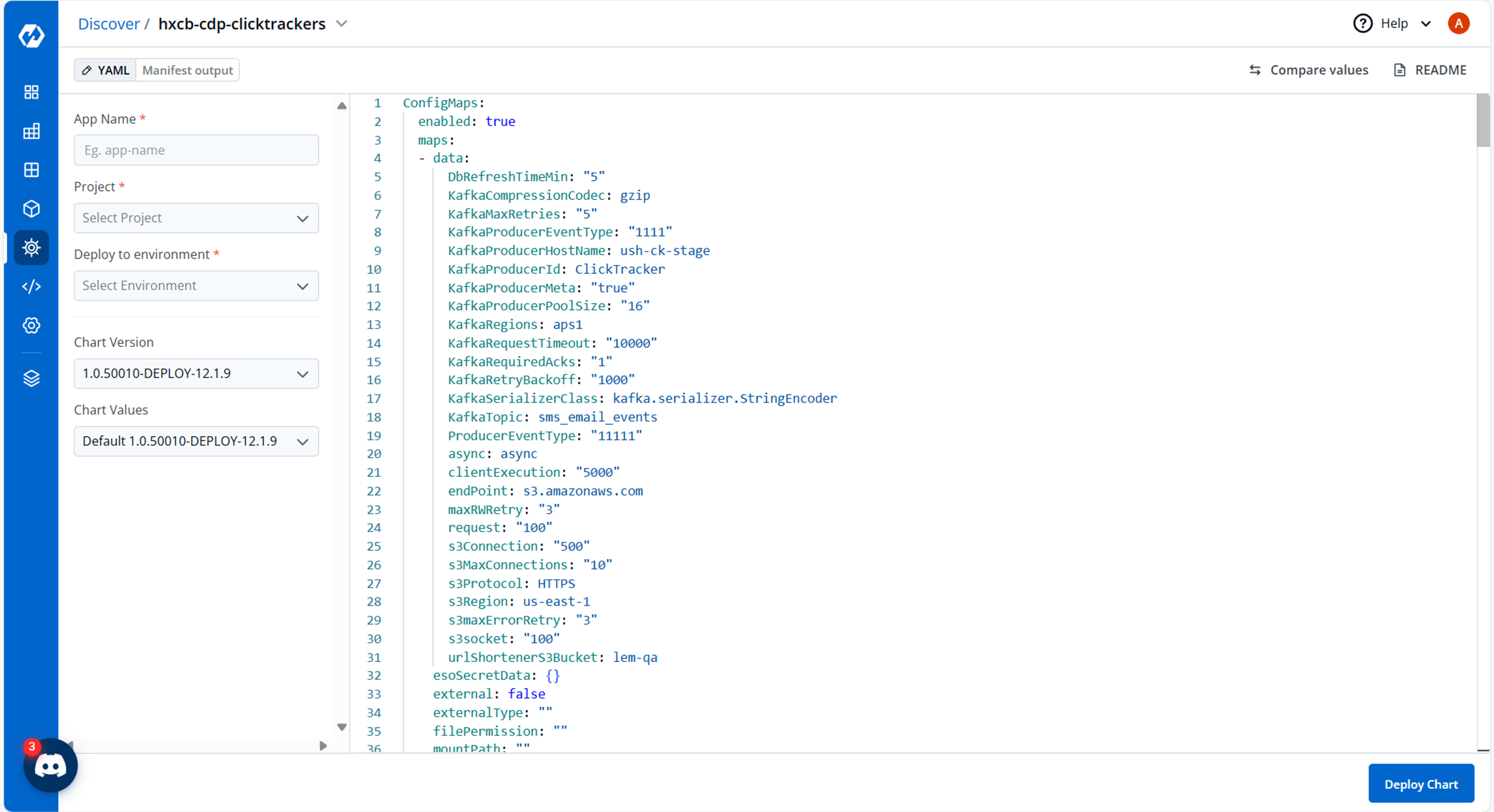

  3. In the YAML section, update the ConfigMap using the below details and deploy the chart.
    DbRefreshTimeMin: "5"
urlShortenerS3Bucket: lem-qa
s3Region: us-east-1
s3Protocol: HTTPS
s3maxErrorRetry: "3"
s3MaxConnections: "10"
maxRWRetry: "3"
s3socket: "100"
s3Connection: "500"
clientExecution: "5000"
request: "100"
endPoint: s3.amazonaws.com
KafkaSerializerClass: kafka.serializer.StringEncoder
KafkaProducerId: ClickTracker
LOG_LEVEL_APP: debug
LOG_LEVEL_ROOT: info
KafkaRequiredAcks: "1"
KafkaRequestTimeout: "10000"
async: async
KafkaCompressionCodec: gzip
KafkaMaxRetries: "5"
KafkaRetryBackoff: "1000"
KafkaProducerPoolSize: "16"
ProducerEventType: "11111"
KafkaProducerMeta: "true"
KafkaProducerEventType: "1111"
KafkaTopic: sms_email_events
KafkaRegions: aps1
KafkaProducerHostName: ush-ck-stage

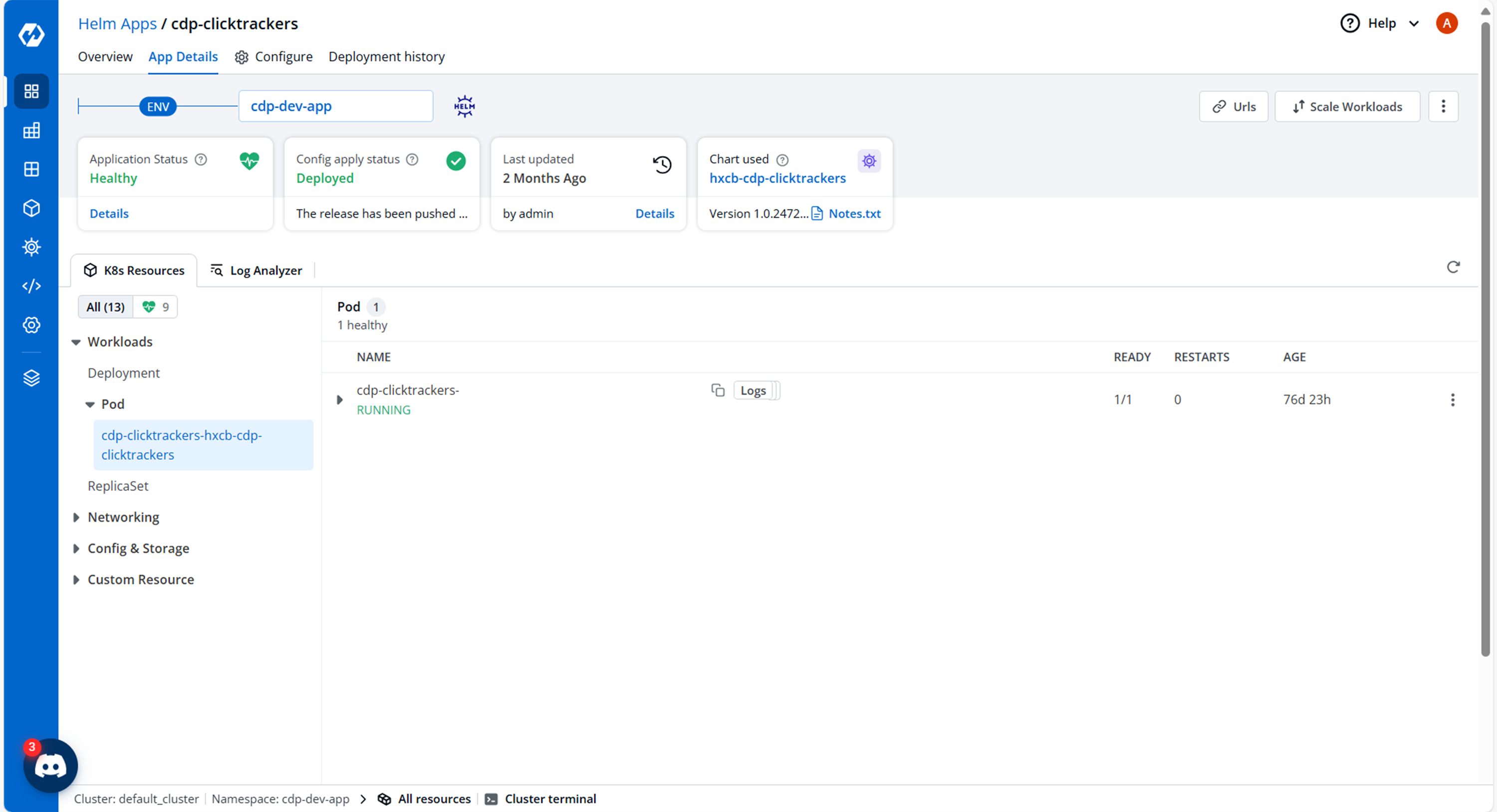

  4. On successful deployment, validate the deployment as shown below.
