Deploying HCL CDP Celery callback consumer

This section provides detailed instructions on how to deploy HCL CDP Celerykafkacallbackprocessor using the Devtron in the AWS.

Before you begin

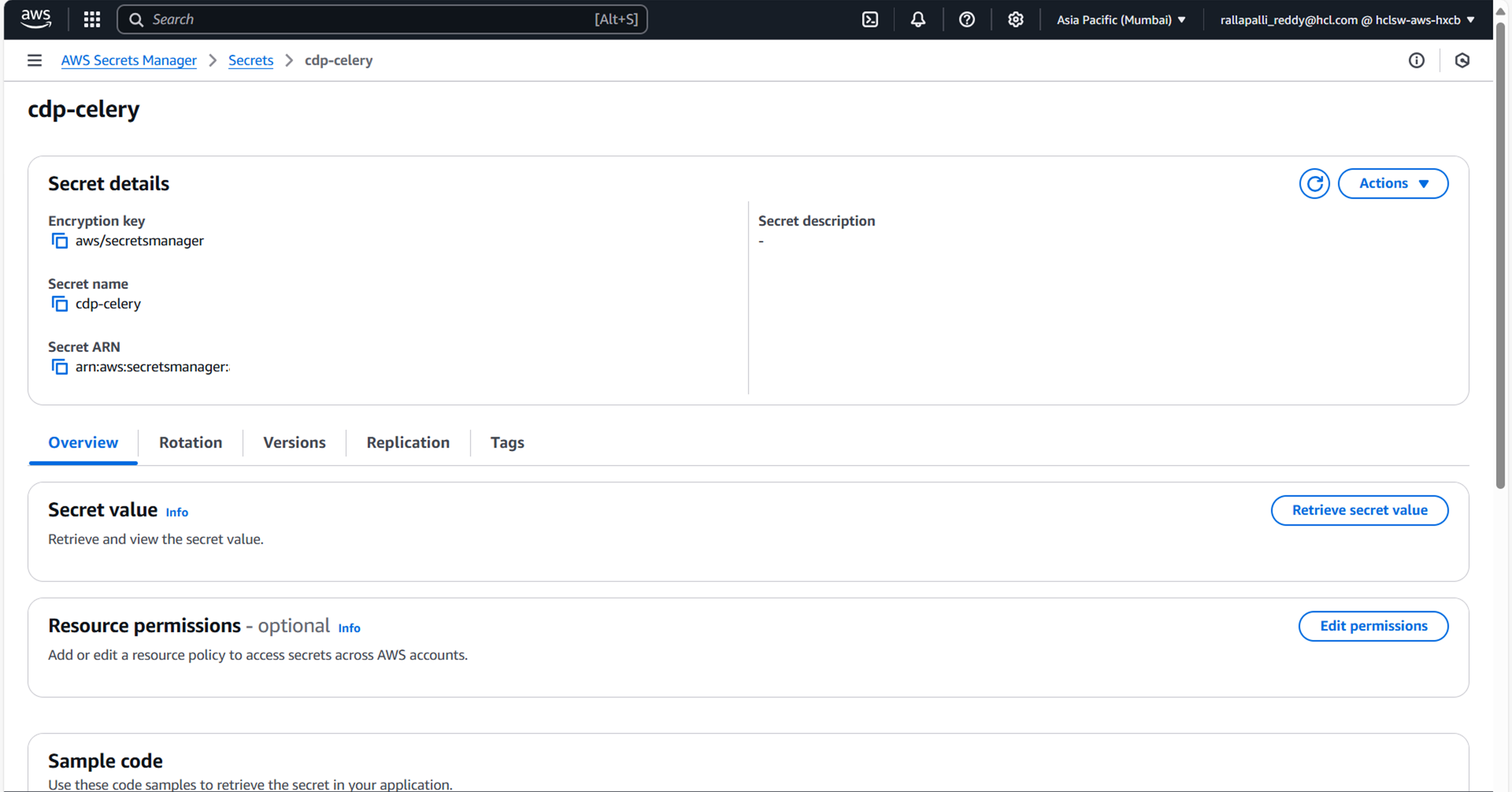

Make sure to create cdp-Celerykafkacallbackprocessor secret in the AWS secret manager before deploying CDP Celery callback consumer.

To create CDP Celerykafkacallbackconsumer secret in the AWS secret manager , follow the steps below:

  1. Create a cdp-Celerykafkacallbackprocessor secret sample key and value, and update the actual values as shown below.
    {
"bootstrap_servers":"",
"RABBITMQ_USERNAME":"",
"RABBITMQ_HOST":"",
"RABBITMQ_PORT":"5672"
}
  2. Update ConfigMaps data with actual values, and create required Kafka topics before deployment.

Procedure

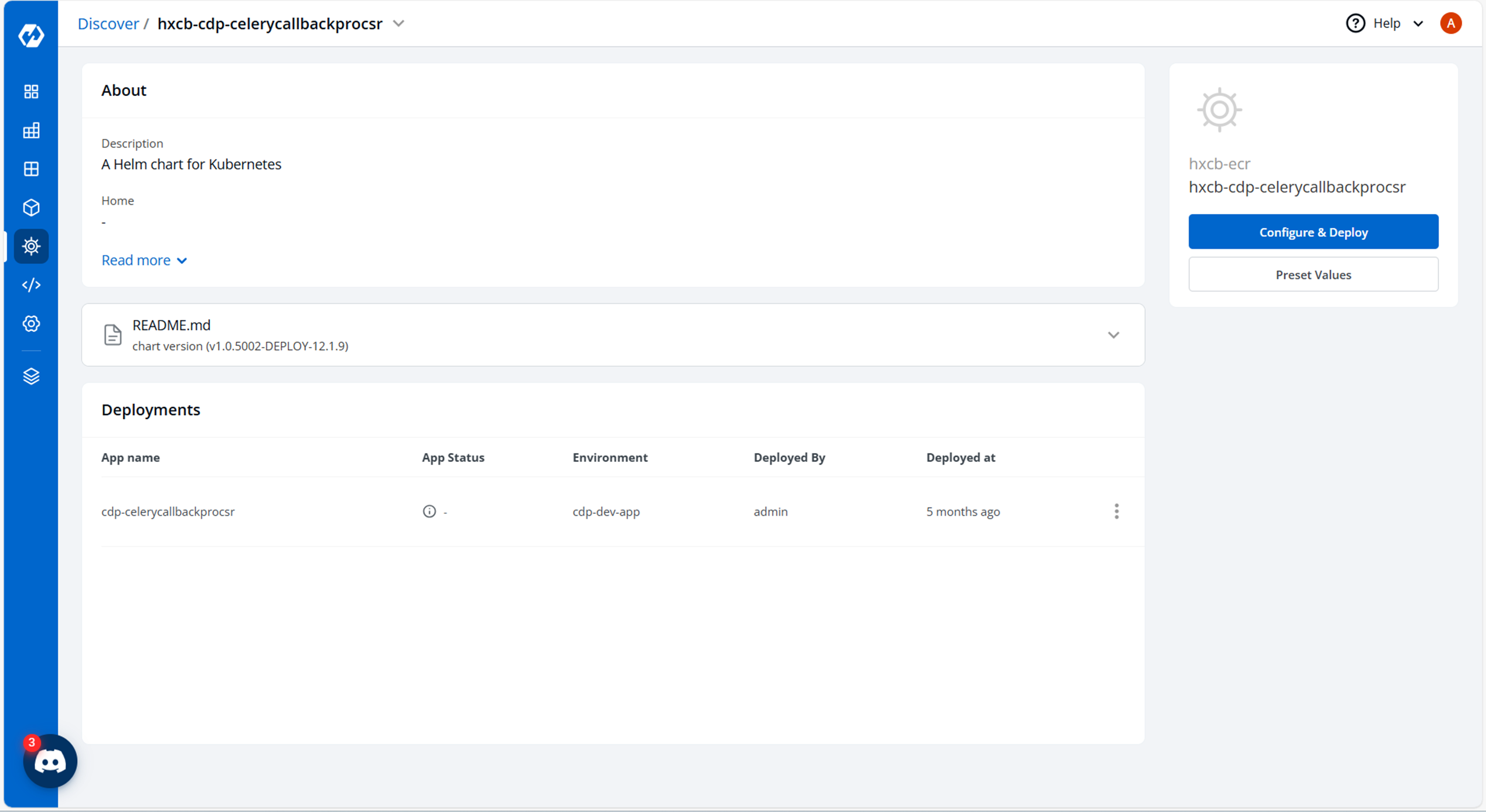

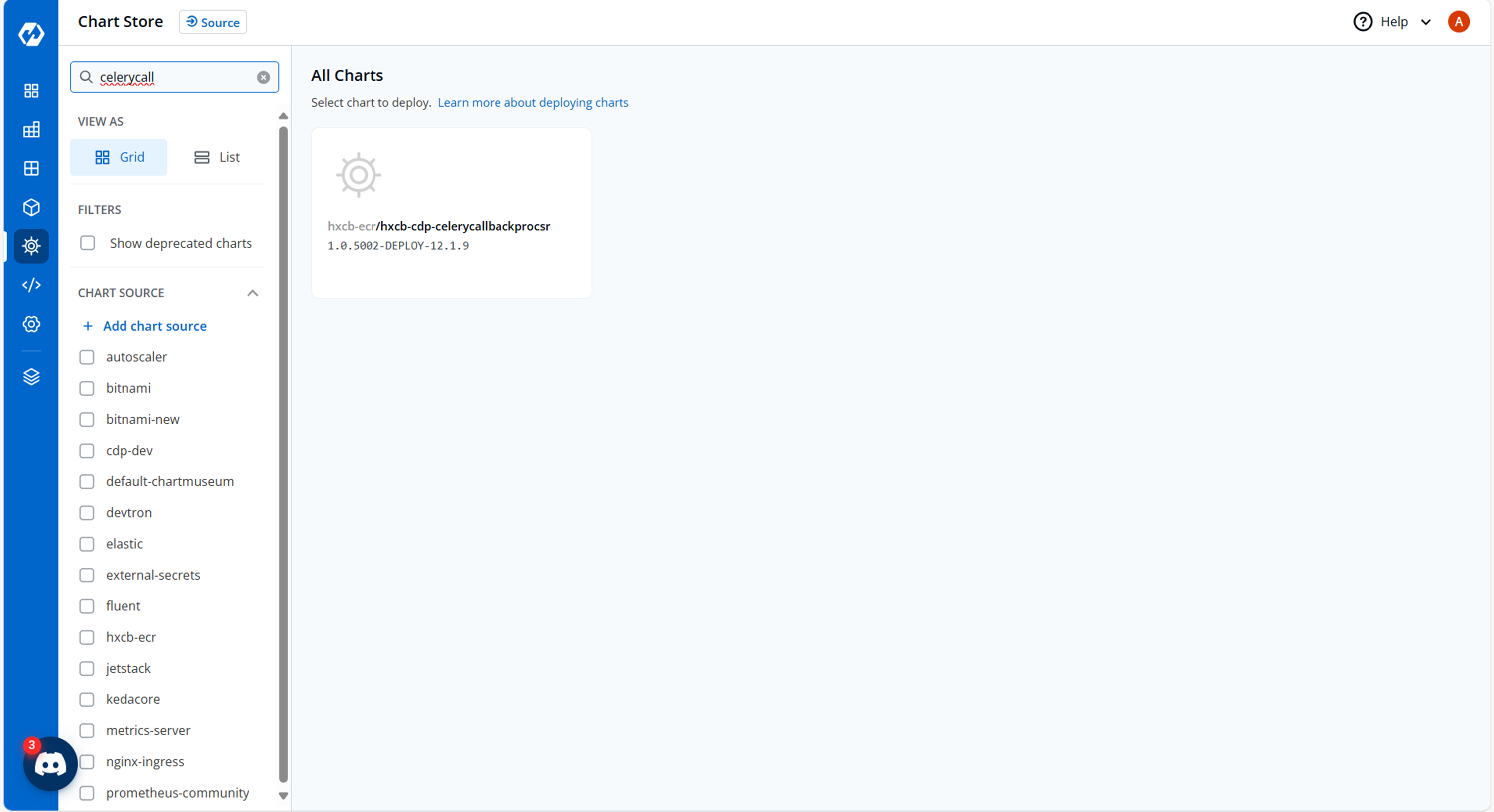

  1. Navigate to the Devtron Chart Store, and select the cdp-Celerykafkacallbackprocessor chart to deploy.
  2. Now, configure and deploy the cdp-Celerykafkacallbackprocessor charts.

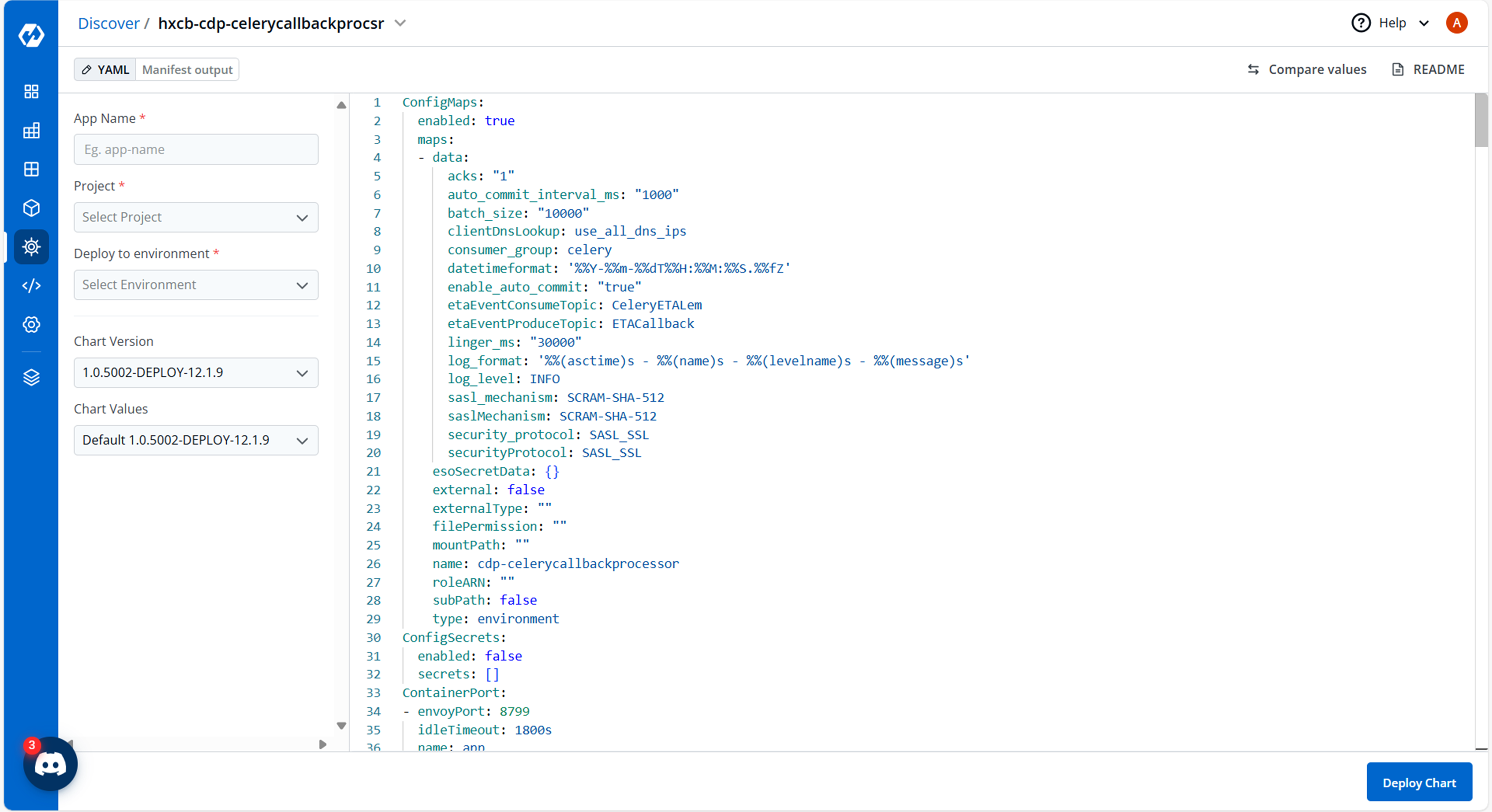

  3. In the YAML section, update the ConfigMap using the below details and deploy the chart.
    batch_size: "10000"
linger_ms: "30000"
etaEventProduceTopic: ETACallback
securityProtocol: SASL_SSL
saslMechanism: SCRAM-SHA-512
acks: "1"
consumer_group: celery
enable_auto_commit: "true"
auto_commit_interval_ms: "1000"
etaEventConsumeTopic: CeleryETALem
security_protocol: SASL_SSL
sasl_mechanism: SCRAM-SHA-512
clientDnsLookup: use_all_dns_ips
datetimeformat: "%%Y-%%m-%%dT%%H:%%M:%%S.%%fZ"
log_level: INFO
log_format: "%%(asctime)s - %%(name)s - %%(levelname)s - %%(message)s"

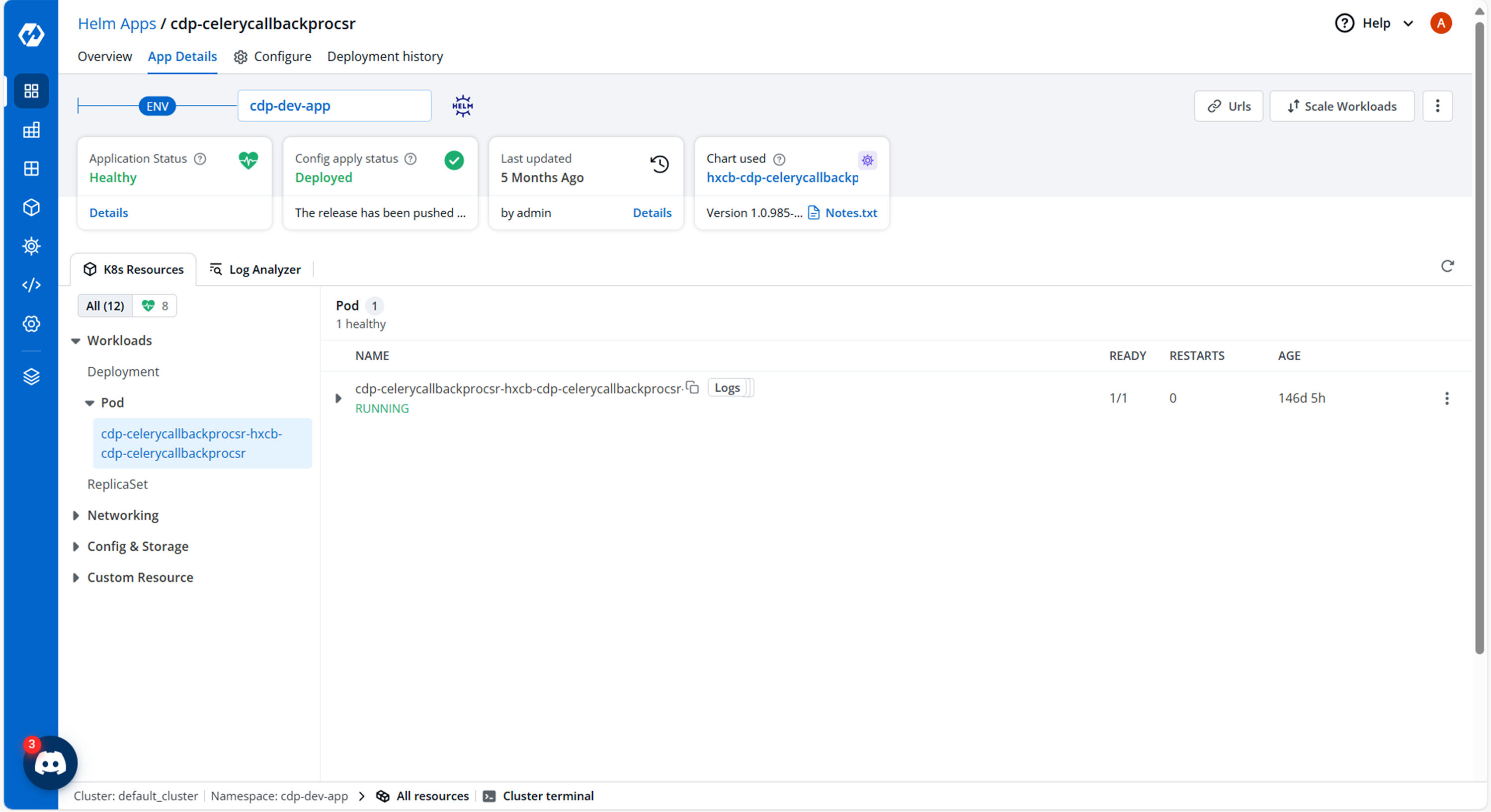

  4. On successful deployment, validate the deployment as shown below.
