Deploying CDP Flip

Prerequisites

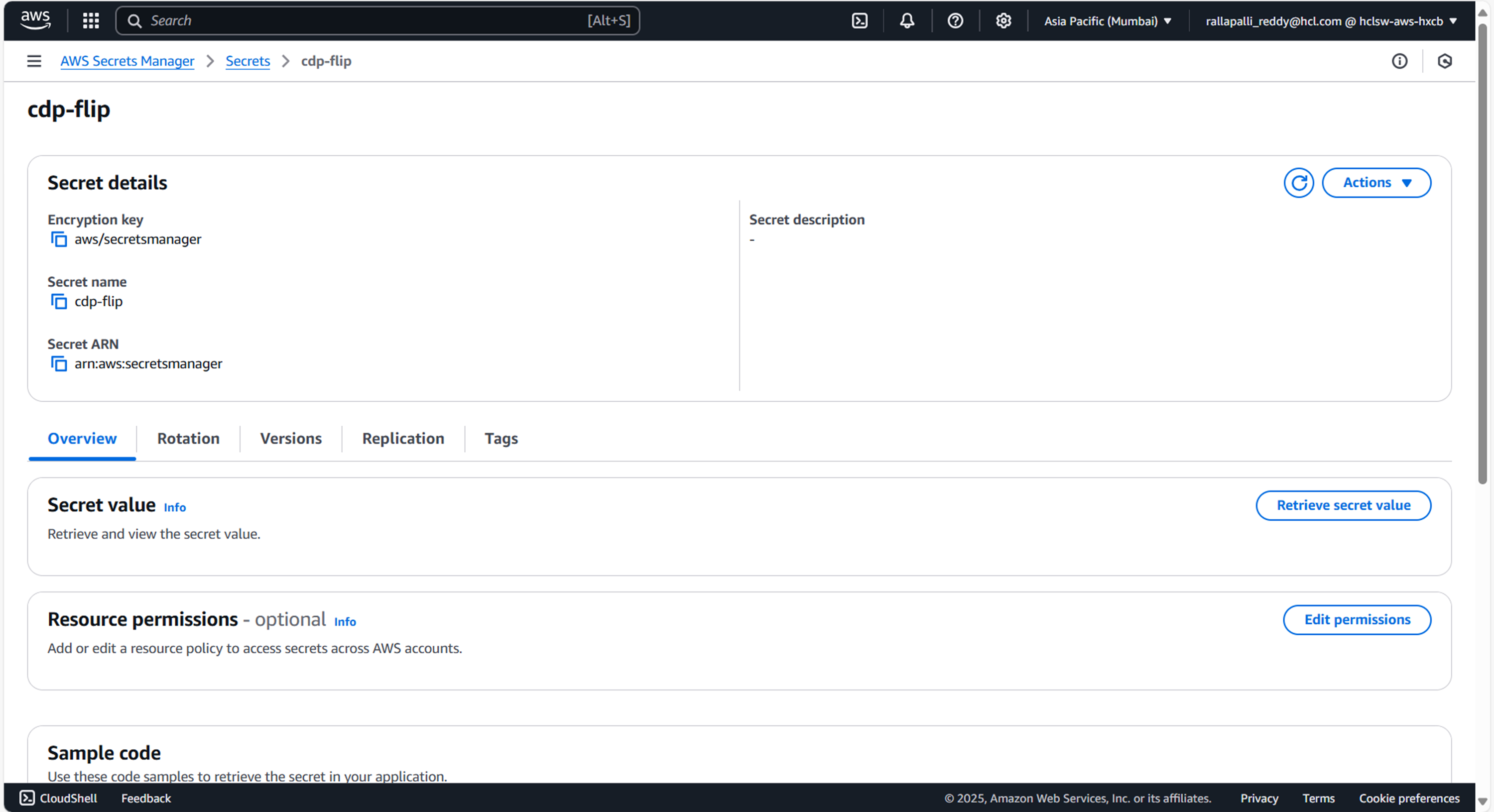

Make sure to create cdp-flip secret in the AWS Secret Manager before deploying CDP Flip.

To create CDP Flip secret in the AWS secret Manager, follow the steps below:

1. Create a cdp-flip secret sample key and value, and update the actual values as shown below.

   {
     "CUSTOMIZATION_AERO_CLUSTER": "<AERO_HOST_1>:13000,<AERO_HOST_2>:13000",

     "DB_USERNAME": "<DB_USER>",
     "DB_PASSWORD": "<DB_PASSWORD>",
     "DB_URL": "jdbc:mariadb://<DB_HOST>:3307/vrm",

     "KafkaConsumerConfig": "bootstrap.servers::<KAFKA_HOST_1>:9096,<KAFKA_HOST_2>:9096|security.protocol::SASL_SSL|sasl.jaas.config::org.apache.kafka.common.security.scram.ScramLoginModule required username='<KAFKA_USER>' password='<KAFKA_PASSWORD>';|sasl.mechanism::SCRAM-SHA-512|client.dns.lookup::use_all_dns_ips|group.id::cdp-flip-prod",

     "KAFKA_CONSUMER_PREFIX": "flip",
     "KAFKA_TOPIC_LIST": "dmp_rt_segments",

     "AERO_CUSTOMIZATION_USER": "<AERO_USER>",
     "AERO_CUSTOMIZATION_PASSWORD": "<AERO_PASSWORD>"
   }

2. Create separate service account cdp-dev-app-sa with appropriate roles and permissions, and update ConfigMaps data with actual values.
3. Create required Kafka topics before deployment.

Deploy CDP Flip

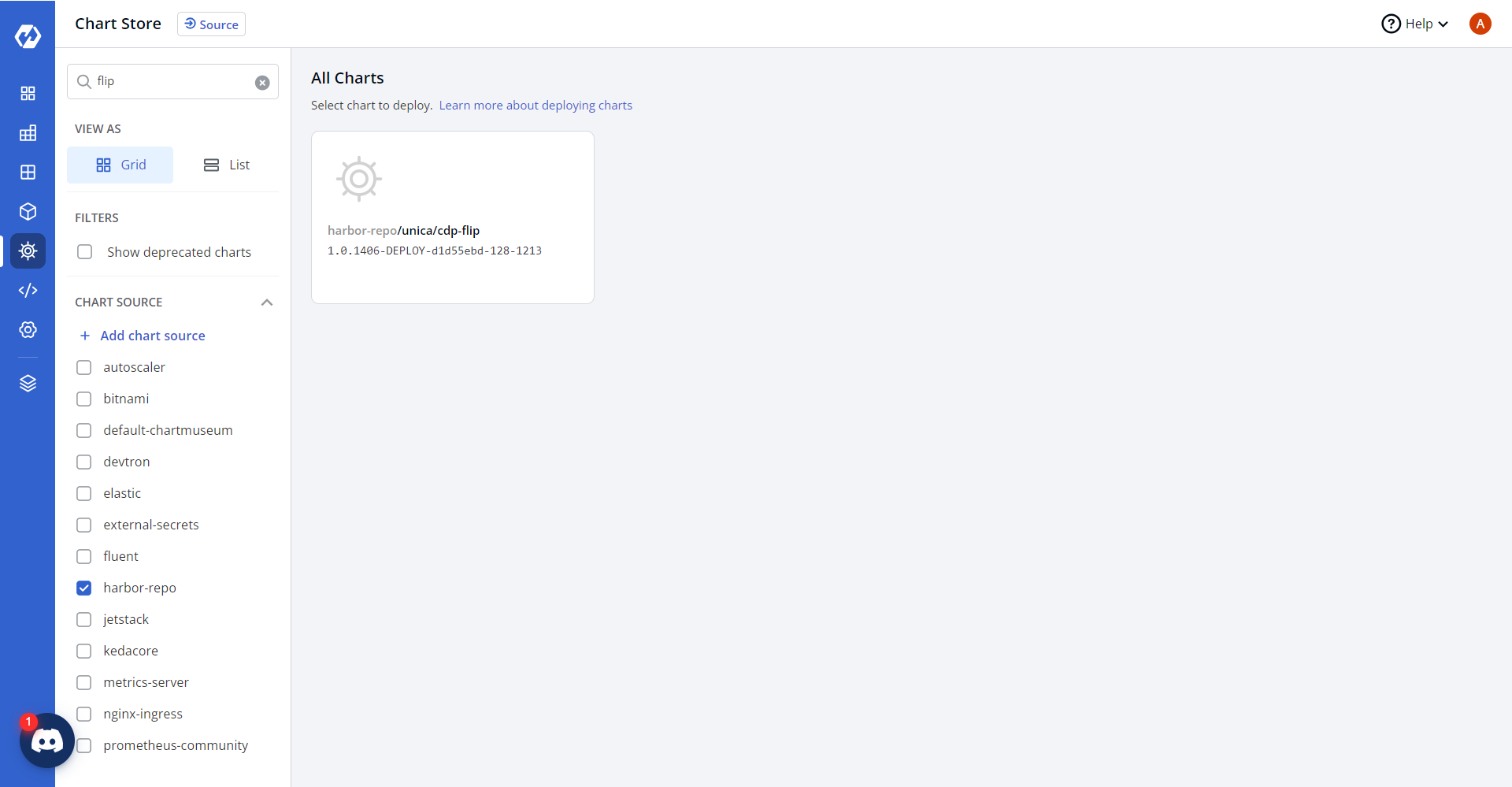

1. Navigate to the Devtron Chart Store, and select the cdp-flip chart to deploy.

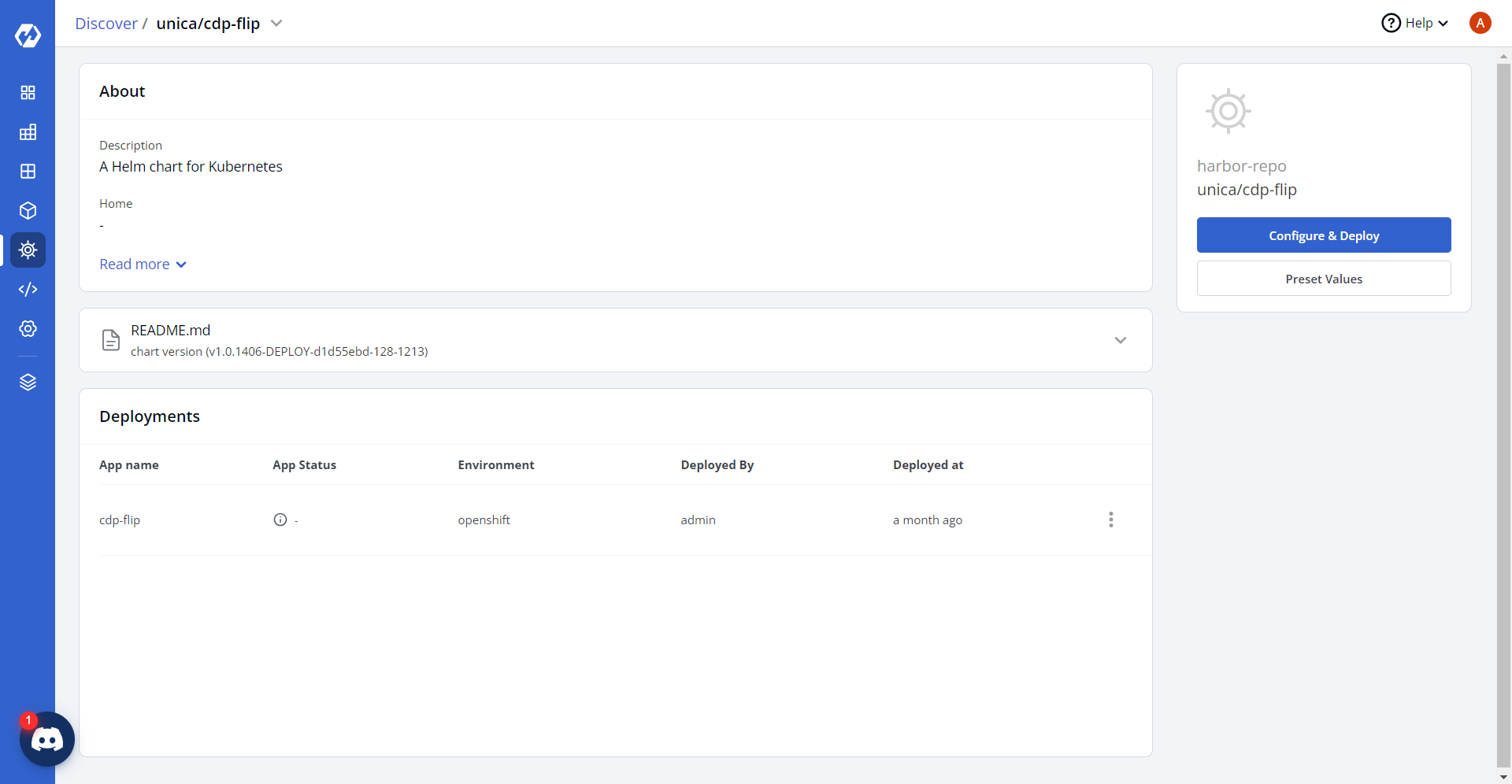

2. Now, configure and deploy the cdp-flip charts.

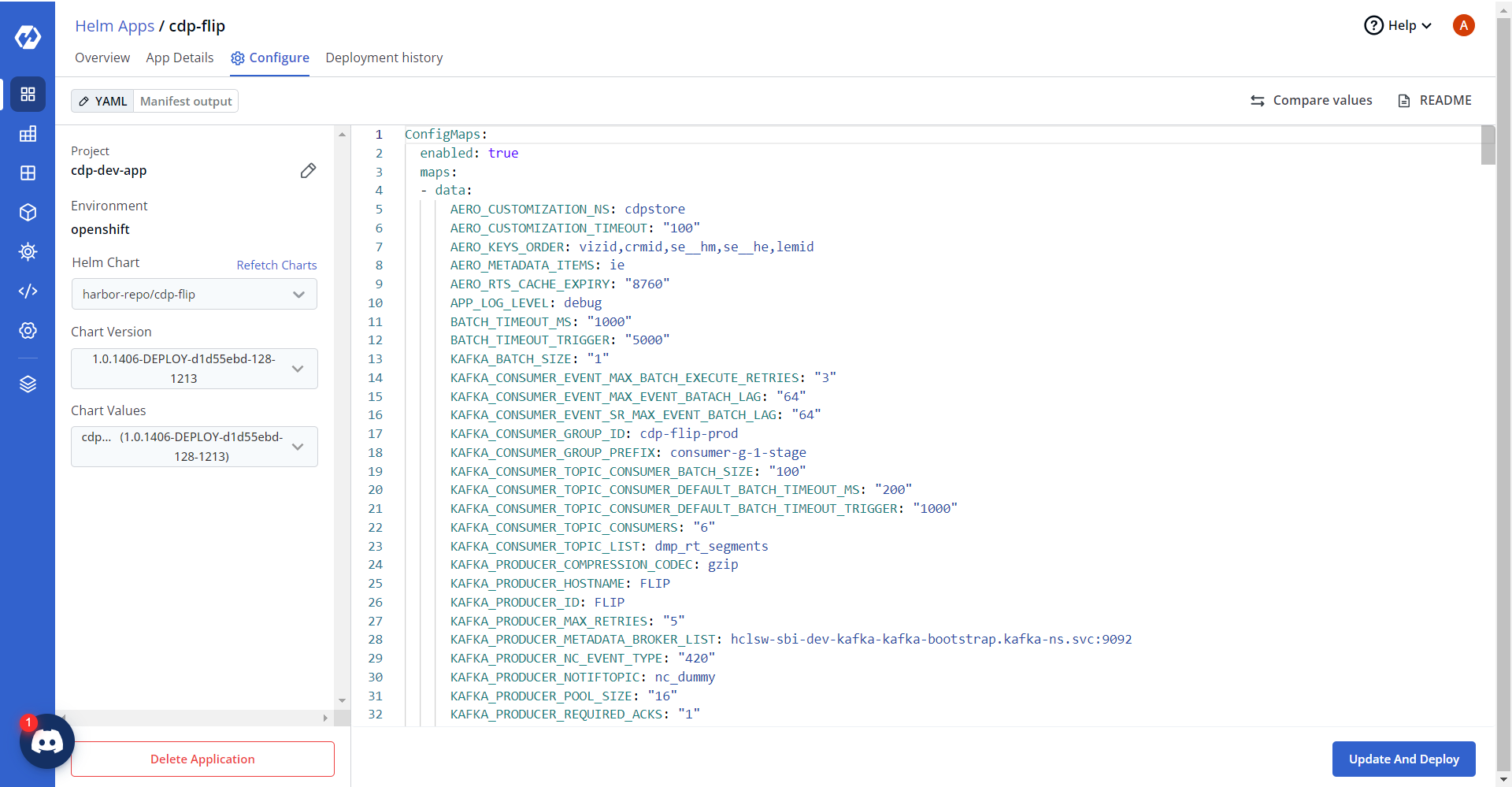

3. In the YAML section, update the ConfigMap using the below details and deploy the chart.

   AERO_CUSTOMIZATION_NS: cdpstore
   AERO_CUSTOMIZATION_TIMEOUT: "100"
   AERO_RTS_CACHE_EXPIRY: "8760"

   MYSQL_DBDRIVER: org.mariadb.jdbc.Driver
   MYSQL_REFRESH_DBREFRESHTIMEMIN: "30"

   MT_PROPERTIES_FLIP_EXECUTOR_SERVICE_MIN_THREADS: "64"
   MT_PROPERTIES_FLIP_EXECUTOR_SERVICE_MAX_THREADS: "64"
   MT_PROPERTIES_FLIP_EXECUTOR_SERVICE_THREAD_TTL: "5"
   MT_PROPERTIES_FLIP_EXECUTOR_SERVICE_QUEUSE_SIZE: "10000000"

   KAFKA_CONSUMER_GROUP_ID: cdp-flip-prod
   KAFKA_CONSUMER_GROUP_PREFIX: consumer-g-1-stage
   KAFKA_REBALANCE_MAX_RETRIES: "60"

   KAFKA_CONSUMER_TOPIC_LIST: dmp_rt_segments
   KAFKA_CONSUMER_TOPIC_CONSUMERS: "6"
   KAFKA_CONSUMER_TOPIC_CONSUMER_BATCH_SIZE: "100"
   KAFKA_CONSUMER_TOPIC_CONSUMER_DEFAULT_BATCH_TIMEOUT_MS: "200"
   KAFKA_CONSUMER_TOPIC_CONSUMER_DEFAULT_BATCH_TIMEOUT_TRIGGER: "1000"

   KAFKA_CONSUMER_EVENT_MAX_EVENT_BATACH_LAG: "64"
   KAFKA_CONSUMER_EVENT_SR_MAX_EVENT_BATCH_LAG: "64"
   KAFKA_CONSUMER_EVENT_MAX_BATCH_EXECUTE_RETRIES: "3"

   KAFKA_PRODUCER_METADATA_BROKER_LIST: "<masked-kafka-brokers>:9096"

   KAFKA_PRODUCER_SERIALIZER_CLASS: kafka.serializer.StringEncoder
   KAFKA_PRODUCER_ID: FLIP
   KAFKA_PRODUCER_REQUIRED_ACKS: "1"
   KAFKA_PRODUCER_REQUIRED_TIMEOUT: "10000"
   KAFKA_PRODUCER_TYPE: async
   KAFKA_PRODUCER_COMPRESSION_CODEC: gzip
   KAFKA_PRODUCER_MAX_RETRIES: "5"
   KAFKA_PRODUCER_RETRY_BACKOFF: "1000"

   KAFKA_PRODUCER_NC_EVENT_TYPE: "420"
   KAFKA_PRODUCER_HOSTNAME: FLIP
   KAFKA_PRODUCER_POOL_SIZE: "16"
   KAFKA_PRODUCER_NOTIFTOPIC: nc_dummy

   LOG_TSDB_METRIC_LOGGING_FREQUENCY_MS: "60000"
   LOG_TSDB_MAX_WAIT_FOR_CONNECTION_REESTABLISH: "5"

   LOG_TSDB_SERVER_ADDRESS: <internal-tsdb-service>
   LOG_TSDB_SERVER_PORT: "80"
   LOG_TSDB_HOSTNAME: <internal-tsdb-service>

   LOG_GANGLIA_GMOND_COLLECTORS: ""
   LOG_GANGLIA_GMOND_PORT: "8650"
   LOG_GANGLIA_HOSTNAME_OVERRIDE: cdpstore
   LOG_GANGLIA_METRIC_PREFIX: dmpflip

   AERO_KEYS_ORDER: vizid,crmid,se__hm,se__he,lemid
   AERO_METADATA_ITEMS: ie

   APP_LOG_LEVEL: debug

   KAFKA_BATCH_SIZE: "1"
   MAX_EVENT_BATCH_LAG: "32"
   BATCH_TIMEOUT_MS: "1000"
   BATCH_TIMEOUT_TRIGGER: "5000"
   KAFKA_TOPIC_CONSUMERS: "6"

   fromEmailId: user@domain.com
   alertToEmailId: user@domain.com

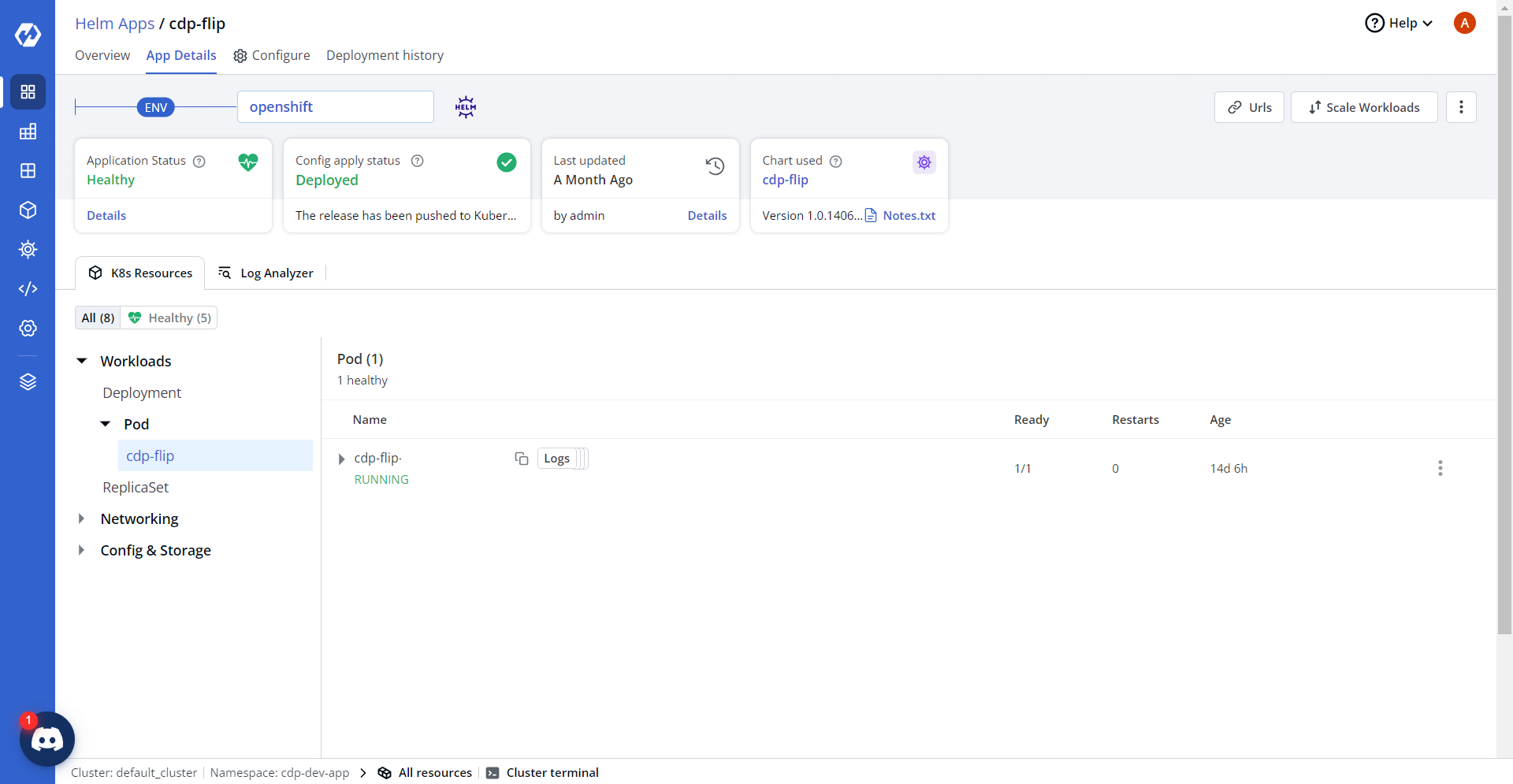

4. On successful deployment, validate the deployment as shown below.
