Deploying CDP RTS

Prerequisites:

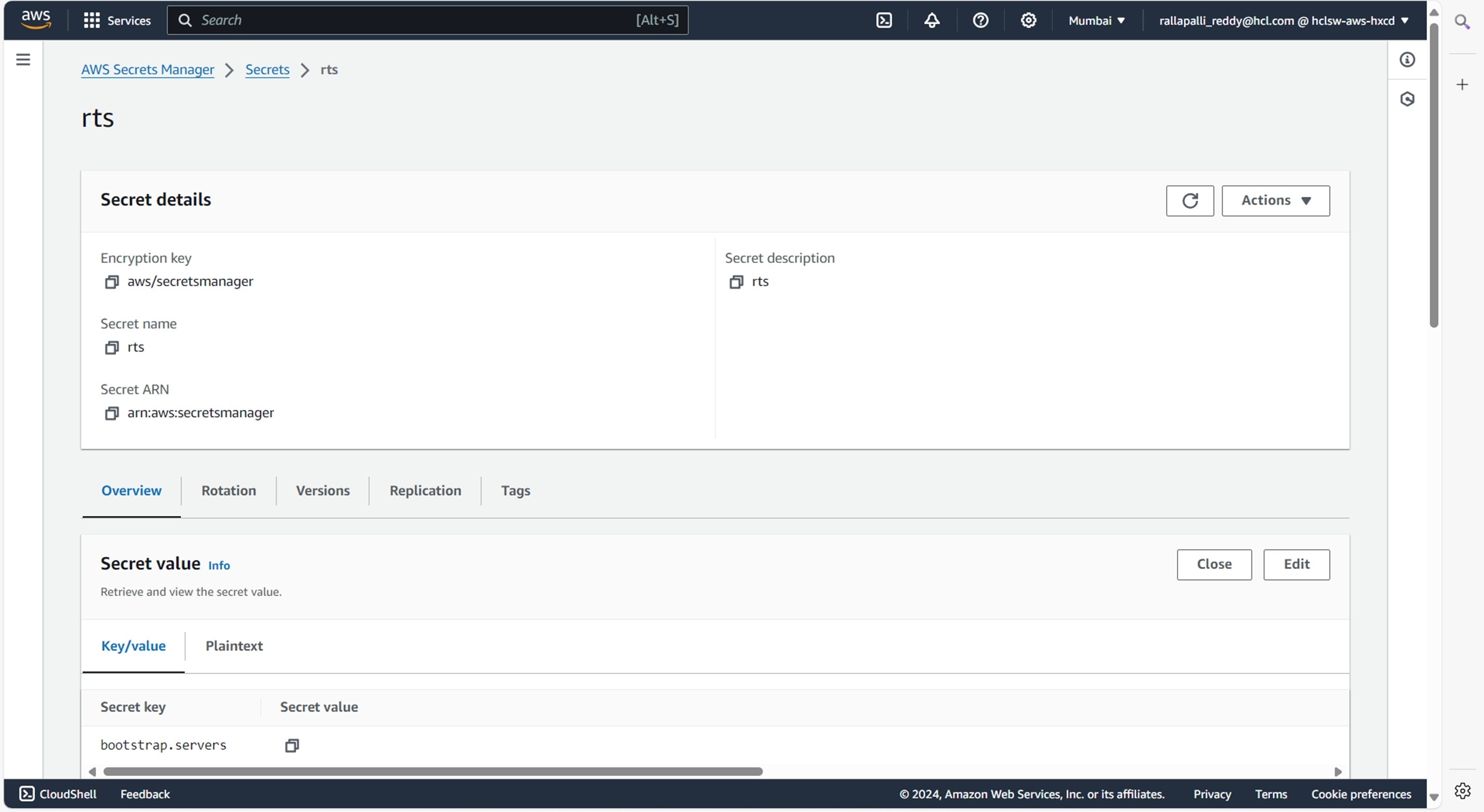

Make sure to create rts secret with required data in the AWS secret manager before deploying CDP RTS.

To create the rts secret in the AWS secret manager, follow the steps below:

1. Create a rts secret sample key and value in the rts secret, and update ConfigMaps data with actual values.

   {
     "KafkaConsumerConfig": "<KafkaConsumerConfig>",
     "KafkaProducerConfig": "<KafkaProducerConfig>",
     "MysqlDb": "<MysqlDb>",
     "MysqlHost": "<MysqlHost>",
     "MysqlPass": "<MysqlPass>",
     "MysqlPort": "<MysqlPort>",
     "MysqlUser": "<MysqlUser>",
     "bootstrap.servers": "<bootstrap.servers>",
     "sasl.mechanism": "<sasl.mechanism>",
     "security.protocol": "<security.protocol>"
   }

Deploying CDP RTS

To deploy the CDP RTS, follow the steps below:

1. Navigate to the Devtron Chart Store, and select the cdp-rts chart to deploy.



2. Now, configure and deploy the CDP RTS charts.



3. In the YAML section, update the ConfigMap using below details, and deploy the charts.

   FROM_EMAIL: <FROM_EMAIL>
   KAFKA_CONSUMER_GROUP_ID: <k8s-rts-prod>
   KAFKA_PRODUCER_FAILURE_TOPIC: <dmp_rt_failure>
   KAFKA_PRODUCER_RAMANUJAN_TOPIC: <dmp_rt_ramanujan>
   KAFKA_PRODUCER_TOPIC: <dmp_rt_segments>
   KAFKA_SST_TOPIC: <dmp_sst_rt_profile>
   KAFKA_TOPIC_LIST: <dmp_sst_rt_profile>
   MODEL_CONFIG_LOCAL_PATH: /disk1/rts/config/predictiveSegmentationModel.ini
   MODEL_CONFIG_S3_PATH: s3://<s3_bucket_name>/sst/predictivesegments/rtson/predictiveSegmentationModel.ini
   MODEL_CUTOFFS_LOCAL_PATH: /disk1/rts/config/predictiveSegmentationCutoffs.ini
   MODEL_CUTOFFS_S3_PATH: s3://<s3_bucket_name>/sst/predictivesegments/rtson/predictiveSegmentationCutoffs.ini
   PMML_MODEL_CONFIG_LOCAL_PATH: /disk1/rts/config/predictivesegments/pmml_model_config/
   PMML_MODEL_CONFIG_S3_PATH: s3://<s3_bucket_name>/sst/predictivesegments/pmml_model_config/rtson/
   PMML_MODEL_DIRECTORY_LOCAL_PATH: /disk1/rts/config/predictivesegments/pmml_models/
   PMML_MODEL_DIRECTORY_S3_PATH: s3://<s3_bucket_name>/sst/predictivesegments/pmml_models/rtson/
   TO_EMAIL: <TO_EMAIL>
   TSDB_HOST: <TSDB_HOST>
   TSDB_PORT: <TSDB_PORT>



4. On successful deployment, validate the deployment as shown below.
