Deploying CDP Admin UI

This section provides detailed instructions on how to deploy HCL CDP Admin UI using the Devtron in the AWS.

Prerequisites:

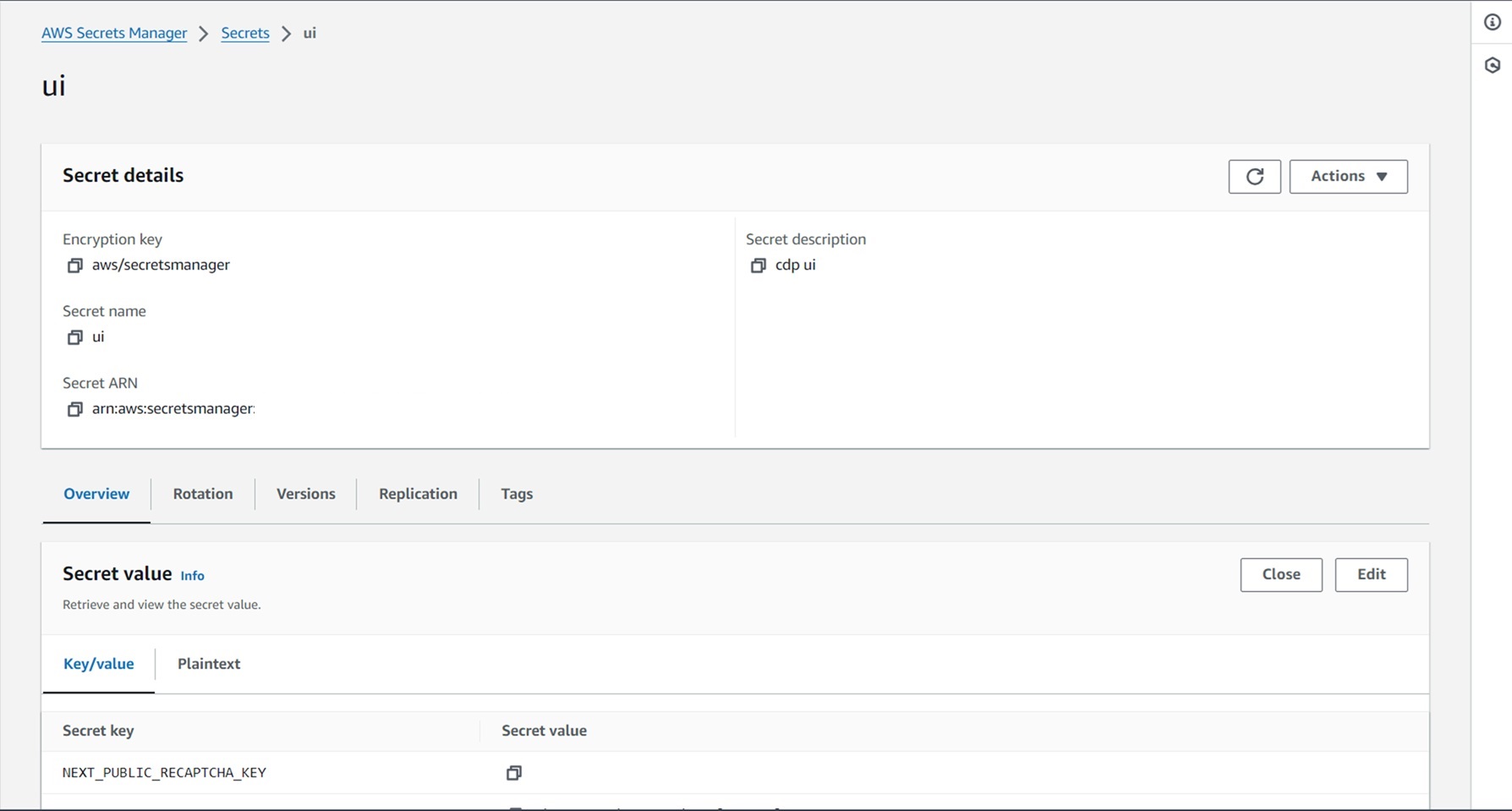

Make sure to create UI secret with required data in the AWS Secrets Manager before deploying CDP admin UI.

To create the UI secret in the AWS Secrets Manager, follow the steps below:

  1. Create a UI secret sample key and value in the UI secret shown below, and update the actual values.
    {
  "AKAMAI_HOST": "",
  "AKAMAI_KEY": "",
  "AKAMAI_KEY_NAME": "",
  "AKAMAI_PATH": "",
  "AKAMAI_PURGE_AUTH_KEY": "",
  "API_KEY_1": "",
  "API_KEY_2": "",
  "API_KEY_3": "",
  "API_KEY_4": "",
  "API_KEY_5": "",
  "API_KEY_6": "",
  "API_SECRET_1": "",
  "API_SECRET_2": "",
  "API_SECRET_3": "",
  "API_SECRET_4": "",
  "API_SECRET_5": "",
  "API_SECRET_6": "",
  "AUTH_TOKEN": "",
  "NEXT_PUBLIC_CLIENT_ID": "",
  "NEXT_PUBLIC_CLIENT_SECRET": "",
  "NEXT_PUBLIC_FROALA_SECRET": "",
  "NEXT_PUBLIC_GOOGLE_CLIENT_ID": "",
  "NEXT_PUBLIC_GOOGLE_CLIENT_SECRET": "",
  "NEXT_PUBLIC_RECAPTCHA_KEY": "",
  "REACT_APP_CLIENT_ID": "",
  "REACT_APP_S3_ACCESS_KEY_ID": "",
  "REACT_APP_S3_SECRET_KEY": "",
  "auAuthKey": "",
  "auEndpoint": "",
  "host": "",
  "muAuthKey": "",
  "muEndpoint": "",
  "password": "",
  "sesEmail": "",
  "sesPassword": "",
  "smtpFrom": "",
  "smtpHost": "",
  "smtpPassword": "",
  "smtpPort": "",
  "smtpUser": "",
  "usAuthKey": "",
  "usEndpoint": "",
  "user": ""
}
  2. Create an AdminUI Secret to fetch the secrets from the vault.

{
  "NEXT_PUBLIC_RECAPTCHA_KEY": "",
  "NEXT_PUBLIC_CLIENT_ID": "",
  "NEXT_PUBLIC_CLIENT_SECRET": "",
  "NEXT_PUBLIC_GOOGLE_CLIENT_ID": "",
  "NEXT_PUBLIC_GOOGLE_CLIENT_SECRET": "",
  "NEXT_PUBLIC_FROALA_SECRET": "",
  "REACT_APP_CLIENT_ID": "",
  "host": "",
  "user": "",
  "password": "",
  "sesEmail": "",
  "sesPassword": "",
  "REACT_APP_S3_ACCESS_KEY_ID": "",
  "REACT_APP_S3_SECRET_KEY": "",
  "AKAMAI_KEY": "",
  "AKAMAI_KEY_NAME": "",
  "AKAMAI_HOST": "",
  "AKAMAI_PATH": "",
  "AKAMAI_PURGE_AUTH_KEY": "",
  "usEndpoint": "",
  "muEndpoint": "",
  "muAuthKey": "",
  "auAuthKey": "",
  "auEndpoint": "",
  "usAuthKey": "",
  "API_KEY_1": "",
  "API_SECRET_1": "",
  "API_KEY_2": "",
  "API_SECRET_2": "",
  "API_KEY_3": "",
  "API_SECRET_3": "",
  "API_KEY_4": "",
  "API_SECRET_4": "",
  "API_KEY_5": "",
  "API_SECRET_5": "",
  "API_KEY_6": "",
  "API_SECRET_6": "",
  "smtpUser": "",
  "smtpPassword": ":tn",
  "smtpHost": "",
  "smtpPort": "",
  "smtpFrom": "",
  "AUTH_TOKEN": ""
}

Deploying CDP Admin UI

To deploy the CDP admin UI, follow the steps below:

  1. Navigate to the Devtron Chart Store, and select the cdp-admin-ui chart to deploy.

  2. Now, configure and deploy the admin UI charts.

  3. In the YAML section, update the ConfigMap using below details and deploy the charts.
    REACT_APP_ADMIN_UI_BACKEND: <ADMIN_UI_BACKEND_URL>
REACT_APP_BYPASS_GOOGLE_OAUTH: "0"
REACT_APP_CAMPAIGN_ID: <VIZVRM6053>
REACT_APP_REST_API: '""'

  4. On successful deployment, validate the deployment as shown below.
