Database Details

For this exercise, the authentication type is considered as SQL Server Authentication for database.

  1. On the Database Details view, type the Server Name and the Database Instance Name.
  2. Select Authentication Type as SQL Server Authentication.
  3. In the UserName and Password fields, type username and password to access the server.
  4. In the Database Name field, Database Name is auto filled by default.
  5. To check the connectivity to a server using the credentials provided, click Check Connection.
  6. This displays a message for Connection Success or Connection Failure. Successful connection to the database enables the Next button.

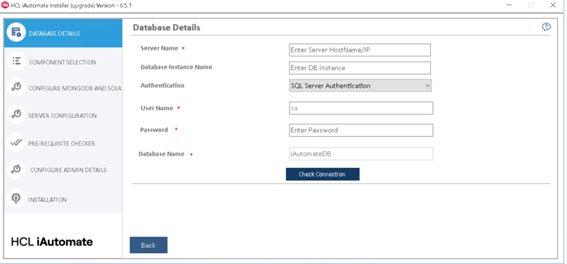

    Figure 1. Database Details
  7. Click Next to get to the Component Selection view.
