Containers

  1. ActionSet – Properties:
    • Actions: It will contain array of action element to show. It is a required value. Allowed values are Action.Execute, Action.OpenUrl, Action.ShowCard, Action.Submit and Action.ToggleVisibility.
    • Fallback: It will tell what to do when an unknown element is encountered or the requires of this or any children can't be met. It is not a required value.
    • Height: It specifies the height of the element. It is not a required value. Allowed values are auto and stretch.
    • Separator: It will draw a separating line at the top of the element. It is of type Boolean and is not a required value.
    • Spacing: It controls the amount of spacing between the elements. It is not a required value. Allowed values are default, none, small, medium, large, extra-large, and padding.
  2. The following screen display the example code of image properties:

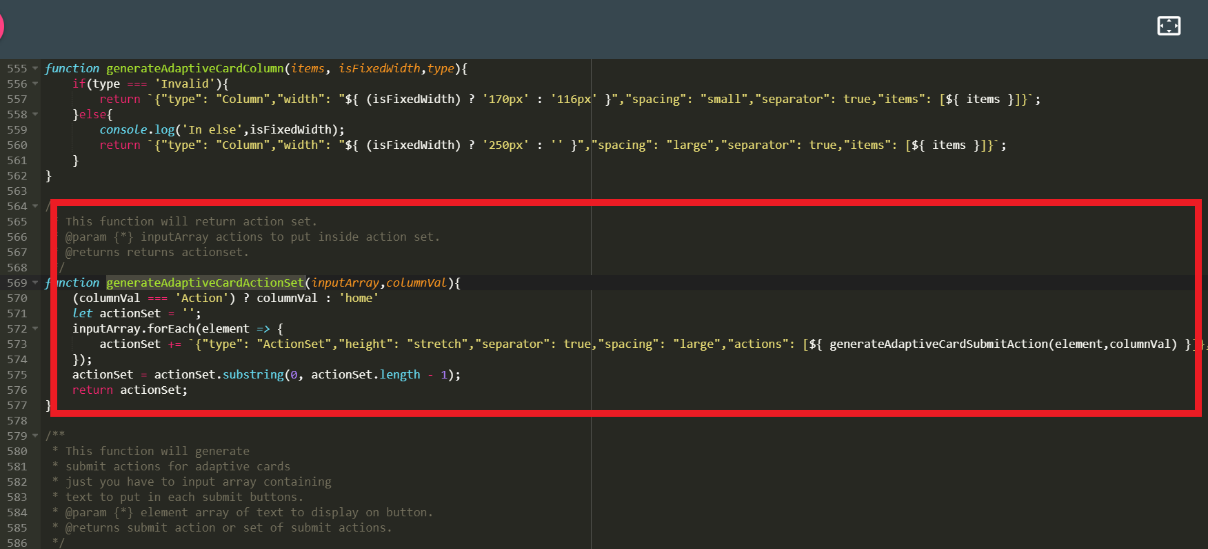

    Figure 1. Example Code (ActionSet)
    Figure 2. Example Code (ActionSet) (Cont.)
  3. Teams UI Action Set Example:

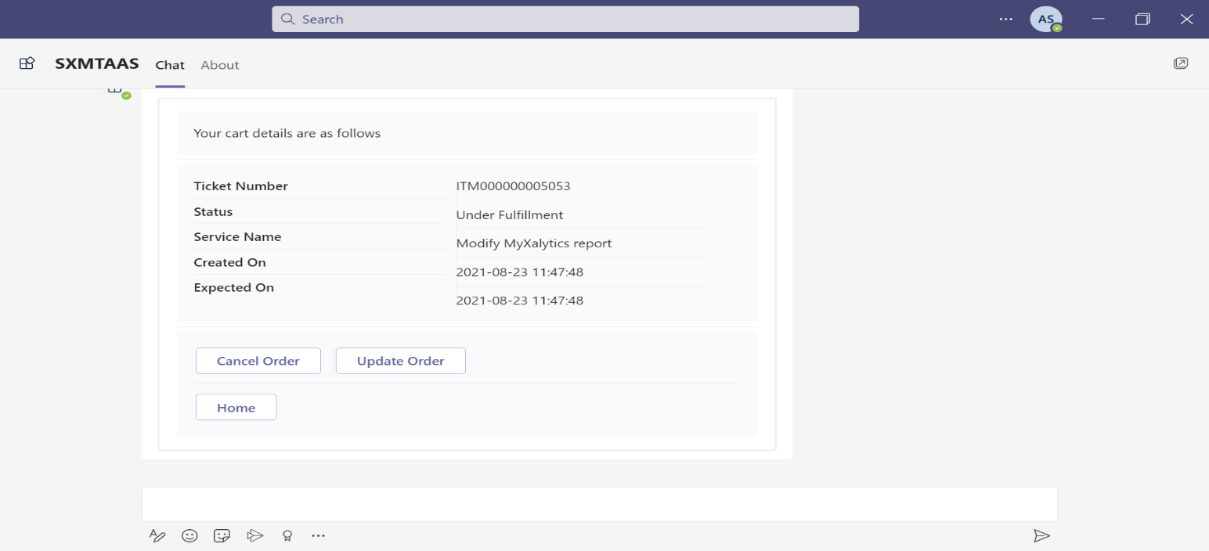

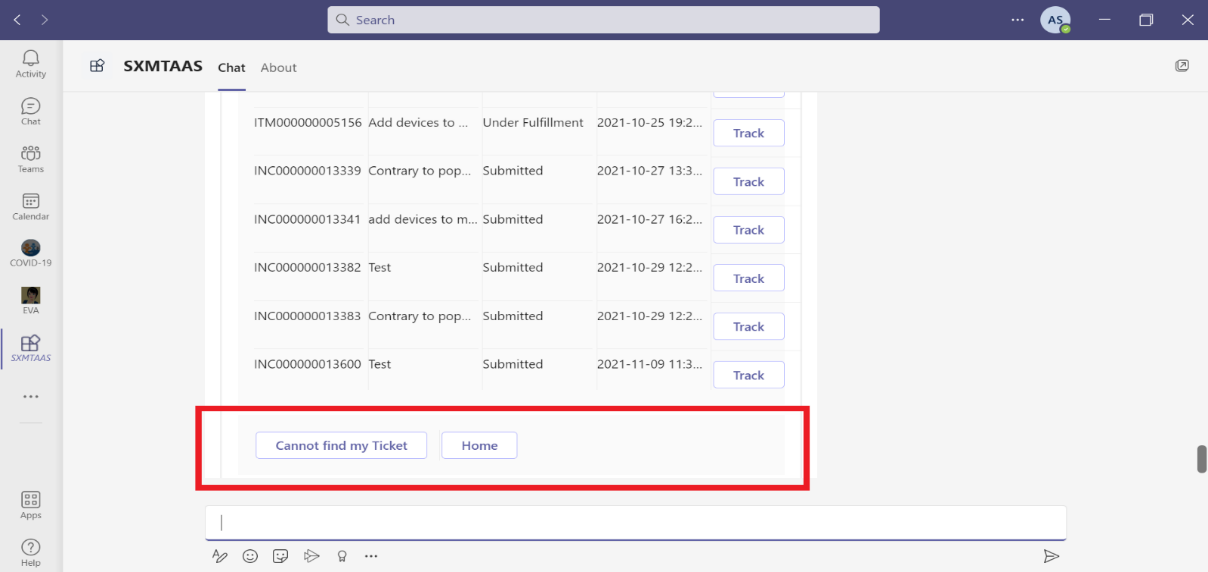

    Figure 3. Teams UI Action Set Example
  4. Container – Properties:
    • Items: These are the card elements to render inside the container. It is a required value. Allowed values are ActionSet, ColumnSet, Container, FactSet, Image, ImageSet, Input.ChoiceSet, Input.Date, Input.Number, Input.Text, Input.Time, Input.Toggle, Media, RichTextBlock, Table, and TextBlock.
    • selectAction: This property will select an action when the container is tapped or selected. It does not support Action.ShowCard. It supports Action.Execute, Action.OpenUrl, Action.Submit and Action.ToggleVisibility
    • Style: It will give style value for container. It is not a required property. Allowed values are default, emphasis, good, attention, warning, and accent.
    • minHeight: It will specify the minimum height of the container in pixels. It is of type string and not a required property.
    • Fallback: It will tell what to do when an unknown element is encountered or the requires of this or any children can't be met. It is not a required value. It is of type Element and Fallback Option. It is supported in version 4.2.
    • Height: It specifies the height of the element. It is not a required value. Allowed values are auto and stretch.
    • Separator: It will draw a separating line at the top of the element. It is of type Boolean and is not a required value.
    • Spacing: It controls the amount of spacing between the elements. It is not a required value. Allowed values are default, none, small, medium, large, extra-large, and padding.

    Example:

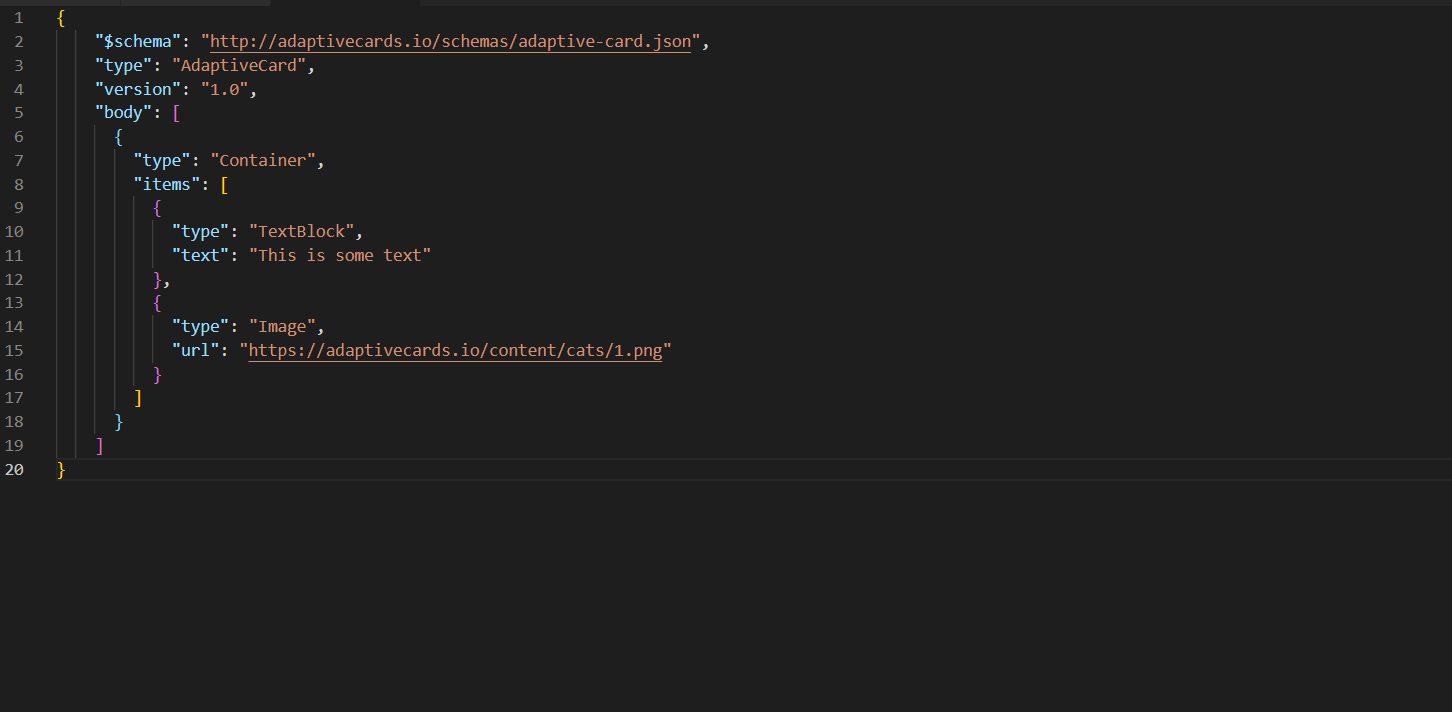

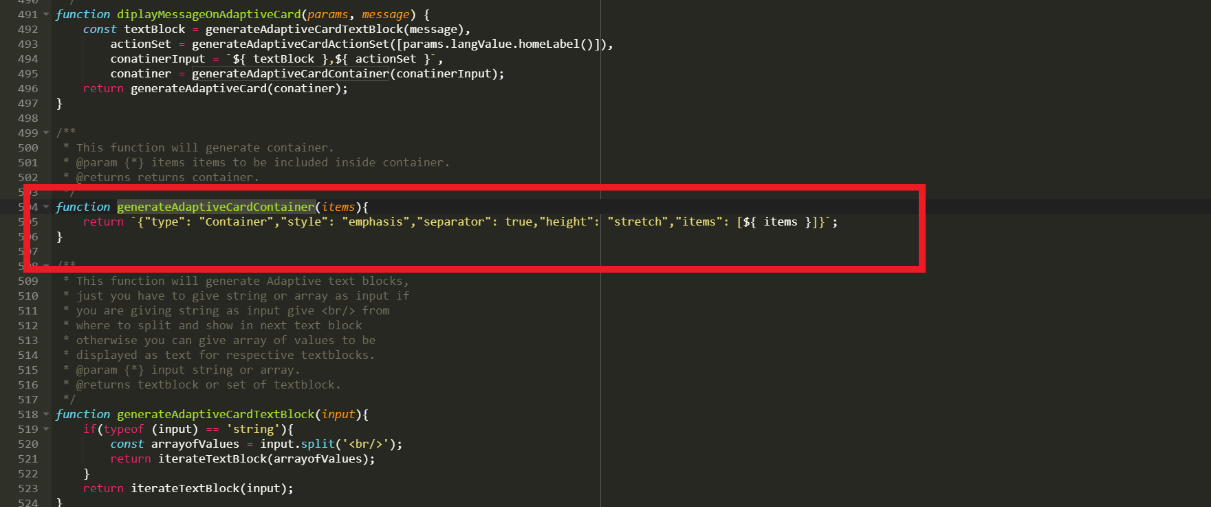

    Figure 4. Example Code (Container)

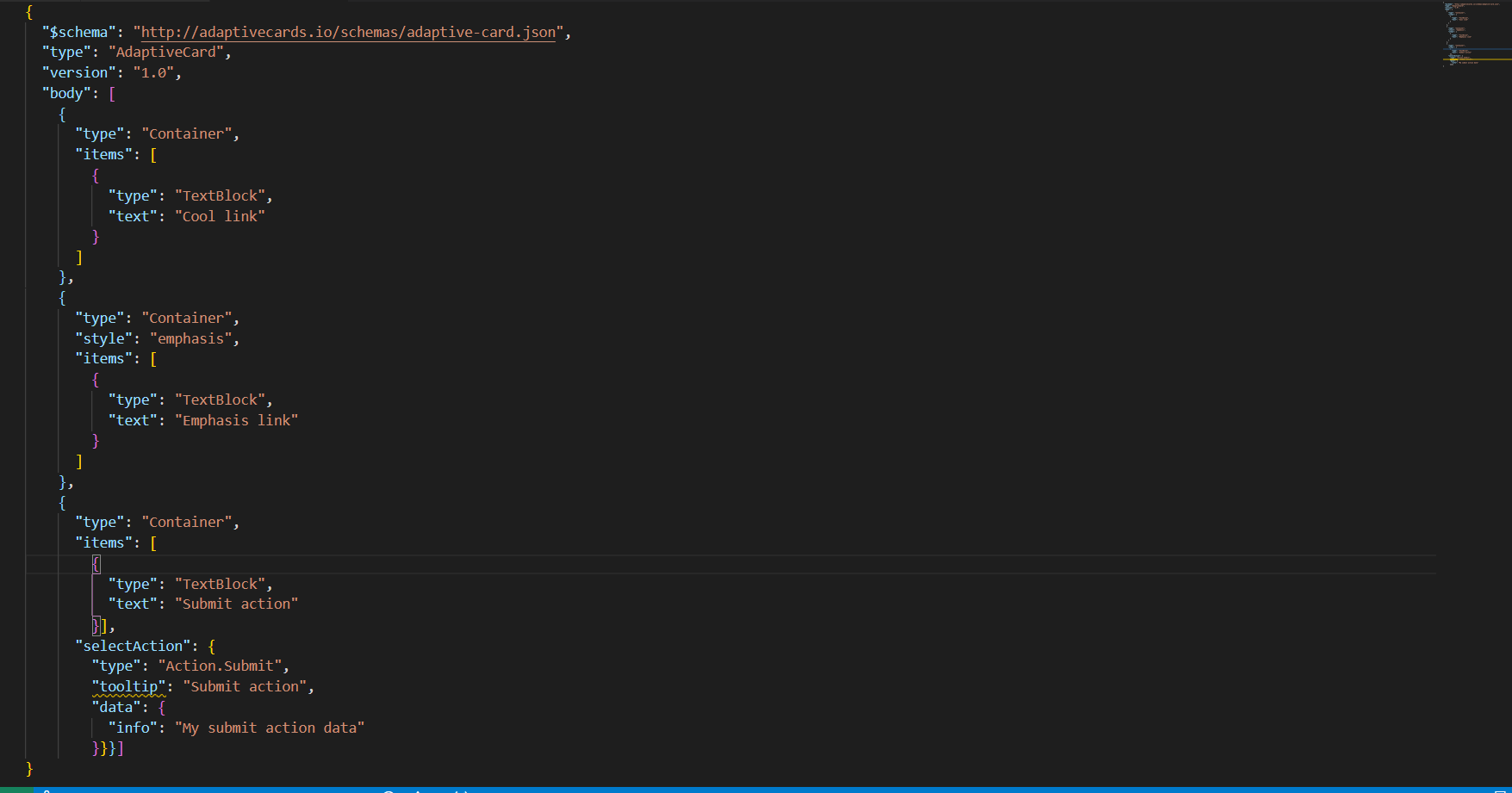

    Figure 5. Example Code (Container) (Cont.)
  5. Teams UI Container Example:

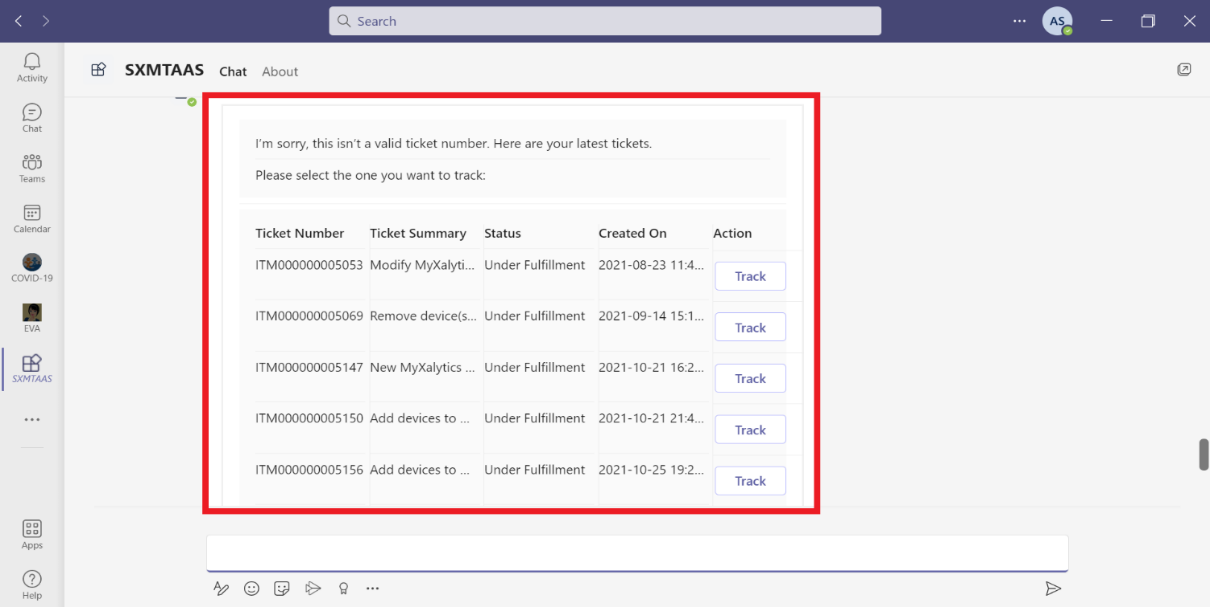

    Figure 6. Teams UI Container Example
  6. ColumnSet – Properties:
    • Columns: It will specify the array of columns to divide the region. It is of type Column, not a required property and allowed values are Columns.
    • selectAction: This property will select an action when the container is tapped or selected. It does not support Action.ShowCard. It supports Action.Execute, Action.OpenUrl, Action.Submit and Action.ToggleVisibility
    • Style: It will give style value for container. It is not a required property. Allowed values are default, emphasis, good, attention, warning, and accent.
    • minHeight: It will specify the minimum height of the container in pixels. It is of type string and not a required property.
    • Fallback: It will tell what to do when an unknown element is encountered or the requires of this or any children can't be met. It is not a required value. It is of type Element and Fallback Option. It is supported in version 4.2.
    • Height: It specifies the height of the element. It is not a required value. Allowed values are auto and stretch.
    • Separator: It will draw a separating line at the top of the element. It is of type Boolean and is not a required value.
    • Spacing: It controls the amount of spacing between the elements. It is not a required value. Allowed values are default, none, small, medium, large, extra-large, and padding.
  7. The following screen displays the example code of ColumnSet properties:

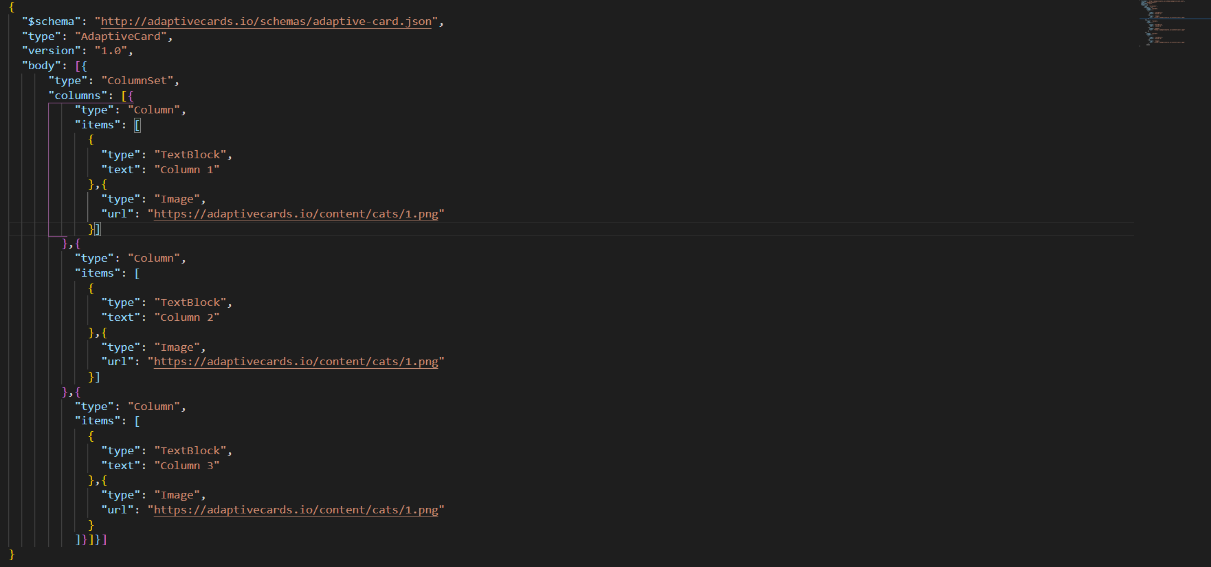

    Figure 7. Example Code (ColumnSet)

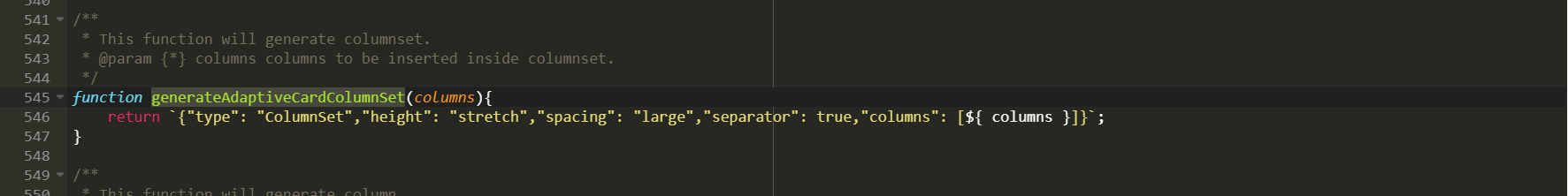

    Figure 8. Example Code (ColumnSet) (Cont.)
  8. Teams UI Code Example:

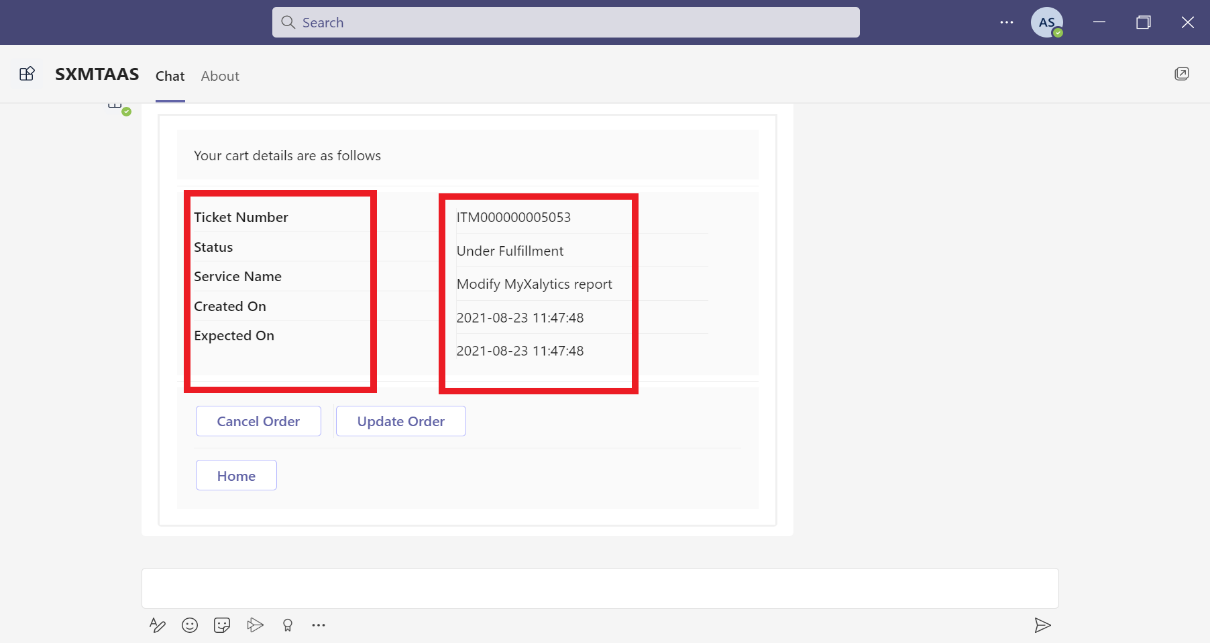

    Figure 9. Teams UI ColumnSet Example
  9. Column – Properties:
    • Items: These are the card elements to render inside the column. It is a required value. Allowed values are ActionSet, ColumnSet, Container, FactSet, Image, ImageSet, Input.ChoiceSet, Input.Date, Input.Number, Input.Text, Input.Time, Input.Toggle, Media, RichTextBlock, Table, and TextBlock.
    • selectAction: This property will select an action when the container is tapped or selected. It does not support Action.ShowCard. It supports Action.Execute, Action.OpenUrl, Action.Submit and Action.ToggleVisibility
    • Style: It will give style hint for column. It is not a required property. Allowed values are default, emphasis, good, attention, warning, and accent.
    • minHeight: It will specify the minimum height of the container in pixels. It is of type string and not a required property. It is supported in version 1.2.
    • Fallback: It will tell what to do when an unknown element is encountered or the requires of this or any children can't be met. It is not a required value. It is of type Element and Fallback Option. It is supported in version 4.2. Allowed values are column and drop.
    • Height: It specifies the height of the element. It is not a required value. Allowed values are auto and stretch.
    • Separator: It will draw a separating line between this column and the previous column. It is of type Boolean and is not a required value.
    • Spacing: It controls the amount of spacing between the elements. It is not a required value. Allowed values are default, none, small, medium, large, extra-large, and padding.
    • backgroundImage: It will specify the background image. Accepted formats are PNG, JPEG and GIF. It is not a required property and allowed values are BackgroundImage and uri. It is supported in version 1.2.
    • width: It will specify width of a column. It is not a required property. Can be of type string or number. Allowed values are auto and stretch.
  10. The following screen displays the example code of Column Properties:

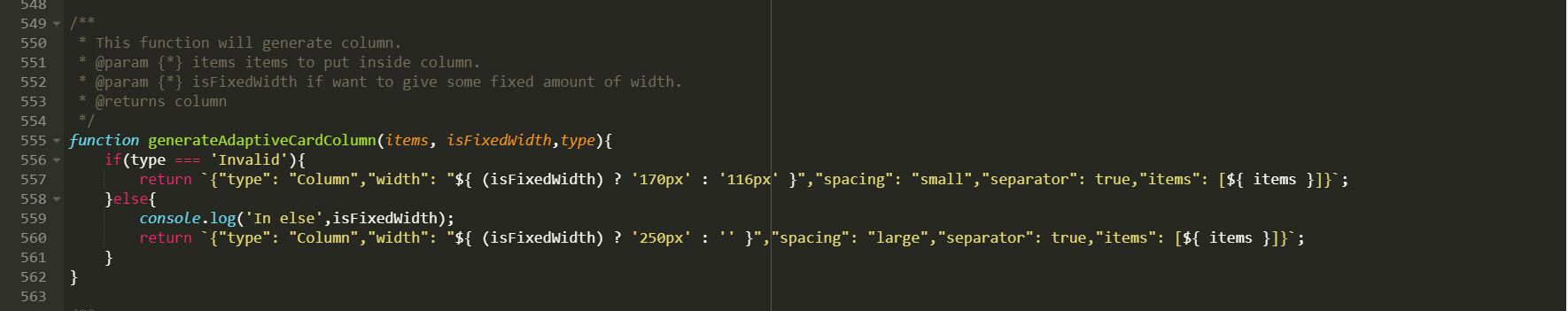

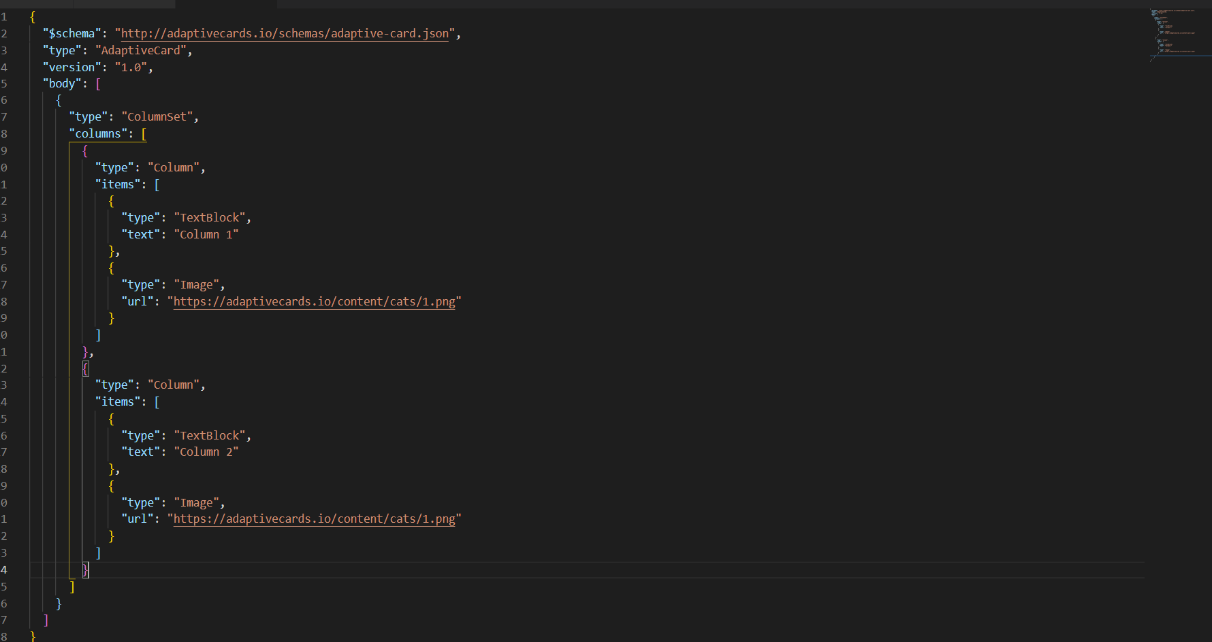

    Figure 10. Example Code (Column)
    Figure 11. Example Code (Column) (Cont.)
    Figure 12. Teams UI Column Example
