Deploying CDP Flink Manager

This section provides detailed instructions on how to deploy HCL CDP Flink Manager using the Devtron in the AWS..

Before you begin

Make sure to create cdp-flink-manager secret with required data in the AWS Secrets Manager, before you deploy Flink Manager.

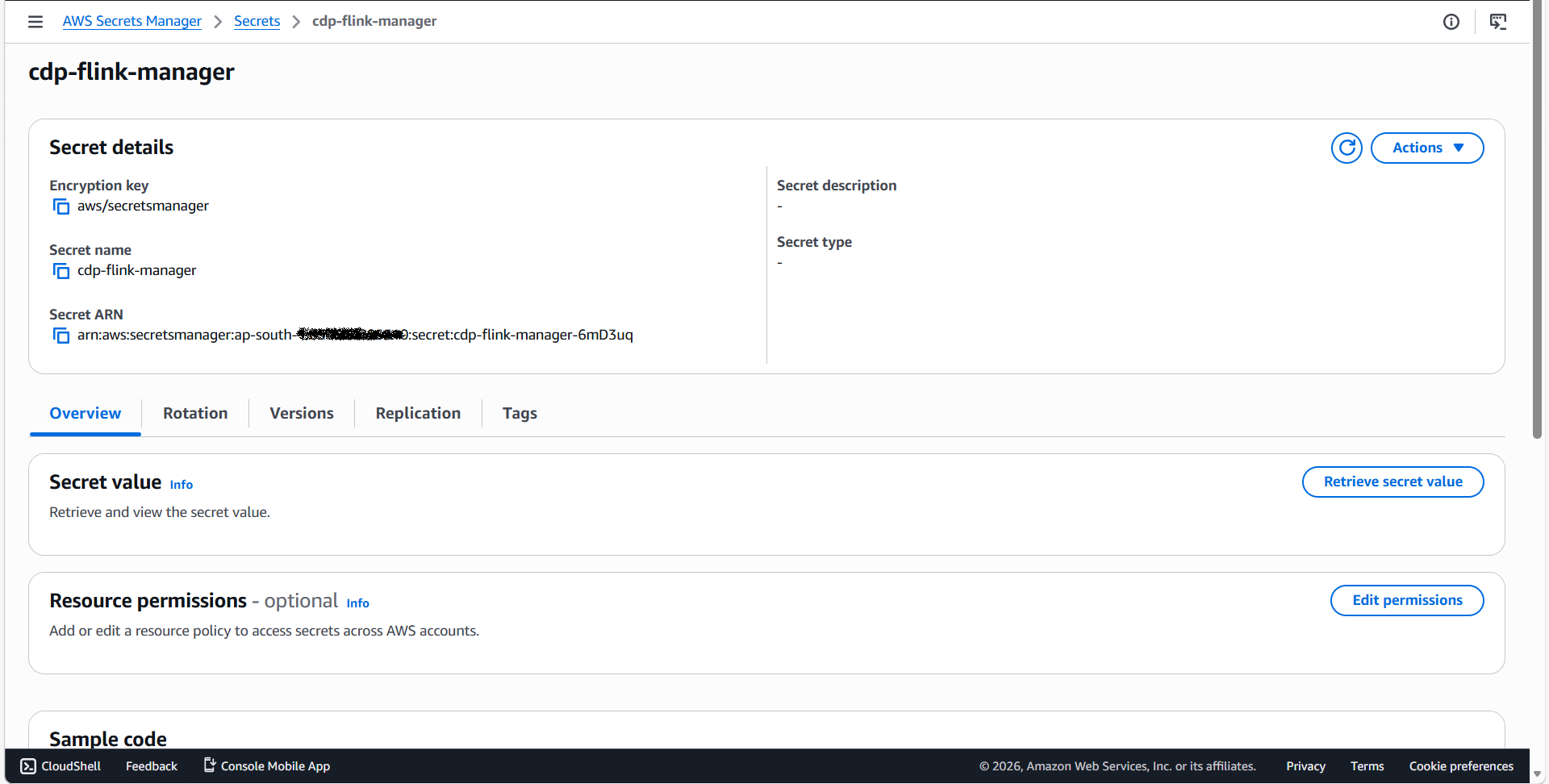

To create the cdp-flink-manager secret in the AWS Secrets Manager, follow the steps below:

  1. Create a cdp-flink-manager secret sample key and value in the UI secret shown below, and update the actual values.
    {
  "DbUrl": ":3307",
  "DbName": "vrm",
  "DbUsername": "cdpapp_rw",
  "DbPassword": "",
  "KafkaBrokers": "",
  "KafkaSecurityProtocol": "SASL_SSL",
  "KafkaSaslMechanism": "SCRAM_SHA_512",
  "KafkaUsername": "",
  "KafkaPassword": "",
  "serverPort": "8181",
  "cdpLoggingLevel": "INFO",
  "flinkLoggingLevel": "WARN",
  "kafkaLoggingLevel": "WARN"
  2. Update ConfigMaps data with actual values, and create required kafka topics.

Procedure

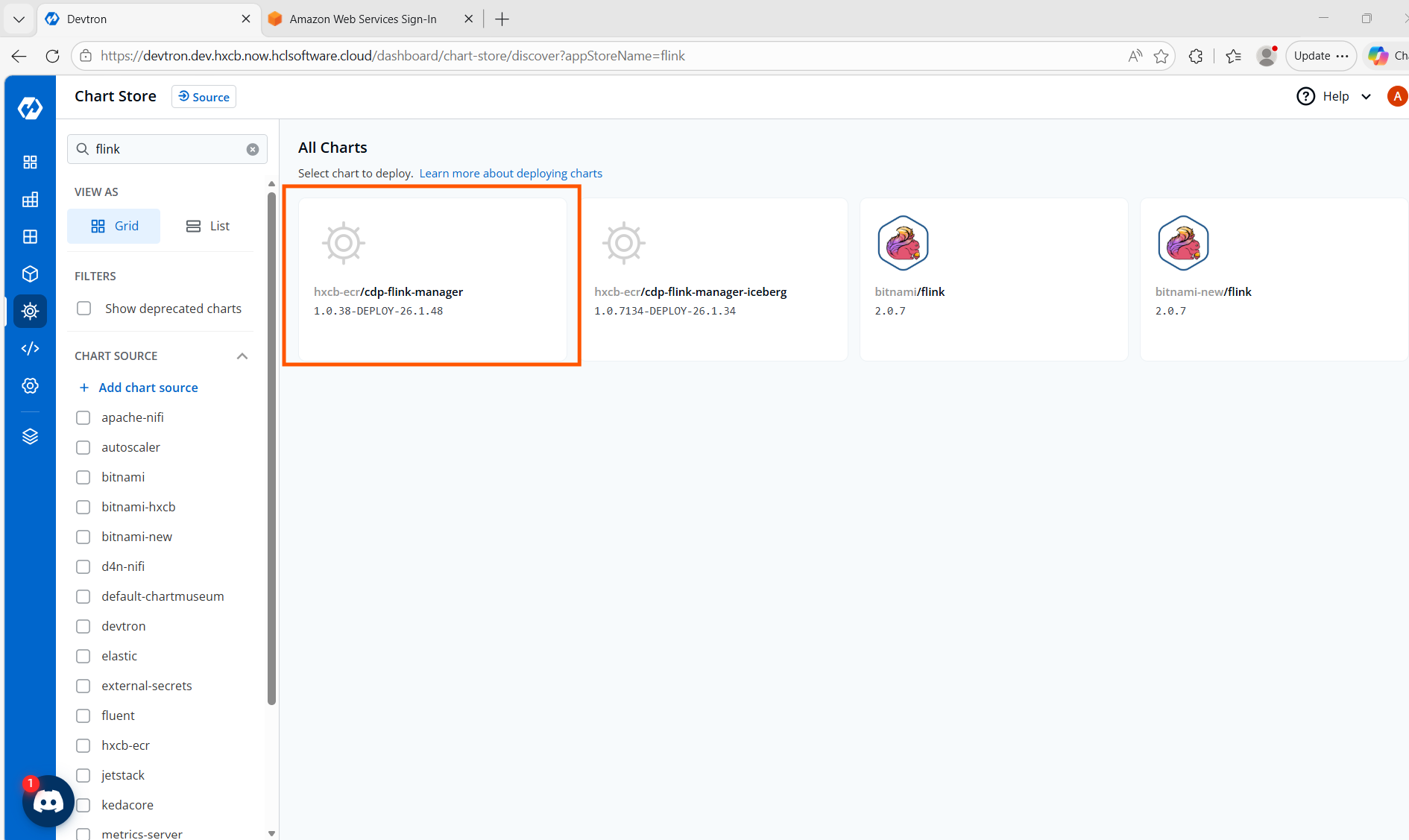

  1. Navigate to the Devtron Chart Store, and select the cdp-flink-manager chart to deploy.

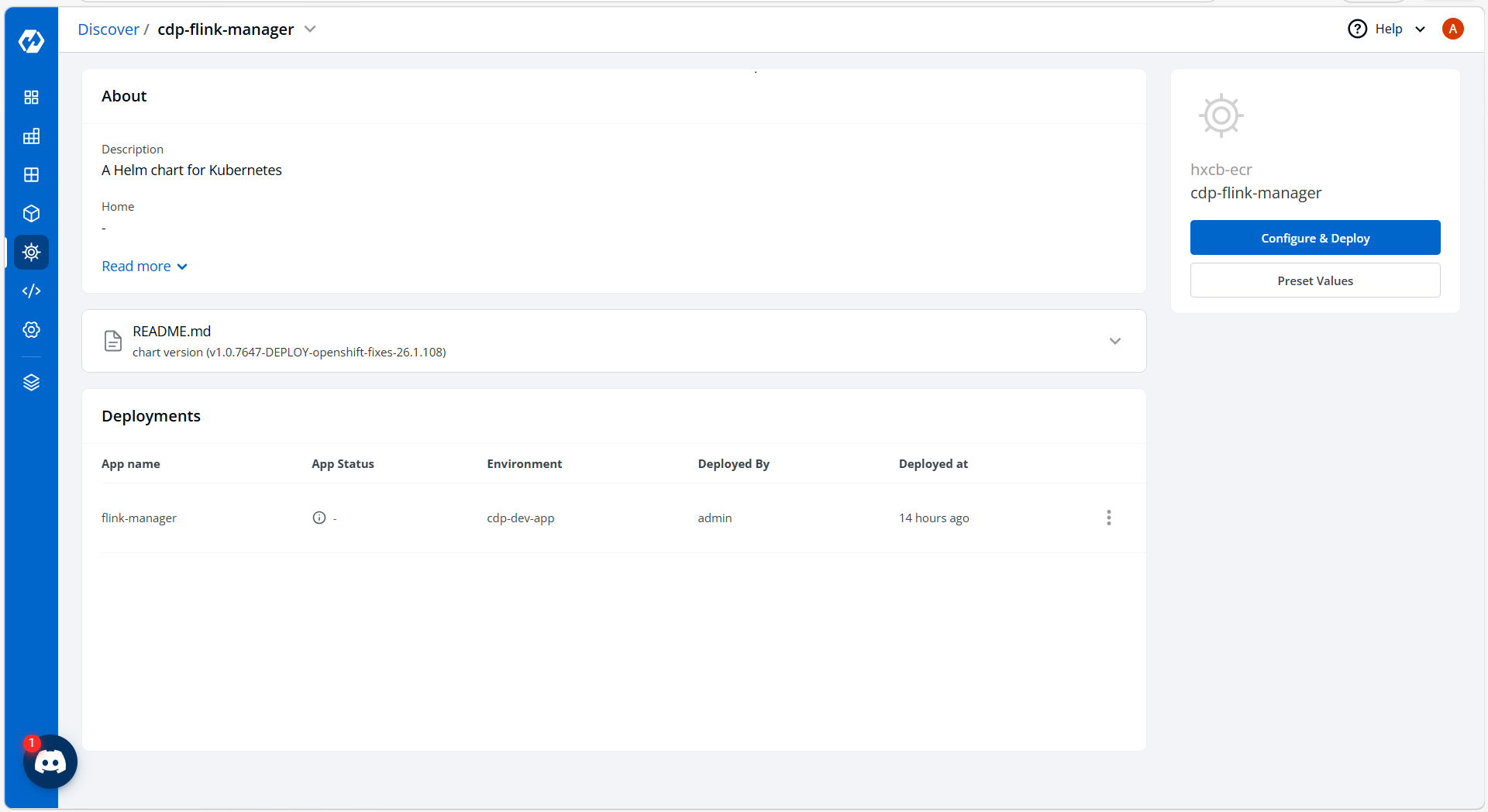

  2. Now, configure and deploy the charts.

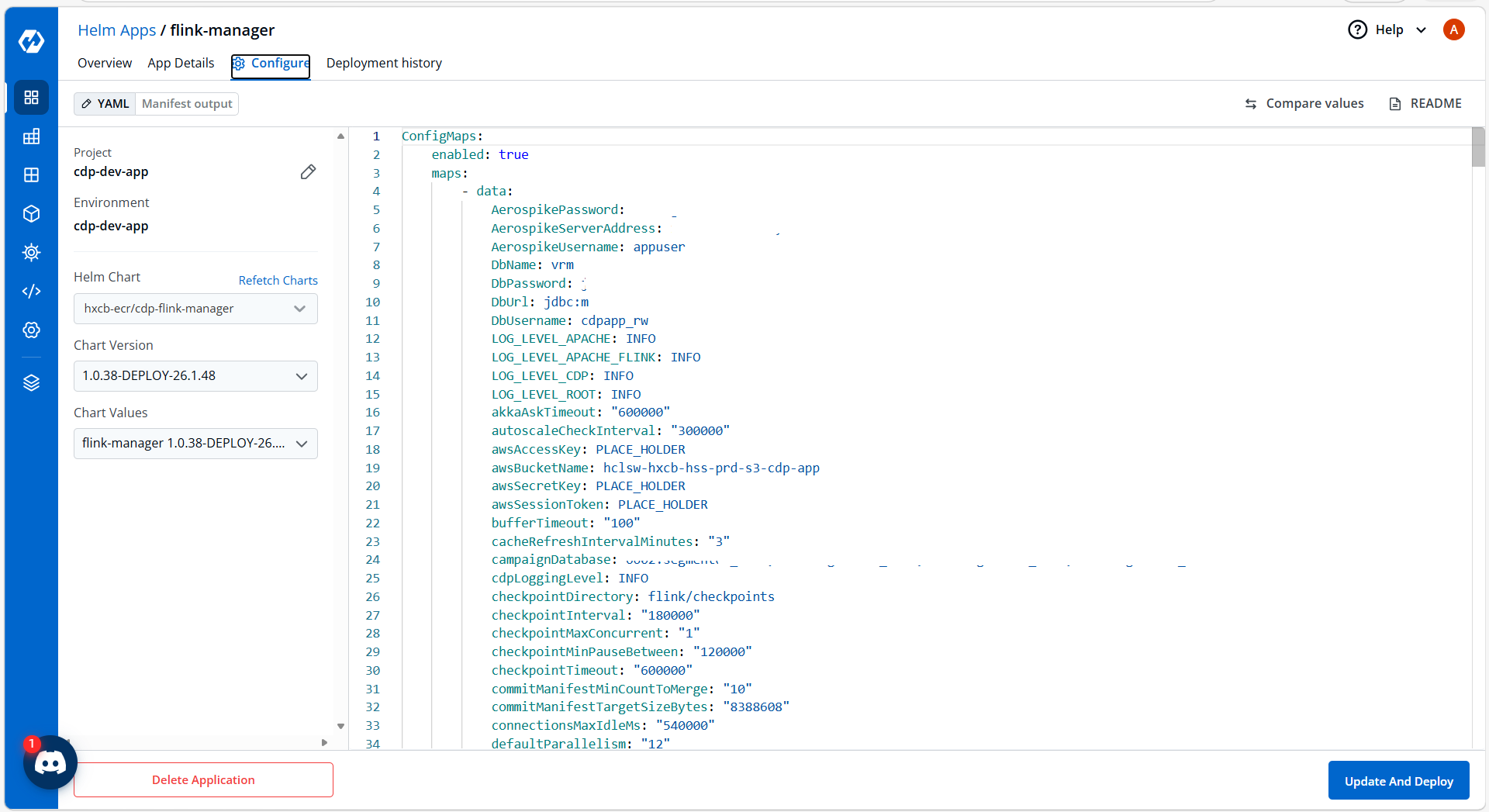

  3. In the YAML section, update the ConfigMap using below details and deploy the charts.
    DbName: generic_db_name
DbPassword: "REDACTED_PASSWORD"
DbUrl: jdbc:mariadb://db-host-hostname:3307/generic_db_name?autoReconnect=true
DbUsername: generic_app_user
akkaAskTimeout: "600000"
bufferTimeout: "100"
cdpLoggingLevel: INFO
checkpointInterval: "180000"
checkpointMaxConcurrent: "1"
checkpointMinPauseBetween: "120000"
checkpointTimeout: "600000"
flinkLoggingLevel: WARN
heartbeatInterval: "10000"
heartbeatTimeout: "30000"
jobmanagerHost: job-manager-service-hostname
jobmanagerPort: "8081"
kafkaBootstrapServers: "kafka-broker-hostname:9092"
kafkaConsumerFetchMessageMaxBytes: "52428800"
kafkaConsumerFetchMinBytes: "2097152"
kafkaConsumerFetchWaitMaxMs: "100"
kafkaConsumerHeartbeatIntervalMs: "8000"
kafkaConsumerMaxPartitionFetchBytes: "52428800"
kafkaConsumerMaxPollIntervalMs: "300000"
kafkaConsumerMaxPollRecords: "5000"
kafkaConsumerReceiveBufferBytes: "1048576"
kafkaConsumerRequestTimeoutMs: "120000"
kafkaConsumerSendBufferBytes: "1048576"
kafkaConsumerSessionTimeoutMs: "45000"
kafkaConsumerRebalanceTimeoutMs: "60000"
kafkaLoggingLevel: WARN
kafkaPassword: REDACTED_KAFKA_PASSWORD
kafkaProducerAcks: all
kafkaProducerEnableIdempotence: "true"
kafkaProducerBatchSize: "1024288"
kafkaProducerBufferMemory: "134217728"
kafkaProducerCompressionType: lz4
kafkaProducerLingerMs: "200"
kafkaProducerMaxInFlightRequestsPerConnection: "5"
kafkaProducerMaxRequestSize: "10485760"
kafkaSaslMechanism: SCRAM_SHA_512
kafkaSecurityProtocol: SASL_SSL
kafkaUsername: generic_kafka_user
operatorChainingEnabled: "true"
orphanMessagesTopic: generic_failed_events_topic
restartStrategyAttempts: "10"
restartStrategyDelay: "10000"
serverPort: "8181"
kafkaParallelismDefault: "3"
icebergParallelismDefault: "3"
defaultParallelism: "12"
sourceParallelism: "12"
processingParallelism: "12"
sinkFailureParallelism: "1"
sinkSuccessParallelism: "12"
slotRequestTimeout: "300000"
taskCancellationTimeout: "300000"
webTimeout: "600000"
isAwsDevMode: "false"
icebergCheckpointInterval: "180000"
writeTargetFileSizeBytes: "134217728"
writeParquetRowGroupSizeBytes: "134217728"
icebergWriteDistributionMode: none
commitManifestTargetSizeBytes: "8388608"
commitManifestMinCountToMerge: "10"
awsAccessKey: YOUR_AWS_ACCESS_KEY
awsSecretKey: YOUR_AWS_SECRET_KEY
awsSessionToken: YOUR_AWS_SESSION_TOKEN
requestTimeoutMs: "30000"
deliveryTimeoutMs: "300000"
transactionTimeoutMs: "900000"
metadataMaxAgeMs: "300000"
connectionsMaxIdleMs: "540000"
socketConnectionSetupTimeoutMs: "10000"
socketConnectionSetupTimeoutMaxMs: "30000"
campaignDatabase: 0000:db_1,1111:db_2
icebergTableName: generic_table_name
cacheRefreshIntervalMinutes: "3"
keyTypeCacheRefreshIntervalMinutes: "60"
savepointDirectory: storage/savepoints
checkpointDirectory: storage/checkpoints
kafkaParallelismMin: "1"
kafkaParallelismMax: "5"
icebergParallelismMin: "1"
icebergParallelismMax: "5"
LOG_LEVEL_APACHE_FLINK: INFO
LOG_LEVEL_APACHE: INFO
LOG_LEVEL_CDP: INFO
LOG_LEVEL_ROOT: INFO
kafkaScaleupThreshold: "0.8"
kafkaScaledownThreshold: "0.3"
icebergScaleupThreshold: "0.8"
icebergScaledownThreshold: "0.3"
autoscaleCheckInterval: "300000"
reconciliationInterval: "300000"
AerospikeServerAddress: 0.0.0.0,0.0.0.1
AerospikePassword: REDACTED_AEROSPIKE_PASSWORD
AerospikeUsername: generic_aerospike_user
awsBucketName: your-s3-bucket-name
historyServerUrl: https://history-server.example.com
jobmanagerUrl: https://job-manager.example.com

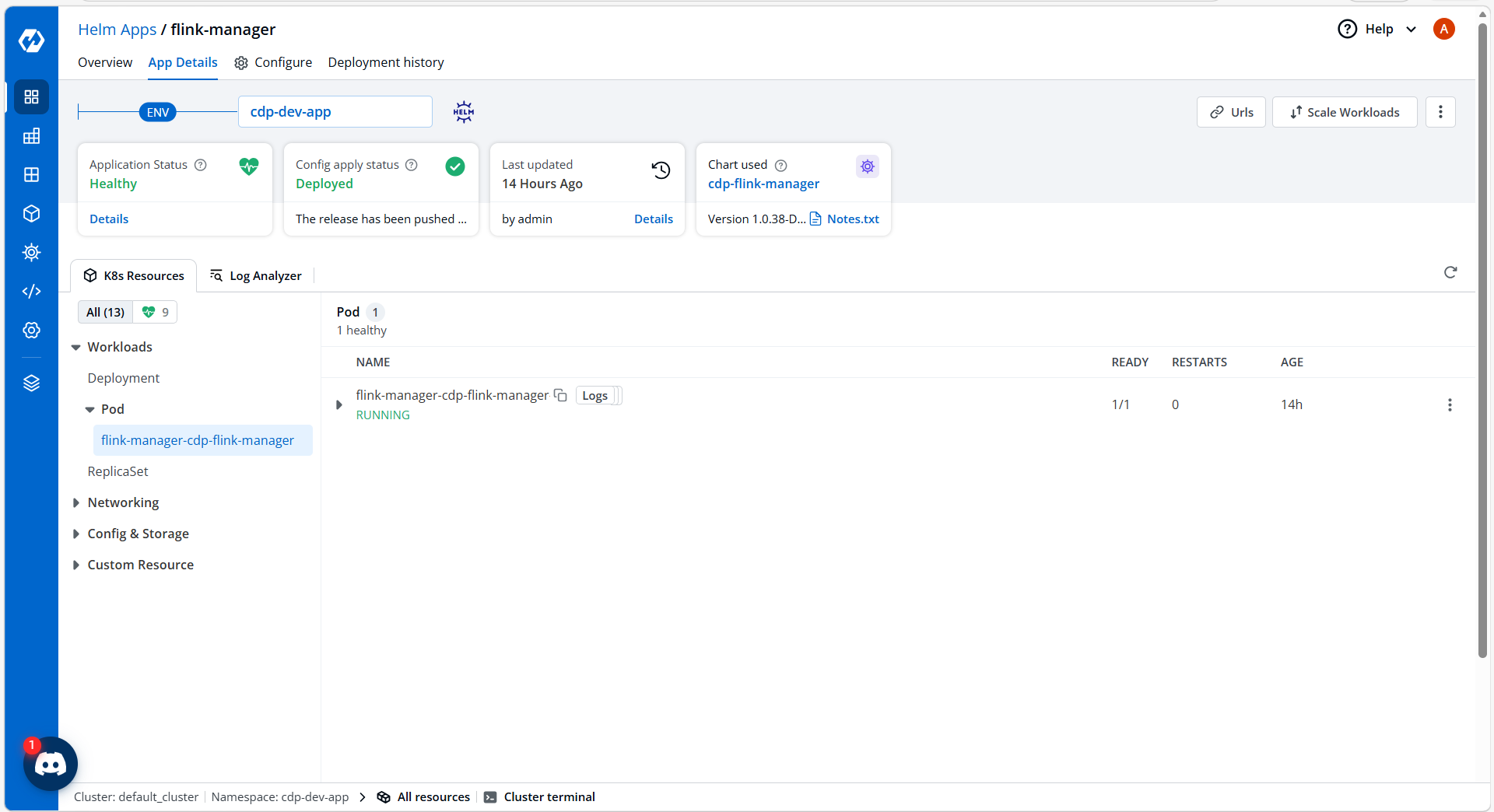

  4. On successful deployment, validate the deployment as shown below.
