Deploying CDP RTS MS

Prerequisites:

Make sure to create a rts-ms secret with required data in the HashiCorp Vault before deploying CDP RTS MS.

To create the rts-ms secret in the HashiCorp Vault, follow the steps below:

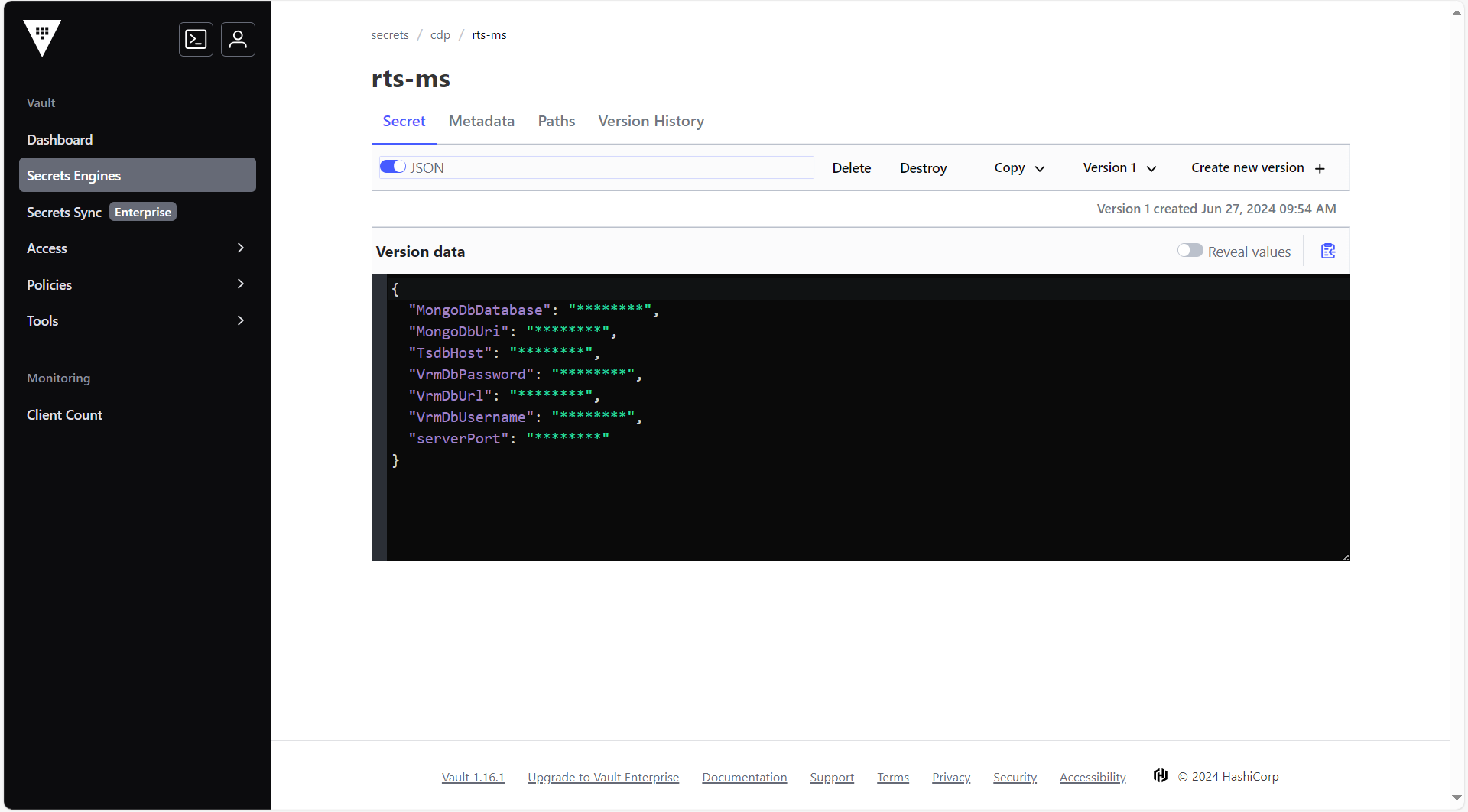

1. Create a rts-ms secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "MongoDbDatabase": "<MongoDbDatabase>",
     "MongoDbUri": "mongodb://<user>:<password>@<ip>:<port>/?directConnection=true",
     "TsdbHost": "<TsdbHost>",
     "VrmDbPassword": "<TsdbHost>",
     "VrmDbUrl": "jdbc:mariadb://<ip>:<port>/<dbName>?autoReconnect=true",
     "VrmDbUsername": "<VrmDbUsername>",
     "serverPort": "<serverPort>"
   }

Deploying CDP RTS

To deploy the CDP RTS, follow the steps below:

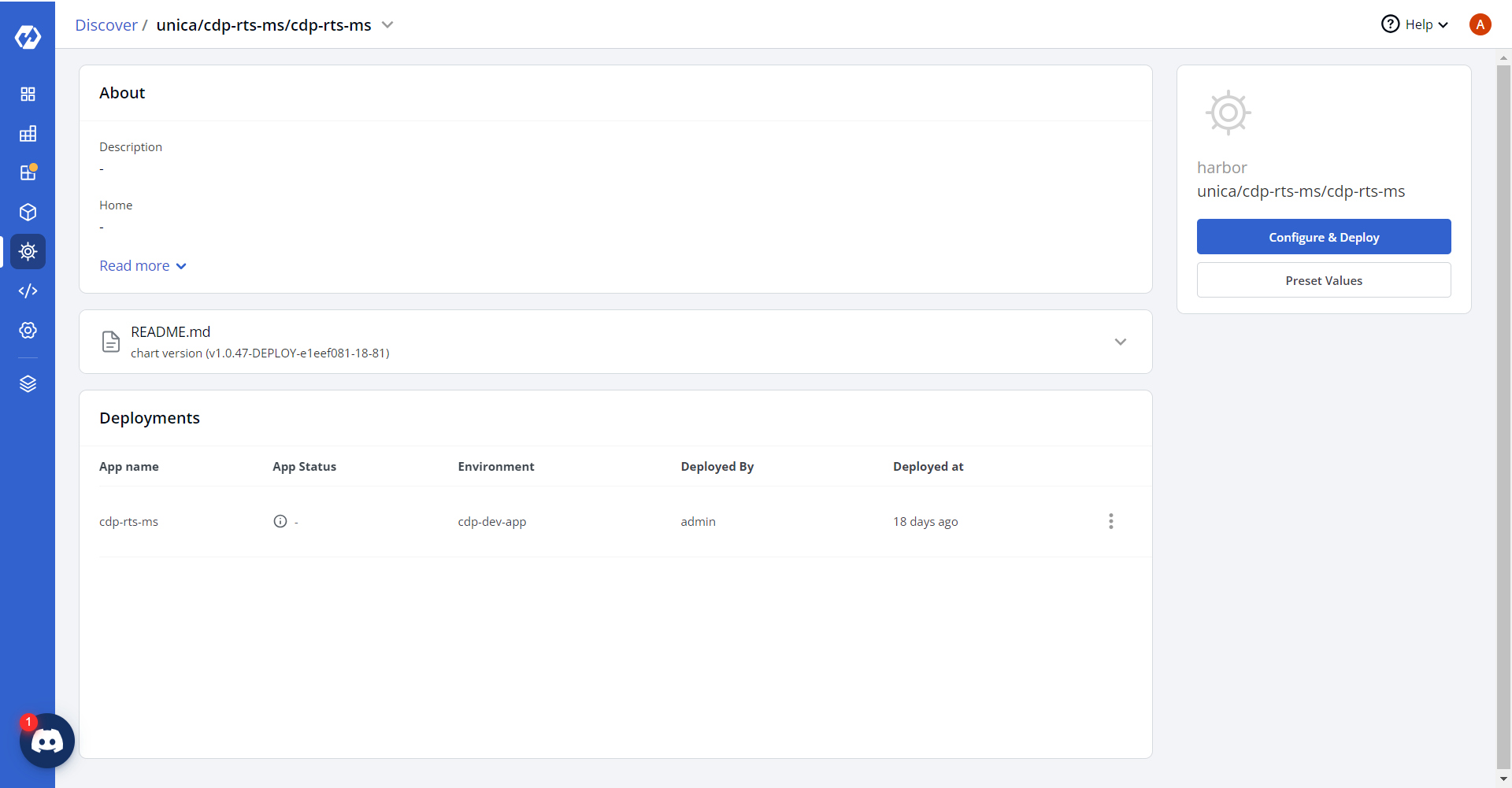

1. Navigate to the Devtron Chart Store, and select the cdp-rts chart to deploy.



2. Now, configure and deploy the CDP RTS charts.

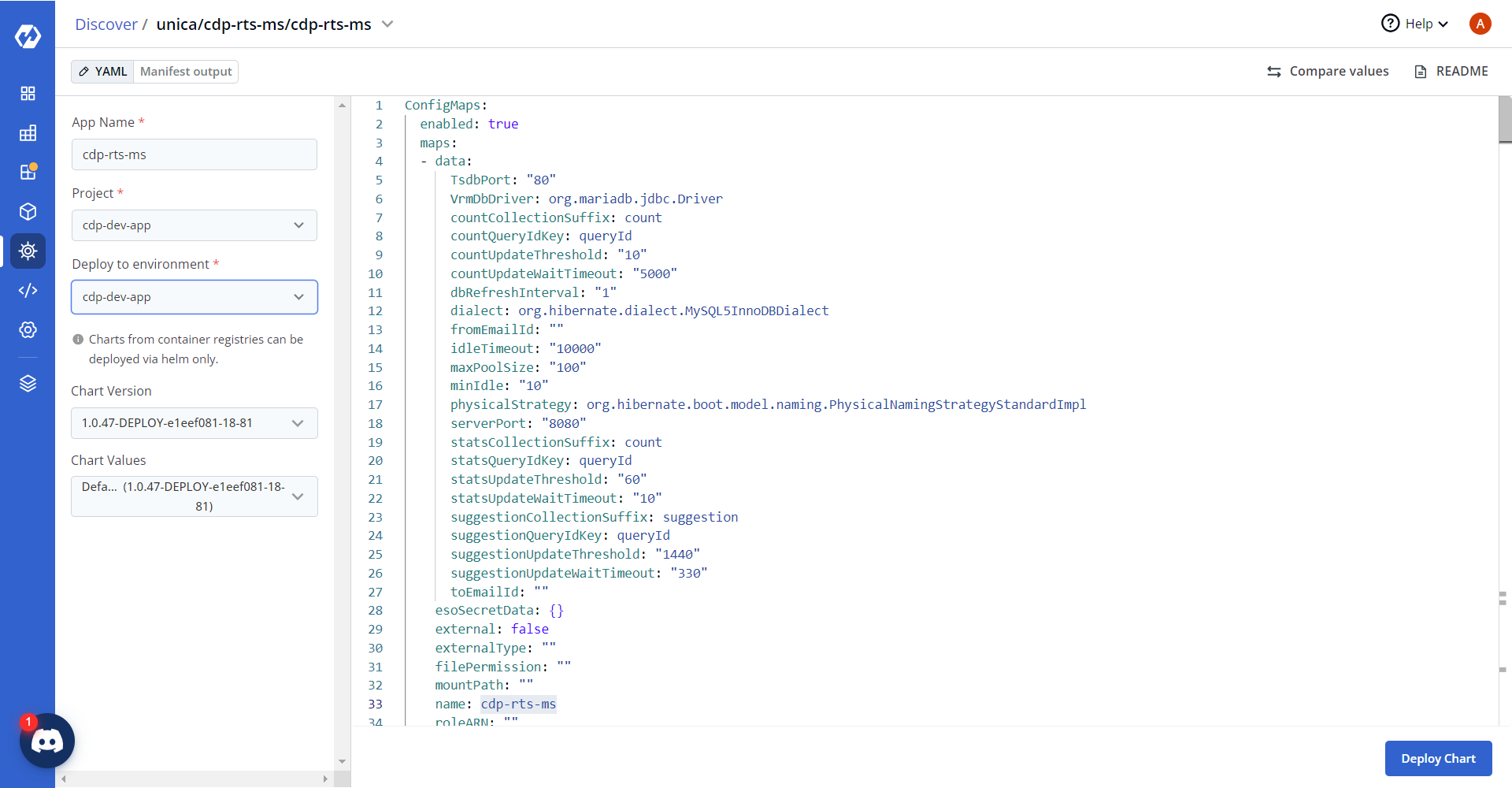

3. In the YAML section, update the ConfigMap using below details, and deploy the charts.

   FROM_EMAIL: <FROM_EMAIL>
   TO_EMAIL: <TO_EMAIL>
   TSDB_HOST: <TSDB_HOST>
   TSDB_PORT: <TSDB_PORT>
   VrmDbDriver: <org.mariadb.jdbc.Driver>
   dialect: <org.hibernate.dialect.MySQL5InnoDBDialect>
   physicalStrategy: <org.hibernate.boot.model.naming.PhysicalNamingStrategyStandardImpl>

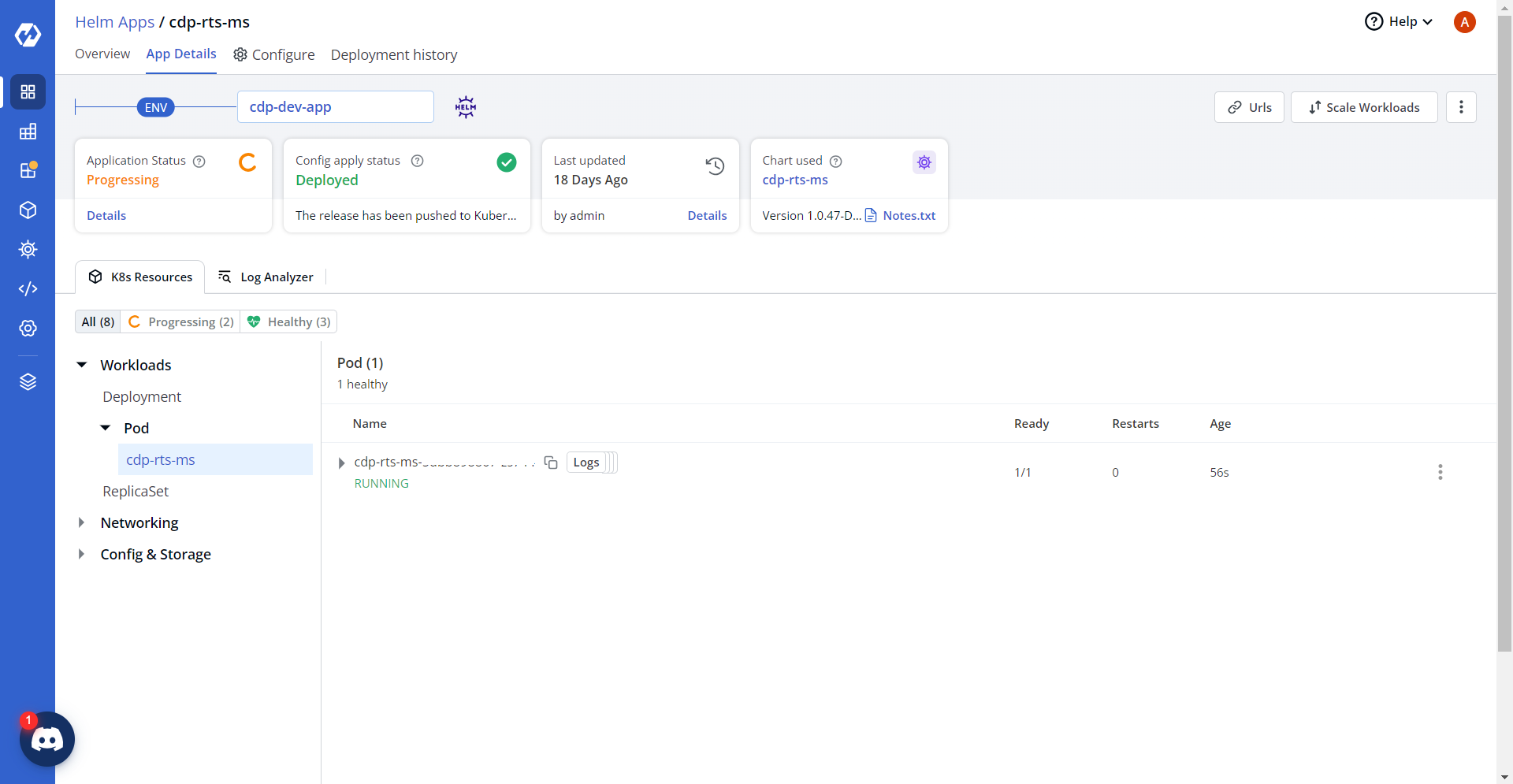

4. On successful deployment, validate the deployment as shown below.
