Deploying CDP Live Events

Prerequisites:

Make sure to create a live-event secret with required data in the HashiCorp vault before deploying CDP Live Events.

To create the live-events secret in the HashiCorp Vault, follow the steps below:

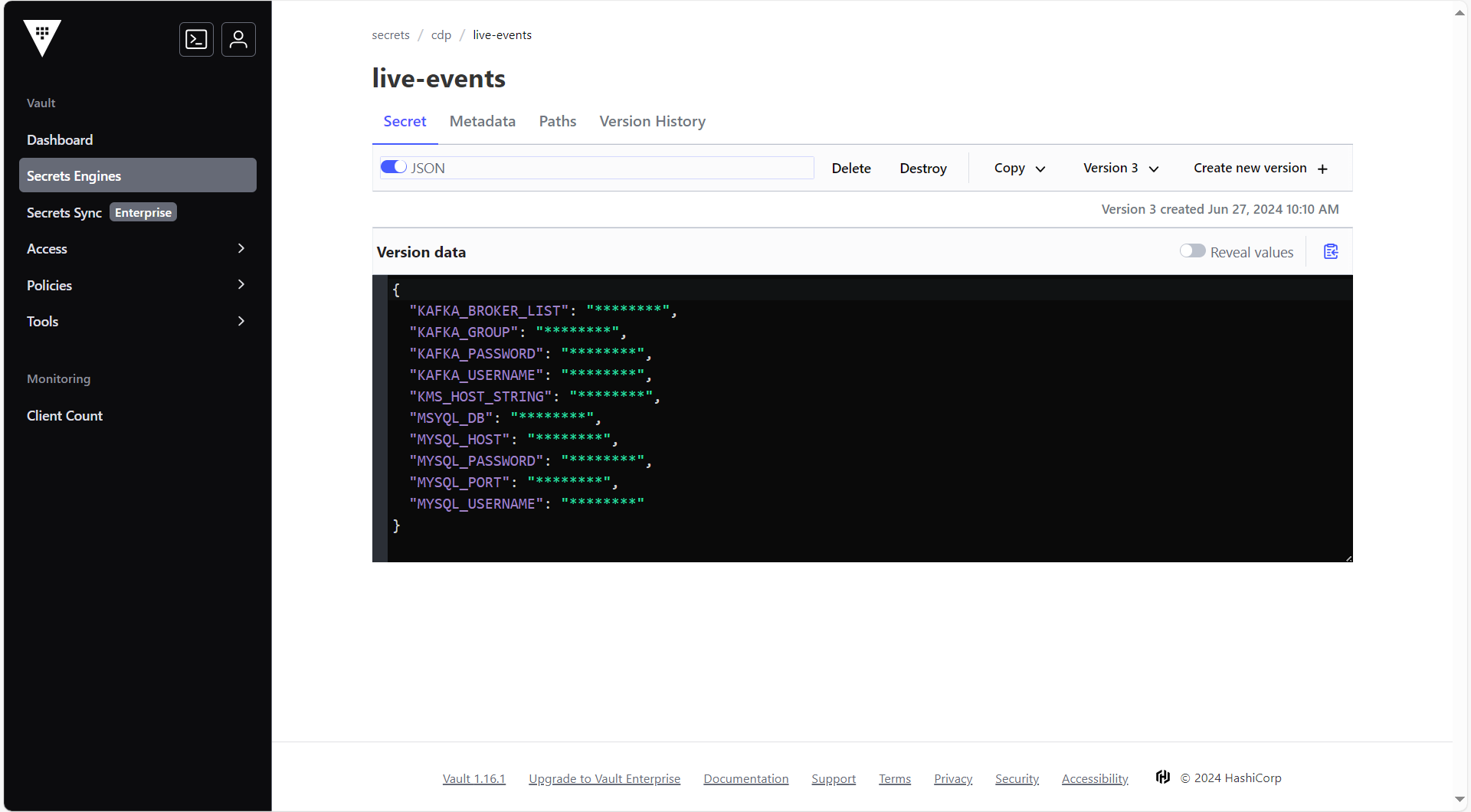

1. Create a live-events secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "KAFKA_BROKER_LIST": "<KAFKA_BROKER_LIST>",
     "KAFKA_GROUP": "<KAFKA_GROUP>",
     "KAFKA_PASSWORD": "<KAFKA_PASSWORD>",
     "KAFKA_USERNAME": "<KAFKA_USERNAME>",
     "KMS_HOST_STRING": "<KMS_HOST_STRING>",
     "MSYQL_DB": "<MSYQL_DB>",
     "MYSQL_HOST": "<MYSQL_HOST>",
     "MYSQL_PASSWORD": "<MYSQL_PASSWORD>",
     "MYSQL_PORT": "<MYSQL_PORT>",
     "MYSQL_USERNAME": "<MYSQL_USERNAME>"
   }

Deploying CDP Live Events

To deploy the CDP Live Events, follow the steps below:

1. Navigate to the Devtron Chart Store, and select the bitnami/zookeeper chart to deploy.

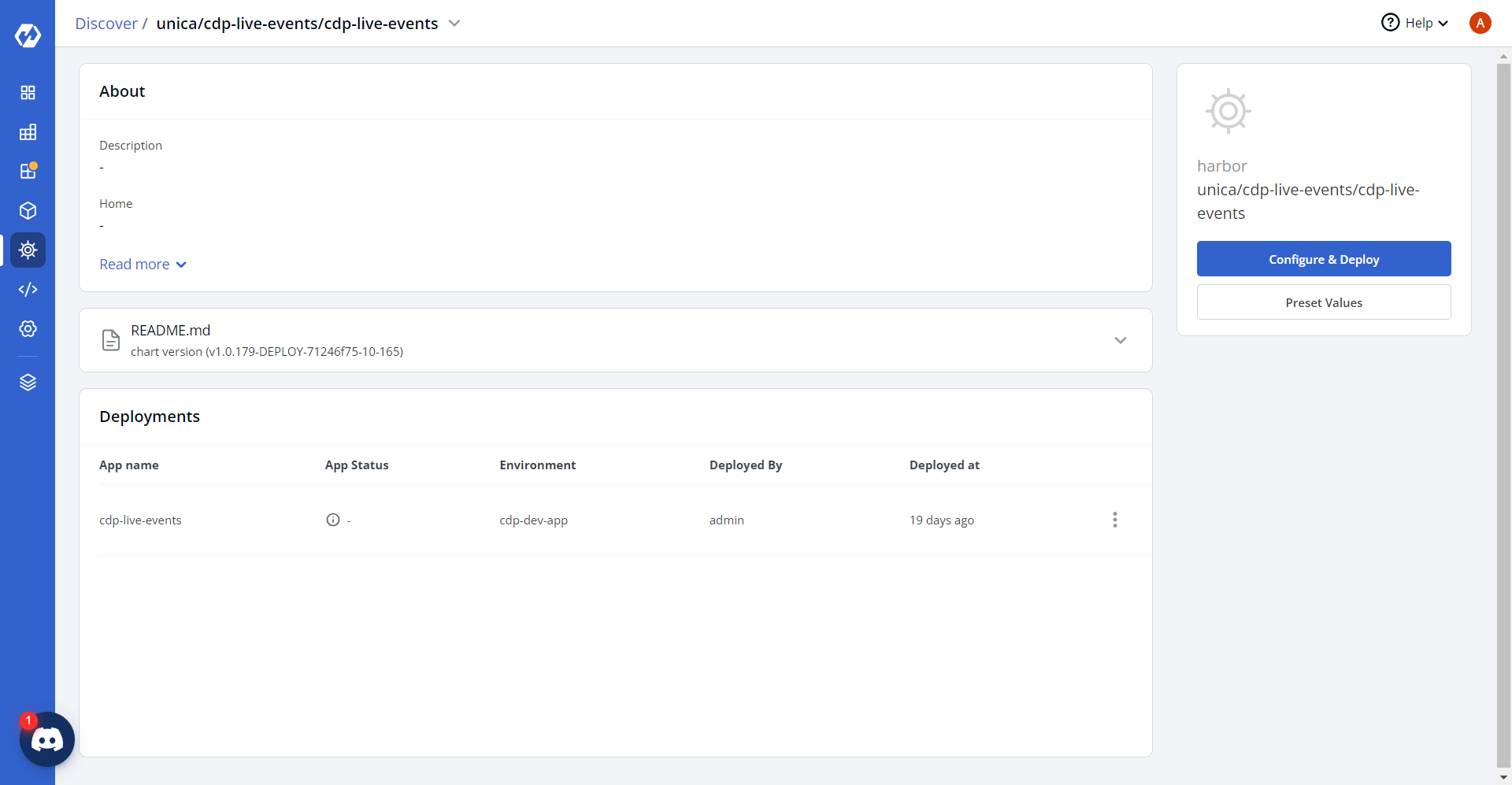

2. Now, configure and deploy the CDP Live Events charts.

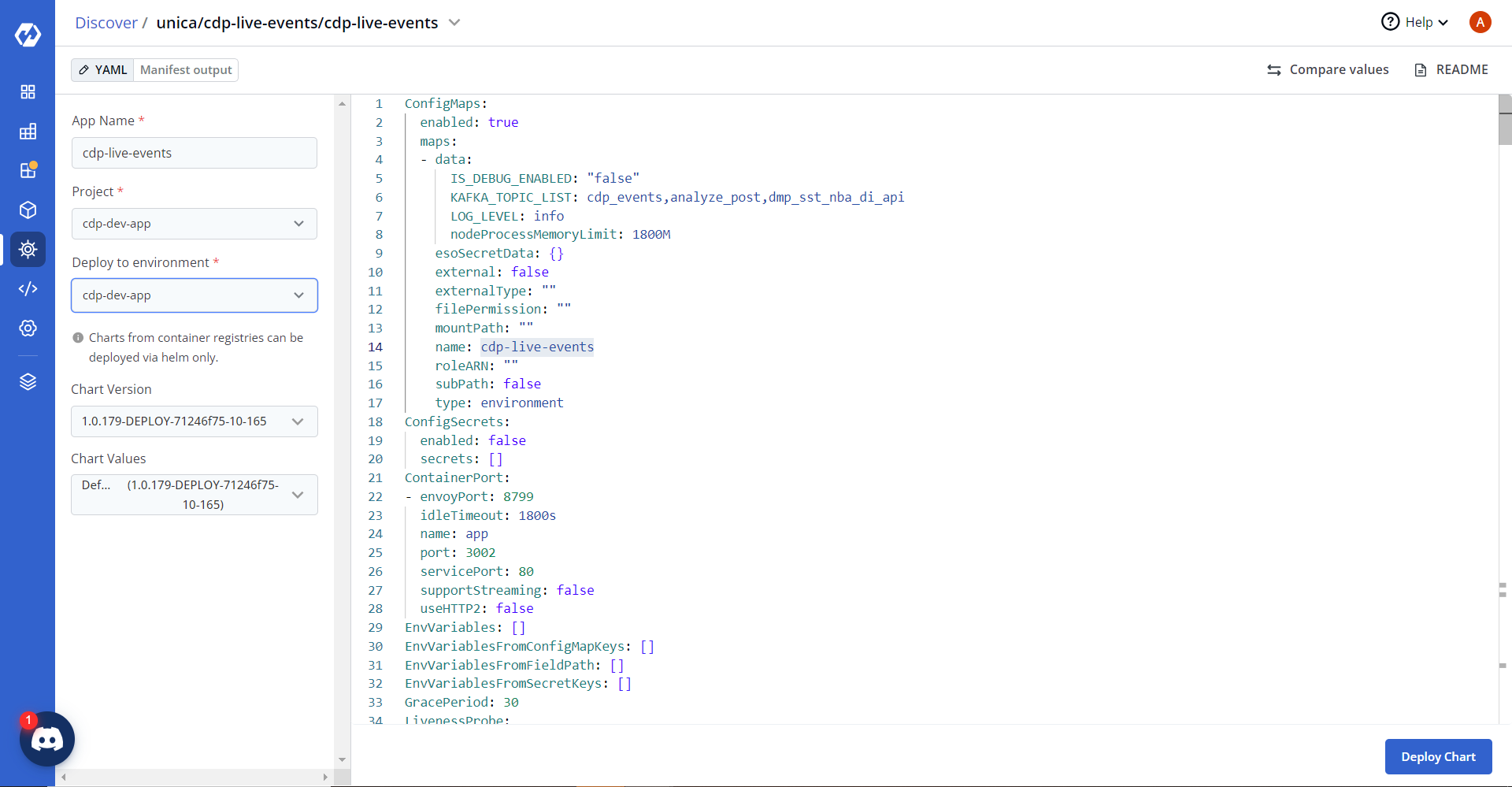

3. In the YAML section, update the ConfigMap using below details, and deploy the charts.

   IS_DEBUG_ENABLED: "false"
   KAFKA_TOPIC_LIST: <cdp_events,analyze_post,dmp_sst_nba_di_api>
   LOG_LEVEL: <info>
   nodeProcessMemoryLimit: <1800M>

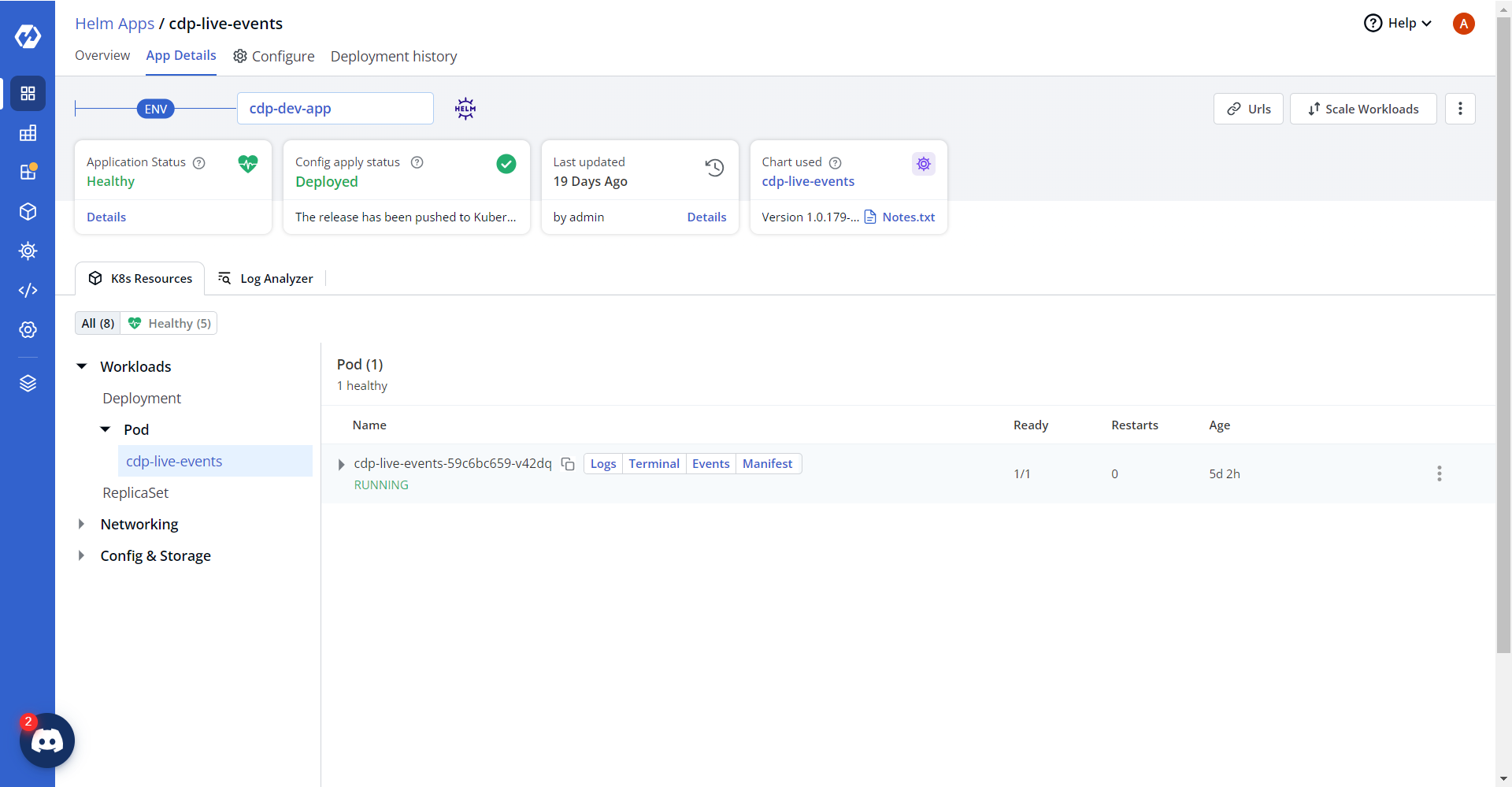

4. On successful deployment, validate the deployment as shown below.
