CodeSweep Github Action

The HCL AppScan CodeSweep for GitHub action enables you to check your code on every pull request. The action identifies vulnerabilities in changed code with every update. But more than just identifying issues, the HCL AppScan CodeSweep for GitHub extension tells you what you need to know to mitigate issues — before they make it to the main branch.

Tutorial

Register

Register on HCL AppScan on Cloud (ASoC) to generate your API key/secret.

Setup

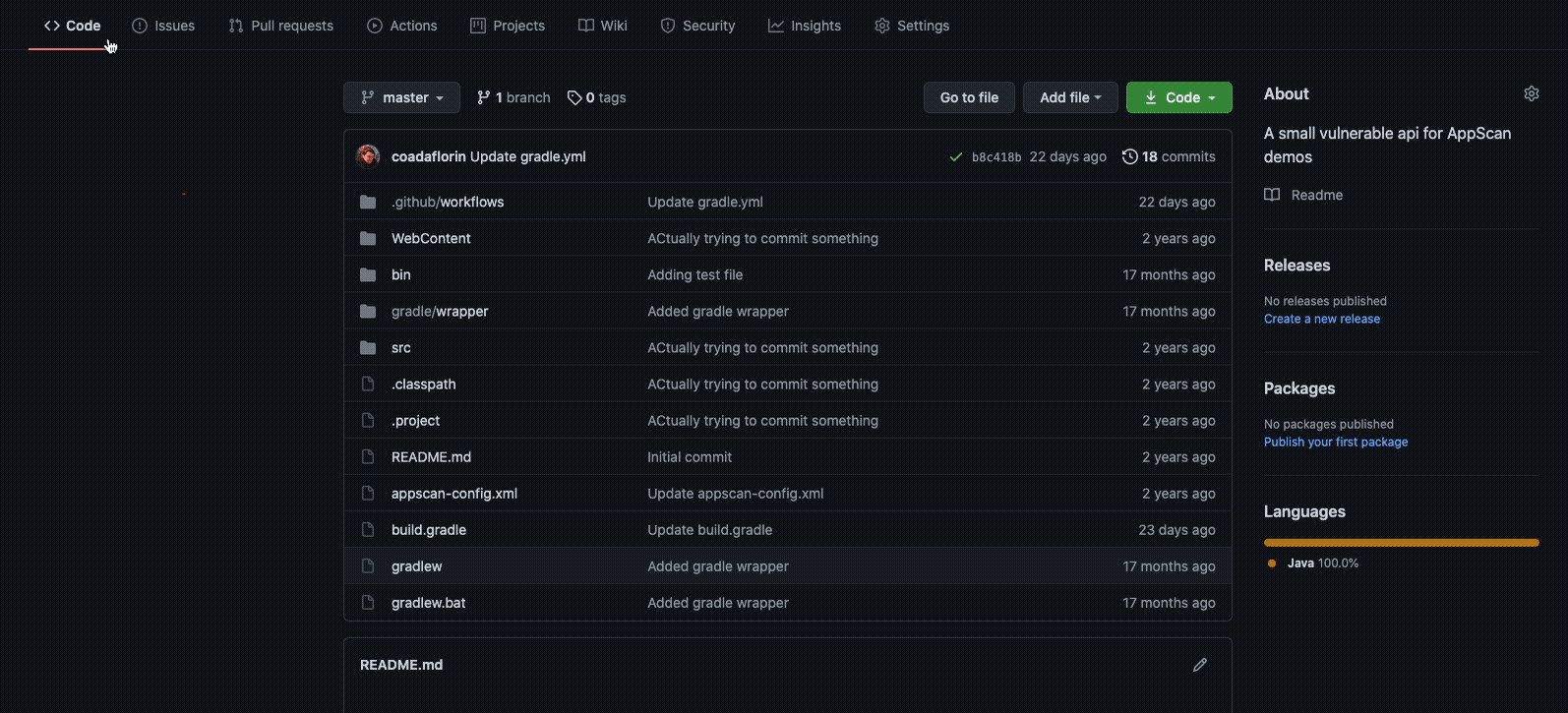

  1. After logging into ASoC, go to the API page to generate your API key/secret pair. These must be used in the asoc_key and asoc_secret parameters for the action. Store these parameters as secrets in your repository.
  2. Ensure that the Workflow permissions for your repository are set to Read and write permissions. This allows CodeSweep to scan your files and create checkruns and annotations for the issues it finds. Access these settings at Settings > Actions > General.
  3. To scan code changes when a pull request is opened, add the following file to your repository under .github/workflows/codesweep.yml or update an existing workflow file:
    name: "HCL AppScan CodeSweep"
    on:
      pull_request:
        types: [opened,synchronize]
    jobs:
      scan:
        runs-on: ubuntu-latest
        steps:
          - name: Checkout
            uses: actions/checkout@v1
          - name: Run AppScan CodeSweep
            uses: HCL-TECH-SOFTWARE/appscan-codesweep-action@v2
            with:
              asoc_key: ${{secrets.ASOC_KEY}}
              asoc_secret: ${{secrets.ASOC_SECRET}}
        env:
          GITHUB_TOKEN: ${{secrets.GITHUB_TOKEN}}
    Note: If you use checkout@v2 or later you must set fetch-depth to 0. For example:
    uses: actions/checkout@v2
    with:
      fetch-depth: 0
  4. To publish security issues to ASoC when a pull request is merged, add the following file to your repository under .github/workflows/codesweep_publish.yml or update an existing workflow file:
    name: "HCL AppScan CodeSweep"
    on:
      pull_request:
        types: [closed]
    jobs:
      publish:
        runs-on: ubuntu-latest
        steps:
          - name: Publish issues to ASoC
            uses: HCL-TECH-SOFTWARE/appscan-codesweep-action@v2
            with:
              asoc_key: ${{secrets.ASOC_KEY}}
              asoc_secret: ${{secrets.ASOC_SECRET}}
              publish_on_merge: true
              application_id: <your ASoC application ID>
        env:
          GITHUB_TOKEN: ${{secrets.GITHUB_TOKEN}}

Optional parameters for scanning

Parameter Description Values Default
status The status of the checks if any security issues are found.
  • action_required
  • failure
  • neutral
neutral
For example:
with:
  status: failure

Optional parameter for publishing issues to AppScan on Cloud

Parameter Description Values Default
issue_status The status of issues that are published to ASoC.
  • open
  • inprogress
  • noise
  • fixed
  • passed
open
scan_base_name ASoC A timestamp is appended to the given base name. GitHub_CodeSweep
personal_scan ASoC
  • true
  • false
true
with:
  publish_on_merge: true
  application_id: 6c058381-17ca-e711-8de5-002590ac753d
  issue_status: "inprogress"
  scan_base_name: "CodeSweep"
  personal_scan: true

Example

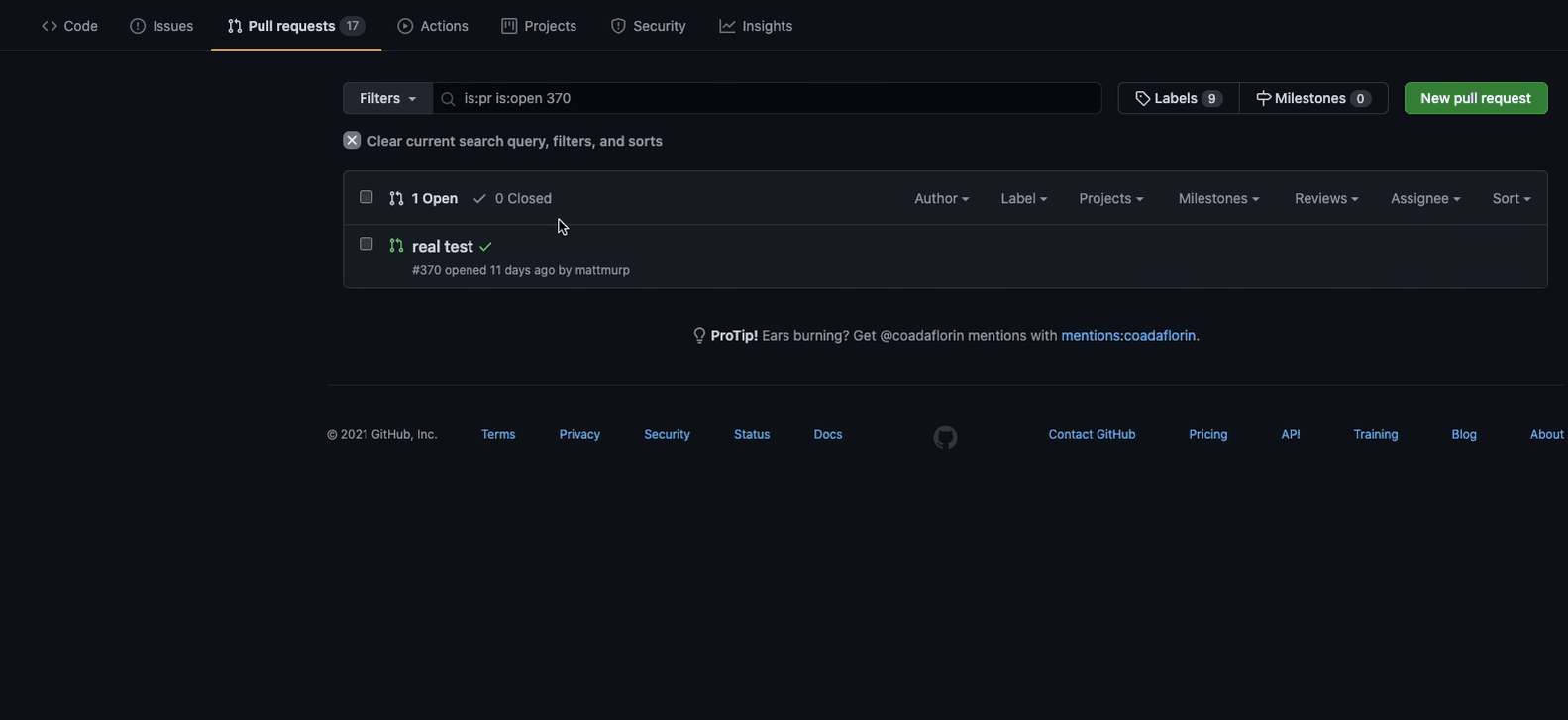

Annotations are added to the diff view, showing any vulnerable lines of code and a checkrun is added to provide additional details, including good and bad code samples and mitigation information.

Supported languages

The HCL AppScan CodeSweep action supports scanning the following languages/dialects:
Languages
Android-Java Groovy NodeJS Ruby
Angular IaC (Docker, K8s, Terraform) Objective-C/Objective-C++ Scala
Apex Ionic PHP Swift
C/C++ Java PL/SQL T-SQL
Cobol JavaScript Perl TypeScript
ColdFusion JQuery Python VueJS
Dart Kotlin React .Net (C#, VB.NET, ASP.Net)
GoLang Mootools React Native Xamarin

Troubleshooting

Problem: The security scan runs, but no checkruns or annotations are created for the security issues that are found. The workflow log contains the error:

Error: Failed creating checkrun: HttpError: Resource not accessible by integration

Resolution: This error indicates that the workflow does not have write permission to the repository, so CodeSweep is unable to create the checkruns and annotations. To fix this, go to Settings > Actions > General and set Workflow permissions to Read and write permissions.

Join the community

Use the CodeSweep slack channel to report any feedback or ask general questions about the HCL AppScan CodeSweep action.
