Component Setup

After creating the BigFix Runbook AI database, perform the following steps to set up the Web UI components.

  1. The Component Selection view lists the components and their corresponding parameters based on the selected component. A is displayed against each component which was installed earlier on previously selected server host/IP.

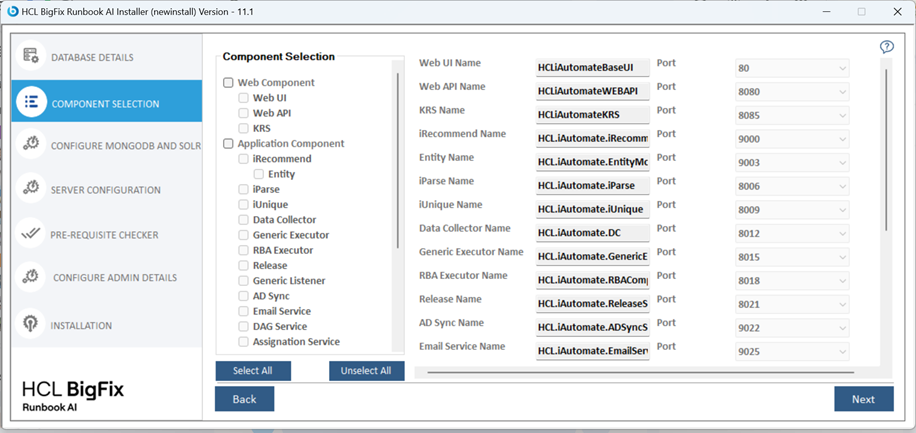

    Figure 1. Component Setup
  2. Select the components as planned for the server configuration.
  3. Select the Web Component, Application Component, Ansible CLI Wrapper Component or Advanced AI Component check boxes to install all the components listed under the servers simultaneously or select a single component to install it individually.
  4. After component selection, their corresponding details are auto filled and enables user to select the Port for each component.
  5. Click Next. The Server Configuration page appears.
Note:
All fields marked with an asterisk (*) are mandatory.
