Installing MinIO

This section provides a step-by-step guide to installing MinIO.

About this task

MinIO is an object storage solution that provides an Amazon Web Services S3-compatible API and supports all core S3 features. MinIO is built to deploy anywhere - public or private cloud, bare metal infrastructure, orchestrated environments, and edge infrastructure.

Procedure

  1. Install MinIO.
    1. Add the MinIO Operator repositories to helm configuration.
      helm repo add minio-operator https://operator.min.io
helm repo update
    2. Validate the repositories contents using helm search.
      helm search repo minio-operator

      As a result, the output will be as shown below.

        NAME                            CHART VERSION   APP VERSION     DESCRIPTION
minio-operator/minio-operator   4.3.7           v4.3.7          A Helm chart for MinIO Operator
minio-operator/operator         5.0.10          v5.0.10         A Helm chart for MinIO Operator
minio-operator/tenant           5.0.10          v5.0.10         A Helm chart for MinIO Operator
    3. Download the MinIO Operator Helm chart from github to your local.
      curl -O https://raw.githubusercontent.com/minio/operator/master/helm-releases/operator-5.0.15.tgz
    4. After downloading the tar file, extract the chart.
      tar -xvf operator-5.0.15.tgz
    5. Create a minio operator namespace.
      kubectl create namespace minio-operator --
    6. Update the values.yaml file within the extracted chart directory, and comment out the seccompProfile values.
      containerSecurityContext:
 runAsUser: 1000
 runAsGroup: 1000
 runAsNonRoot: true
 allowPrivilegeEscalation: false
 capabilities:
 drop:
 - ALL
 # seccompProfile: # type: RuntimeDefault
    7. Similarly, update the Ingress details of config and host values.
      ###
# Configures `Ingress <https://kubernetes.io/docs/concepts/services-networking/ingress/>`__ for the Operator Console.
#
# Set the keys to conform to the Ingress controller and configuration of your choice.
# Set console.ingress.number to any port. For example:
# You may choose port number 9443 for HTTPS or 9090 for HTTP, as desired.
ingress:
enabled: true #false
ingressClassName: ""
labels: { }
annotations: { }
tls: [ ]
host: console.minio-operator.apps.ocp415.manishkr.nonprod.hclpnp.com #console.local
path: /
pathType: Prefix
number: 9090
###
    8. Now, navigate to the template folder in the extracted file, and open minio.min.io_tenants.yaml for editing.
    9. Remove all the seccompProfile sections, and Install the chart using below command.
      helm install --namespace minio-operator <chart-name> <chart-path>
    10. After installation, you can verify the operator.
      kubectl get all -n minio-operator

      As a result, the output will be as shown below.

      NAME                                  READY   STATUS    RESTARTS   AGE
pod/console-68d955874d-vxlzm          1/1     Running   0          25h
pod/minio-operator-699f797b8b-th5bk   1/1     Running   0          25h
pod/minio-operator-699f797b8b-nkrn9   1/1     Running   0          25h

NAME               TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)             AGE
service/console    ClusterIP   10.43.195.224   <none>        9090/TCP,9443/TCP   25h
service/operator   ClusterIP   10.43.44.204    <none>        4221/TCP            25h
service/sts        ClusterIP   10.43.70.4      <none>        4223/TCP            25h

NAME                             READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/console          1/1     1            1           25h
deployment.apps/minio-operator   2/2     2            2           25h

NAME                                        DESIRED   CURRENT   READY   AGE
replicaset.apps/console-68d955874d          1         1         1       25h
replicaset.apps/minio-operator-699f797b8b   2         2         2       25h
    11. Now, retrieve the console access token.
      kubectl get secret/console-sa-secret -n minio-operator -o json | jq -r ".data.token" | base64 -d

      As a result, the output will be shown as below:

      eyJhbGciOiJSUzI1NiIsImtpZCI6IlRtV2x3Z1RILVREaThhQm9iemFfLW95NHFHT0ZZOHFBRjlZalBRcWZiSDgifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJtaW5pby1vcGVyYXRvciIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJjb25zb2xlLXNhLXNlY3JldCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJjb25zb2xlLXNhIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiY2M1ZjEwYzktYzU1ZC00MjNiLTgxM2MtNmU5ZDY2ZGI5NDYyIiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Om1pbmlvLW9wZXJhdG9yOmNvbnNvbGUtc2EifQ.F-Pt5nU9xaugjRksWAOTShBW_eNTf8UwXvLfGxEK6l3_41NYsLgvTg5m0hYLUiYr6v2HwkEu0XzqTJbPoeSrFds8BOjeiCoP2Lmw4tRPo9tSXhAq-_elWt83YpJl-zjUpna5nVSWJWXKgj1Iga-9gw-Q63UygEcyTJ9_AwCNU9T0HdPzqccS9XrEUdsXFQxR9RwZY4TGC8K7cD9sc_OmfEiuyilRgyC_gFRvtCQfFv1DP0GKyjMGo2ffu-2Tq2U7zK5epWdqmNSvbIa0ZRoPlPedZ6nYY935lNgTIIW1oykRYrgwZZiv4CzfTH2gPswjtPc5ICtDDRUjYEhdTq3gtw
    12. If you configured the svc/console service for access through ingress, a cluster load balancer, you can access the console using the configured hostname and port. Once you access the console, use the Console JWT to log in.
      oc expose svc/console -n minio-operator
  2. Create and configure the Tenant.

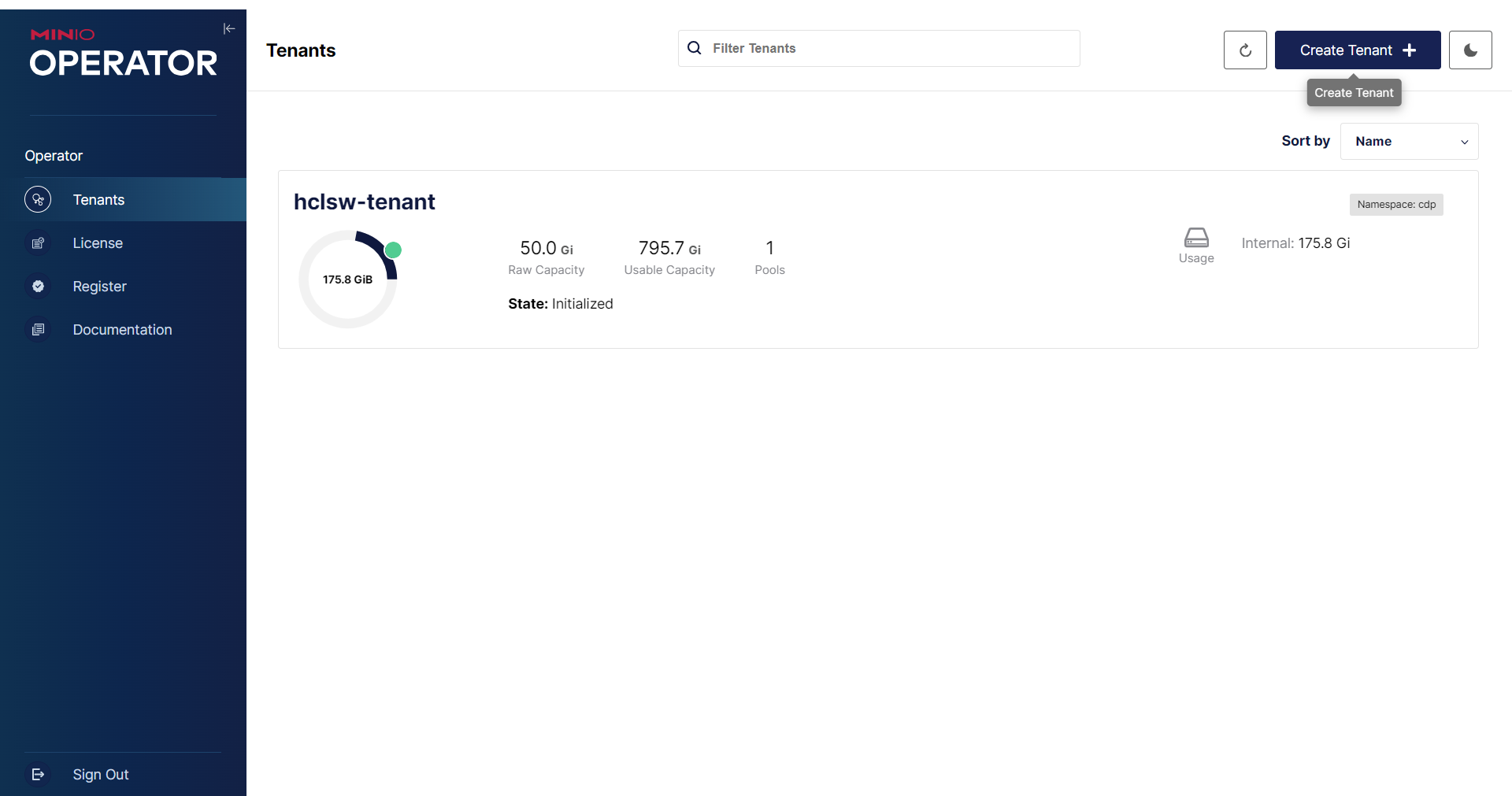

    1. In the MinIO portal, select Tenant, and click Create Tenant.

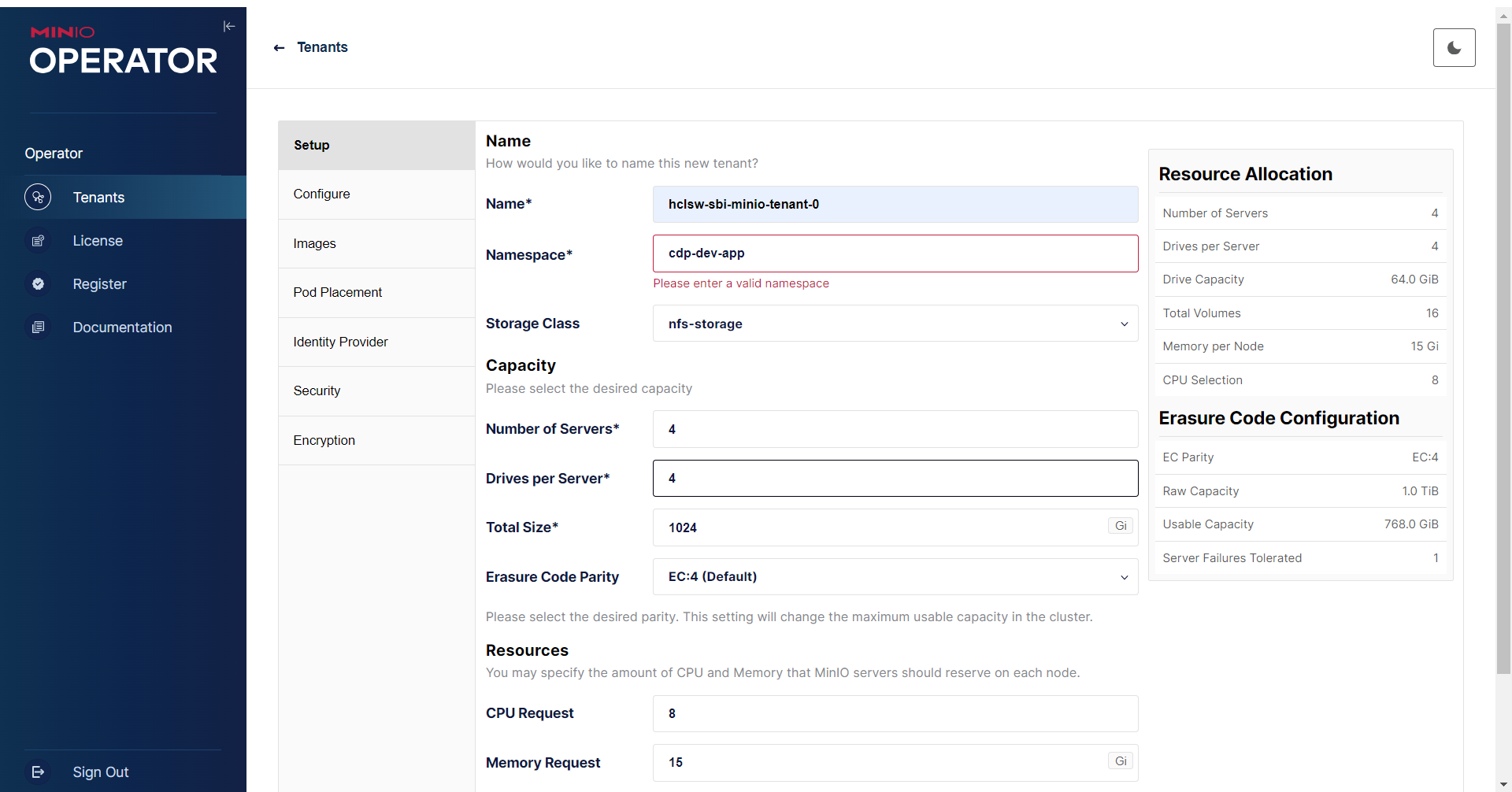

    2. In the Tenants page, click Setup, and enter tenant name and other details.

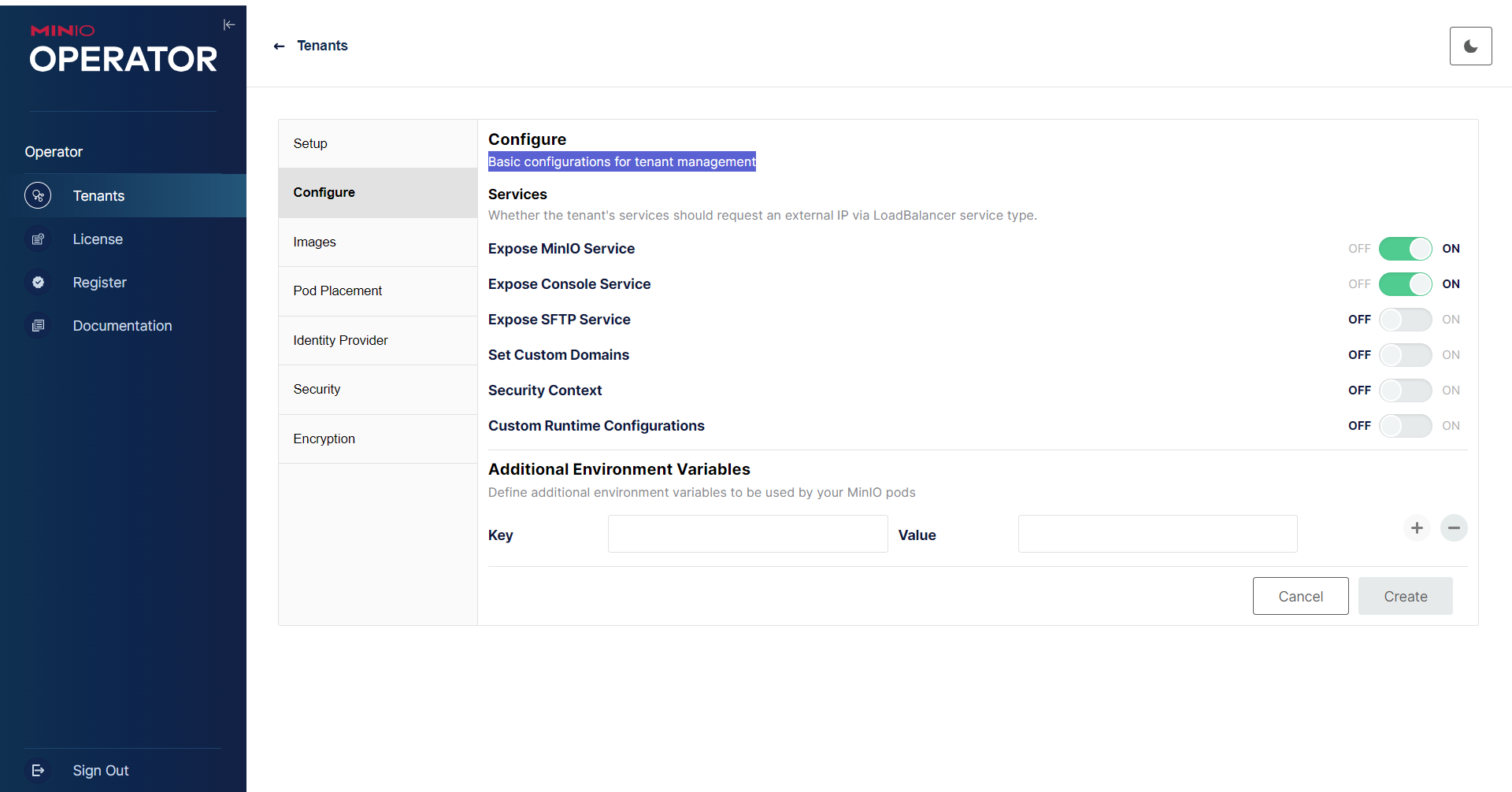

    3. Now, click Configure, and set the basic configurations.

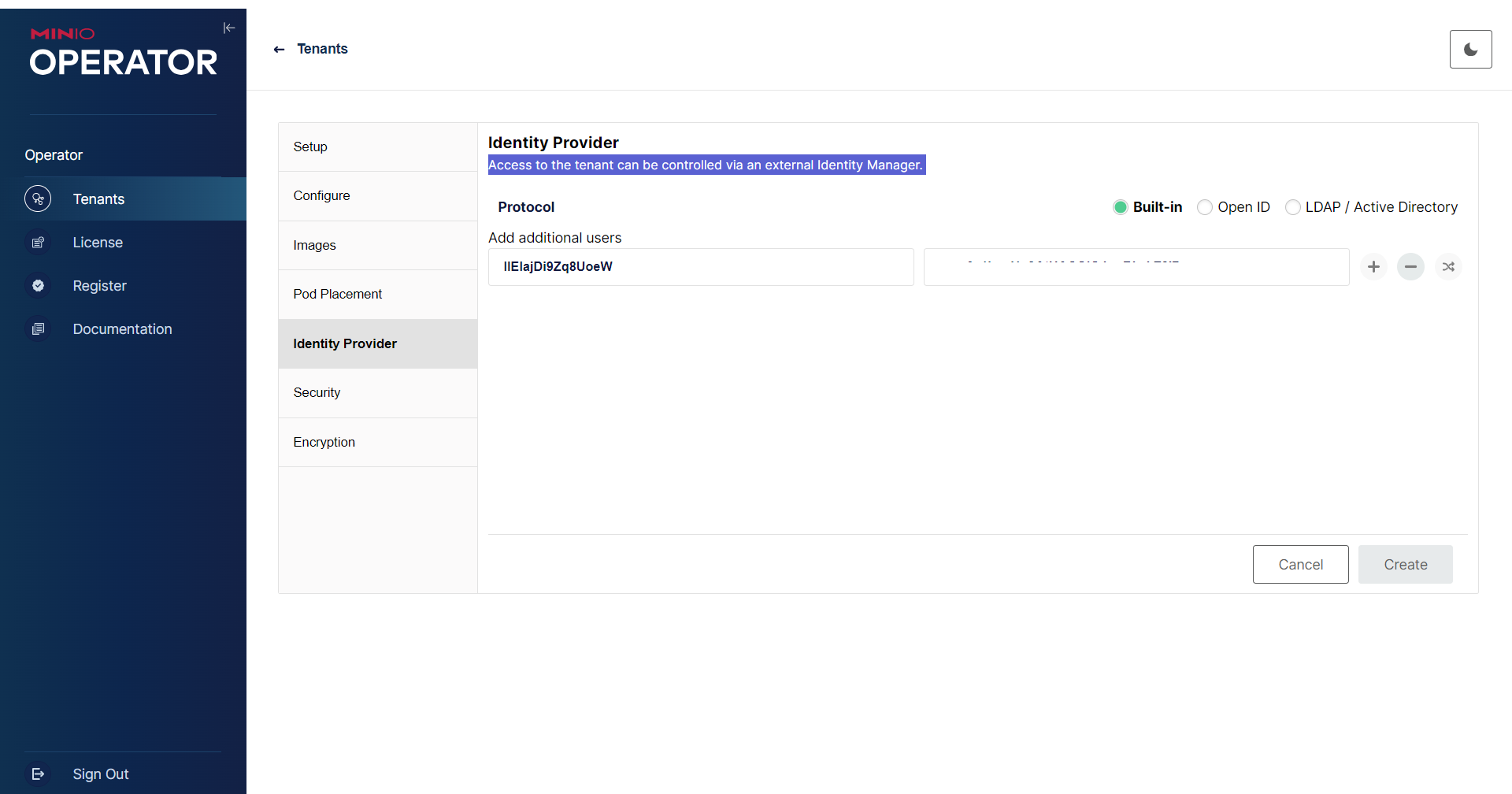

    4. Similarly, configure Identity Provider, Security and Encryption.
    5. Store the MinIO credentials.json for Tenant Management, and verify the Tenant resources created under specified namespace - cdp.
      [root@cdpsvc01 ~]# oc get svc -n cdp
NAME                                   TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                               AGE
hclsw-tenant-console                   LoadBalancer   172.30.90.139   <pending>     9090:32037/TCP                        17d
hclsw-tenant-hl                        ClusterIP      None            <none>        9000/TCP                              17d
minio                                  LoadBalancer   172.30.43.239   <pending>     80:32045/TCP                          17d

[root@cdpsvc01 ~]# oc get pods -n cdp  | grep tenant
hclsw-tenant-pool-0-0                                 2/2     Running                0          17d
hclsw-tenant-pool-0-1                                 2/2     Running                0          6d2h

[root@cdpsvc01 ~]# oc get sts -n cdp  | grep tenant
hclsw-tenant-pool-0   2/2     17d
[root@cdpsvc01 ~]#
    6. Expose MinIO service for bucket creation.
      [root@cdpsvc01 ~]# oc get routes -n cdp | grep minio
minio minio-cdp.apps.ocp415.manishkr.nonprod.hclpnp.com minio http-minio None
    7. Verify MinIO Client commands.
      sh-5.1$ mc alias set test http://minio-cdp.apps.ocp415.manishkr.nonprod.hclpnp.com  rAtUbaYVYdtkrRBo etFo134HCqcPs5yJzWn0WjA6E61vsEHG --api s3v4 --path auto
Added `test` successfully.
sh-5.1$ mc ls test
[2024-06-08 06:49:17 UTC]     0B hclsw-2/
[2024-06-08 07:05:52 UTC]     0B hclsw-3/
[2024-06-08 07:08:51 UTC]     0B hclsw-4/
sh-5.1$ mc mb test/test-bkt
Bucket created successfully `test/test-bkt`.
sh-5.1$ mc ls test

[2024-06-08 06:49:17 UTC]     0B hclsw-2/
[2024-06-08 07:05:52 UTC]     0B hclsw-3/
[2024-06-08 07:08:51 UTC]     0B hclsw-4/
[2024-06-25 09:55:42 UTC]     0B test-bkt/
  3. Create a bucket in the Management Console.
    1. Open the Management console using console URL.

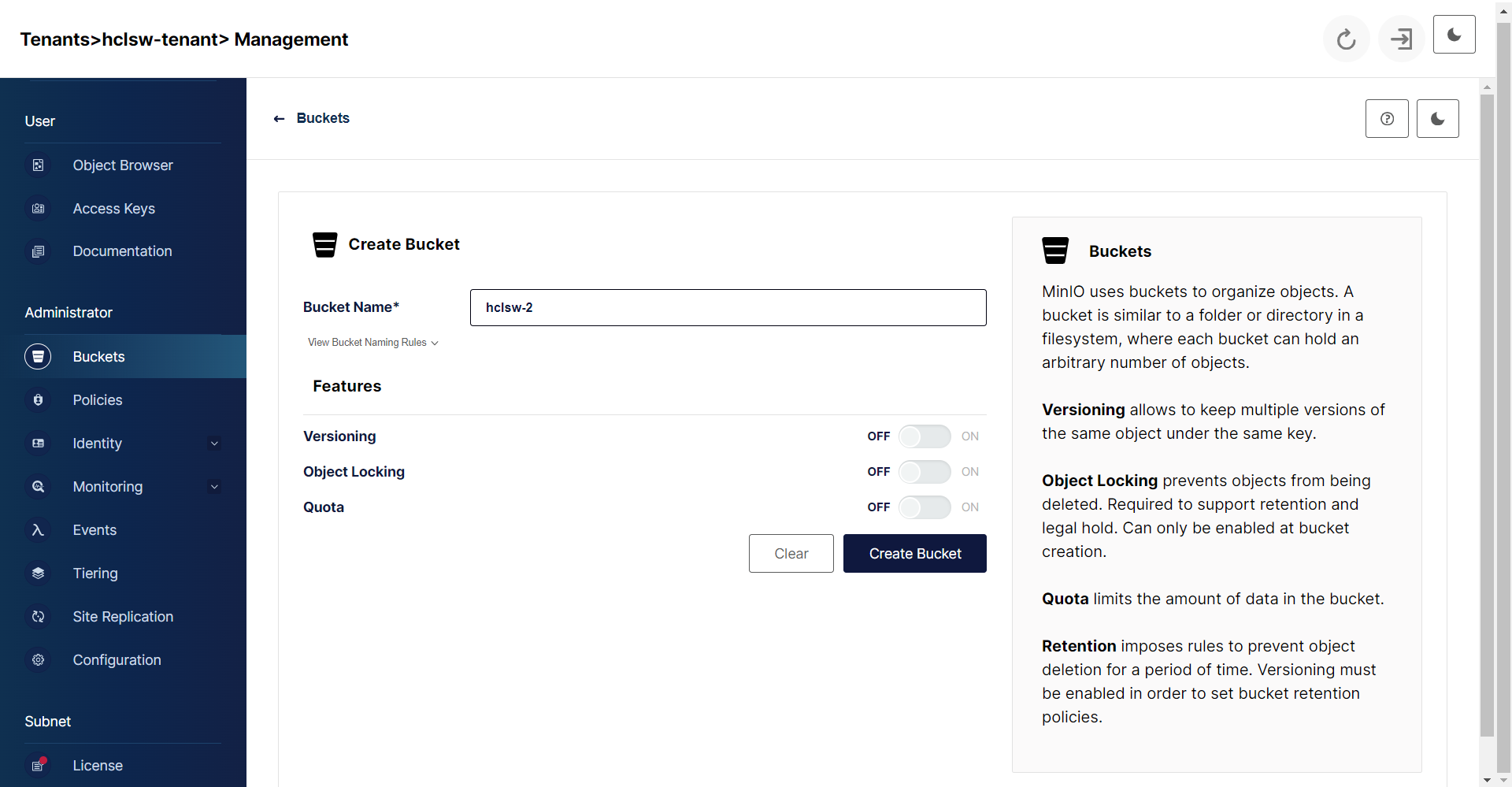

    2. In the console, Under Administrator section, click Buckets and enter bucket details. Click Create Bucket to create the new bucket.

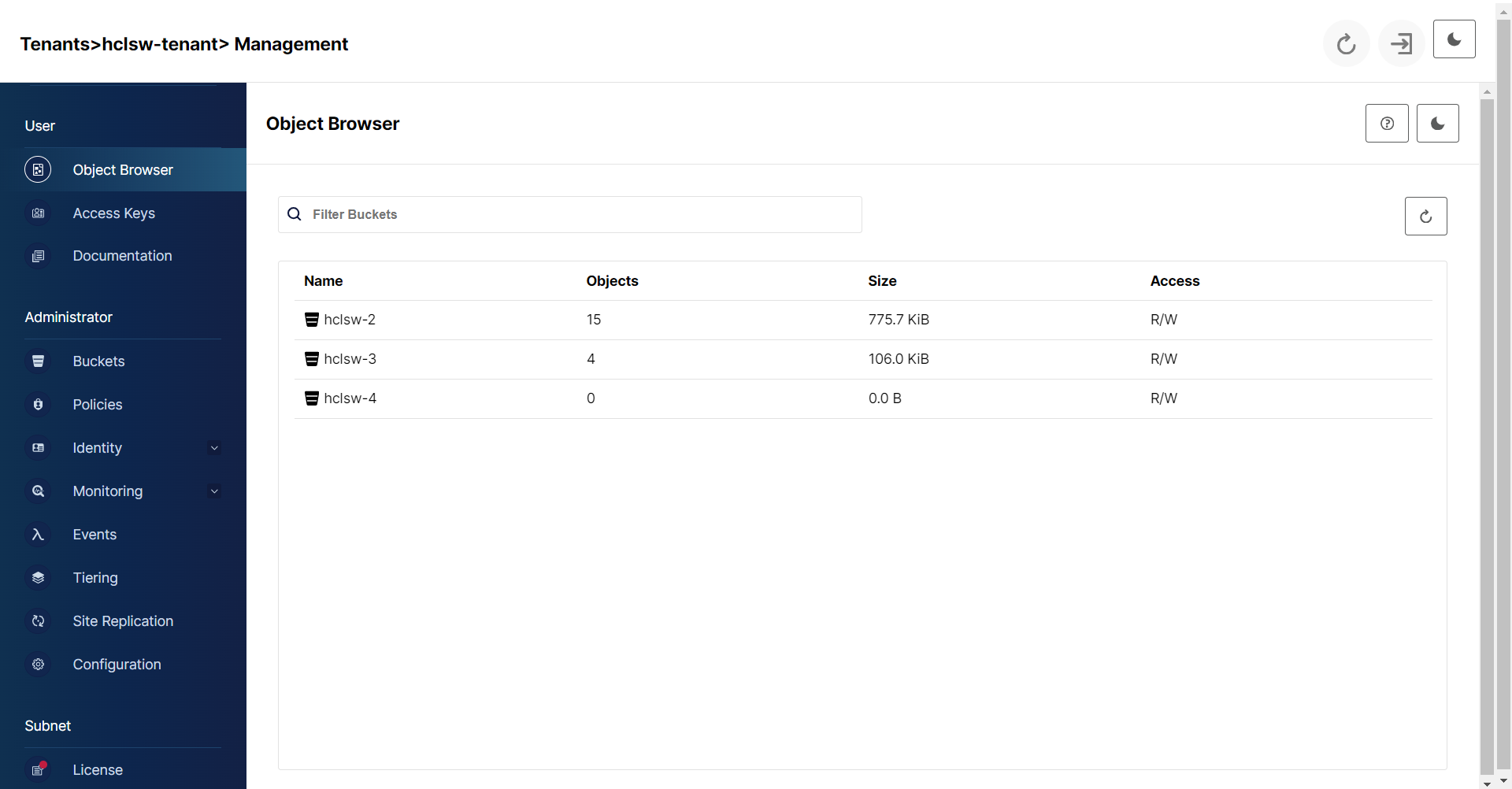

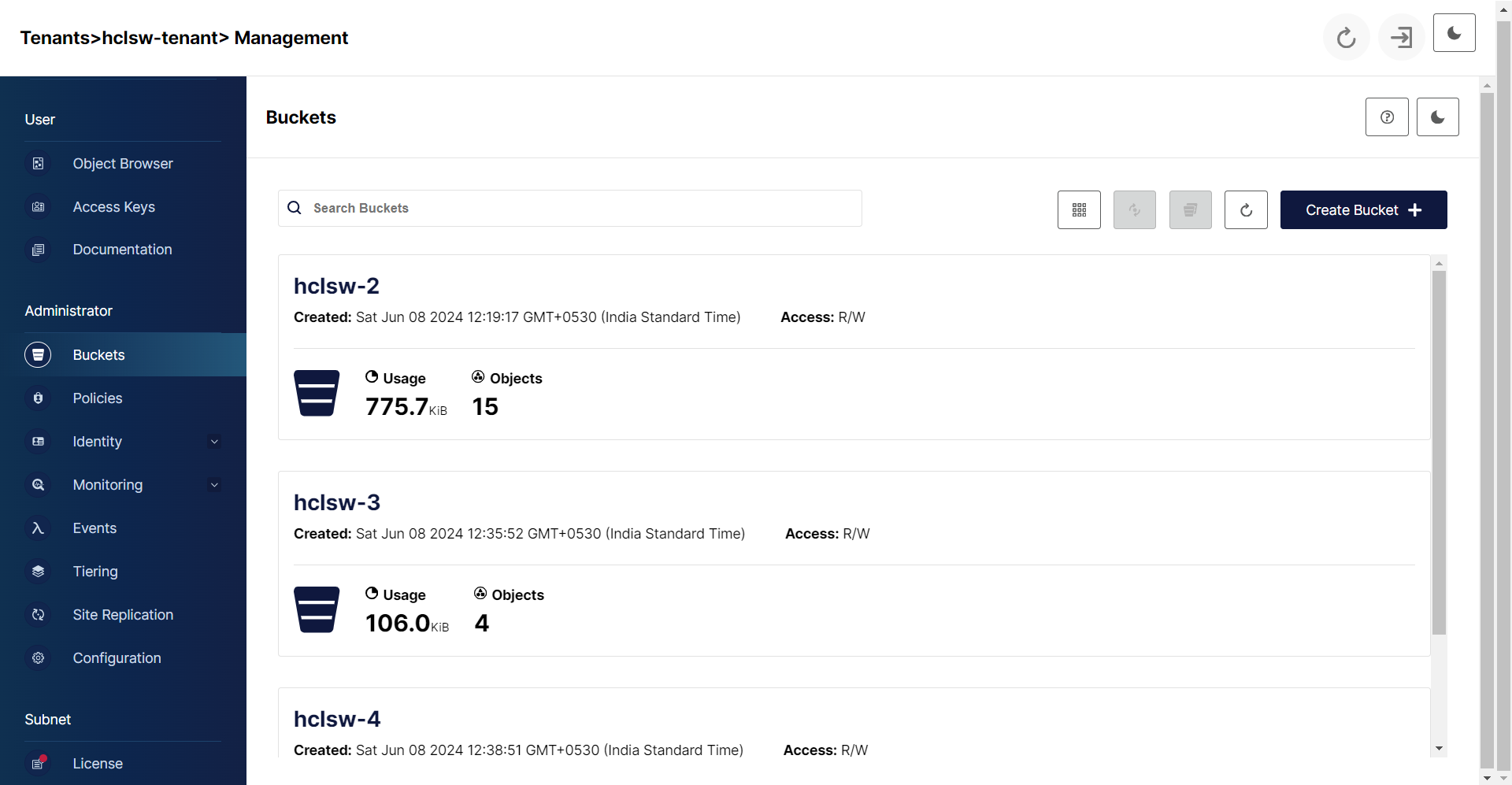

    3. You search for the existing buckets in the search bucket option as shown below.
