Deploying CDP RTS

Prerequisites:

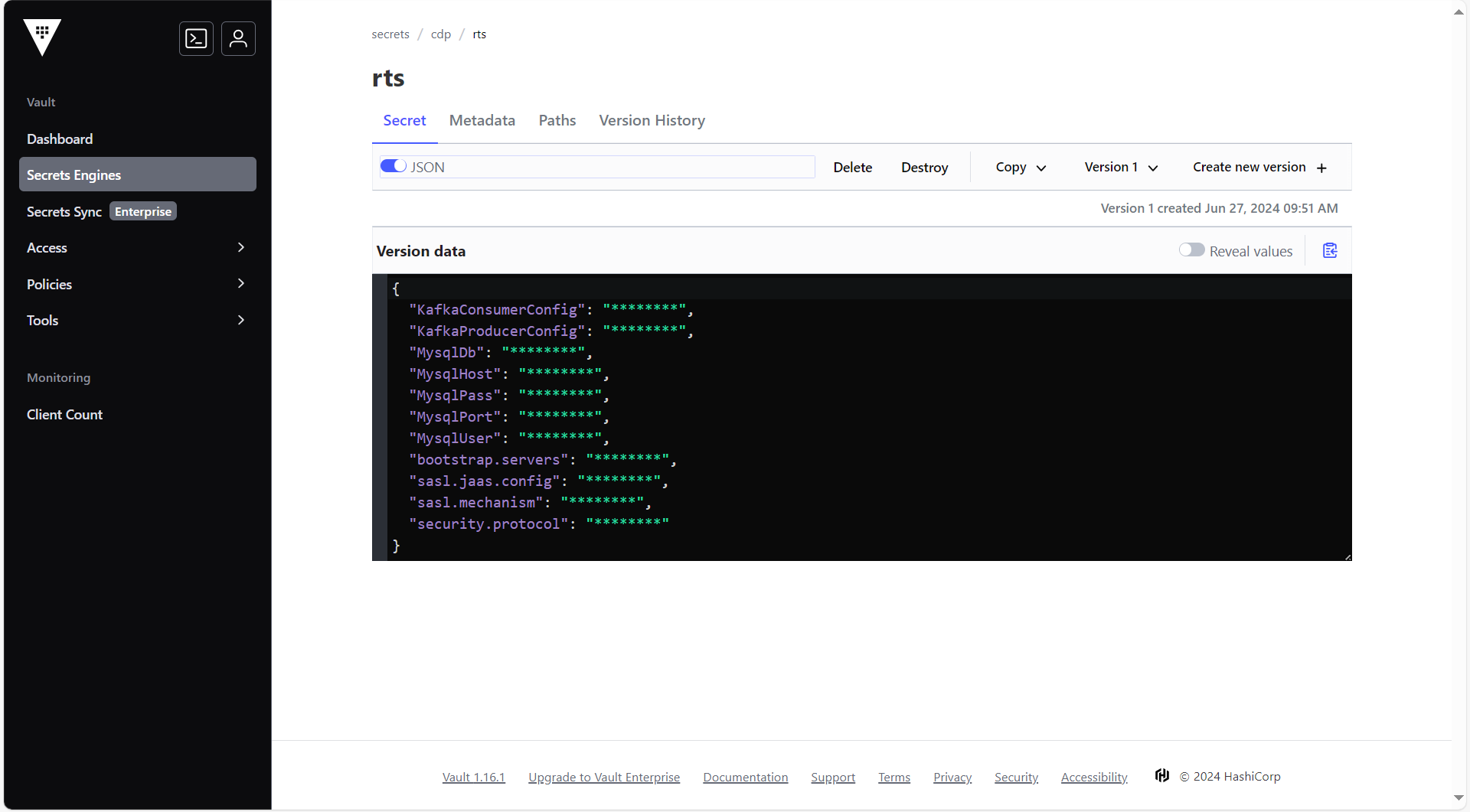

Make sure to create a rts secret with required data in the HashiCorp Vault before deploying the CDP RTS.

To create a rts secret in the HashiCorp Vault, follow the steps below:

1. Create a rts secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "KafkaConsumerConfig": "<KafkaConsumerConfig>",
     "KafkaProducerConfig": "<KafkaProducerConfig>",
     "MysqlDb": "<MysqlDb>",
     "MysqlHost": "<MysqlHost>",
     "MysqlPass": "<MysqlPass>",
     "MysqlPort": "<MysqlPort>",
     "MysqlUser": "<MysqlUser>",
     "bootstrap.servers": "<bootstrap.servers>",
     "sasl.mechanism": "<sasl.mechanism>",
     "security.protocol": "<security.protocol>"
   }

Deploying CDP RTS

To deploy the CDP RTS, follow the steps below:

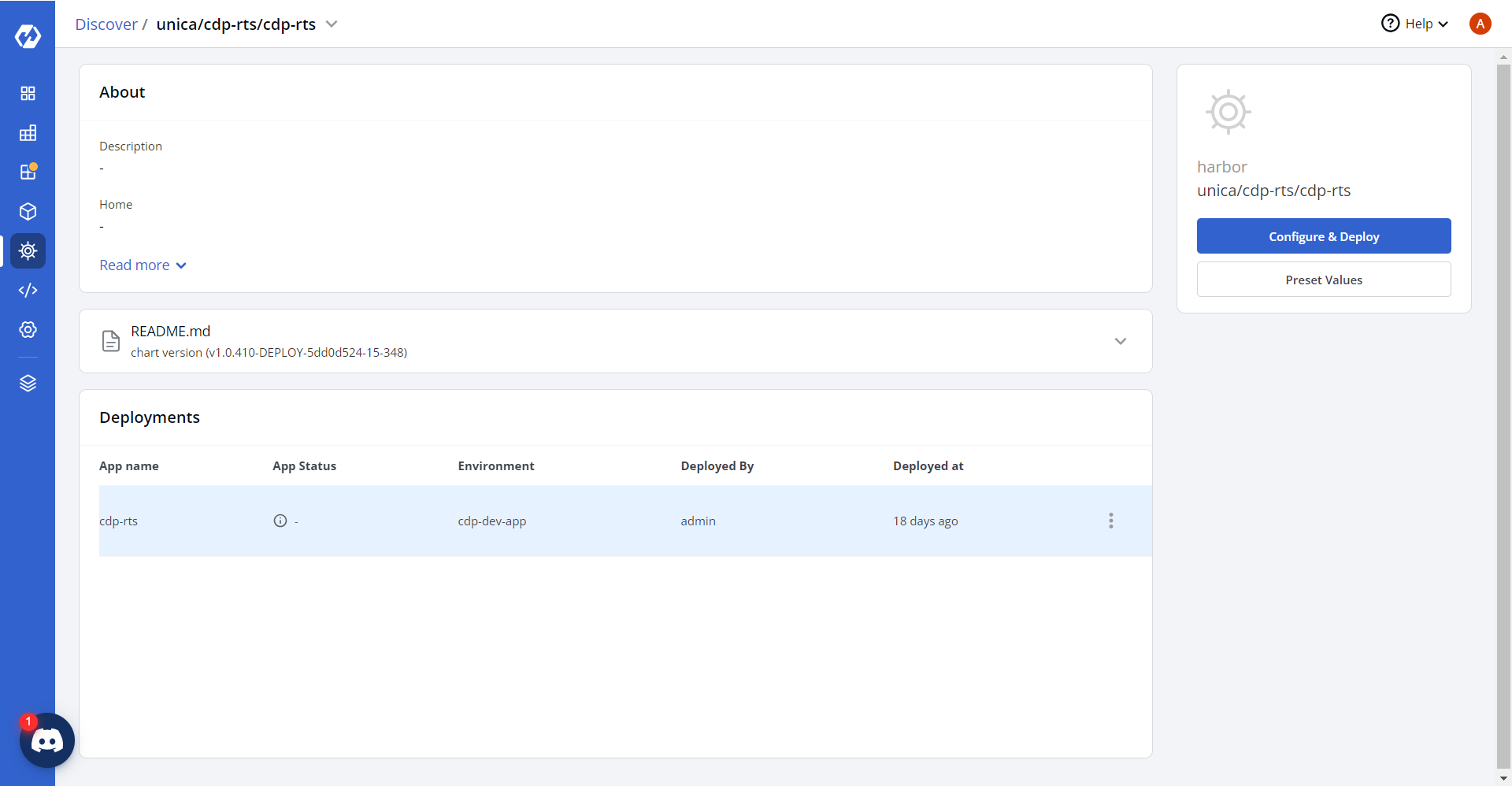

1. Navigate to the Devtron Chart Store, and select the cdp-rts chart to deploy.



2. Now, configure and deploy the CDP RTS charts.

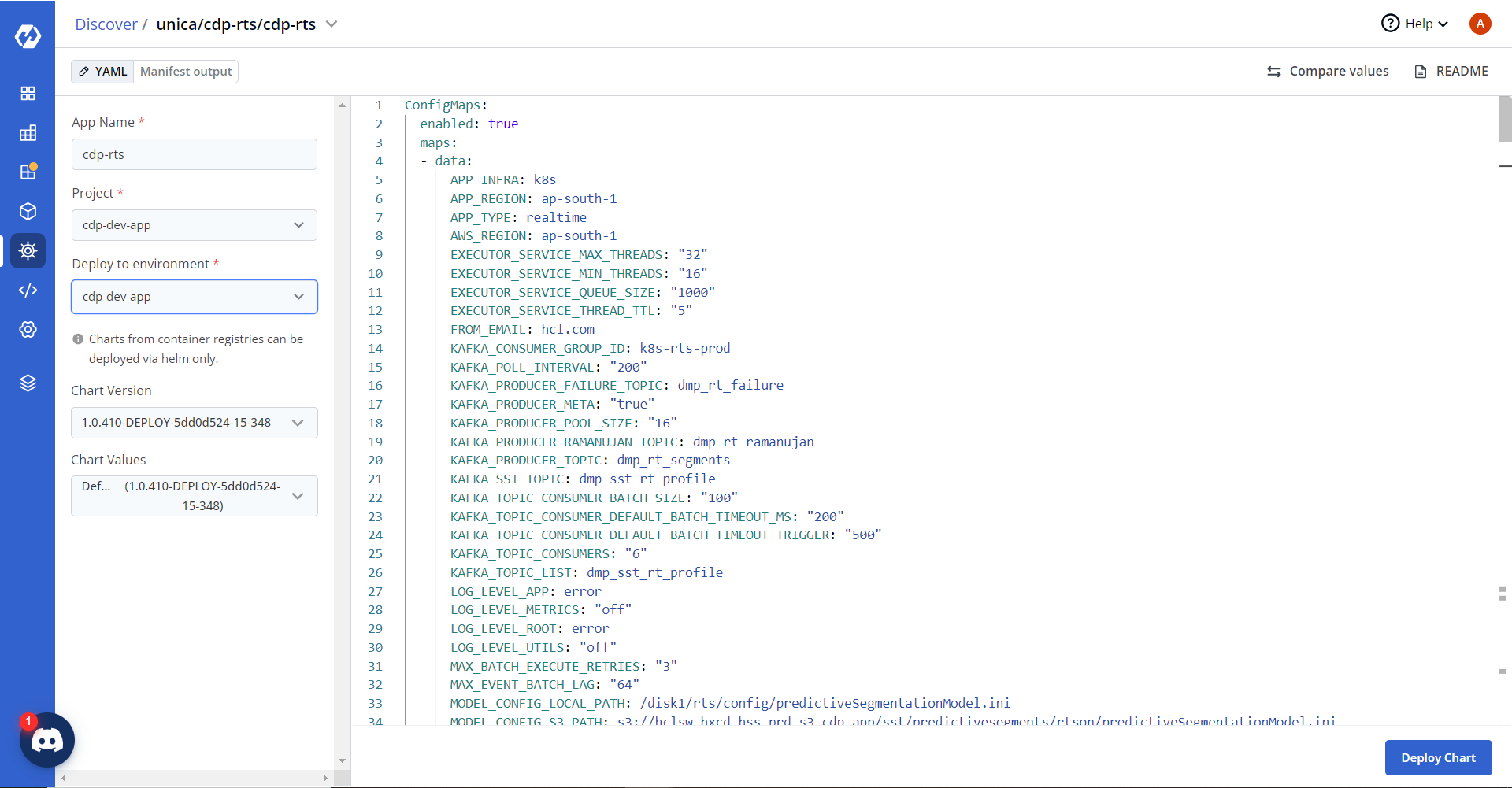

3. In the YAML section, update the ConfigMap using below details, and deploy the charts.

   FROM_EMAIL: "<FROM_EMAIL>"
   KAFKA_CONSUMER_GROUP_ID: "<KAFKA_CONSUMER_GROUP_ID>"
   KAFKA_PRODUCER_FAILURE_TOPIC: "<KAFKA_PRODUCER_FAILURE_TOPIC>"
   KAFKA_PRODUCER_RAMANUJAN_TOPIC: "<KAFKA_PRODUCER_RAMANUJAN_TOPIC>"
   KAFKA_PRODUCER_TOPIC: "<KAFKA_PRODUCER_TOPIC>"
   KAFKA_SST_TOPIC: "<KAFKA_SST_TOPIC>"
   KAFKA_TOPIC_LIST: "<KAFKA_TOPIC_LIST>"

   MODEL_CONFIG_LOCAL_PATH: "<MODEL_CONFIG_LOCAL_PATH>"
   MODEL_CONFIG_S3_PATH: "<MODEL_CONFIG_S3_PATH>"
   MODEL_CUTOFFS_LOCAL_PATH: "<MODEL_CUTOFFS_LOCAL_PATH>"
   MODEL_CUTOFFS_S3_PATH: "<MODEL_CUTOFFS_S3_PATH>"

   PMML_MODEL_CONFIG_LOCAL_PATH: "<PMML_MODEL_CONFIG_LOCAL_PATH>"
   PMML_MODEL_CONFIG_S3_PATH: "<PMML_MODEL_CONFIG_S3_PATH>"
   PMML_MODEL_DIRECTORY_LOCAL_PATH: "<PMML_MODEL_DIRECTORY_LOCAL_PATH>"
   PMML_MODEL_DIRECTORY_S3_PATH: "<PMML_MODEL_DIRECTORY_S3_PATH>"

   TO_EMAIL: "<TO_EMAIL>"

   TSDB_HOST: "<TSDB_HOST>"
   TSDB_PORT: "<TSDB_PORT>"

   AWS_REGION: "<AWS_REGION>"
   SNS_ALERT_ENDPOINT: "<SNS_ALERT_ENDPOINT>"
   awsRegion: "<AWS_REGION>"
   emailType: "<EMAIL_TYPE>"
   fromEmail: "<FROM_EMAIL>"
   smtpHost: "<SMTP_HOST>"
   smtpPort: "<SMTP_PORT>"
   toEmail: "<TO_EMAIL>"

   KMS_HASHICORPVAULT_ENDPOINT: "<KMS_HASHICORPVAULT_ENDPOINT>"
   KMS_HASHICORPVAULT_ENDPOINT_TOKEN: "<KMS_HASHICORPVAULT_ENDPOINT_TOKEN>"
   KMS_IMPLEMENTATION: "<KMS_IMPLEMENTATION>"

   ACCESS_KEY: "<ACCESS_KEY>"
   ACCESS_SECRET: "<ACCESS_SECRET>"
   MINIO_ENDPOINT_URL: "<MINIO_ENDPOINT_URL>"
   BUCKET_TYPE: "<BUCKET_TYPE>"

   KAFKA_DETECT_TOPIC: "<KAFKA_DETECT_TOPIC>"

   LOOKUP_KEY_IDENTIFIER: "<LOOKUP_KEY_IDENTIFIER_MAPPING>"

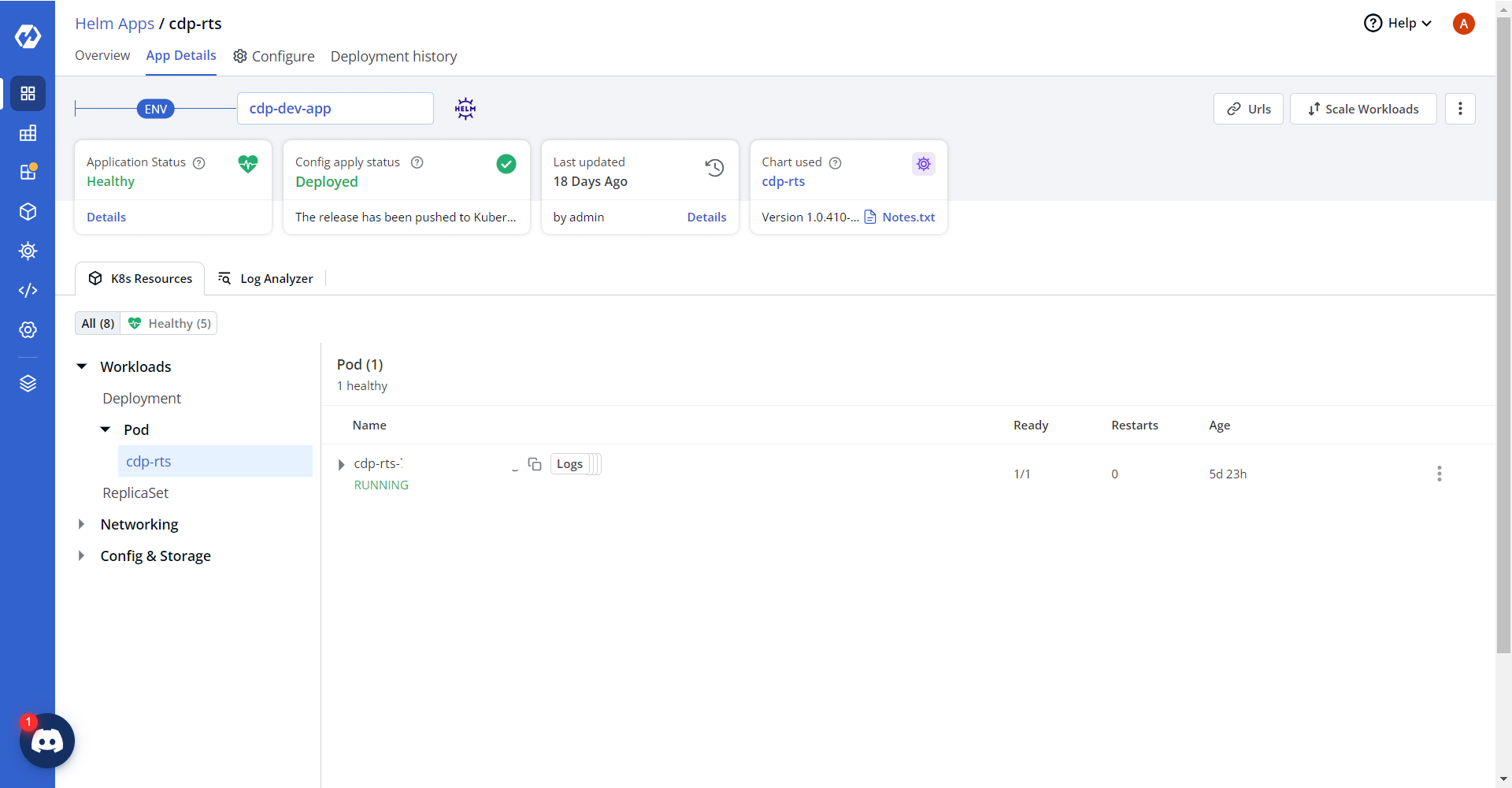

4. On successful deployment, validate the deployment as shown below.
