Deploying CDP Manager

Prerequisites:

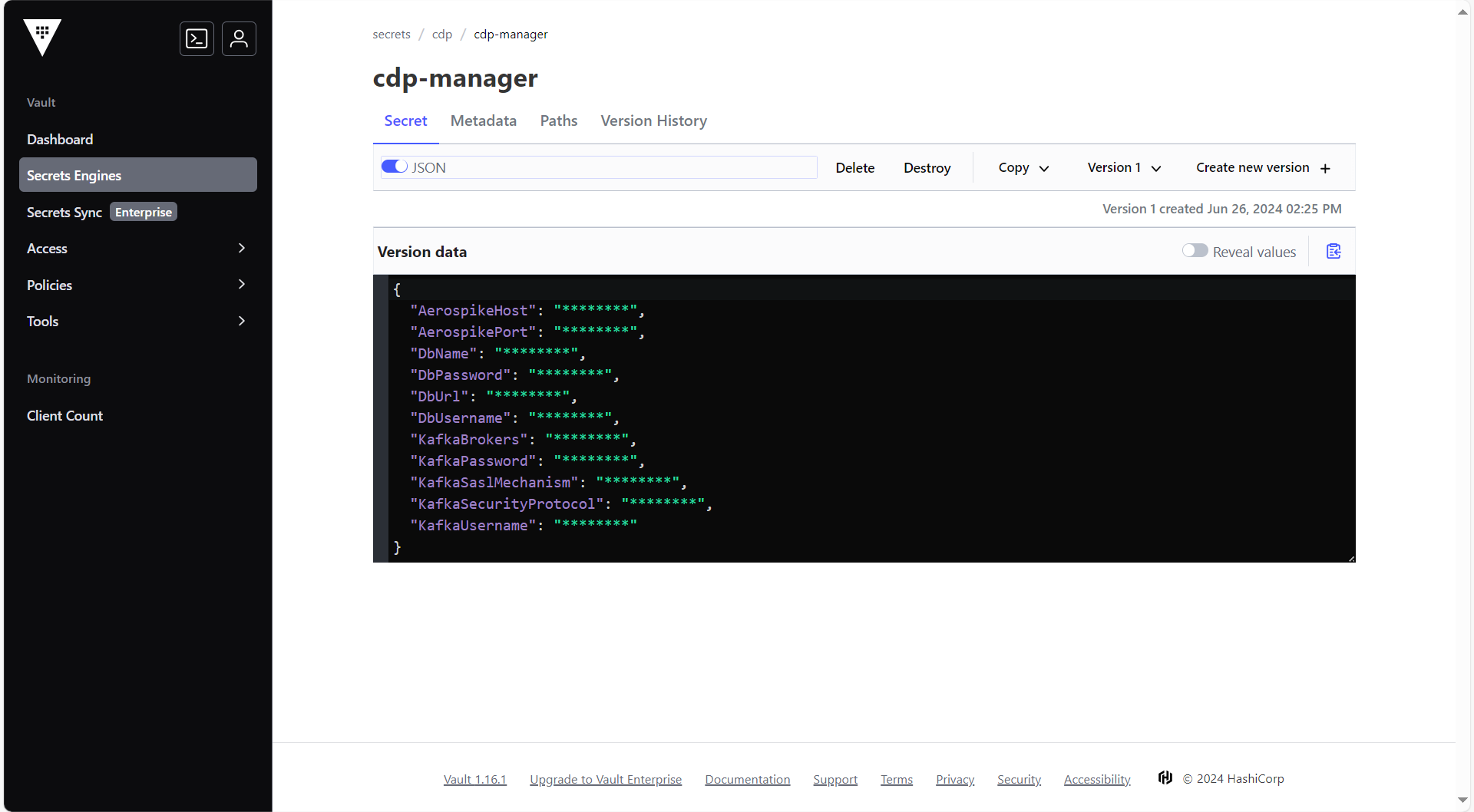

Make sure to create the cdp-manager secret with required data in HashiCorp vault before deploying the CDP Manager.

To create the cdp-manager secret in HashiCorp Vault, follow the steps below:

1. Create a cdp-manager secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "AerospikeHost": "<AerospikeHost>",
     "AerospikePort": "<AerospikePort>",
     "DbName": "<DbName>",
     "DbPassword": "<DbPassword>",
     "DbUrl": "<ip:port>",
     "DbUsername": "<DbUsername>",
     "KafkaBrokers": "<KafkaBrokers>",
     "KafkaPassword": "<KafkaPassword>",
     "KafkaSaslMechanism": "<KafkaSaslMechanism>",
     "KafkaSecurityProtocol": "<KafkaSecurityProtocol>",
     "KafkaUsername": "<KafkaUsername>"
   }

Deploying CDP Manager

To deploy the CDP Manager, follow the steps below:

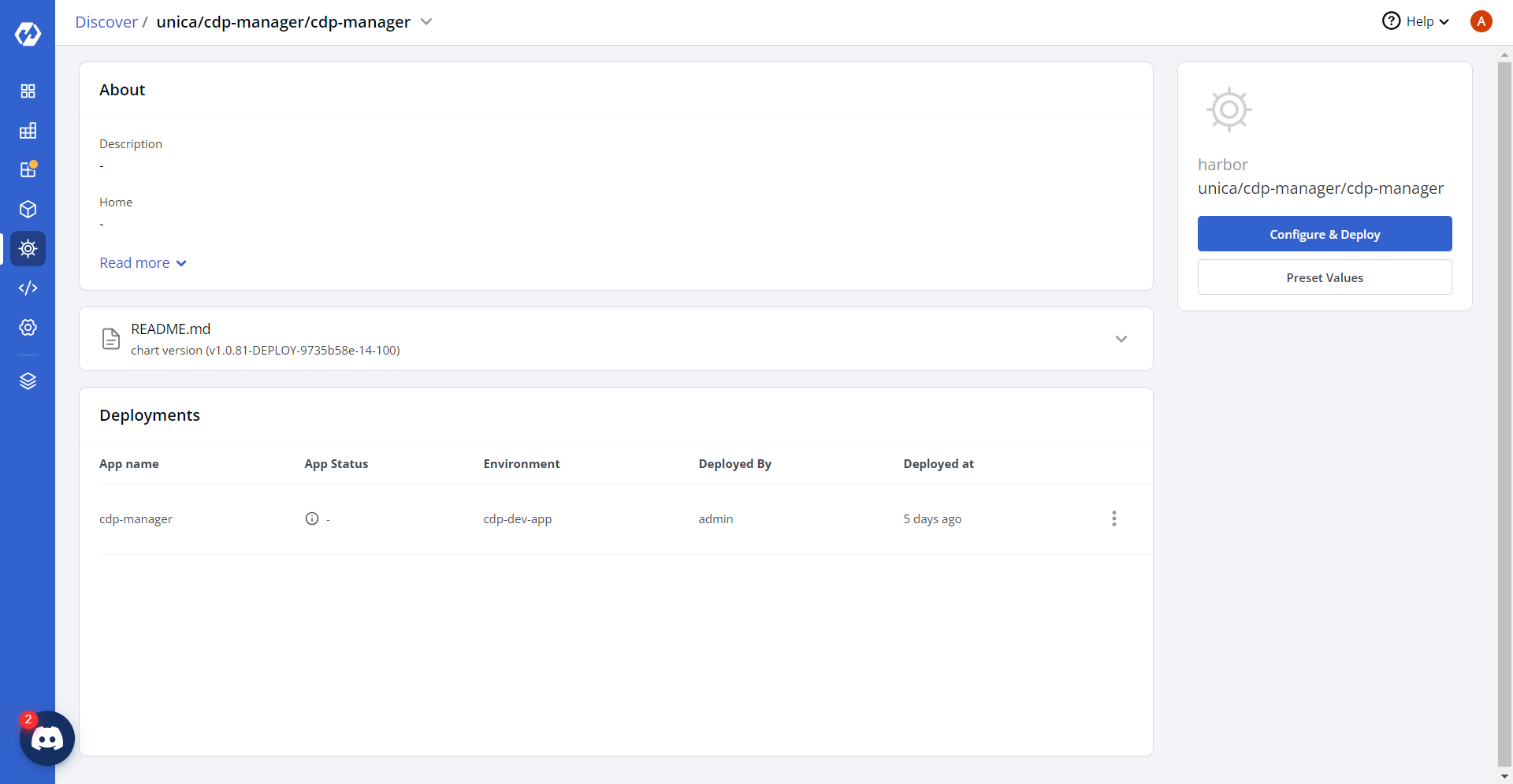

1. Navigate to the Devtron Chart Store, and select the cdp-manager chart to deploy.



2. Now, configure and deploy the CDP Manager charts.

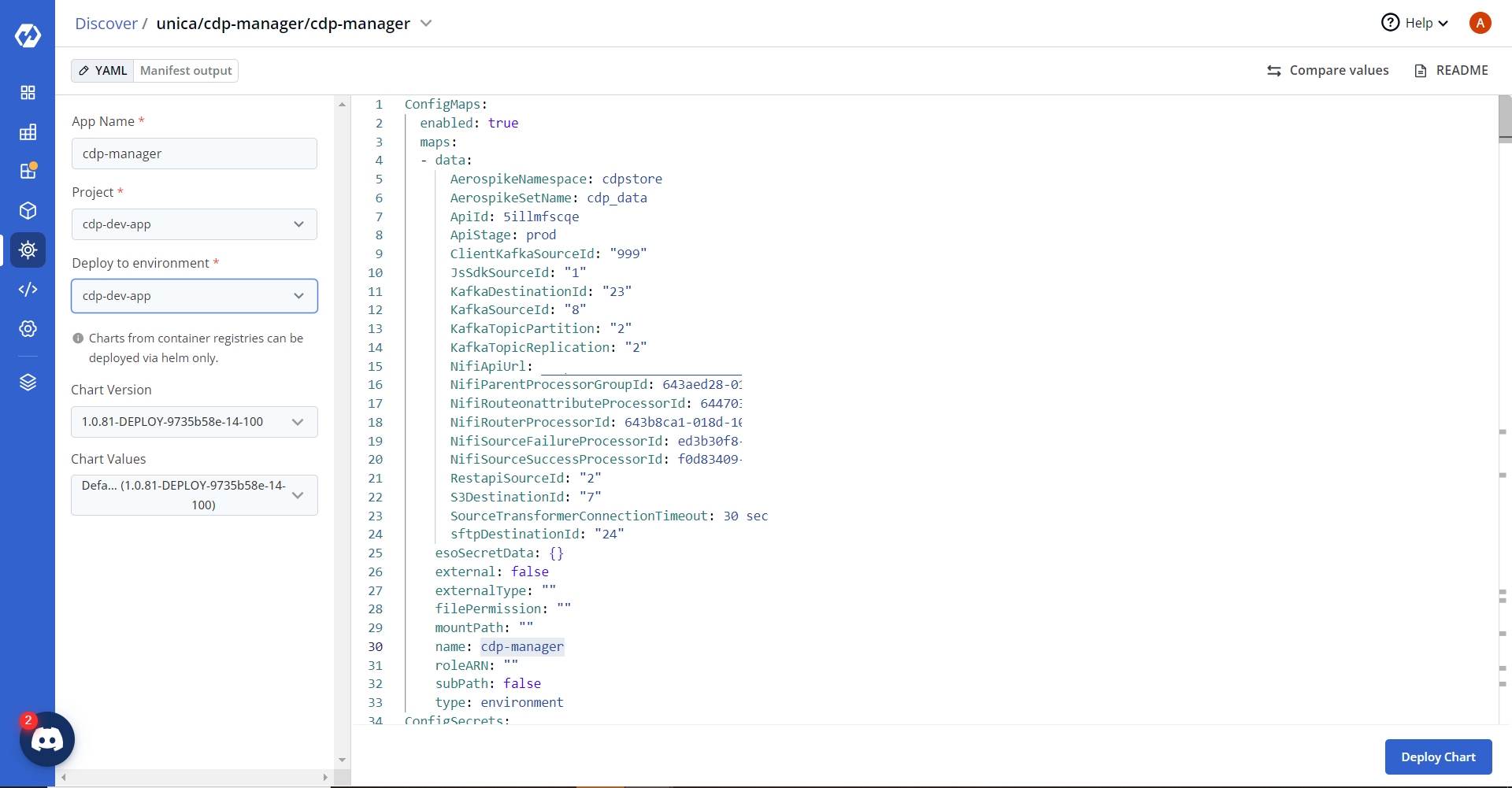

3. In the YAML section, update the ConfigMap using below details and deploy the charts.

   NifiApiUrl: ""
   NifiProtocol: https
   NifiParentProcessorGroupId: <NifiParentProcessorGroupId>
   NifiRouteonattributeProcessorId: <NifiRouteonattributeProcessorId>
   NifiRouterProcessorId: <NifiRouterProcessorId>
   NifiSourceSuccessProcessorId: <NifiSourceFailureProcessorId>
   NifiSourceFailureProcessorId: <NifiSourceSuccessProcessorId>
   KafkaDestinationId: "23"
   sftpDestinationId: "24"
   hclunifiedprofileDestinationId: "3"
   S3DestinationId: "7"
   KafkaSourceId: "8"
   JsSdkSourceId: "1"
   ClientKafkaSourceId: "999"
   RestapiSourceId: "2"
   SourceTransformerConnectionTimeout: 30 sec
   KafkaTopicPartition: "2"
   KafkaTopicReplication: "2"
   AerospikeNamespace: cdpstore
   AerospikeSetName: cdp_data
   ApiId: <APIID>
   ApiStage: <Environment>
   ApiEnabled: "false"
   LOG_LEVEL_ROOT: info
   LOG_LEVEL_APP: info

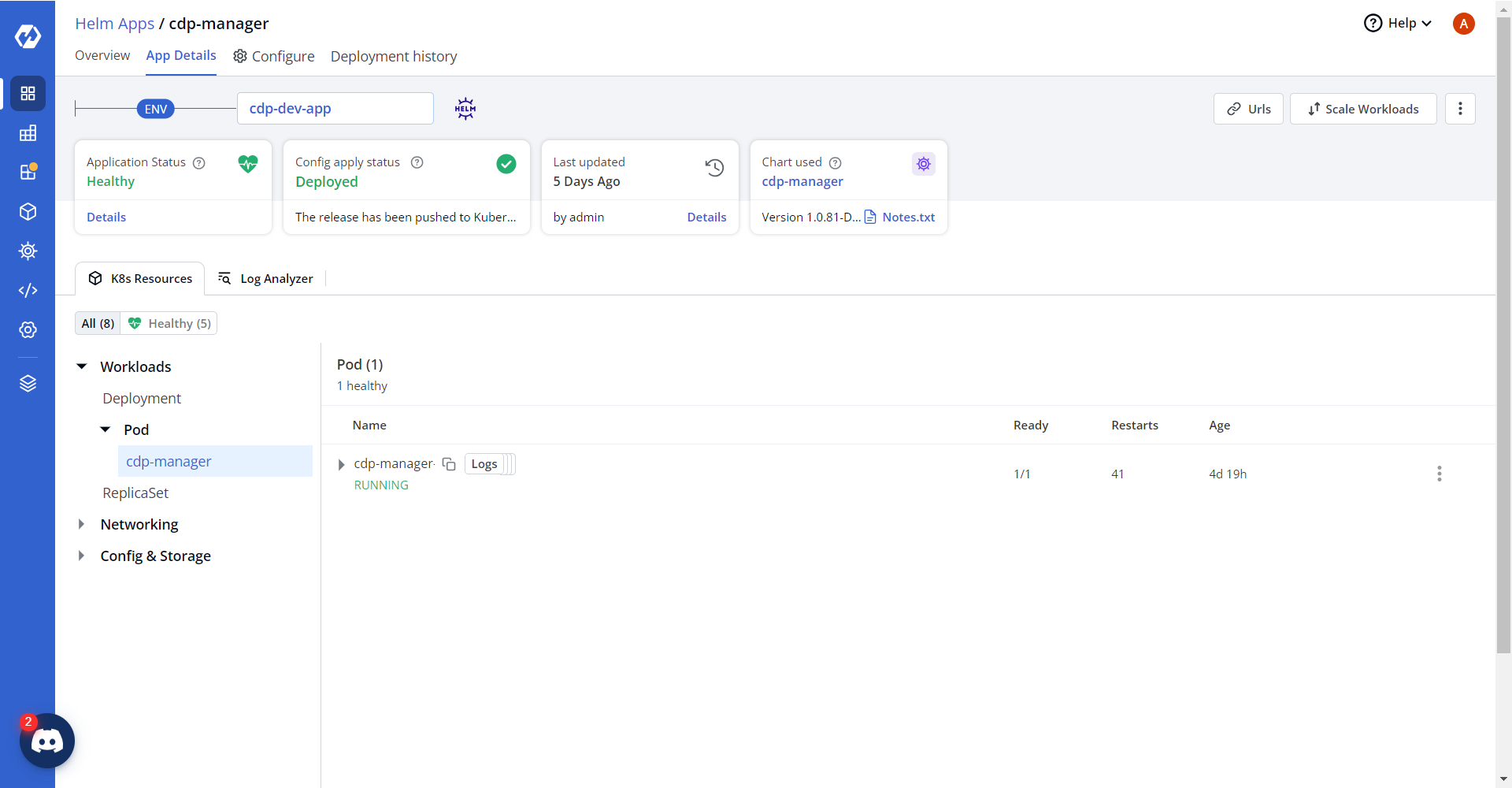

4. On successful deployment, validate the deployment as shown below.
