Deploying CDP Core API

This section provides detailed instructions on how to deploy HCL CDP Core API using the Devtron in the OpenShift.

Prerequisites:

Make sure to create a core-api secret with required data in the HashiCorp vault before deploying the CDP core api.

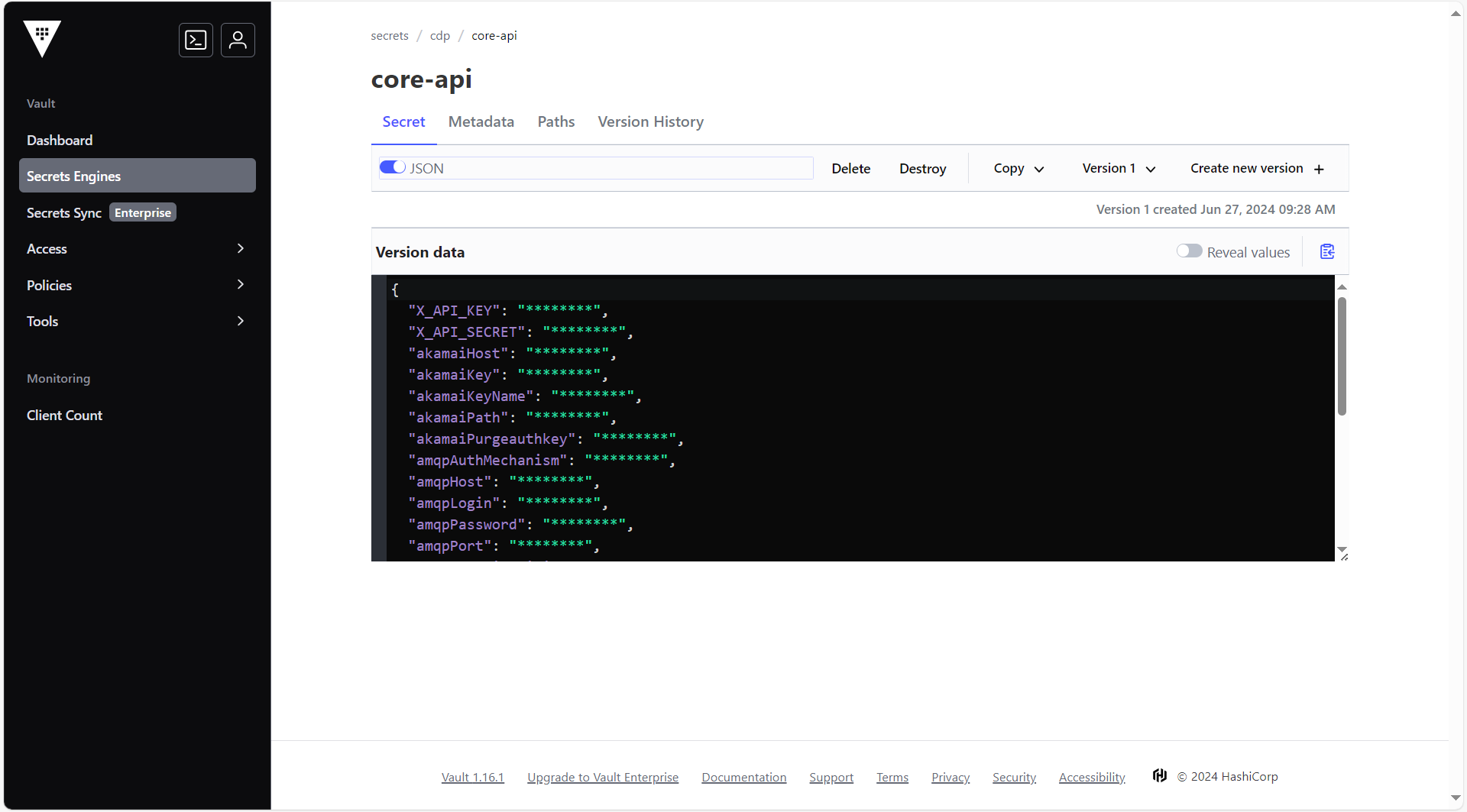

To create the core api secret in the HashiCorp Vault, follow the steps below:

  1. Create a core api secret sample key and value in the core api secret, and update ConfigMaps data with actual values.
    {
  "X_API_KEY": "\"\"",
  "X_API_SECRET": "\"\"",
  "akamaiHost": "\"\"",
  "akamaiKey": "\"\"",
  "akamaiKeyName": "\"\"",
  "akamaiPath": "\"\"",
  "akamaiPurgeauthkey": "\"\"",
  "amqpAuthMechanism": "\"\"",
  "amqpHost": "\"\"",
  "amqpLogin": "\"\"",
  "amqpPassword": "\"\"",
  "amqpPort": "\"\"",
  "dbConnectionLimit": "\"80\"",
  "dbDatabase": "\"<dbName>\"",
  "dbHost": "\"<dbHost>\"",
  "dbPassword": "\"<dbPassword>\"",
  "dbPort": "\"<dbPort>\"",
  "dbUser": "\"<dbUser>\"",
  "hclcdp_mailId": "\"\"",
  "hclcdp_mailPassword": "\"\"",
  "mailId": "\"\"",
  "mailPassword": "\"\"",
  "stagingS3AccessKey": "\"\"",
  "stagingSecretAccessKey": "\"\"",
  "userIdentifierAuthKey": "\"<userIdentifierAuthKey>\""
}

Deploying CDP CORE API

To deploy the CDP core API, follow the steps below:

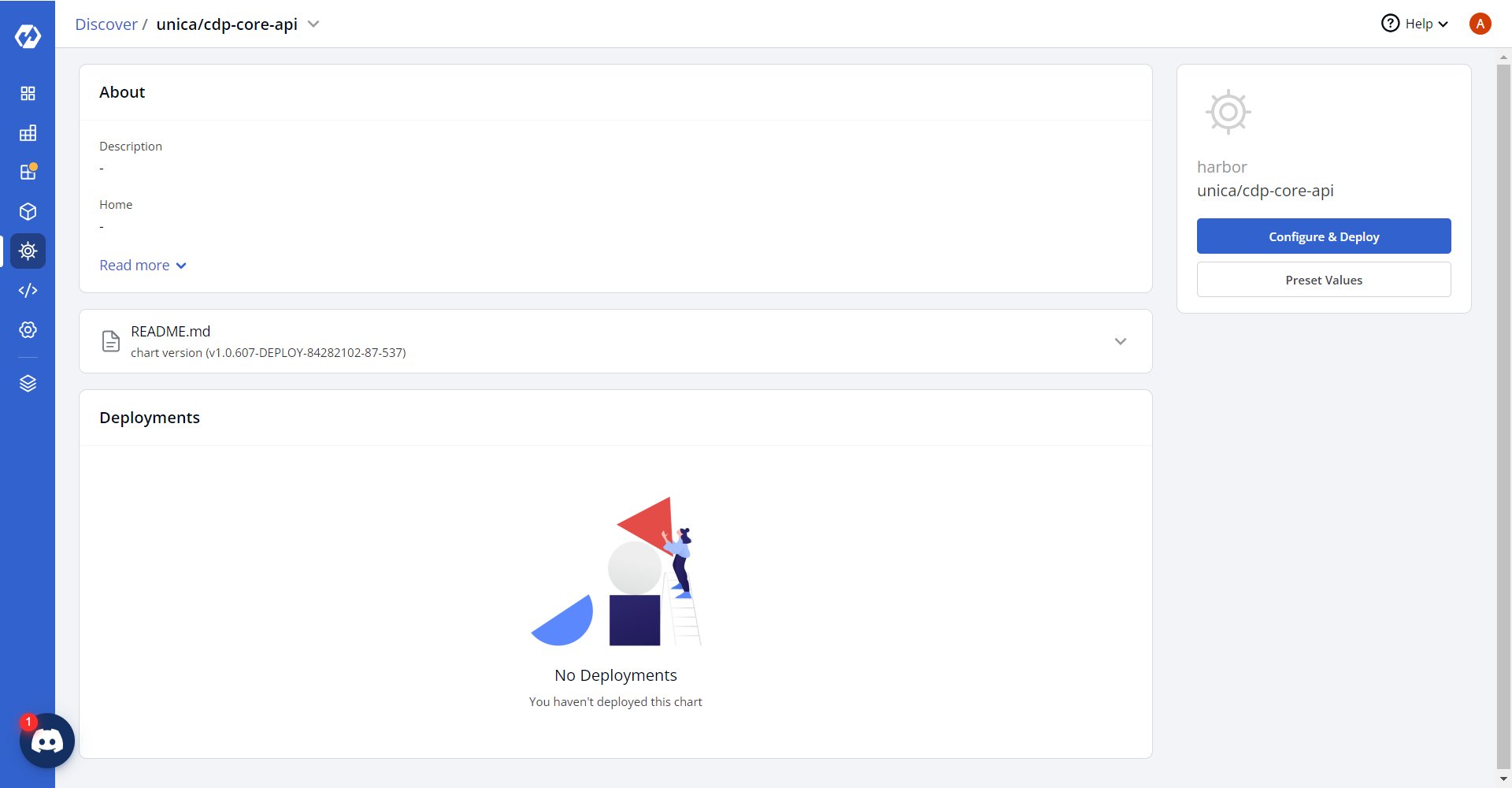

  1. Navigate to the Devtron Chart Store, and select the cdp-core-api chart to deploy.

  2. Now, configure and deploy the cdp core api charts.

  3. In the YAML section, update the ConfigMap using below details and deploy the charts.
    druidURL: "<DRUID_URL>"
tsdbURL: "<TSDB_URL>"
uploadsBucket: <UPLOADS_BUCKET_NAME>
uploadsFolder: <UPLOADS_FOLDER_NAME>
segmentUserListuploadsBucket: <SEGMENT_UPLOADS_BUCKET>
segmentUserListuploadsFolder: <SEGMENT_UPLOADS_FOLDER>
TPPActivationUrl: "<TPP_ACTIVATION_URL>"
hasSegRefreshQueueEnabled: "<SEG_REFRESH_QUEUE_CAMPAIGN_LIST>"
whiteListCrudAlertMails: "<CRUD_ALERT_EMAIL_LIST>"
enablePrometheus: "<BOOLEAN>"
suppressionList: "<SUPPRESSION_LIST_CONFIG>"
productCatalog: "<PRODUCT_CATALOG_CONFIG>"
rts_endpoint: "<RTS_ENDPOINT>"
disableActivation: |
<DISABLED_ACTIVATION_CAMPAIGN_LIST>
s3Bucket: <PRIMARY_S3_BUCKET>
DSN: "<DSN>"
cdpDashboardService: "<CDP_DASHBOARD_SERVICE_URL>"
rmq: <RABBITMQ_QUEUE_NAME>
javascript_sdk_endpoint: "<JS_SDK_ENDPOINT>"
sendRabbitmqMessageDisabled: "<BOOLEAN>"
API: "<API_ENDPOINT>"
cdnImagePrefixWithoutProtocol: "<CDN_IMAGE_PREFIX_NOPROTO>"
cdnImageWithProtocol: "<CDN_IMAGE_PREFIX_PROTO>"
cdnFallbackImageWithoutProtocol: "<CDN_FALLBACK_IMAGE_PREFIX>"
urlShortnerConfigDomain: "<URL_SHORTENER_DOMAIN>"
sendEmailDomain: "<EMAIL_SENDER_DOMAIN>"
uibase: "<UI_BASE_URL>"
reportAutomationApiKeyUrl: "<REPORT_AUTOMATION_APIKEY_URL>"
accessTokenLifeTime: "<ACCESS_TOKEN_LIFETIME_SECONDS>"
segRefreshQueue: "<SEG_REFRESH_QUEUE_NAME>"
enableCrudAlertForCampaigns: |
<CRUD_ALERT_CAMPAIGN_LIST>
isKmsEncryptDisabled: "<BOOLEAN>"
disablePageres: "<BOOLEAN>"
tableauProxy: "<TABLEAU_PROXY_URL>"
channelQueue: <CHANNEL_QUEUE_NAME>
engagementScheduleQueue: "<ENGAGEMENT_SCHEDULE_QUEUE>"
journeyDisableQueue: "<JOURNEY_DISABLE_QUEUE>"
webPushQueue: <WEB_PUSH_QUEUE_NAME>
adhocBucket: "<ADHOC_BUCKET>"
adhocQueue: "<ADHOC_QUEUE>"
adHocFileLoc: "<ADHOC_FILE_LOCATION>"
adHocCancelQueue: "<ADHOC_CANCEL_QUEUE>"
sslEnabled: "<BOOLEAN>"
offlineProfileUploadBucket: "<OFFLINE_PROFILE_BUCKET>"
offlineProfileUploadFolder: "<OFFLINE_PROFILE_FOLDER>"
disableNotification: "<BOOLEAN>"
tableauURL: "<TABLEAU_URL>"
kms_encrypt: "<KMS_ENCRYPT_FUNCTION>"
kms_decrypt: "<KMS_DECRYPT_FUNCTION>"
kms_region: <KMS_REGION>
allowedTags: "<HTML_ALLOWED_TAG_LIST>"
allowedAttributes: "<HTML_ALLOWED_ATTRIBUTE_MAP>"
tawuniyaCoreApi: "<EXTERNAL_CORE_API_ENDPOINT>"
psql_endpoint: "<POSTGRES_ENDPOINT>"
psql_host: "<POSTGRES_HOST>"
fileUploadTimeout: "<FILE_UPLOAD_TIMEOUT_MS>"
CampaignRegionList: "<CAMPAIGN_REGION_MAPPING>"
muUserIdentifierDomain: "<MU_USER_IDENTIFIER_DOMAIN>"
usUserIdentifierDomain: "<US_USER_IDENTIFIER_DOMAIN>"
sftpFilePath: "<SFTP_FILE_PATH>"
sstApiVersion: <SST_API_VERSION>
devMode: "<BOOLEAN>"
DEFAULT_SRC: "<CSP_DEFAULT_SRC_LIST>"
FONT_SRC: "<CSP_FONT_SRC>"
IMG_SRC: "<CSP_IMG_SRC>"
SCRIPT_SRC: "<CSP_SCRIPT_SRC>"
STYLE_SRC: "<CSP_STYLE_SRC>"

minioAccessKeyId: "<MINIO_ACCESS_KEY_ID>"
minioSecretAccessKey: "<MINIO_SECRET_ACCESS_KEY>"
minioEndpoint: "<MINIO_ENDPOINT>"

FROM_EMAIL_ID: "<FROM_EMAIL_ID>"
ALERT_TO_EMAIL_ID: "<ALERT_TO_EMAIL_ID>"
BUCKET_TYPE: "<BUCKET_TYPE>"

detectConfig: "<DETECT_CONFIG>"

hclcdp_uibase: "<HCLCDP_UI_BASE>"
hclcdp_mailId: "<HCLCDP_MAIL_ID>"
hclcdp_mailPassword: "<HCLCDP_MAIL_PASSWORD>"

awsAccessKeyId: "<AWS_ACCESS_KEY_ID>"

sampleBucket: "<SAMPLE_BUCKET>"
sampleFolder: "<SAMPLE_FOLDER>"

webpushBucket: "<WEBPUSH_BUCKET>"
webpushFolder: "<WEBPUSH_FOLDER>"

engageQueue: "<ENGAGE_QUEUE>"
notificationQueue: "<NOTIFICATION_QUEUE>"

clickTrackerEmail: "<CLICK_TRACKER_EMAIL>"
clientRequestEmailTo: "<CLIENT_REQUEST_EMAIL_TO>"
clientRequestEmailCC: "<CLIENT_REQUEST_EMAIL_CC>"

apibase: "<API_BASE_DOMAIN>"
adserver: "<ADSERVER_URL>"
imageLink: "<IMAGE_LINK>"
imageLinkWithoutProtocol: "<IMAGE_LINK_NO_PROTOCOL>"
cdnImageWithoutProtocol: "<CDN_IMAGE_NO_PROTOCOL>"

retargetStage: "<RETARGET_STAGE>"
retargetSection: "<RETARGET_SECTION>"
retargetLevel: "<RETARGET_LEVEL>"

segmentationSuffix: "<SEGMENTATION_SUFFIX>"
segmentationCountSuffix: "<SEGMENTATION_COUNT_SUFFIX>"

programmaticId: "<PROGRAMMATIC_ID>"
fbRhsId: "<FB_RHS_ID>"
fbNfId: "<FB_NF_ID>"
onsiteRecoId: "<ONSITE_RECO_ID>"

port: "<PORT>"

channelsProgrammatic: "<CHANNEL_PROGRAMMATIC>"
channelsFbnf: "<CHANNEL_FBNF>"
channelsFbrhs: "<CHANNEL_FBRHS>"
channelsOnsitereco: "<CHANNEL_ONSITE_RECO>"
channelsOnsitenot: "<CHANNEL_ONSITE_NOTIF>"
channelsEmail: "<CHANNEL_EMAIL>"
channelsAppPush: "<CHANNEL_APP_PUSH>"
channelsSms: "<CHANNEL_SMS>"
channelsWebpush: "<CHANNEL_WEBPUSH>"
channelsNb: "<CHANNEL_NB>"
channelsBp: "<CHANNEL_BP>"
channelsInApp: "<CHANNEL_INAPP>"
channelsWhatsapp: "<CHANNEL_WHATSAPP>"

verticalIdFlight: "<VERTICAL_ID_FLIGHT>"
verticalIdEcommerce: "<VERTICAL_ID_ECOMMERCE>"

mobidmpBucket: "<MOBIDMP_BUCKET>"
mobidmpFolder: "<MOBIDMP_FOLDER>"

googleApiClientId: "<GOOGLE_API_CLIENT_ID>"
googleApiClientSecret: "<GOOGLE_API_CLIENT_SECRET>"
googleApiRedirectUrl: "<GOOGLE_API_REDIRECT_URL>"

facebookAccessToken: "<FACEBOOK_ACCESS_TOKEN>"
facebookPageId: "<FACEBOOK_PAGE_ID>"
facebookBusinessId: "<FACEBOOK_BUSINESS_ID>"
facebookSystemUserId: "<FACEBOOK_SYSTEM_USER_ID>"
facebookVersion: "<FACEBOOK_VERSION>"

flowThroughChannelsSms: "<FLOW_THROUGH_CHANNEL_SMS>"
flowThroughChannelsEmail: "<FLOW_THROUGH_CHANNEL_EMAIL>"

crudAlertsRegion: "<CRUD_ALERTS_REGION>"
crudAlertsVersion: "<CRUD_ALERTS_VERSION>"
crudAlertsFrom: "<CRUD_ALERTS_FROM>"
crudAlertsTo: "<CRUD_ALERTS_TO>"

sesConfigRegion: "<SES_REGION>"
sesConfigVersion: "<SES_VERSION>"
sesConfigFrom: "<SES_FROM>"
sesConfigTo: "<SES_TO>"

ConfigDMPchannelIdJourneyApi: "<DMP_CHANNEL_ID_JOURNEY_API>"
ConfigDMPchannelIdExternalApi: "<DMP_CHANNEL_ID_EXTERNAL_API>"

CORS: |
  <CORS_RULE_1>
  <CORS_RULE_2>
  <CORS_RULE_3>
  <CORS_RULE_4>
  <CORS_RULE_5>
  <CORS_RULE_6>
  <CORS_RULE_7>
  <CORS_RULE_8>
  <CORS_RULE_9>
  <CORS_RULE_10>

blowFishKey: "<BLOWFISH_KEY>"

ALLOWED_HOSTS: |
  <ALLOWED_HOST_1>
  <ALLOWED_HOST_2>

LINK_USERNAME: "<LINK_USERNAME>"
LINK_PASSWORD: "<LINK_PASSWORD>"
linkBaseUrl: "<LINK_BASE_URL>"
linkBaseUrlClient: "<LINK_BASE_URL_CLIENT>"
linkProjectId: "<LINK_PROJECT_ID>"
LINK_RUNTIME_SERVER: "<LINK_RUNTIME_SERVER>"
LINK_SERVER_ID: "<LINK_SERVER_ID>"
LINK_DESIGN_SERVER: "<LINK_DESIGN_SERVER>"
LINK_CLIENT_URL: "<LINK_CLIENT_URL>"
LINK_PROJECT_ID: "<LINK_PROJECT_ID>"
LINK_PROJECT_NAME: "<LINK_PROJECT_NAME>"
LINK_SERVER_NAME: "<LINK_SERVER_NAME>"

CLICKHOUSE_URL: "<CLICKHOUSE_URL>"
isClickhouseEnabled: "<BOOLEAN>"

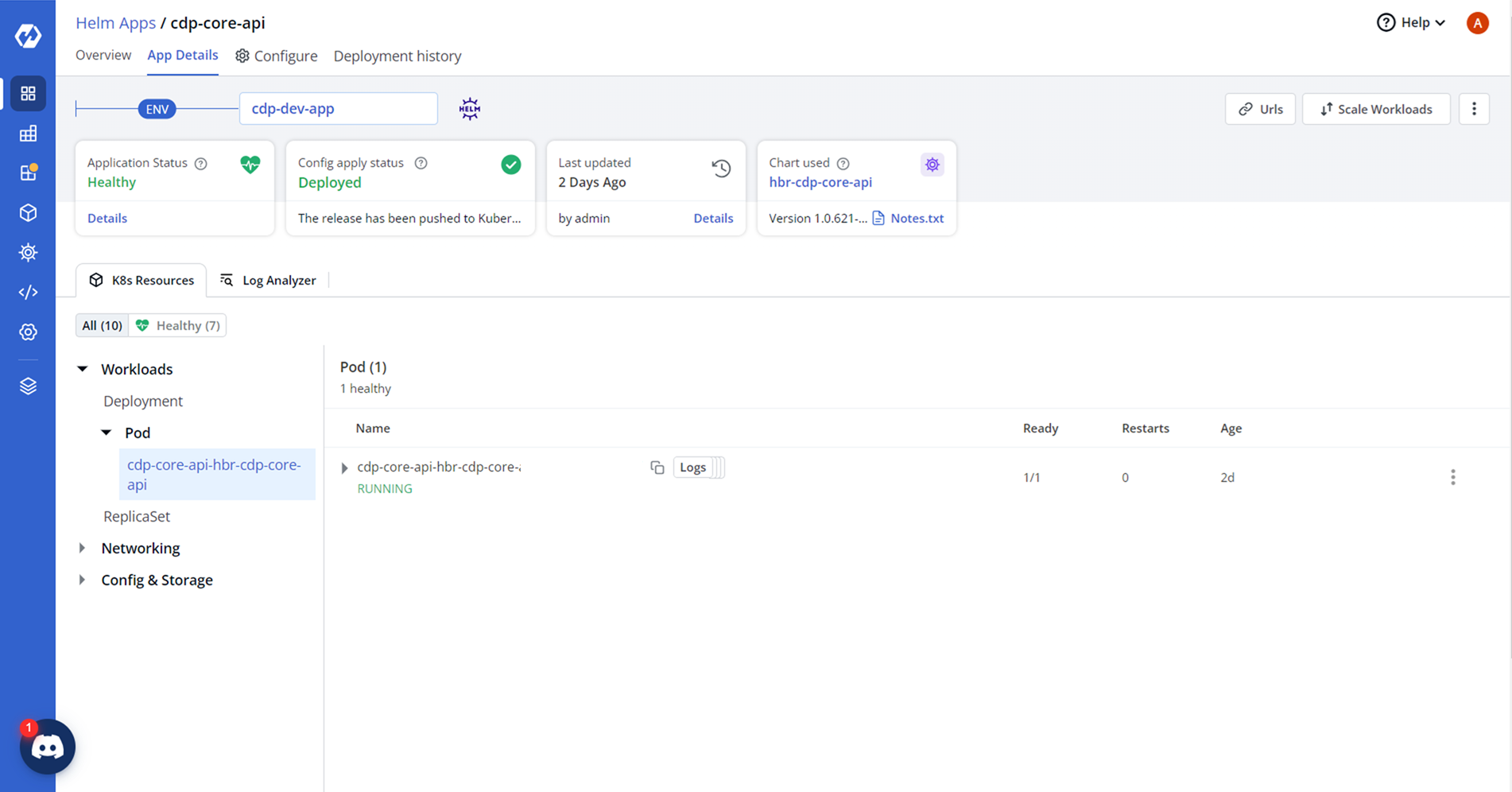

  4. On successful deployment, validate the deployment as shown below.
