Deploying CDP DI API

Prerequisites:

Make sure to create the di-api secret with required data in the HashiCorp vault before deploying the CDP DI API.

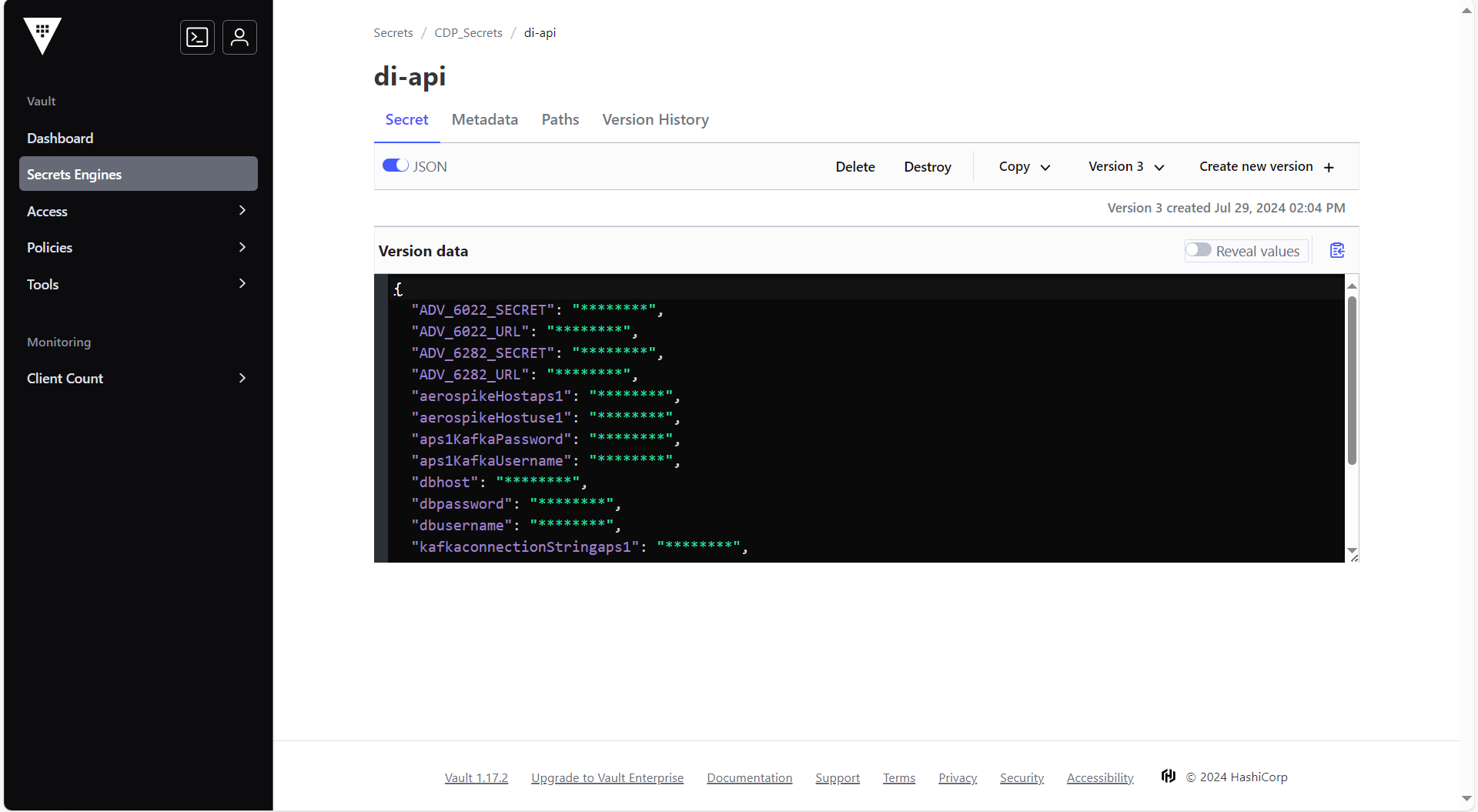

To create the di-api secret in the HashiCorp Vault, follow the steps below:

1. Create a di-api secret sample key and value in the UI secret, and update ConfigMaps data with actual values.

   {
     "ADV_6022_SECRET": "\"\"",
     "ADV_6022_URL": "\"\"",
     "ADV_6282_SECRET": "\"\"",
     "ADV_6282_URL": "\"\"",
     "aerospikeHostaps1": "\"<aerospikeHostaps1>\"",
     "aerospikeHostuse1": "\"\"",
     "aps1KafkaPassword": "\"<aps1KafkaPassword>\"",
     "aps1KafkaUsername": "\"<aps1KafkaUsername>\"",
     "dbhost": "\"<dbhost>\"",
     "dbpassword": "\"<dbpassword>\"",
     "dbusername": "\"<dbusername>\"",
     "kafkaconnectionStringaps1": "\"<kafkaconnectionStringaps1>\"",
     "kafkaconnectionStringuse1": "\"\"",
     "kmsUrl": "\"<kmsUrl>\"",
     "tdsbHost": "'<tdsbHost>'",
     "use1KafkaPassword": "\"\"",
     "use1KafkaUsername": "\"\""
   }

Deploying CDP DI API

To deploy the CDP DI API, follow the steps below:

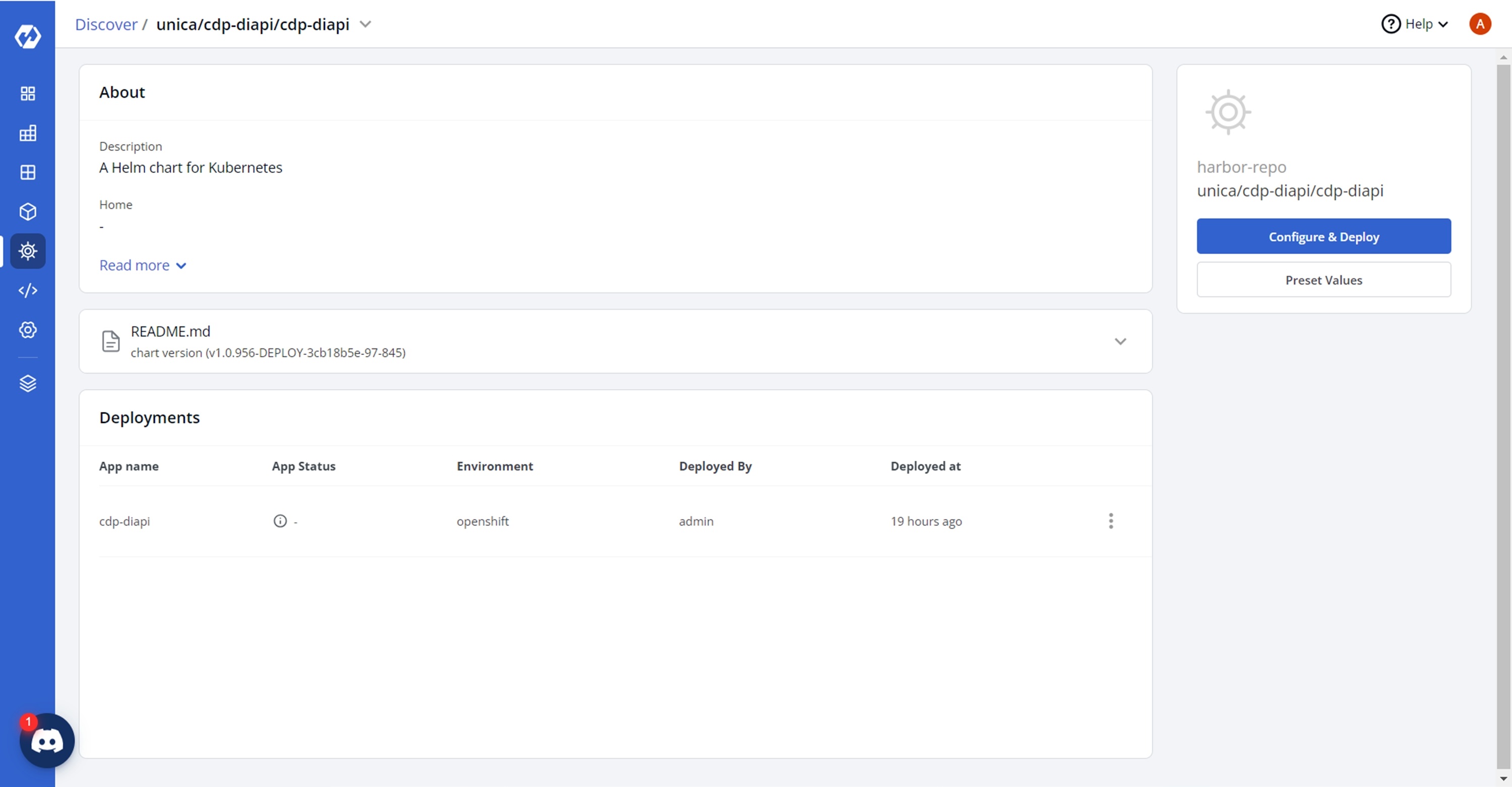

1. Navigate to the Devtron Chart Store, and select the cdp-di-api chart to deploy.



2. Now, configure and deploy the CDP DI API charts.

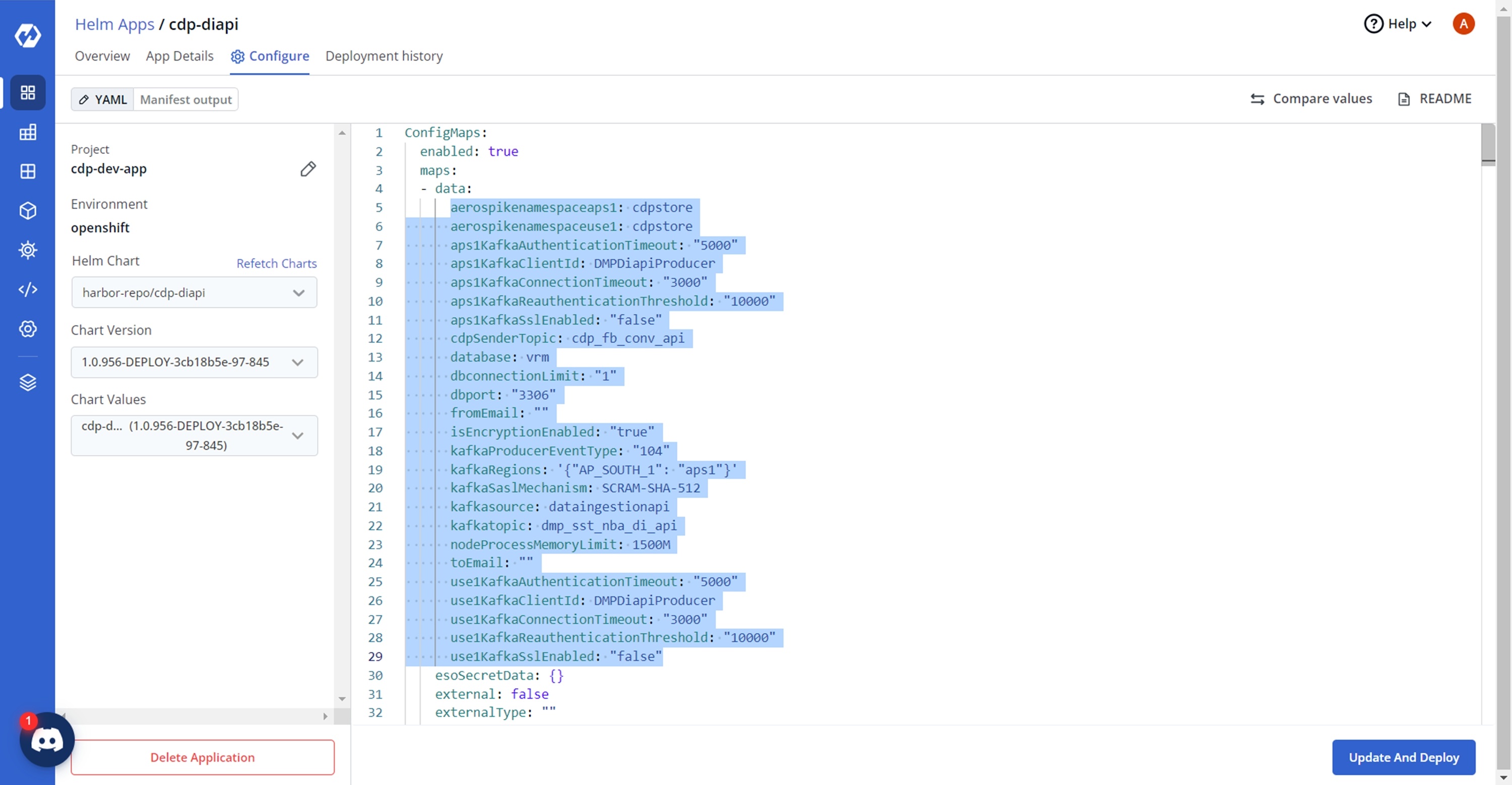

3. In the YAML section, update the ConfigMap using below details, and deploy the charts.

   dbconnectionLimit: "<DB_CONNECTION_LIMIT>"
   dbport: "<DB_PORT>"
   database: <DATABASE_NAME>

   use1KafkaSslEnabled: "<BOOLEAN>"
   use1KafkaClientId: <KAFKA_CLIENT_ID>
   use1KafkaConnectionTimeout: "<TIMEOUT_MS>"
   use1KafkaAuthenticationTimeout: "<TIMEOUT_MS>"
   use1KafkaReauthenticationThreshold: "<TIMEOUT_MS>"

   aps1KafkaSslEnabled: "<BOOLEAN>"
   aps1KafkaClientId: <KAFKA_CLIENT_ID>
   aps1KafkaConnectionTimeout: "<TIMEOUT_MS>"
   aps1KafkaAuthenticationTimeout: "<TIMEOUT_MS>"
   aps1KafkaReauthenticationThreshold: "<TIMEOUT_MS>"

   kafkatopic: <KAFKA_TOPIC_NAME>
   cdpSenderTopic: <CDP_SENDER_TOPIC>
   kafkaProducerEventType: "<EVENT_TYPE_CODE>"
   kafkasource: <KAFKA_SOURCE_NAME>

   isEncryptionEnabled: "<BOOLEAN>"
   kafkaSaslMechanism: <KAFKA_SASL_MECHANISM>

   fromEmail: "<FROM_EMAIL>"
   toEmail: "<TO_EMAIL>"

   aerospikenamespaceaps1: <AEROSPIKE_NAMESPACE>
   aerospikenamespaceuse1: <AEROSPIKE_NAMESPACE>

   nodeProcessMemoryLimit: <MEMORY_LIMIT>

   kafkaRegions: '{"<REGION_KEY>": "<REGION_ALIAS>"}'

   CAMPAIGN_IDS: <CAMPAIGN_ID_1>,<CAMPAIGN_ID_2>,<CAMPAIGN_ID_3>

   DEFAULT_SRC: "<CSP_DEFAULT_SRC_LIST>"
   FONT_SRC: "<CSP_FONT_SRC_LIST>"
   IMG_SRC: "<CSP_IMG_SRC_LIST>"
   SCRIPT_SRC: "<CSP_SCRIPT_SRC_LIST>"
   STYLE_SRC: "<CSP_STYLE_SRC_LIST>"

   EVENTS_CAMPAIGN_LIST: "<CAMPAIGN_TO_EVENT_TOPIC_JSON>"

   defaultLogLevel: "<LOG_LEVEL>"

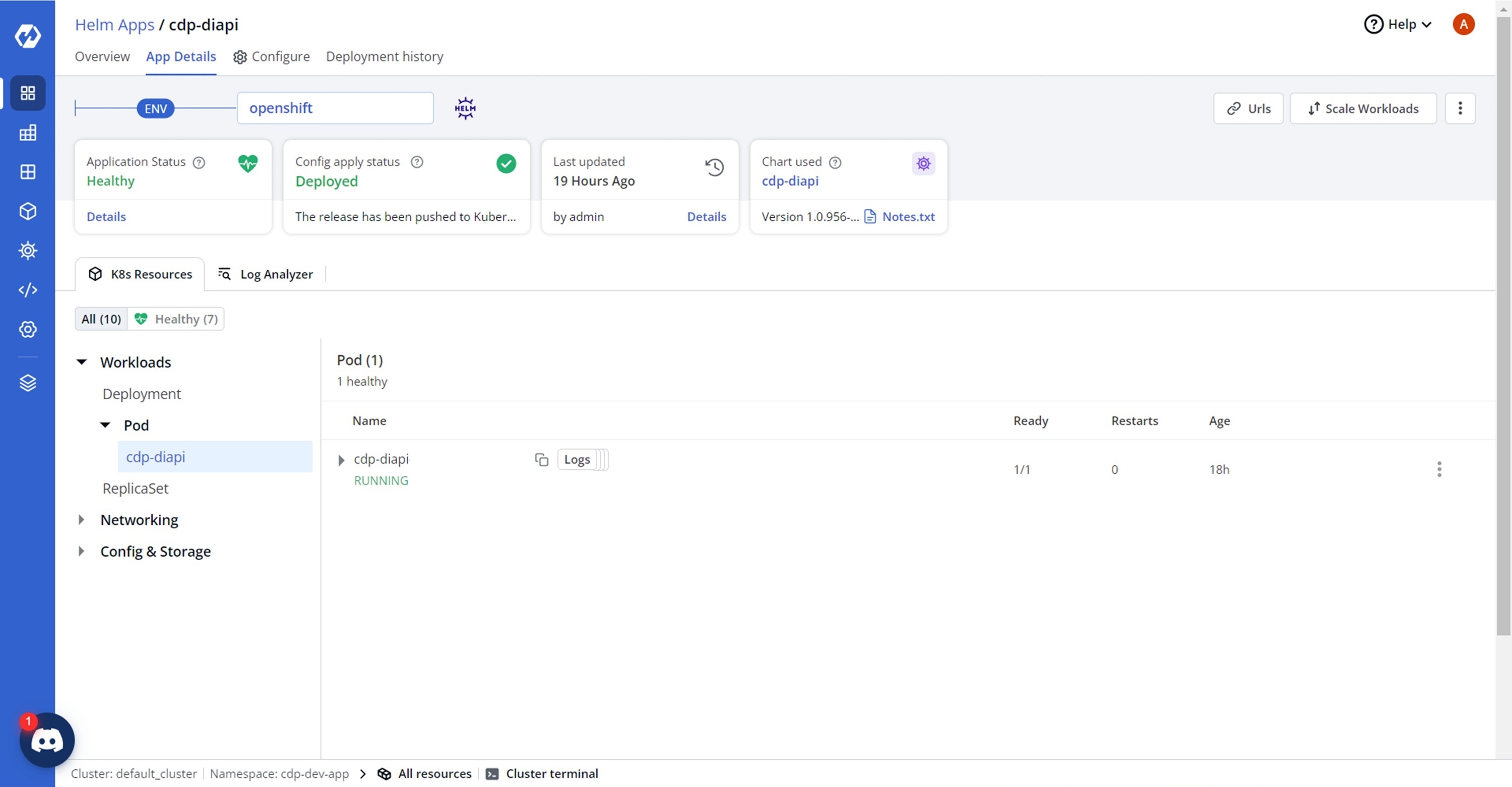

4. On successful deployment, validate the deployment as shown below.
