Pre-requisite Checker

Pre-requisite Checker is responsible for checking if all iAutomate installation pre-requisites have been met before beginning the installation setup. It identifies all the missing pre-requisite software and utilities and highlights to the user. User will have to ensure that the identified pre-requisites are installed before proceeding further.

  1. Click Run to begin the process.

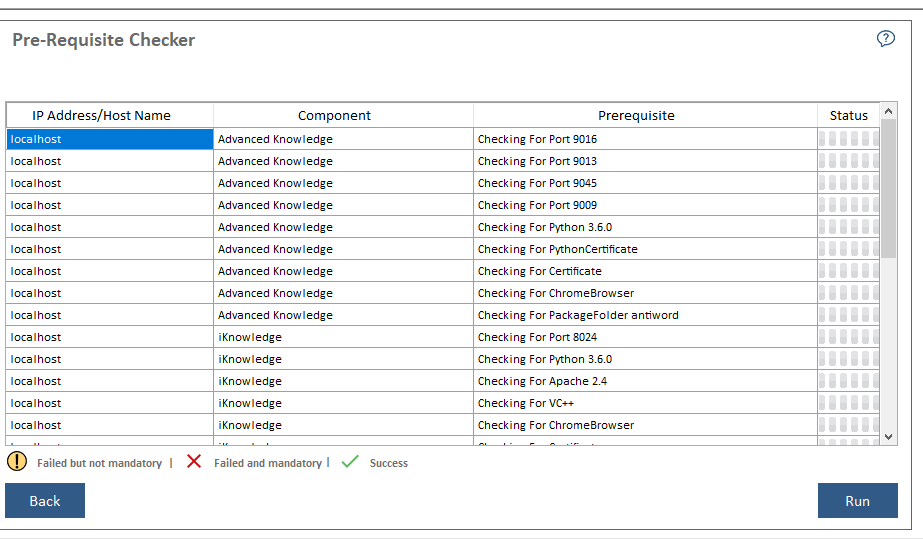

    Figure 1. Pre-Requisite Checker
    Note:

    The Pre-requisite Checker always runs as part of the iAutomate setup.

    A progress bar appears while the Pre-Requisite Checker runs.

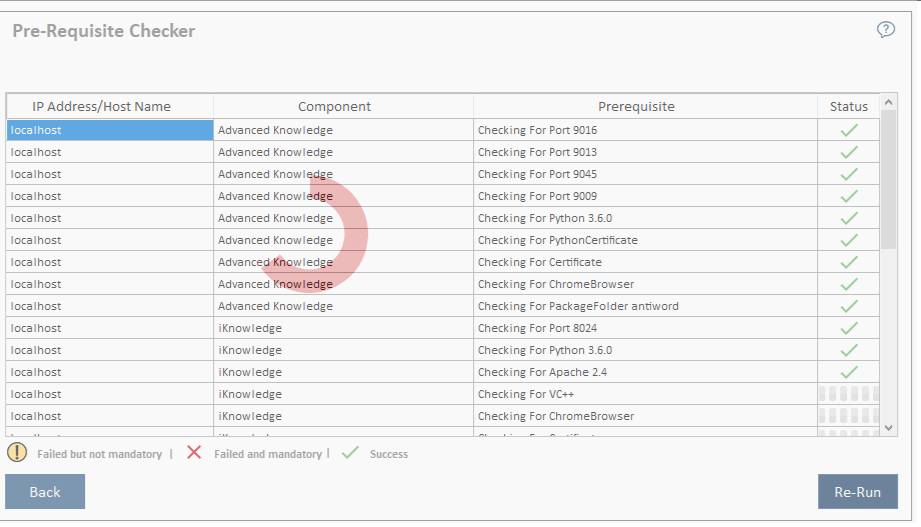

    Figure 2. Pre-Requisite Checker (Cont.)
  2. In the Status column, each pre-requisite is marked as Success or Failure.

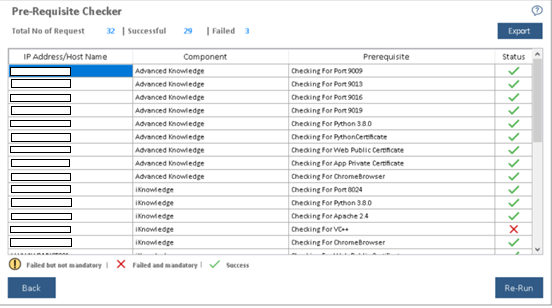

    Figure 3. Pre-Requisite Checker (Cont.)
  3. In case of Failure, Re-Run button appears. Please ensure that the identified issue is resolved and re-run the pre-requisite checker.
  4. Please refer to the case failure as mentioned in figure. Here VC++ software is missing on the software. Simply install the software from the available pre-requisite’s software.
  5. Upon successful validation of all pre-requisites, Next is enabled.
  6. Click Next to get to the Configure Admin Details view.

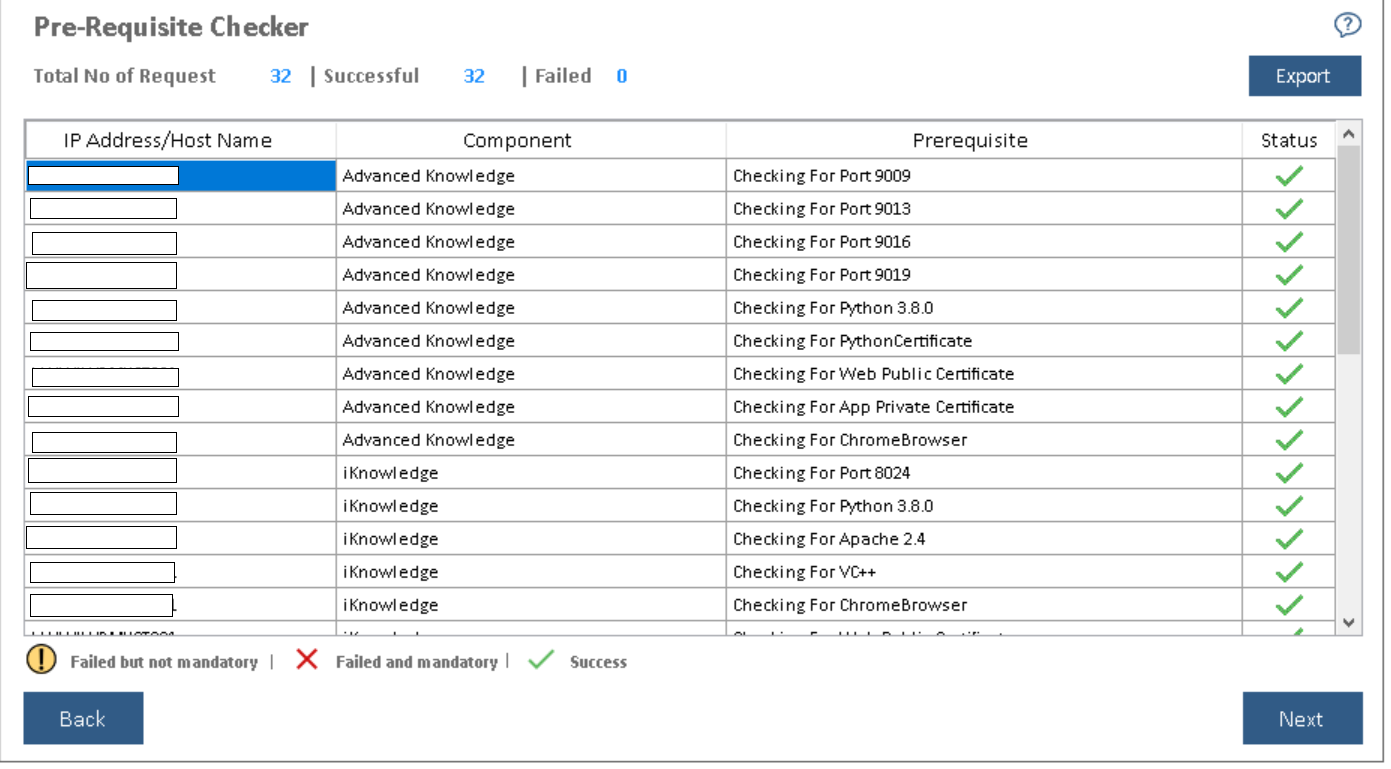

    Figure 4. Pre-Requisite Checker (Cont.)
