Customized Indications - Messages

The customized indications-messages in Navigation Assistant allow users to provide the customized indications (relevant text/phrase) to the feature icons that appear on the chat console screen.

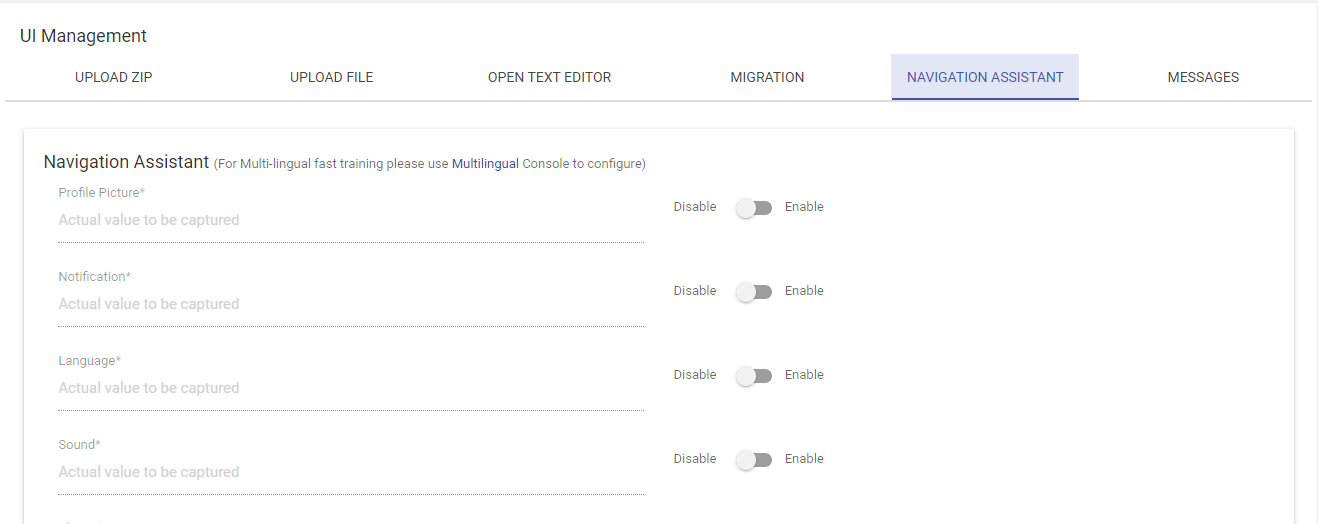

  1. This feature can be seen under the UI Management console as shown in Navigation Assistant Form. Enabling or disabling any navigation element using the toggle enables or disables the navigation element from the walkthrough:

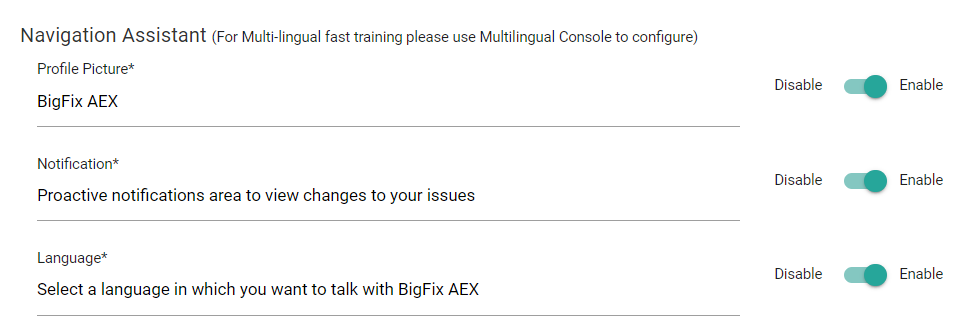

    Figure 1. Navigation Assistant Form
  2. Once you provide text into the given input fields, you should see a save button at the top-right as shown below. Click on the save button if you wish to save.
    Figure 2. Save Navigation Assistant
  3. The following Confirmation Message appears on clicking the save icon:
    Figure 3. Confirmation Message
  4. Clicking OK displays, the updating status.
    Figure 4. Status Message
  5. Clicking OK displays the success message.
