Deploying HCL CDP Tryitout

Prerequisites

Make sure to create cdp-tryitout secret in HashiCorp vault before deploying CDP Trigger.

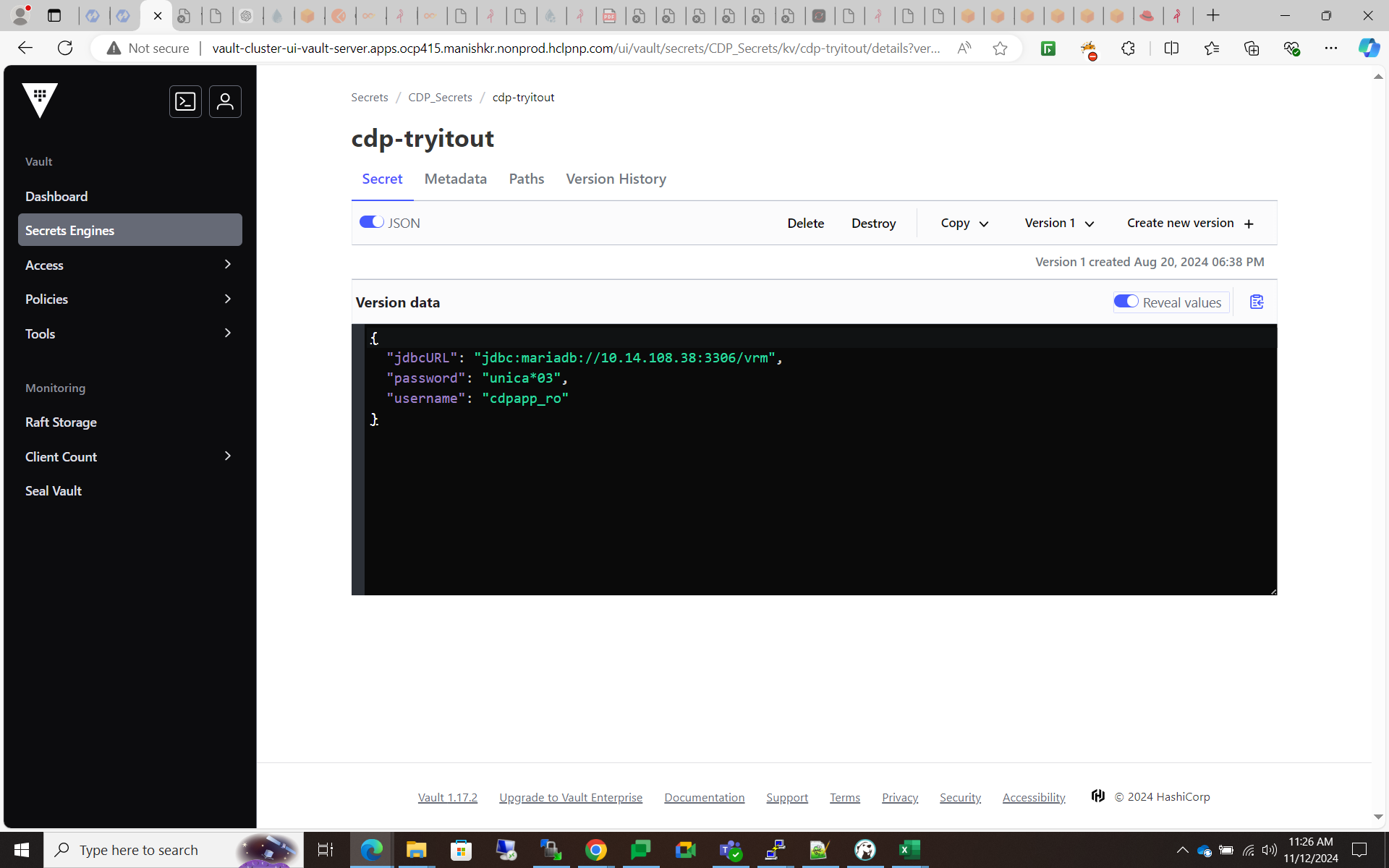

To create CDP Tryitout secret in the HashiCorp vault, follow the steps below:

1. Create a cdp-tryitout secret sample key and value, and update the actual values as shown below.

   {
     "DbUrl": "jdbc:mariadb://ip:port/dbName",
     "DbUserPassword": "dbPwd",
     "DbUsername": "dbUser"
   }

2. Update ConfigMaps data with actual values, and create required Kafka topics before deployment.

Deploy CDP TryItOut

To deploy CDP TryItOut using Devtron in Openshift platform, follow the steps below:

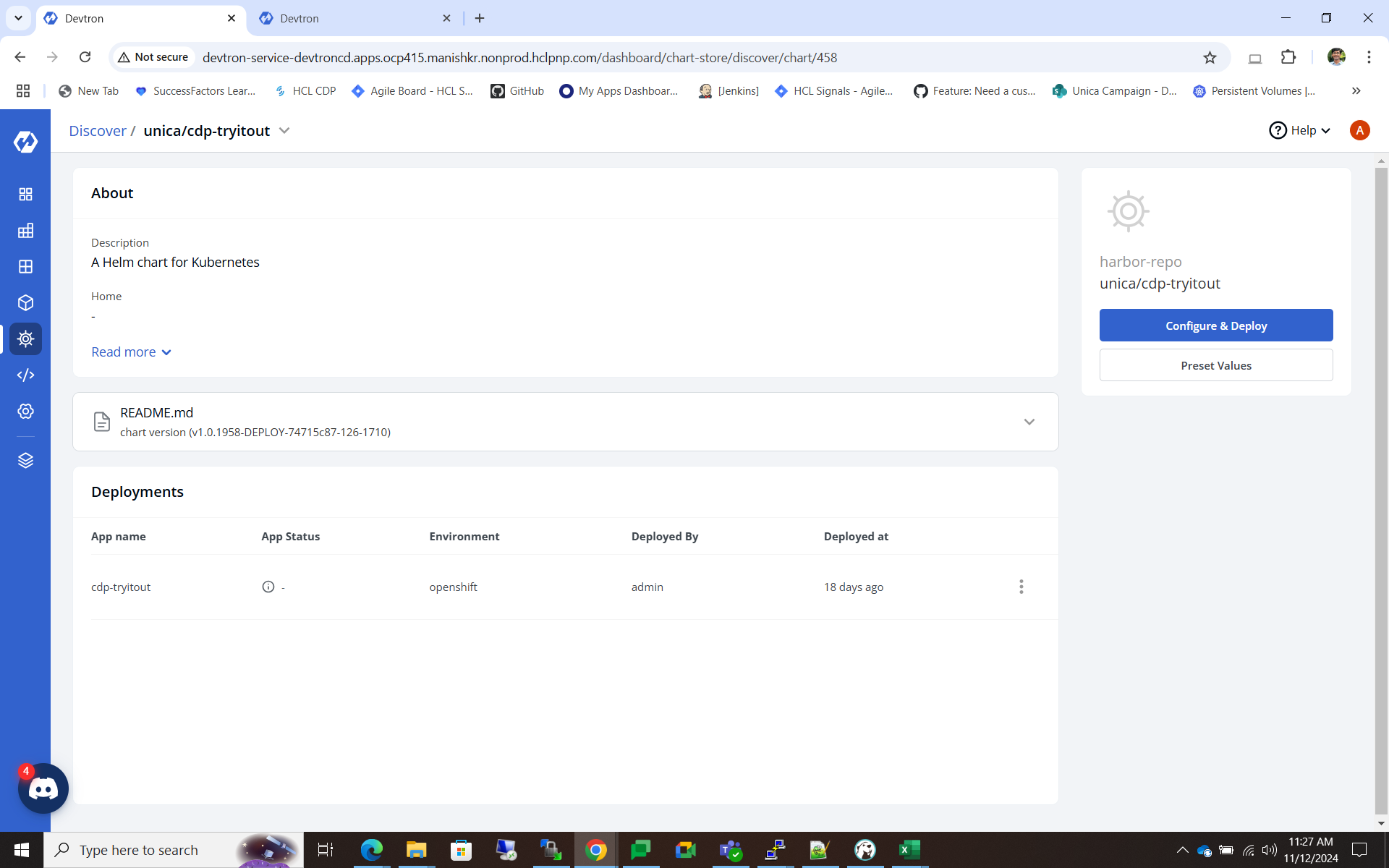

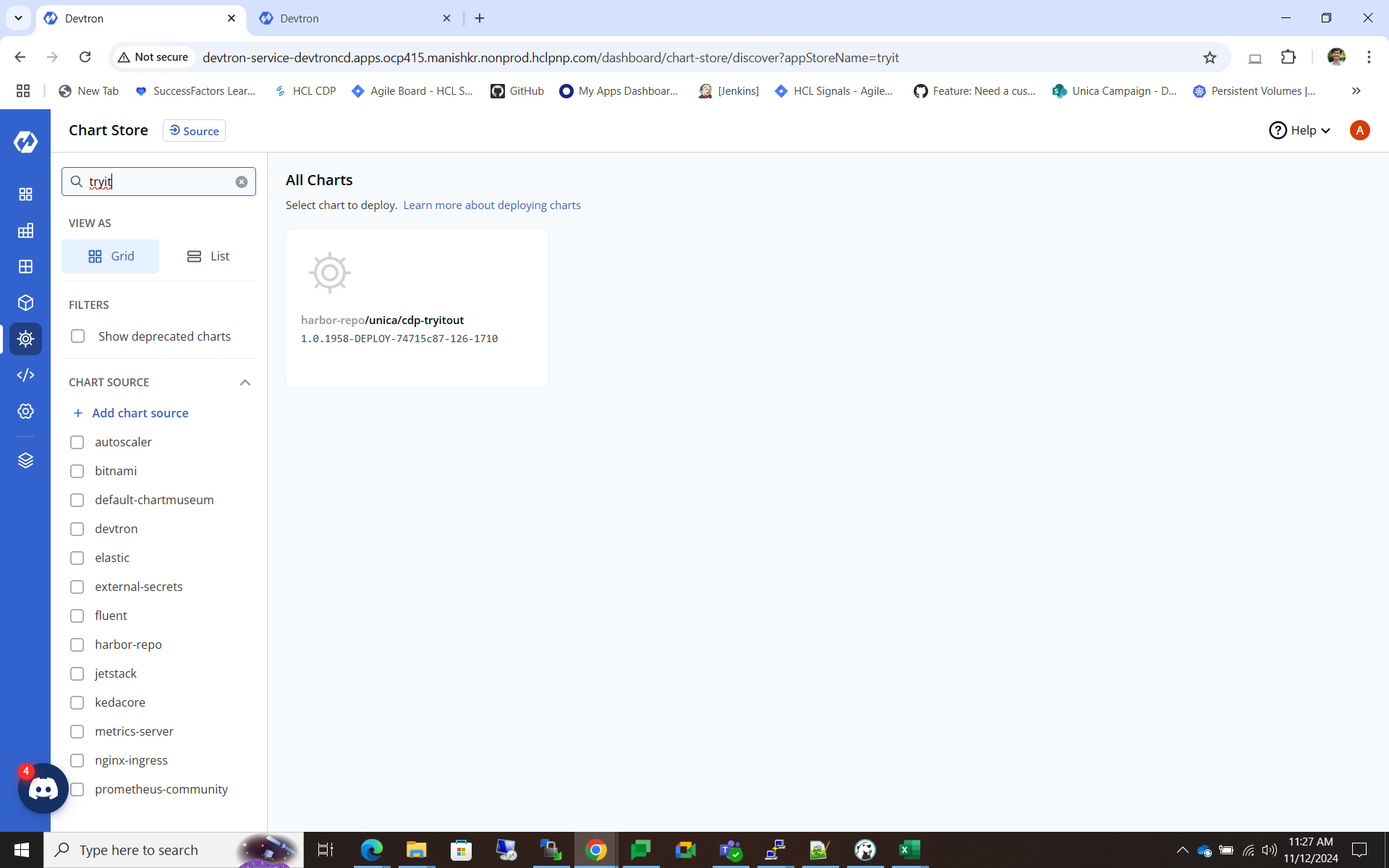

1. Navigate to the Devtron Chart Store, and select cdp-tryitout chart to deploy.



2. Now, configure and deploy the cdp-tryitout charts.

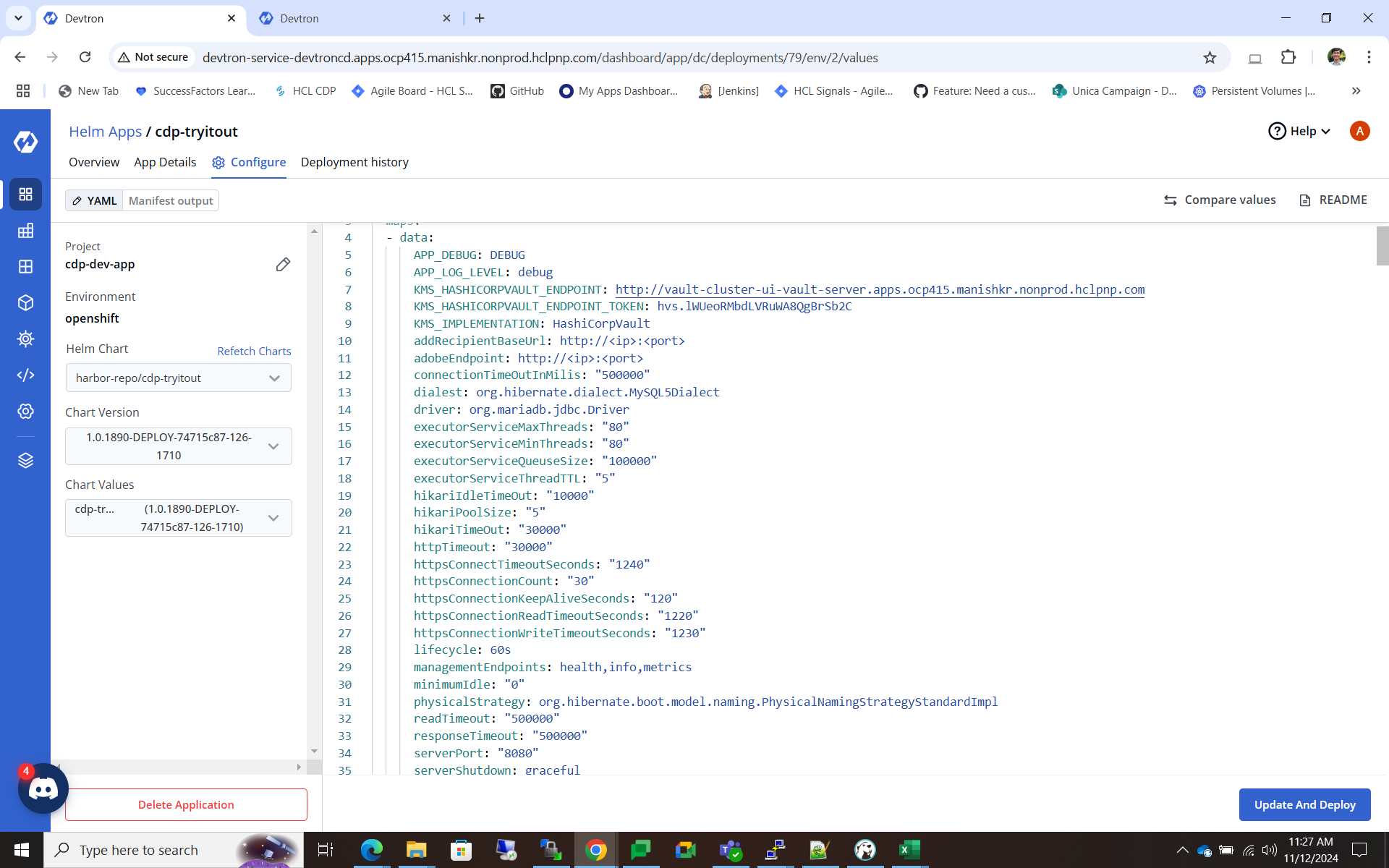

3. In the YAML section, update the ConfigMap using the below details and deploy the chart.

   APP_DEBUG: DEBUG
   APP_LOG_LEVEL: debug
   KMS_HASHICORPVAULT_ENDPOINT: <KMS_HASHICORPVAULT_ENDPOINT>
   KMS_HASHICORPVAULT_ENDPOINT_TOKEN: <KMS_HASHICORPVAULT_ENDPOINT_TOKEN>
   KMS_IMPLEMENTATION: HashiCorpVault
   addRecipientBaseUrl: http://<ip>:<port>
   adobeEndpoint: http://<ip>:<port>
   connectionTimeOutInMilis: "500000"
   dialest: org.hibernate.dialect.MySQL5Dialect
   driver: org.mariadb.jdbc.Driver
   executorServiceMaxThreads: "80"
   executorServiceMinThreads: "80"
   executorServiceQueuseSize: "100000"
   executorServiceThreadTTL: "5"
   hikariIdleTimeOut: "10000"
   hikariPoolSize: "5"
   hikariTimeOut: "30000"
   httpTimeout: "30000"
   httpsConnectTimeoutSeconds: "1240"
   httpsConnectionCount: "30"
   httpsConnectionKeepAliveSeconds: "120"
   httpsConnectionReadTimeoutSeconds: "1220"
   httpsConnectionWriteTimeoutSeconds: "1230"
   lifecycle: 60s
   managementEndpoints: health,info,metrics
   minimumIdle: "0"
   physicalStrategy: org.hibernate.boot.model.naming.PhysicalNamingStrategyStandardImpl
   readTimeout: "500000"
   responseTimeout: "500000"
   serverPort: "8080"
   serverShutdown: graceful
   smsEmailSenderBaseUrl: <smsEmailSenderBaseUrl>
   sqlStatement: "true"
   storageEngine: innodb
   writeTimeOut: "50000"

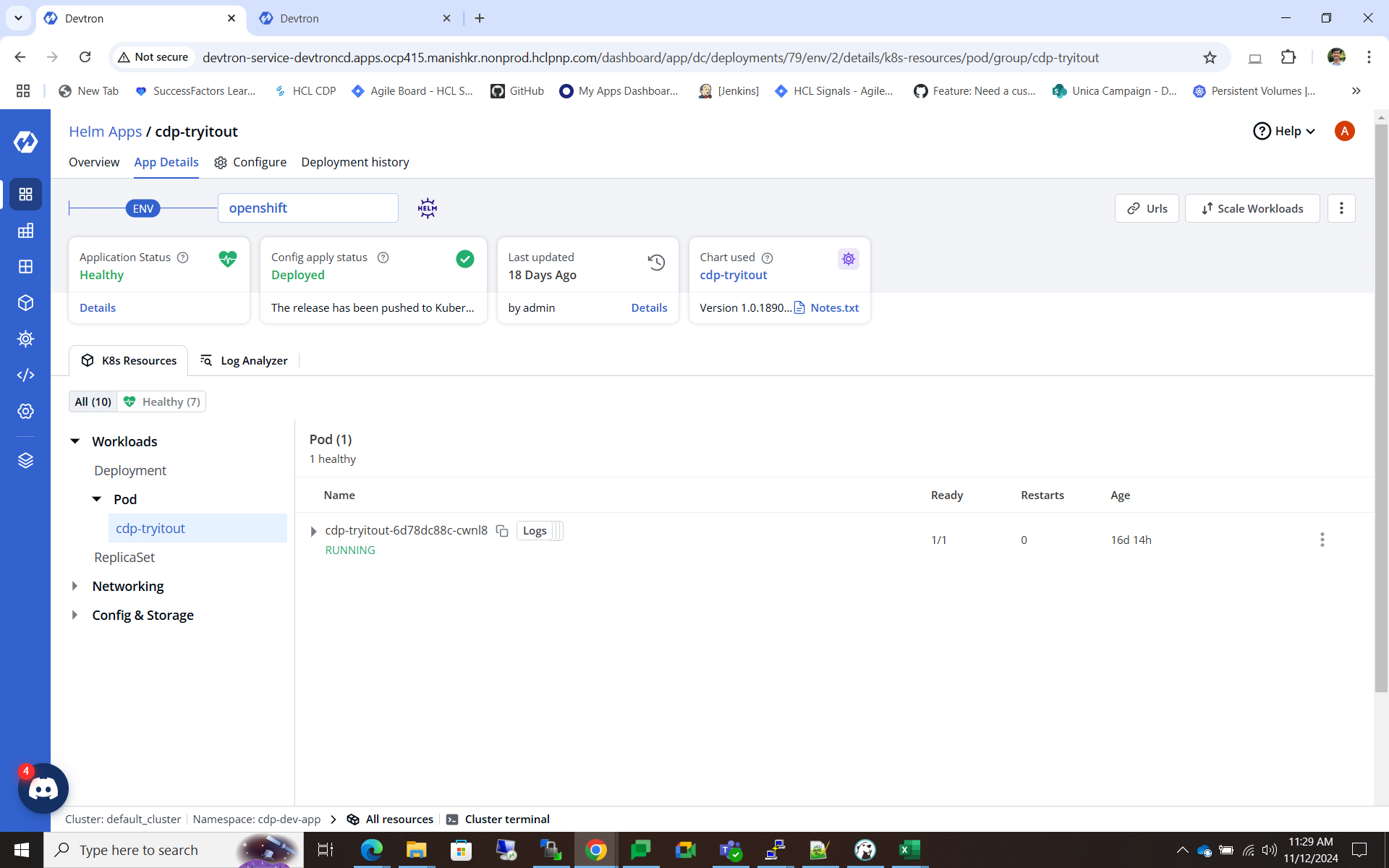

4. On successful deployment, validate the deployment as shown below.
