Deploying HCL CDP ExternalAPI

Prerequisites

Make sure to create cdp-externalapi secret in HashiCorp vault before deploying HCL CDP Trigger.

To create HCL CDP Trigger secret in the HashiCorp vault, follow the steps below:

1. Create a cdp-smsemailsender secret sample key and value, and update the actual values as shown below.

   {
     "DbUrl": "jdbc:mariadb://ip:port/dbName",
     "DbUserPassword": "dbPwd",
     "DbUsername": "dbUser"
   }

2. Update ConfigMaps data with actual values, and create required Kafka topics before deployment.

Deploy HCL CDP External API

To deploy HCL CDP External API using Devtron in Openshift platform, follow the steps below:

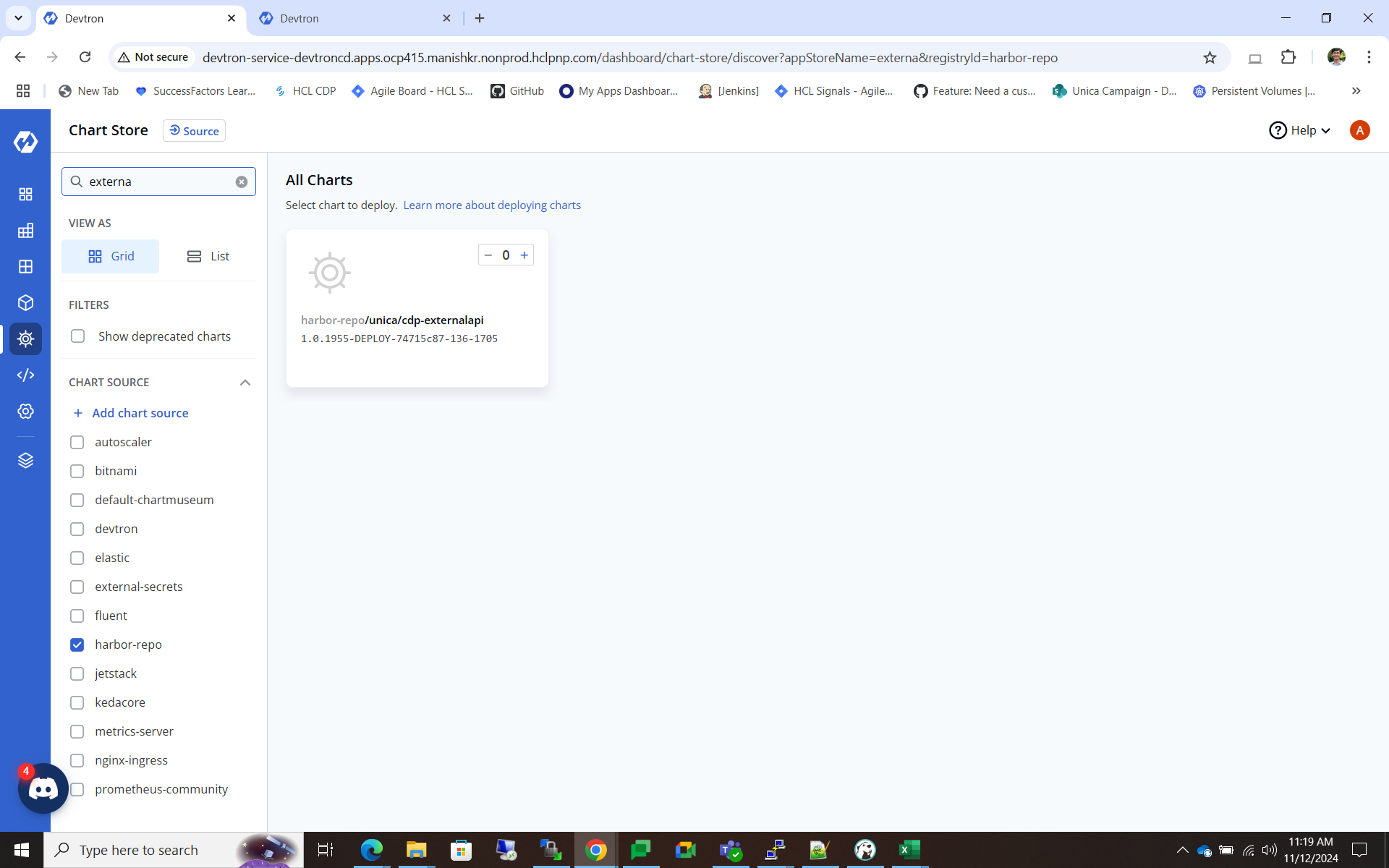

1. Navigate to the Devtron Chart Store, and select the cdp-externalapi chart to deploy.



2. Now, configure and deploy the cdp-trigger charts.

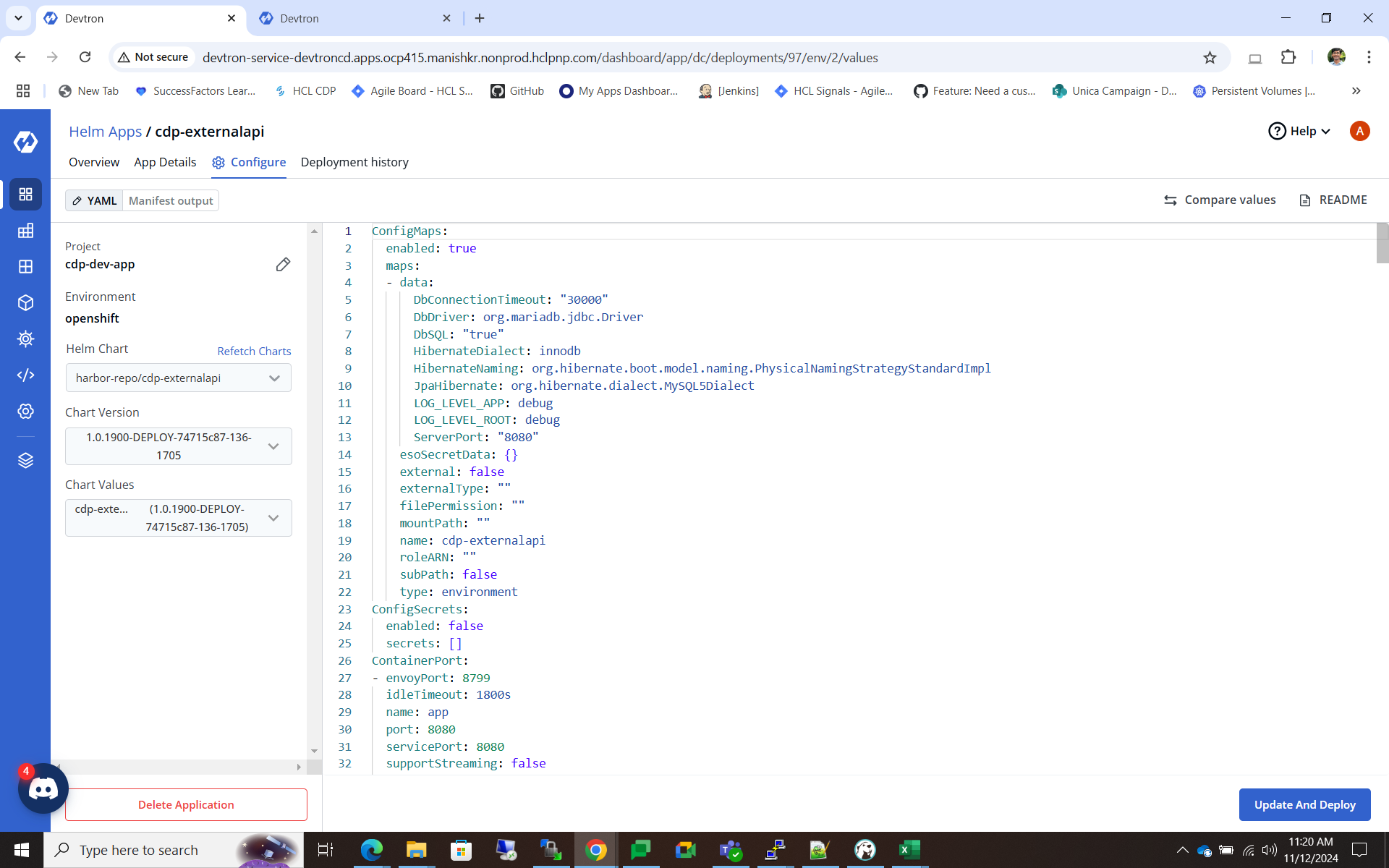

3. In the YAML section, update the ConfigMap using the below details and deploy the chart.

   DbConnectionTimeout: "30000"
   DbDriver: org.mariadb.jdbc.Driver
   DbSQL: "true"
   HibernateDialect: innodb
   HibernateNaming: org.hibernate.boot.model.naming.PhysicalNamingStrategyStandardImpl
   JpaHibernate: org.hibernate.dialect.MySQL5Dialect
   LOG_LEVEL_APP: debug
   LOG_LEVEL_ROOT: debug
   ServerPort: "8080"

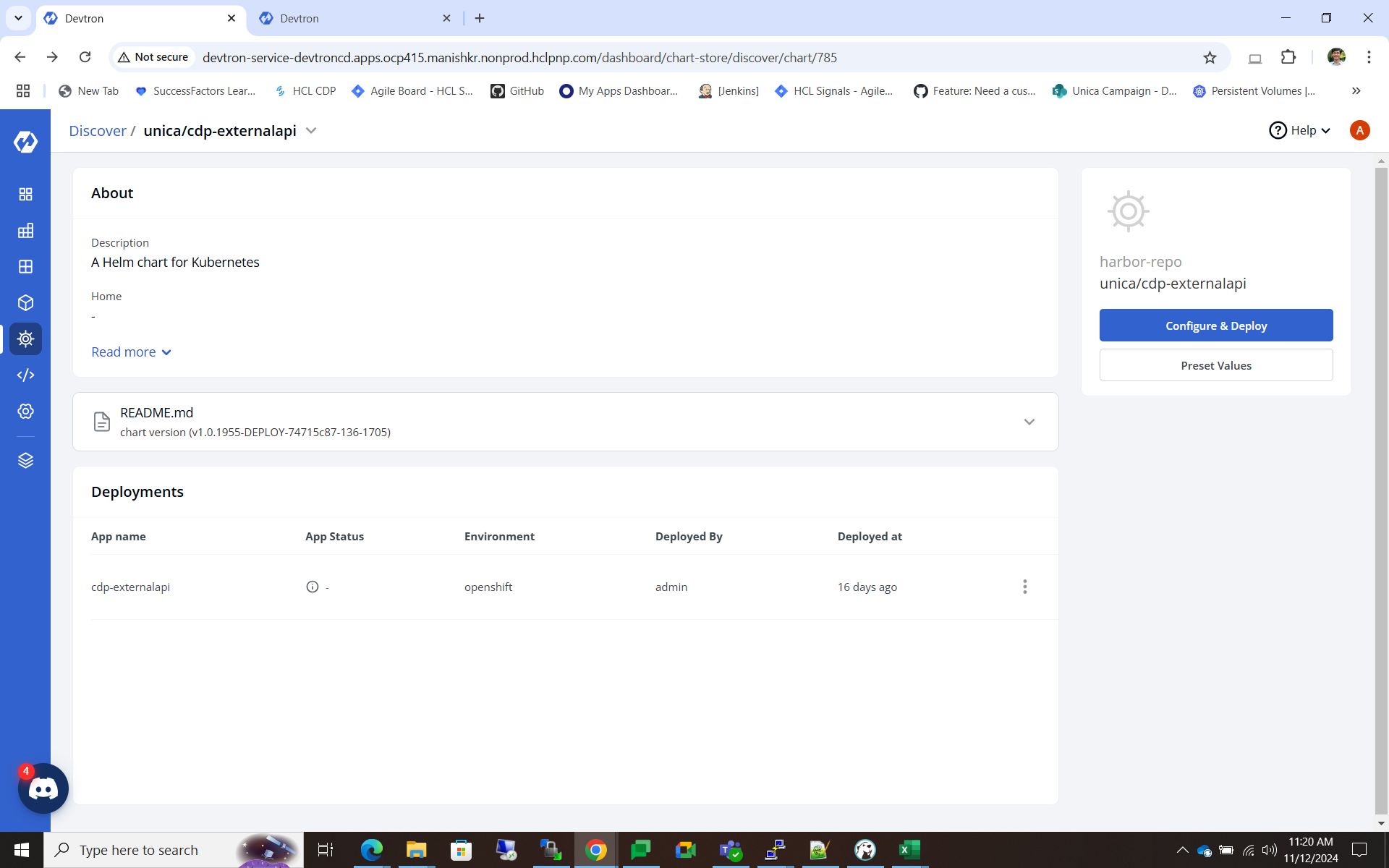

4. On successful deployment, validate the deployment as shown below.
