Deploying CDP Trigger

Prerequisites

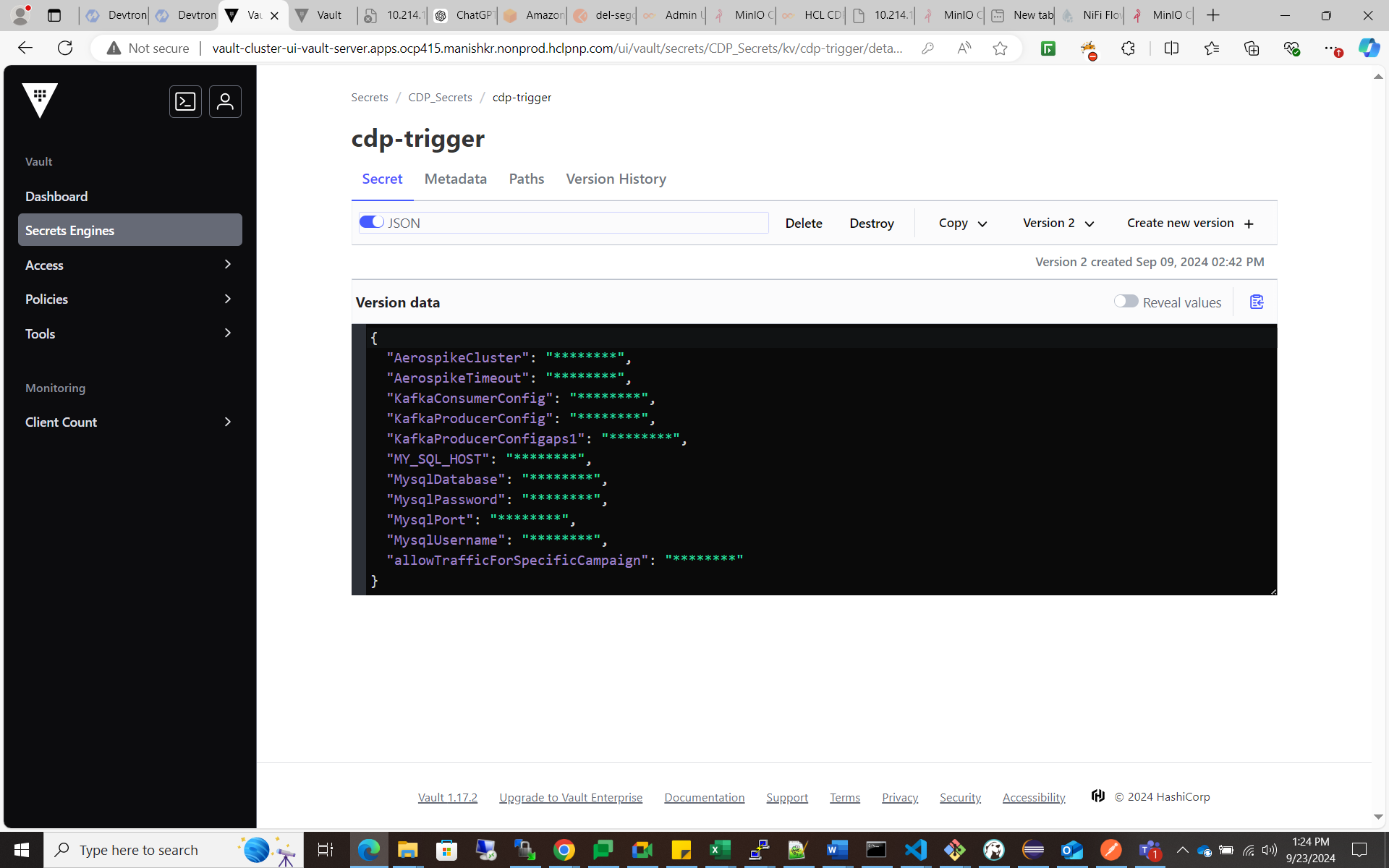

Make sure to create cdp-trigger secret in HashiCorp vault before deploying CDP Trigger.

To create CDP Trigger secret in the HashiCorp vault, follow the steps below:

1. Create a cdp-trigger secret sample key and value, and update the actual values as shown below.

   {
     "AerospikeCluster": "<AerospikeCluster>",
     "AerospikeTimeout": "10000",
     "KafkaConsumerConfig": "<KafkaConsumerConfig>",
     "KafkaProducerConfig": "<KafkaProducerConfig>",
     "KafkaProducerConfigaps1": "<KafkaProducerConfigaps1>",
     "MY_SQL_HOST": "<MY_SQL_HOST>",
     "MysqlDatabase": "<MysqlDatabase>",
     "MysqlPassword": "<MysqlPassword>",
     "MysqlPort": "<MysqlPort>",
     "MysqlUsername": "<MysqlUsername>",
     "allowTrafficForSpecificCampaign": "false"
   }

2. Create a Kubernetes Secret with Vault credentials to fetch the secrets from the vault.

   apiVersion: v1
   kind: Secret
   metadata:
     name: vault-creds
     namespace: cdp-dev-app
   type: Opaque
   data:
     username: <vault username>
     password: <vault password>

3. Create separate service account cdp-dev-app-sa with appropriate roles and permissions, and update ConfigMaps data with actual values.

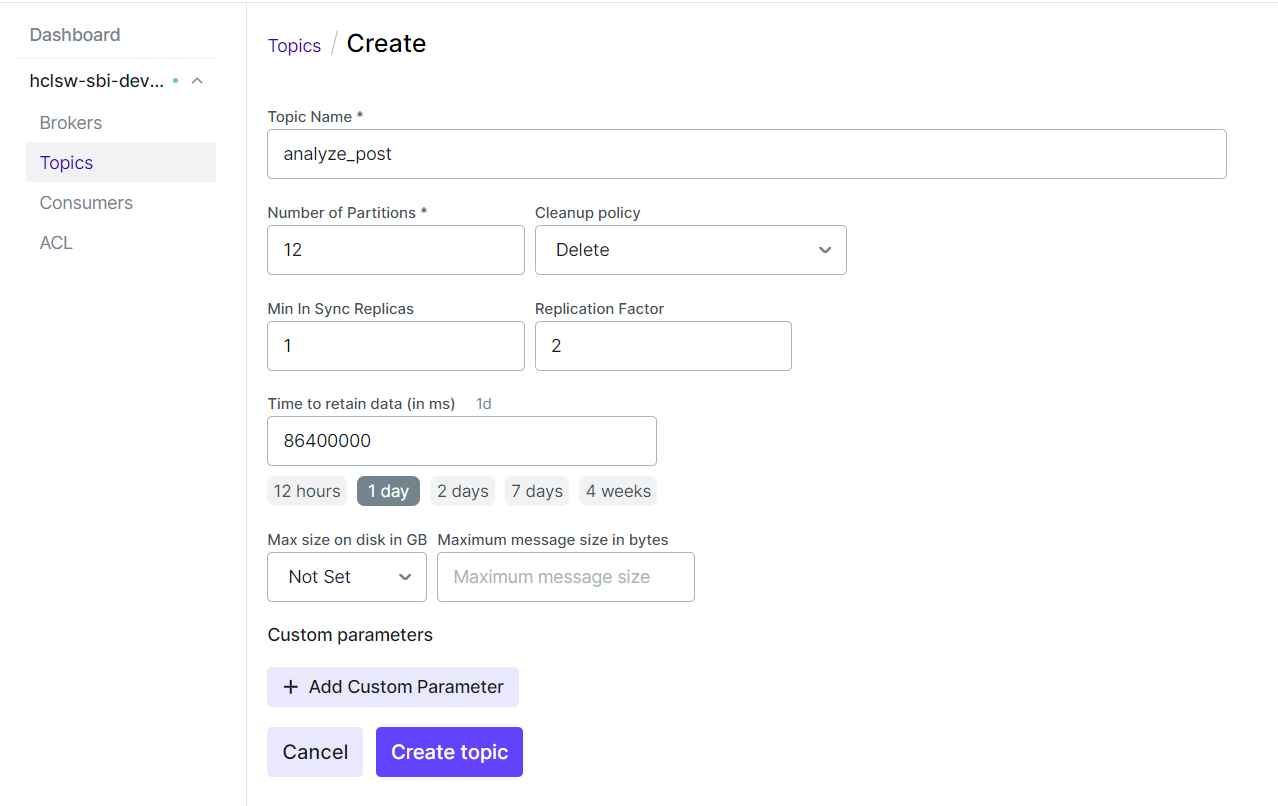

4. Create required Kafka topics before deployment. A sample Kafka topic configuration is shown below.



Deploy CDP Trigger

To deploy CDP Trigger using Devtron in Openshift platform, follow the steps below:

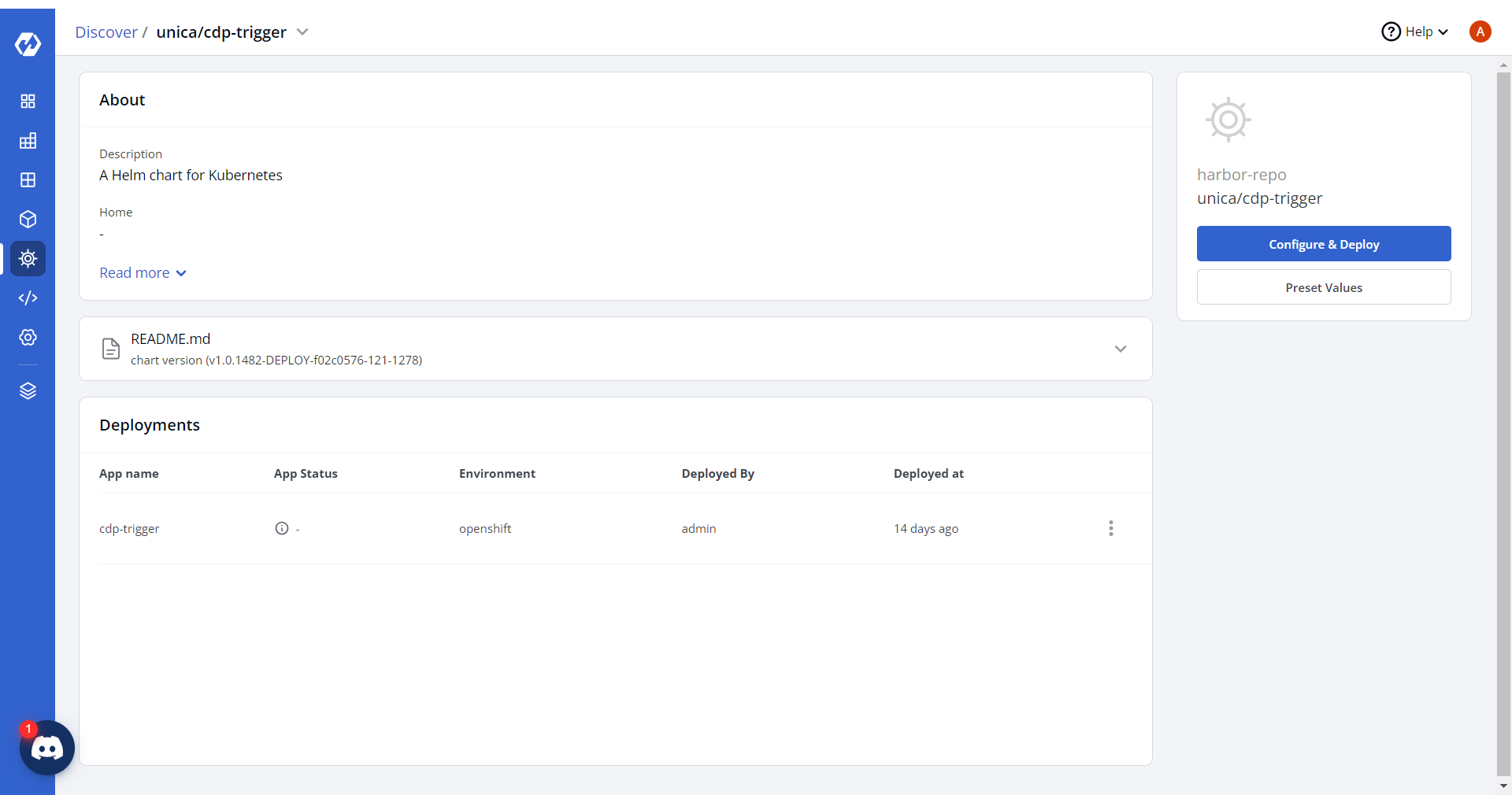

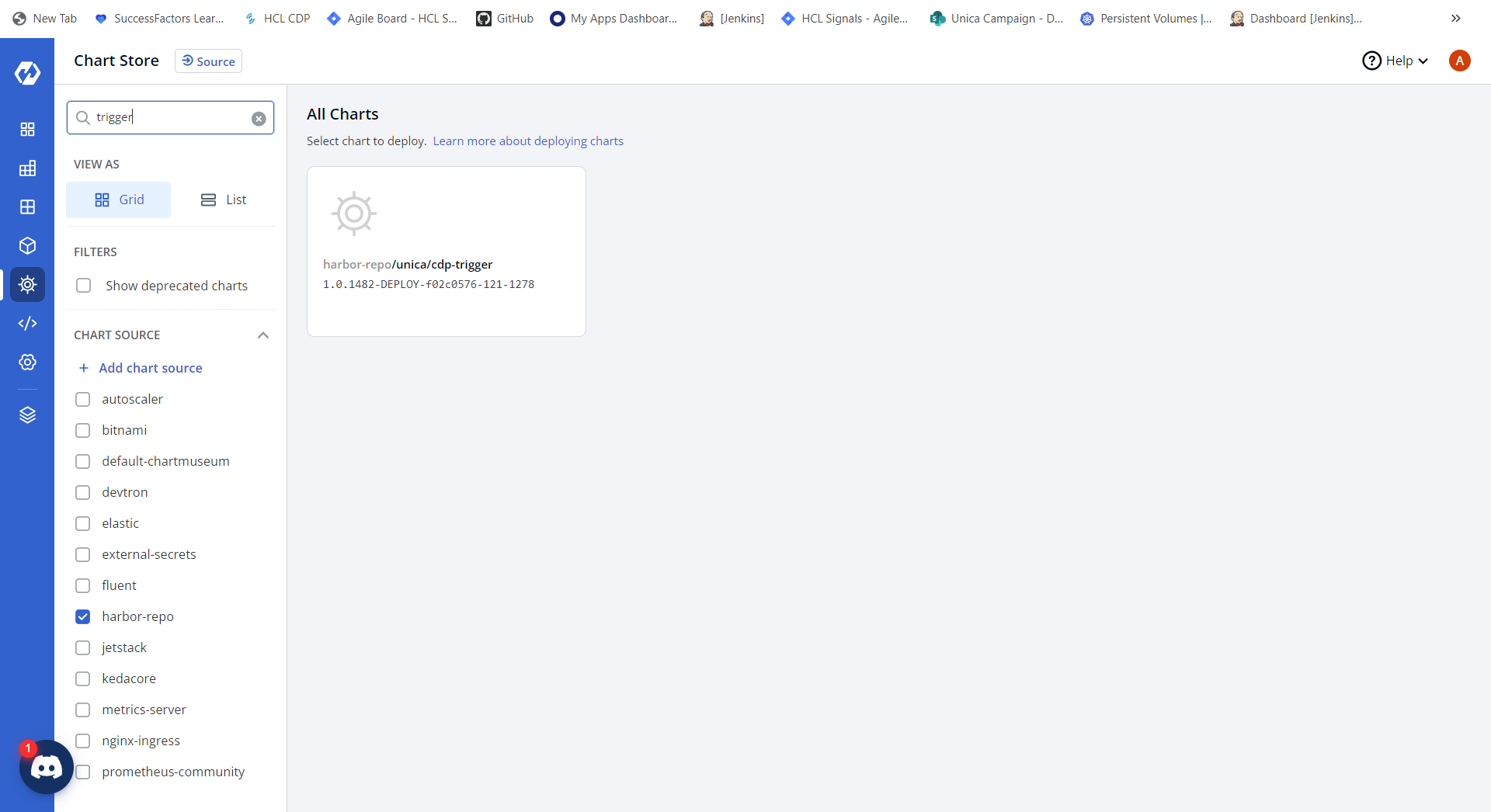

1. Navigate to the Devtron Chart Store, and select cdp-trigger chart to deploy.



2. Now, configure and deploy the cdp-trigger charts.



3. In the YAML section, update the ConfigMap using the below details and deploy the chart.

   APP_INFRA: k8s
   APP_REGION: ap-south-1
   APP_TYPE: trigger--mu
   AWSRegion: us-east-1
   AerospikeAppPushBin: ap
   AerospikeBookKeepingBin: bk
   AerospikeCacheExpiry: "48"
   AerospikeEmailBin: email
   AerospikeIcAndBookKeepingSetPrefix: impression_
   AerospikeIcAndBookKeepingSetTTL: "8760"
   AerospikeImpressionCapBin: ic
   AerospikeNamespace: cdpstore
   AerospikePushFallbackBin: appfb
   AerospikePushFallbackSet: fallback
   AerospikePushFallbackSetTTL: "48"
   AerospikeRamanujanBin: tc
   AerospikeRamanujanSet: ramanujan
   AerospikeRamanujanSetTTL: "48"
   AerospikeSegmentSetTTL: "48"
   AerospikeSmsBin: sms
   AerospikeTimeout: "100000"
   AerospikeTriggerApiBin: ""
   AerospikeWebPushBin: wp
   AerospikeWhatsAppBin: wsap
   AppPushDelayedTriggerTopic: dmp_apn_tr
   AppPushImmediateTriggerTopic: dmp_apn_tr
   CeleryParamIgnore: IGNORE_IF_PRESENT
   CeleryParamOverride: OVERRIDE
   CeleryParamTrigger: TRIGGER
   CeleryTimeThresholdMinutes: "30"
   CeleryTriggerTopic: CeleryETALem
   EXECUTOR_SERVICE_MAX_THREADS: "4"
   EXECUTOR_SERVICE_MIN_THREADS: "2"
   EXECUTOR_SERVICE_QUEUE_SIZE: "100"
   EXECUTOR_SERVICE_THREAD_TTL: "5"
   EmailDelayedTriggerTopic: dmp_email_tr
   EmailImmediateTriggerTopic: dmp_email_tr
   InboundKafkaTopic: trigger_inbound
   KAFKA_CONSUMER_GROUP_ID: -trigger
   KAFKA_POLL_INTERVAL: "200"
   KAFKA_PRODUCER_EVENT_TYPE: "5656"
   KAFKA_PRODUCER_META: "true"
   KAFKA_PRODUCER_POOL_SIZE: "10"
   KAFKA_TOPIC_CONSUMER_BATCH_SIZE: 10,10,10
   KAFKA_TOPIC_CONSUMER_DEFAULT_BATCH_TIMEOUT_MS: 1000,1000,1000
   KAFKA_TOPIC_CONSUMER_DEFAULT_BATCH_TIMEOUT_TRIGGER: 5000,5000,5000
   KAFKA_TOPIC_CONSUMERS: 6,6,6
   KAFKA_TOPIC_LIST: dmp_rt_segments,ETANotify,dmp_journey_trigger
   KafkaCeleryNotify: ETANotify
   KafkaJourneyTopic: dmp_journey_trigger
   KafkaRTSegment: dmp_rt_segments
   KafkaRTSegmentOffline: dmp_rt_segments_offline
   LOG_LEVEL_APP: debug
   LOG_LEVEL_METRICS: info
   LOG_LEVEL_ROOT: info
   LOG_LEVEL_UTILS: info
   MAX_BATCH_EXECUTE_RETRIES: "3"
   MAX_EVENT_BATCH_LAG: "8"
   MysqlMapRefreshIntervalMinute: "1"
   OPEN_TSDB_HOST: <OPEN_TSDB_HOST>
   OPEN_TSDB_HOST_TO_BE_ADDED: "true"
   OPEN_TSDB_PORT: "80"
   ReportingIntervalInMin: "55"
   RtsSegOfflineRefreshDsName: rtsegofflinerefresh
   RtsSegOnlineRefreshDsName: rtsegonlinerefresh
   RtsSegRefreshDsName: rtsegrefresh
   SmsDelayedTriggerTopic: dmp_sms_tr
   SmsImmediateTriggerTopic: dmp_sms_tr
   TriggerApiDelayedTriggerTopic: dmp_trapi_tr
   TriggerApiImmediateTriggerTopic: dmp_trapi_tr
   UserFailureKafkaTopic: trigger_failure
   WebPushDelayedTriggerTopic: dmp_wpn_tr
   WebPushImmediateTriggerTopic: dmp_wpn_tr
   WhatsAppDelayedTriggerTopic: dmp_wsap_tr
   WhatsAppImmediateTriggerTopic: dmp_wsap_tr
   alertToEmailId: ""
   emailType: SMTP
   fromEmailId: ""
   hostname: trigger-prod-mu
   smtpHost: <OPEN_TSDB_HOST>
   smtpPort: "<smtpPort>"

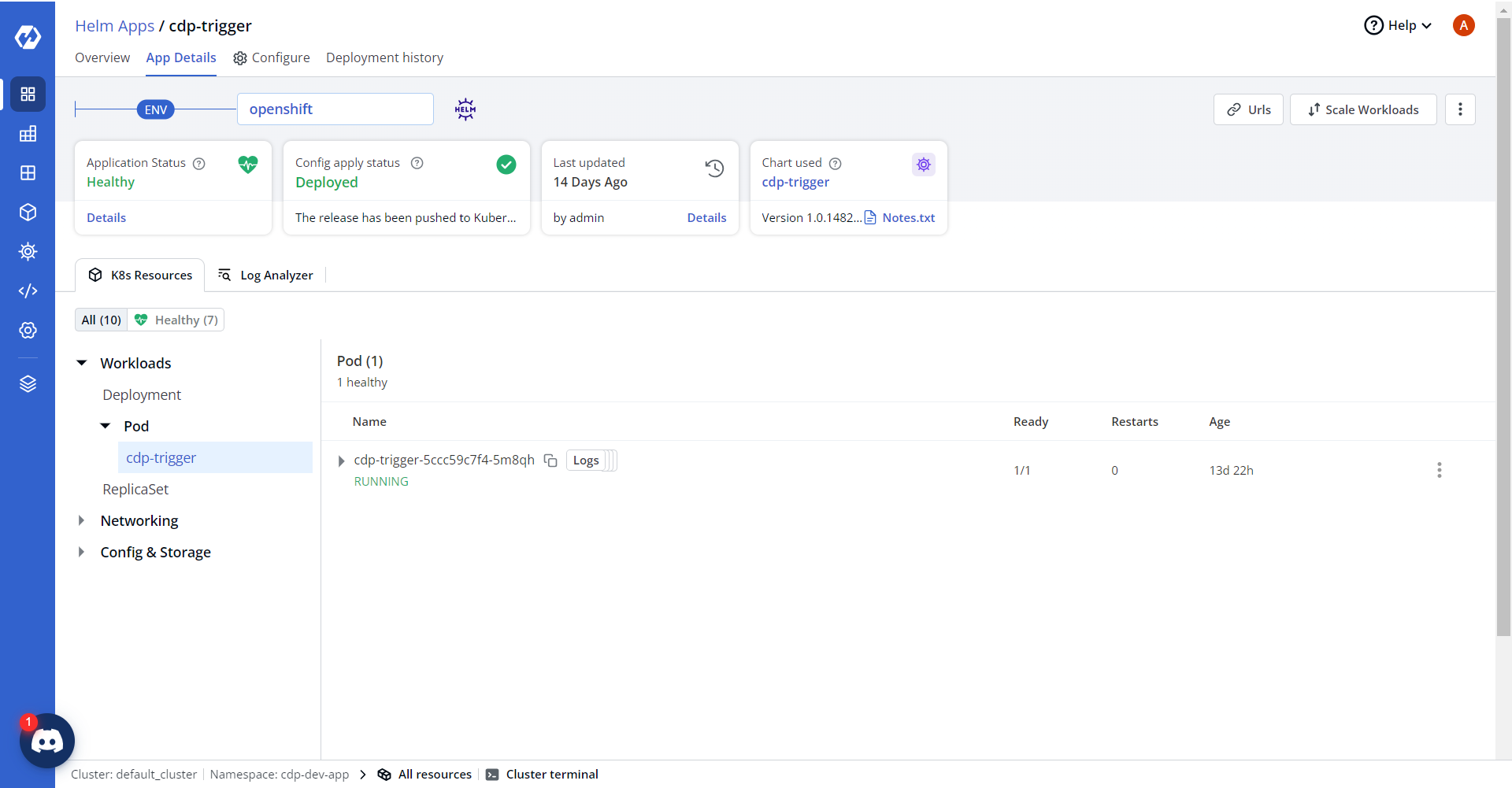

4. On successful deployment, validate the deployment as shown below.
