Deploying CDP Flip

This section provides detailed instructions on how to deploy CDP Flip using the Devtron in the OpenShift.

Prerequisites

Make sure to create cdp-flip secret in HashiCorp vault before deploying CDP Trigger.

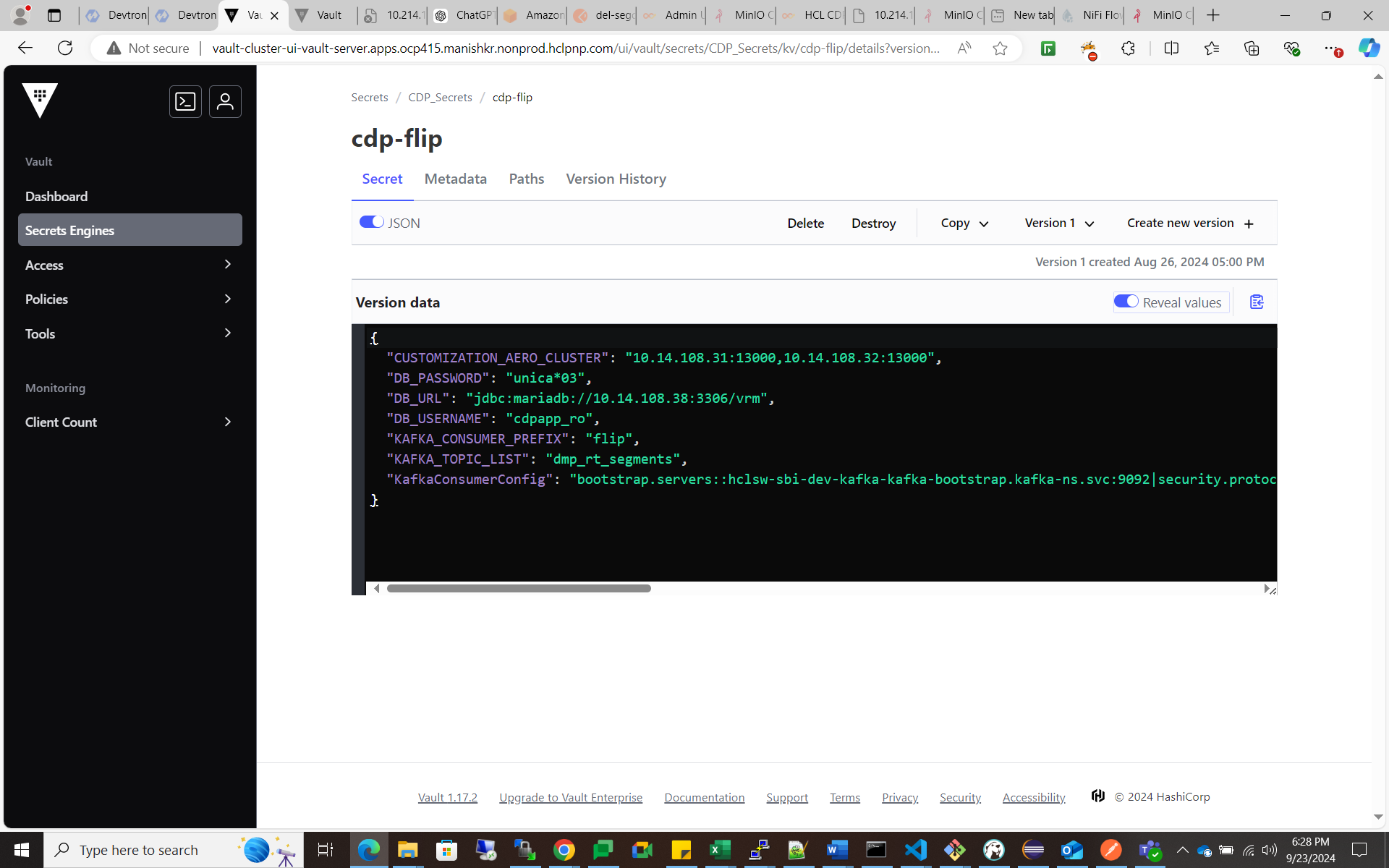

To create CDP Flip secret in the HashiCorp vault, follow the steps below:

  1. Create a cdp-flip secret sample key and value, and update the actual values as shown below.
    {
  "CUSTOMIZATION_AERO_CLUSTER": "<CUSTOMIZATION_AERO_CLUSTER>",
  "DB_PASSWORD": "<DB_PASSWORD>",
  "DB_URL": "<DB_URL>",
  "DB_USERNAME": "<DB_USERNAME>",
  "KAFKA_CONSUMER_PREFIX": "flip",
  "KAFKA_TOPIC_LIST": "dmp_rt_segments",
  "KafkaConsumerConfig": "<KafkaConsumerConfig>"
}
  2. Create separate service account cdp-dev-app-sa with appropriate roles and permissions, and update ConfigMaps data with actual values.
  3. Create required Kafka topics before deployment.

Deploy CDP Flip

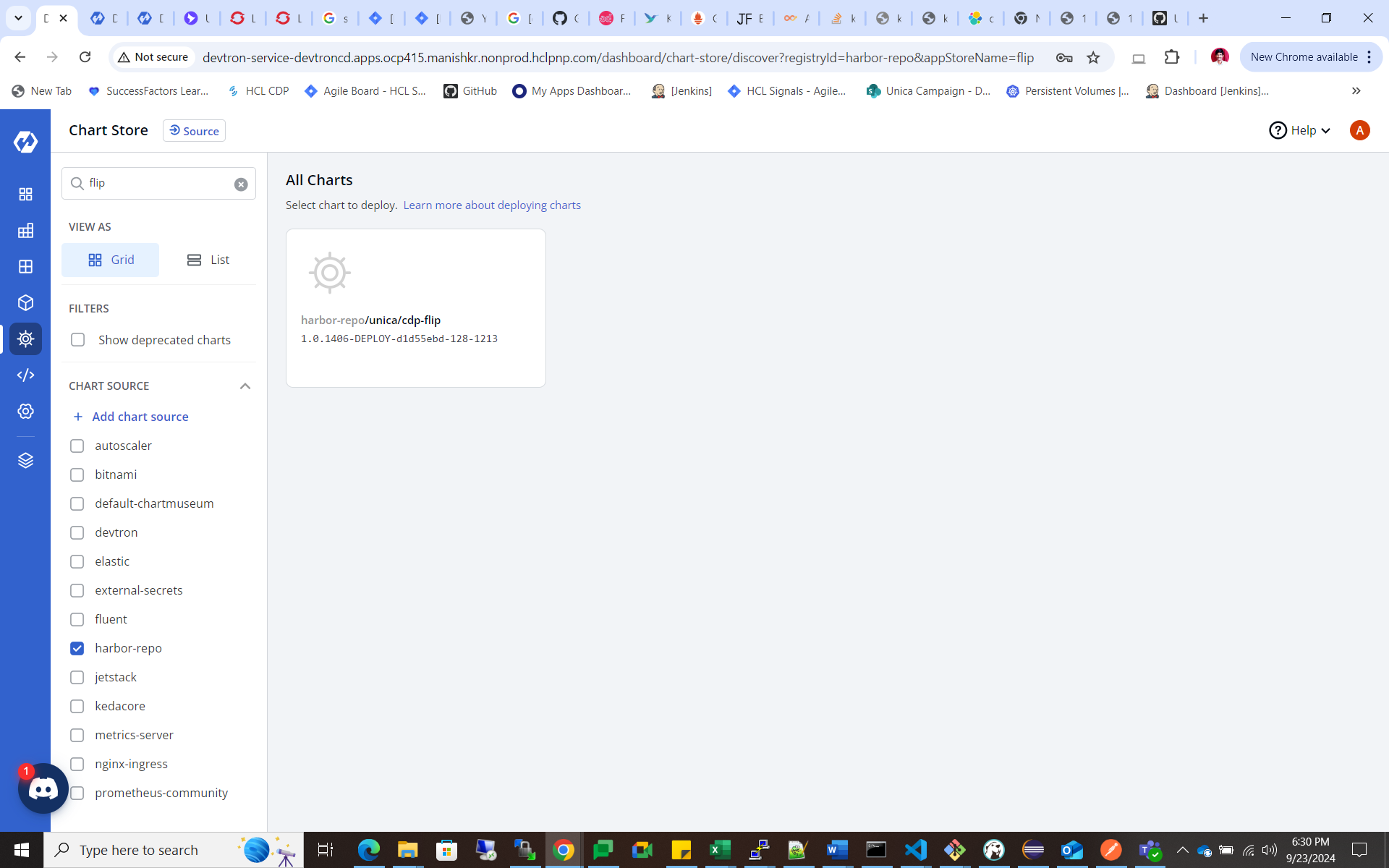

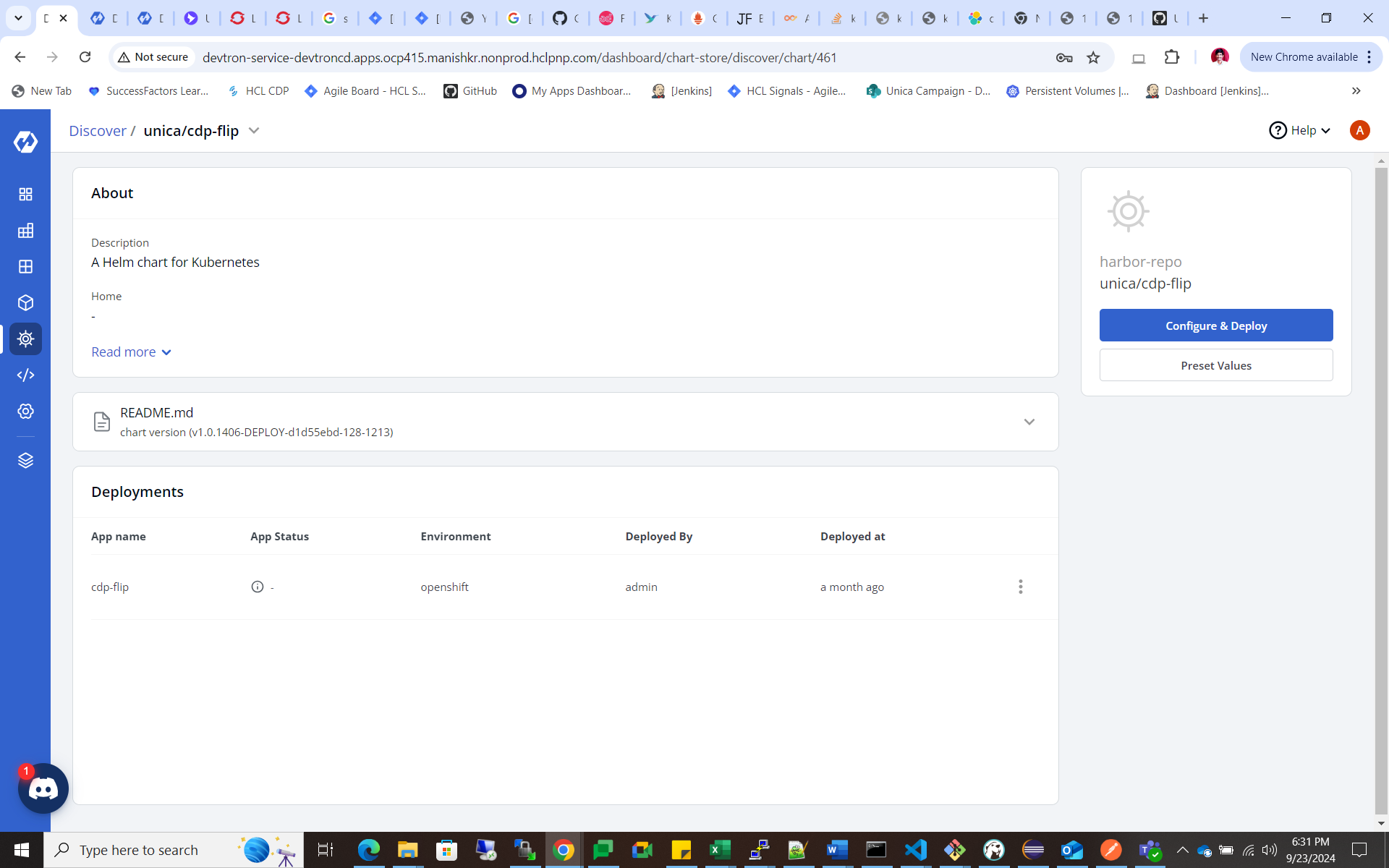

  1. Navigate to the Devtron Chart Store, and select the cdp-flip chart to deploy.

  2. Now, configure and deploy the cdp-trigger charts.

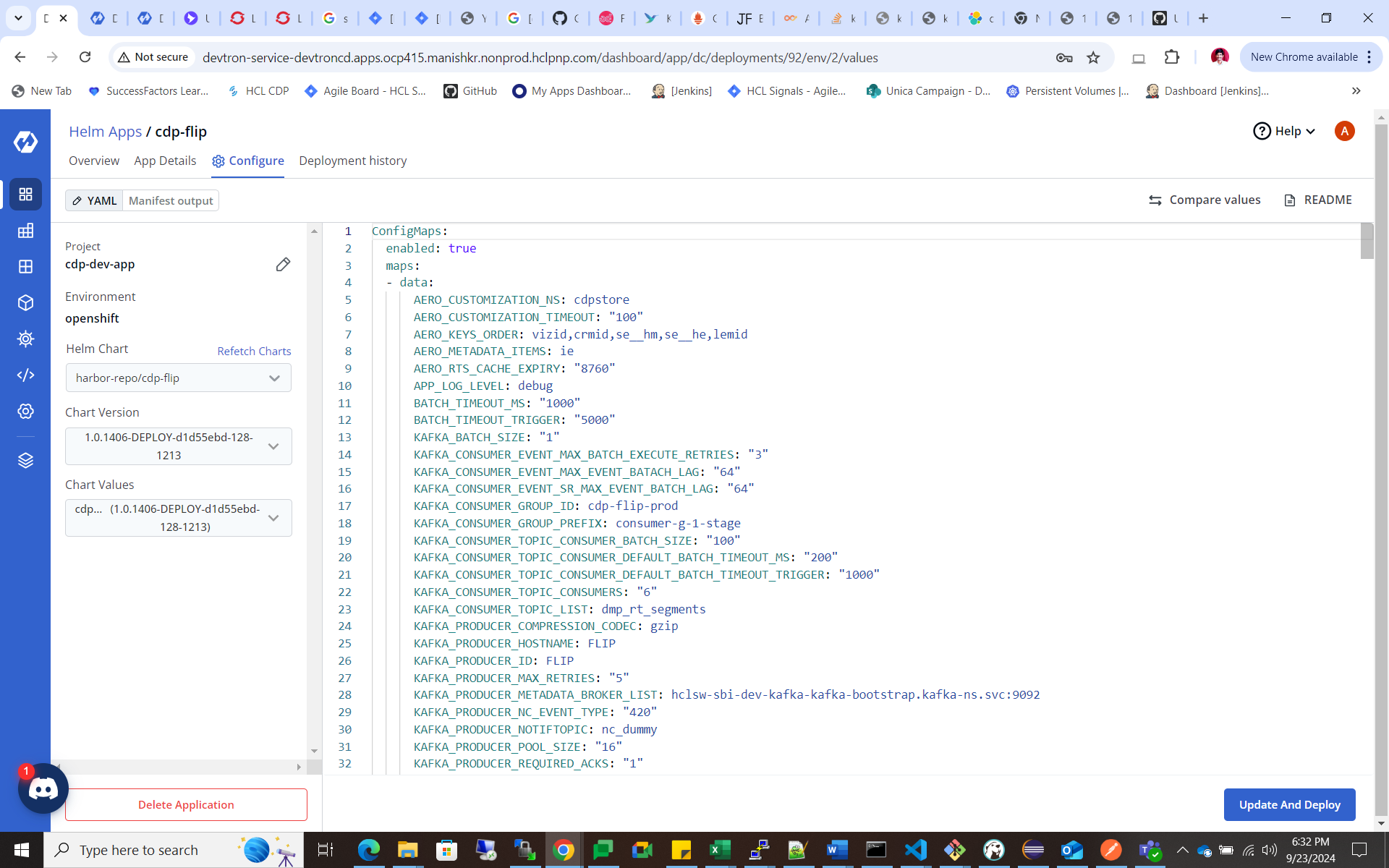

  3. In the YAML section, update the ConfigMap using the below details and deploy the chart.
    APP_INFRA: k8s
APP_REGION: ap-south-1
APP_TYPE: trigger--mu
AWSRegion: us-east-1
AerospikeAppPushBin: ap
AerospikeBookKeepingBin: bk
AerospikeCacheExpiry: "48"
AerospikeEmailBin: email
AerospikeIcAndBookKeepingSetPrefix: impression_
AerospikeIcAndBookKeepingSetTTL: "8760"
AerospikeImpressionCapBin: ic
AerospikeNamespace: cdpstore
AerospikePushFallbackBin: appfb
AerospikePushFallbackSet: fallback
AerospikePushFallbackSetTTL: "48"
AerospikeRamanujanBin: tc
AerospikeRamanujanSet: ramanujan
AerospikeRamanujanSetTTL: "48"
AerospikeSegmentSetTTL: "48"
AerospikeSmsBin: sms
AerospikeTimeout: "100000"
AerospikeTriggerApiBin: ""
AerospikeWebPushBin: wp
AerospikeWhatsAppBin: wsap
AppPushDelayedTriggerTopic: dmp_apn_tr
AppPushImmediateTriggerTopic: dmp_apn_tr
CeleryParamIgnore: IGNORE_IF_PRESENT
CeleryParamOverride: OVERRIDE
CeleryParamTrigger: TRIGGER
CeleryTimeThresholdMinutes: "30"
CeleryTriggerTopic: CeleryETALem
EXECUTOR_SERVICE_MAX_THREADS: "4"
EXECUTOR_SERVICE_MIN_THREADS: "2"
EXECUTOR_SERVICE_QUEUE_SIZE: "100"
EXECUTOR_SERVICE_THREAD_TTL: "5"
EmailDelayedTriggerTopic: dmp_email_tr
EmailImmediateTriggerTopic: dmp_email_tr
InboundKafkaTopic: trigger_inbound
KAFKA_CONSUMER_GROUP_ID: -trigger
KAFKA_POLL_INTERVAL: "200"
KAFKA_PRODUCER_EVENT_TYPE: "5656"
KAFKA_PRODUCER_META: "true"
KAFKA_PRODUCER_POOL_SIZE: "10"
KAFKA_TOPIC_CONSUMER_BATCH_SIZE: 10,10,10
KAFKA_TOPIC_CONSUMER_DEFAULT_BATCH_TIMEOUT_MS: 1000,1000,1000
KAFKA_TOPIC_CONSUMER_DEFAULT_BATCH_TIMEOUT_TRIGGER: 5000,5000,5000
KAFKA_TOPIC_CONSUMERS: 6,6,6
KAFKA_TOPIC_LIST: dmp_rt_segments,ETANotify,dmp_journey_trigger
KafkaCeleryNotify: ETANotify
KafkaJourneyTopic: dmp_journey_trigger
KafkaRTSegment: dmp_rt_segments
KafkaRTSegmentOffline: dmp_rt_segments_offline
LOG_LEVEL_APP: debug
LOG_LEVEL_METRICS: info
LOG_LEVEL_ROOT: info
LOG_LEVEL_UTILS: info
MAX_BATCH_EXECUTE_RETRIES: "3"
MAX_EVENT_BATCH_LAG: "8"
MysqlMapRefreshIntervalMinute: "1"
OPEN_TSDB_HOST: <OPEN_TSDB_HOST>
OPEN_TSDB_HOST_TO_BE_ADDED: "true"
OPEN_TSDB_PORT: "80"
ReportingIntervalInMin: "55"
RtsSegOfflineRefreshDsName: rtsegofflinerefresh
RtsSegOnlineRefreshDsName: rtsegonlinerefresh
RtsSegRefreshDsName: rtsegrefresh
SmsDelayedTriggerTopic: dmp_sms_tr
SmsImmediateTriggerTopic: dmp_sms_tr
TriggerApiDelayedTriggerTopic: dmp_trapi_tr
TriggerApiImmediateTriggerTopic: dmp_trapi_tr
UserFailureKafkaTopic: trigger_failure
WebPushDelayedTriggerTopic: dmp_wpn_tr
WebPushImmediateTriggerTopic: dmp_wpn_tr
WhatsAppDelayedTriggerTopic: dmp_wsap_tr
WhatsAppImmediateTriggerTopic: dmp_wsap_tr
alertToEmailId: ""
emailType: SMTP
fromEmailId: ""
hostname: trigger-prod-mu
smtpHost: <OPEN_TSDB_HOST>
smtpPort: "<smtpPort>"

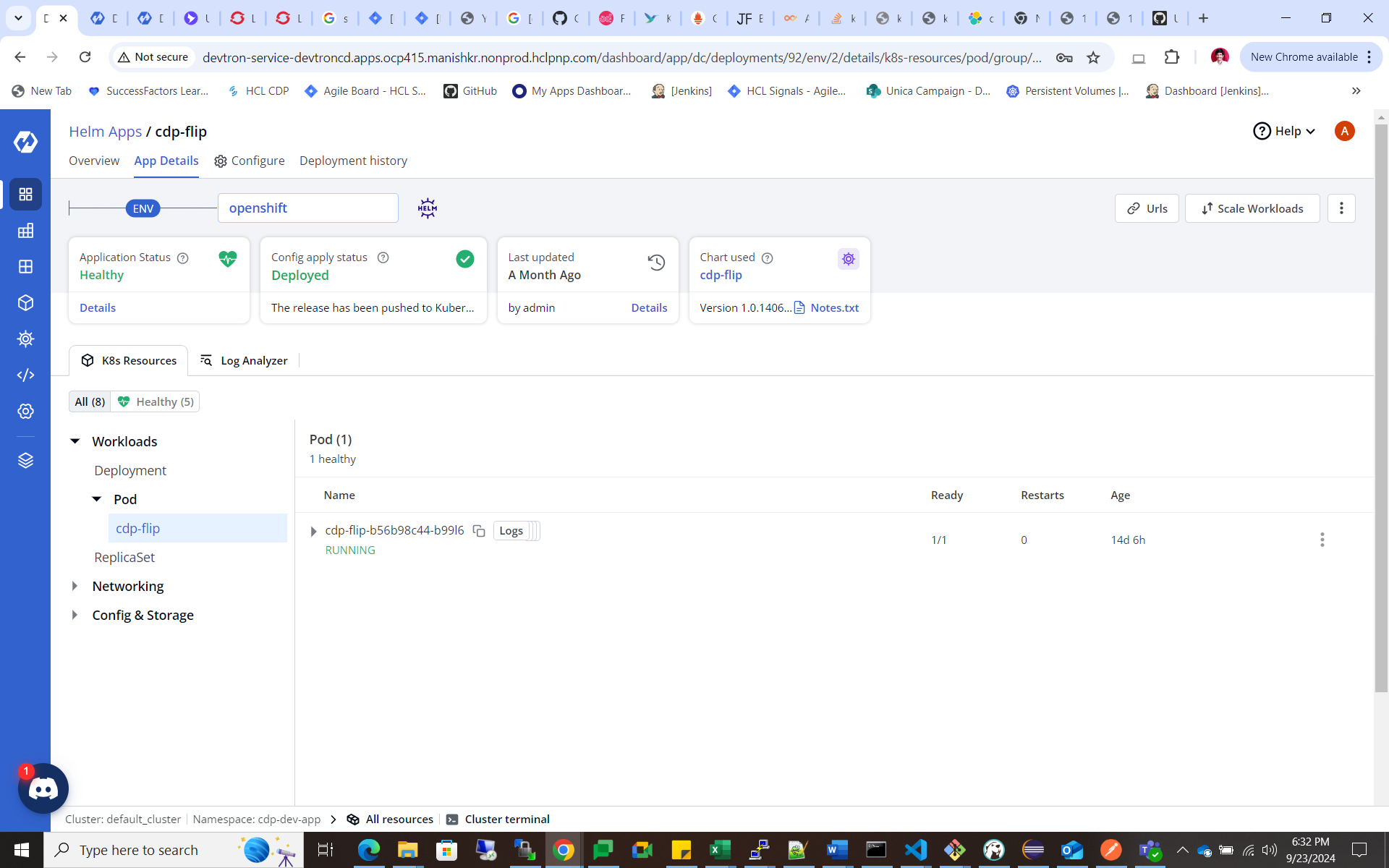

  4. On successful deployment, validate the deployment as shown below.
