Enable Wakeup

The Enable Wakeup feature activates the Wake-on-LAN Medic Utility, which wakes computers according to a defined schedule and also sends wake-up requests to Last Man Standing computers. To set up the Wake-on-LAN Medic Utility, ensure that BESWolMedic.exe version 1.5.30 or later is used and that RESP API is correctly configured on a BigFix server version 9.0 or later to avoid network security warnings.

Enable Wakeup includes a task for enabling the Wake-on-LAN Medic Utility. This utility is used to wake computers based on the schedule defined in the Schedule Wake-on-LAN wizard. It also sends a wake-up request to any Last Man Standing computers that are shut down.

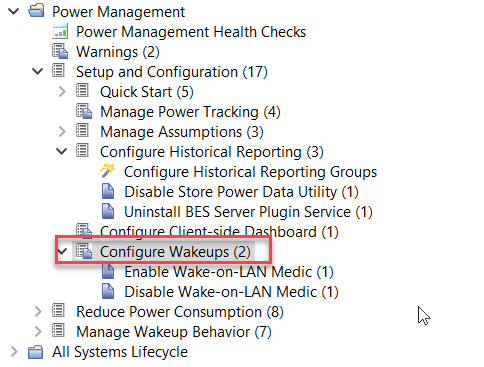

Enable Wakeup task in the BigFix Power Management navigation tree

In addition to the BigFix Wake-on-LAN technology, BESWolMedic.exe version 1.5.30 or later uses a directed broadcast that does not require Wake-on-LAN forwarders or Last Man Standing computers.

To enable the Wake-on-LAN Medic Utility, click the Enable task in the List Panel, and then click in the Actions box of the Task window.

Note: Ensure that RESP API is set up correctly to avoid errors and for the Wake-on-LAN Medic Utility to function properly. RESP API is supported by BigFix server version 9.0 and later.

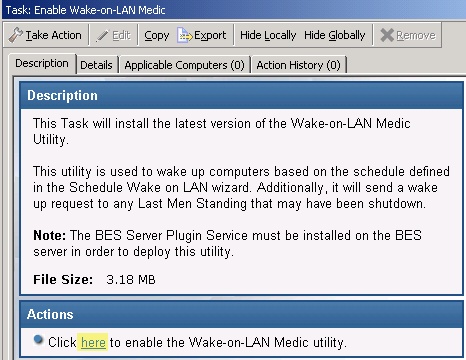

Actions box in the Enable Wakeup task window for deploying the Wake-on-LAN Medic Utility

When the utility runs for the first time, the BigFix Server firewall may trigger a network security warning. If network access is not approved, no directed broadcast is issued. The existing BigFix Wake-on-LAN technology will continue to work.
