FTP Session

Flow of events:

1. Users can create an FTP session using the deployment wizard.
2. Once the page is created successfully in the deployment wizard, access the page in the browser.
3. Once the page is accessed, click on that FTP icon and start the session.
4. Once the session is established, log in to FTP by using username and password.
5. FTP Supports 3 protocols => FTP, FTPS, SFTP(SSH-FTP).
6. FTPS use tls_keystore_path, tls_passphrase, wellknown_keystore_path, wellknown_keystore_passphrase properties in prodConfig.properties file for login.
   • tls_keystore_path: By default, the value for this property is “default” which means it will take /ZIEWeb/CustomizedCAs.jks file for FTP-TLS login. If user wants to use different JKS, then the user must provide a complete path of the JKS.
   • tls_passphrase: the password for the TLS keystore.
   • wellknown_keystore_path: By default, the value for this property is “default” which means it will take / ZIEWeb/WellKnownTrustedCAs.jks file for FTP-TLS login. If user wants to use different JKS, then the user must provide a complete path of the JKS.
   • wellknown_keystore_passphrase: the password for the Wellknown keystore.
7. FTP-SSH support two types of authentication Password and Public Key Authentication. For Password authentication user can give username and password to login. For performing FTP-SSH Public Key Authentication provide the following information:
   • KeyStore Password
   • Public Key Alias
   • Keystore File
   Note: User can see keystore password and public key alias fields if SSH public key authentication is enabled for the page.
8. User can either perform upload or download at a time. If transfer is in progress and user tries another transfer operation “Transfer in progress” message will appear.

Toolbar Icons:

In the FTP toolbar, users have Duplicate, Properties, ASCII, Binary, and Close icons.

Upload Section:

Users can upload files using this option.

Steps to upload the files:

1. Click the Browse button.
2. Browse and select the required files.
3. File names will be displayed in the browse span.
4. Click the Upload button.
   • Users can see file transfer information in the transfer progress table.
   • Users can also see the number of files added in files added.
5. Click the Cancel button to remove all files from the browse span.

Remote Directory Section

Objects

• Users will have Refresh, Home, Delete, and Download buttons in the Objects tab and a Host table to list files.
• In Addition, create folder and file icons were present for creating folder and file.
• Users have options for sorting the files and changing the view of the table to Sort by and View by.
• Users can see the host table in a more readable format by clicking the Maximize icon.
• Users can rename and delete a single file by right-clicking it.

Sharing

In this tab, the user will see limitations for the file transfer for both uploads and downloads.

The user can choose the maximum file size up to 2GB (combined size of selected files) and at a time maximum 3 files can be transferred(upload/download). Zip and Parallel file transfer modes are available in the download section. The default is Zip. Use the resetbutton to reset values to default.

Transfer Progress Table:

This table gives information about the transfer. By default, the table is minimized, use maximize icon to display the table. The following are the fields in the table:

• TaskID
• Source
• Destination
• Status
• Percentage

Zip file download progress is indeterminant.

FTP/VT Backend:

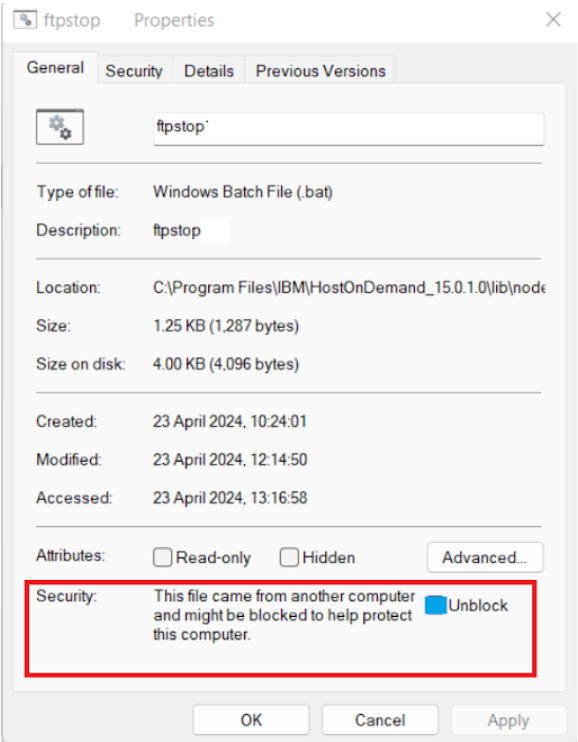

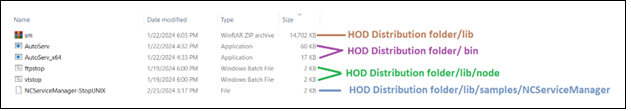

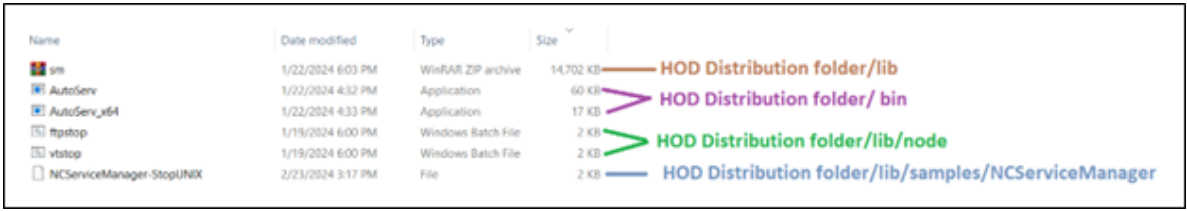

FTP Backend service must be started externally in the server side. User can use start and stop scripts provided for FTP Backend service by changing the appropriate path in those files.

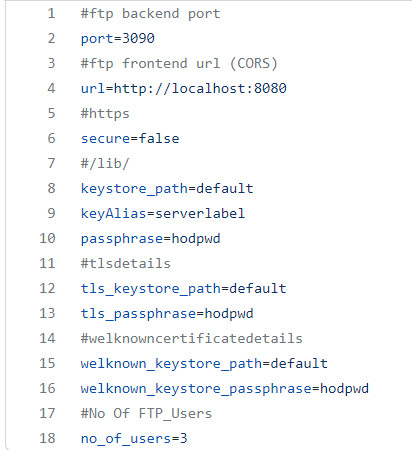

VT Backend service can be started using Admin Console “Service” tab. User can perform start and stop operation here.Note: If user wants to restart the NCServiceManager, VT service should be stopped first before restarting the NCServiceManager.To configure the FTP/VT backend user must specify some configuration details in the prodConfig.properties.

#ftp backend port
port=3090
#ftp frontend url (CORS)
url=http://localhost:8080
#https
secure=false
#/lib/
keystore_path=default
keyAlias=serverlabel
passphrase=hodpwd
#tlsdetails
tls_keystore_path=default
tls_passphrase=hodpwd
#welknowncertificatedetails
welknown_keystore_path=default
welknown_keystore_passphrase=hodpwd
#No Of FTP_Users
no_of_users=3

• port: Port on which the FTP/VT backend (Node js) is running.
• url: User can add multiple app server URLs separated by comma(,) and this is used for CORS mechanism. Only specified URLs are authenticated to access FTP backend.

  Syntax: http://AppserverMachineIp:AppserverPort

  Example: http://127.0.0.1:8080

• secure: Boolean variable is used to enable the https in backend server.
• keystore_path: By default, the value for this property is “default” which means it will take /bin/ServerKeyStore.jks file for https. If user wants to use different JKS, he/she must give complete path of the JKS.
• keyAlias: Alias to the key that needs to be used for https.

The following parameters applicable are only for FTP Backend:

• tls_keystore_path: By default, the value for this property is “default” which means it will take /ZIEWeb/CustomizedCAs.jks file for FTP-TLS login. If user wants to use different JKS, he/she must give complete path of the JKS.
• tls_passphrase: the password for the TLS keystore.
• wellknown_keystore_path: By default, the value for this property is “default” which means it will take / ZIEWeb /WellKnownTrustedCAs.jks file for FTP-TLS login. If user wants to use different JKS, he/she must give complete path of the JKS.
• wellknown_keystore_passphrase: the password for the Wellknown keystore.
• no_of_users: Number of concurrent users login that backend can support. (If user try to login but concurrent login capacity was already occupied -> then ‘Number of users exceeds’ error will be thrown) .

Important Tech Note:

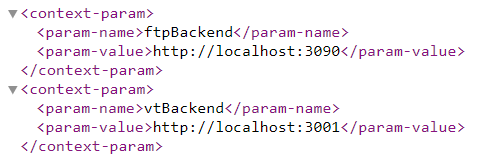

• Make sure that user should add FTP and VT backend URL in ftpBackend and vtBackend params in web.xml of ZIEWEB client respectively.

  Syntax: http://FtpBackendIP:FtpBackendPort and http://VtBackendIP:VtBackendPortExample: http://127.0.0.1:3090 and http://127.0.0.1:3001

  <context-param>
  	<param-name>ftpBackend</param-name>
  	<param-value>http://localhost:3090</param-value>
  	</context-param>
  	<context-param>
  	<param-name>vtBackend</param-name>
  	<param-value>http://localhost:3001</param-value>
  	</context-param>

• CN(Common Name) of the certificate for must match Destination address for FTP-TLS login.
• Supported algorithms for SFTP and VT-SHH are =>(Dummy Link).
• JKS holding your private key for public key authentication of SSH protocol will be transferred from client machine to server machine.
• Minimum requirement for FTP Backend Service=> 10 users -> 8GB RAM , 500 GB memory.
