Enterprise Key Management (EKM) for Volt Foundry

Overview

Enterprise Key Management (EKM) in Volt Foundry provides a secure, centralized way to manage, and use credentials across Foundry services. Administrators and owners can create and manage credentials, which are securely encrypted and stored in the database, while developers provide keys when configuring services — without ever accessing the actual secret values.

Key Capabilities

  • Admin-Only Credential Management: Only Admin or Owner users can create, update, delete, and manage credentials in the EKM keystore.
  • Credential Abstraction for Developers: Developers reference credential IDs instead of actual secret values when configuring services.
  • Encrypted Storage: All credential values are stored encrypted in the Foundry database. Sensitive fields are never exposed in plaintext.
  • Credential Masking: Secret fields (passwords, client secrets, access keys) are masked in all API responses and console views.
  • Ownership Control: Credential owners can restrict update permissions to themselves, preventing other admins from modifying their credentials.
  • Multiple Credential Types: Supports a variety of credential types for different Foundry service adapters.
  • Custom Keys: Create flexible JSON-based credentials with named fields that developers reference using placeholder syntax in any service configuration.
  • Credential Usage Tracking: The platform tracks which services reference each credential, enabling safe lifecycle management.
  • Delete Protection: Credentials actively used by services cannot be deleted until associations are removed.

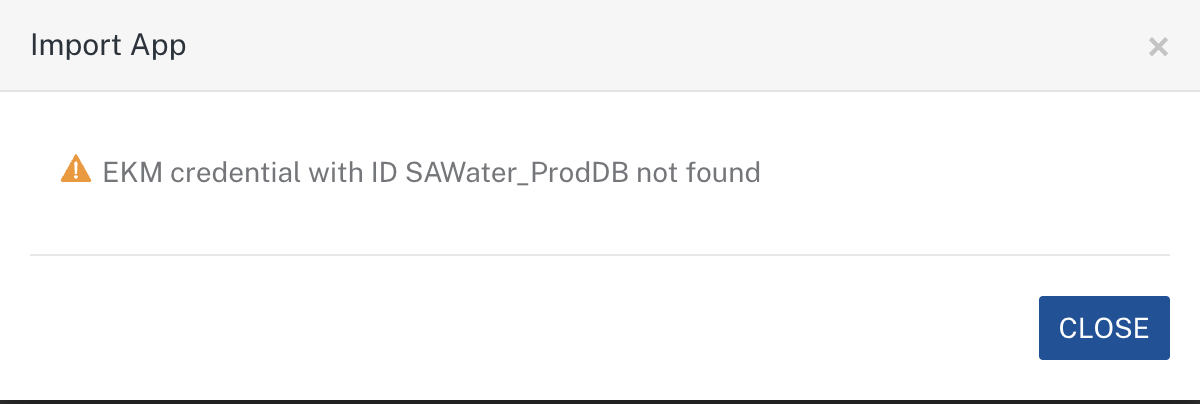

  • Import Validation: When importing Foundry applications, missing EKM credential references are detected and reported as warnings.

Supported Channels

  • On-Premises
  • Cloud

Access Control

EKM enforces role-based access control at the account level.

Role Manage Credentials Use Credentials in Services
Owner Yes Yes
Admin Yes Yes
Member/Developer No Yes (select/provide credential IDs only)

Note: Only users with Admin or Owner role can access the EKM settings page to create, edit, delete, or change ownership of credentials. Developers can only select available credential IDs when configuring services.

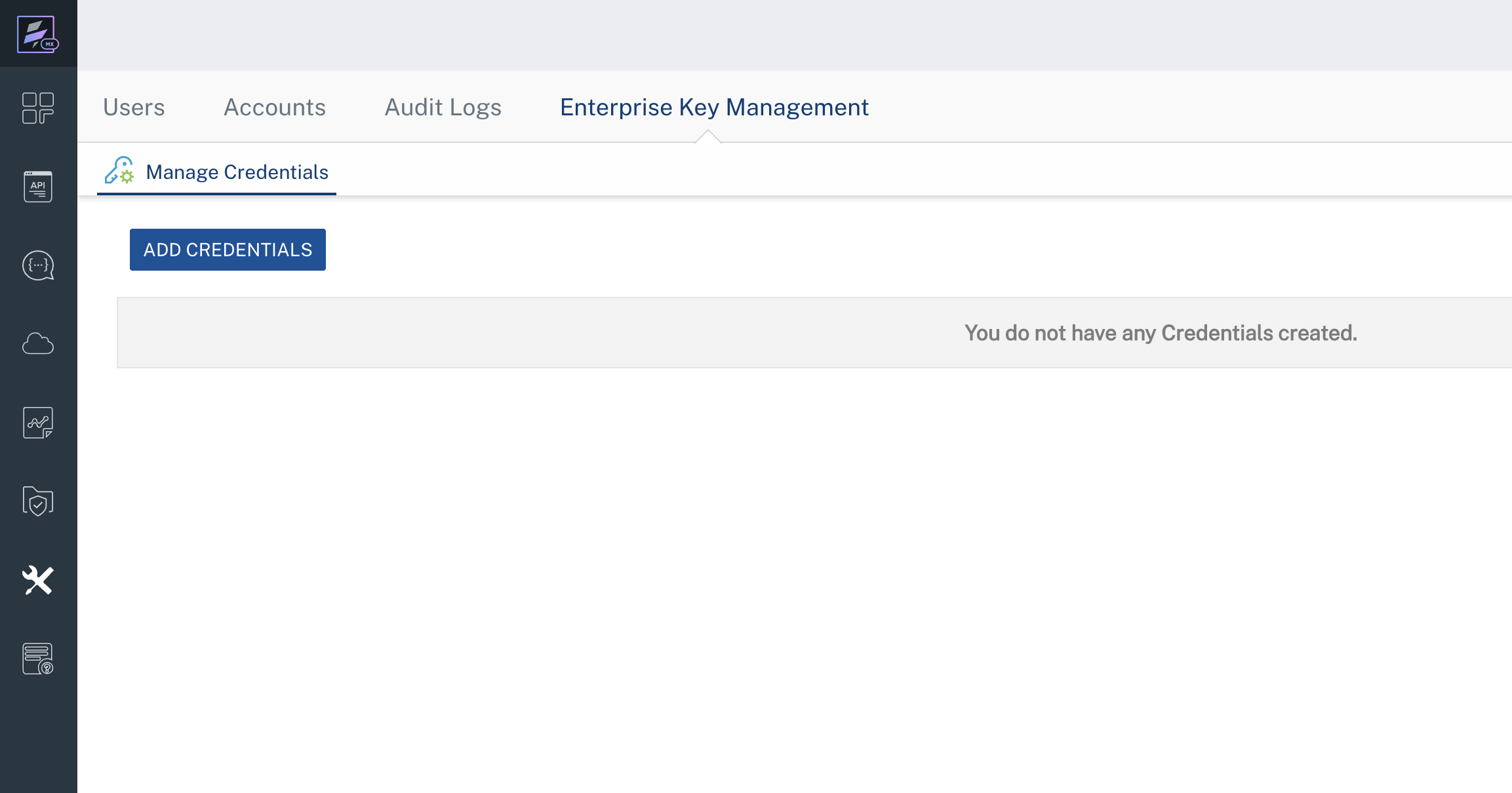

  1. Log in to the Volt Foundry Console.
  2. Navigate to Settings from the left sidebar.
  3. Click Enterprise Key Management.
  4. The Manage Credentials tab is displayed, showing two sub-tabs:
  5. Credentials — For standard credential types linked to specific adapters.

  6. Custom Keys — For flexible JSON-based key/value credentials.

Managing Credentials

Supported Credential Types

EKM supports the following credential types:

Credential Types

Credential Type Fields Used By
OAuth2.0 Client ID, Client Secret Identity Services (OAuth2 providers)
Database JDBC URL, User ID, Password Relational Database adapters
S3 Bucket Access Key, Access Secret, Backend URL, Region, Bucket Path, Service Namespace AWS S3, Cloudian adapters
Salesforce Login URL, Client ID, Client Secret, Username, Password Salesforce adapters
Username/Password User ID, Password XML, SOAP, JSON, API Proxy, Text adapters (Basic/NTLM auth)
AWSAPIGateway Access Key ID, Secret Key AWS API Gateway adapter
Red Hat PAM Endpoint URL, Username, Password Red Hat PAM adapter
MongoDB Host, Port, Database Name, Username, Password MongoDB adapter
Authentication Certificate Varies by storage type (see below) OAuth2 Identity with Certificate-Based Authentication

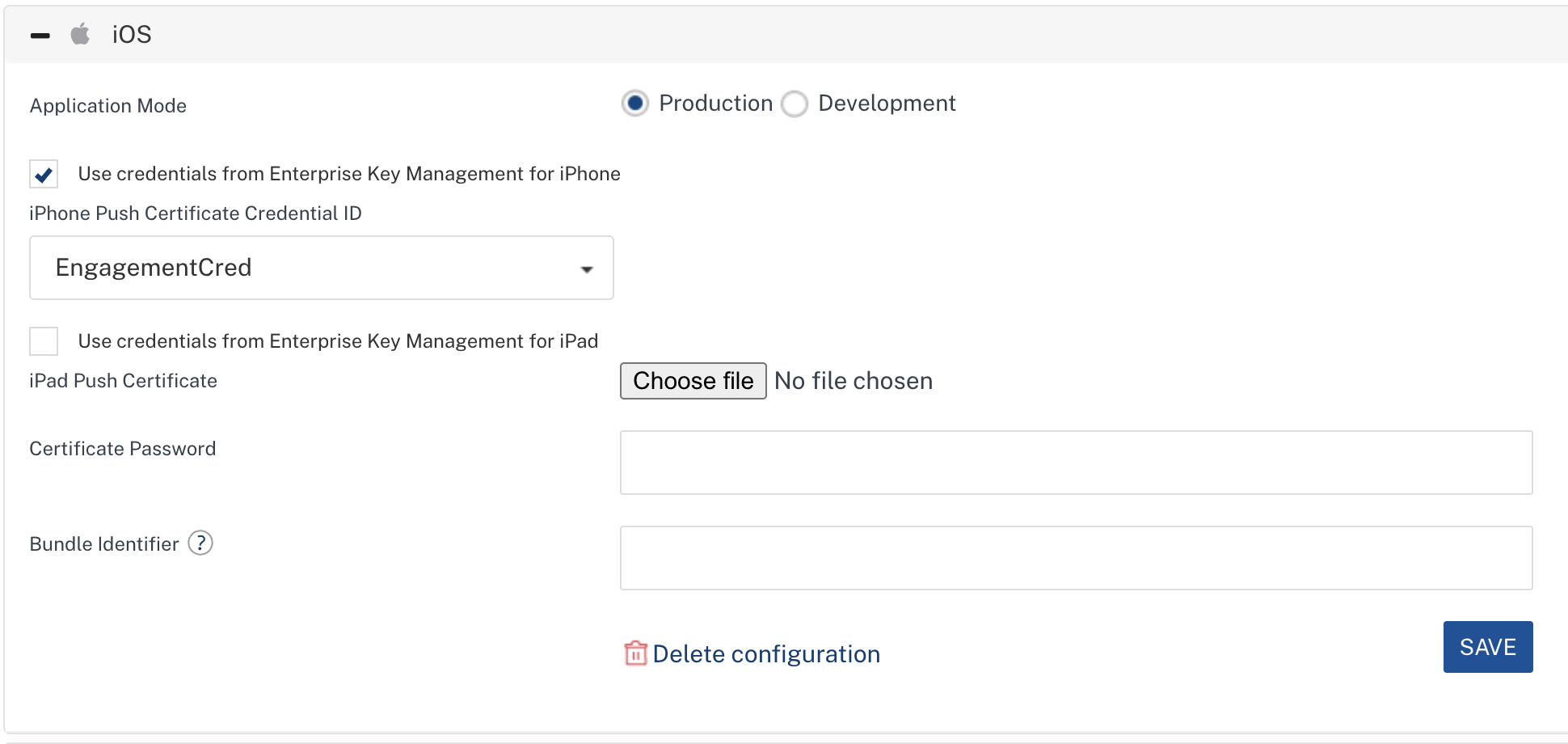

KMS Push Certificate Certificate File, Certificate Password, Bundle Identifier Engagement Services (iOS Push)

Authentication Certificate Sub-Types

The Authentication Certificate credential type supports two storage modes:

Storage Type Fields
Azure Key Vault Azure Key Vault URI, Authentication Method (Client Secret or Certificate), Thumbprint, Key Name, Key Version (Optional), API Version, Microsoft Entra Tenant ID, OAuth 2.0 Client ID, JWT Signing Client ID, and Client Secret or Certificate file
Foundry Managed OAuth 2.0 Client ID, Private Key file (.pem/.pfx/.p12)

Custom Keys Type

The Custom Keys type allows administrators to store arbitrary JSON key/value data that developers can reference using placeholder syntax in any service configuration field.

Credential Type Fields Used By
Custom Key/Value Pair User-defined key/value pairs with Type metadata (String, Number, Boolean) Any Identity, Integration or Object service configuration field

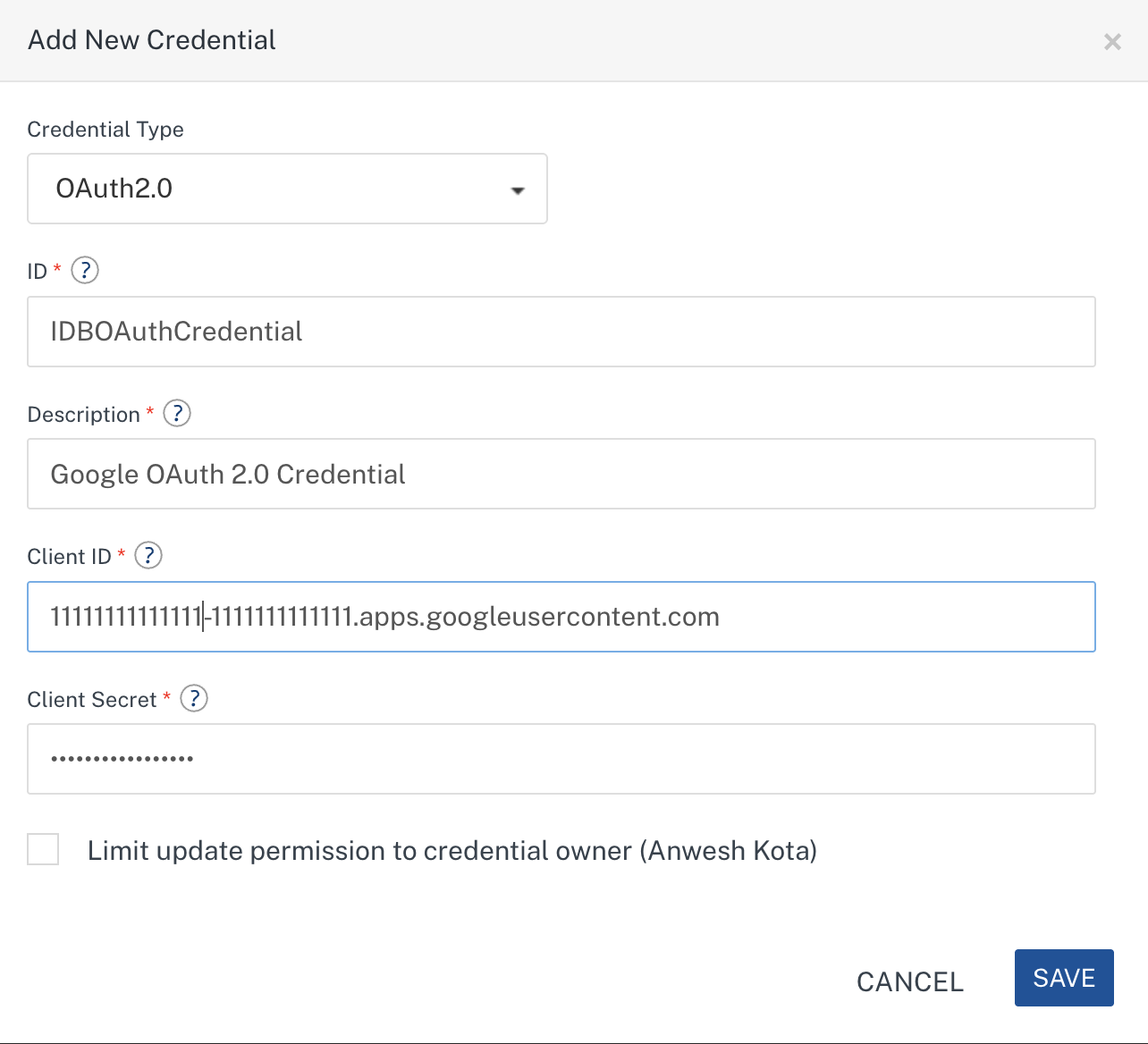

Creating a Credential

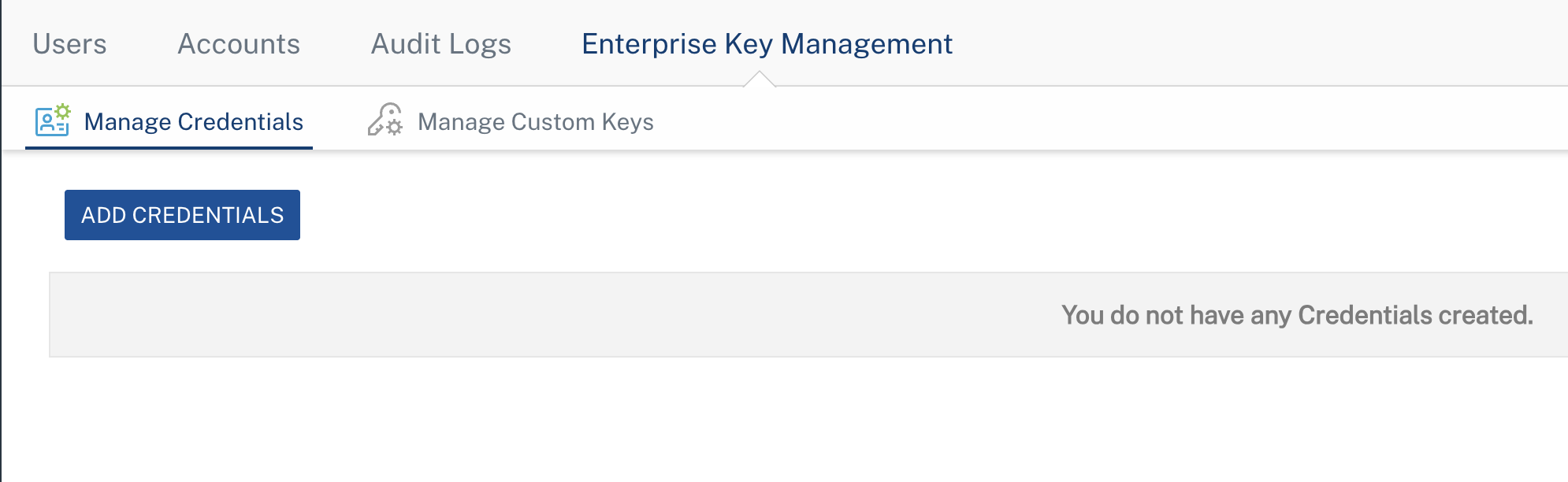

  1. Navigate to Settings > Enterprise Key Management.
  2. Ensure the Manage Credentials tab is selected.

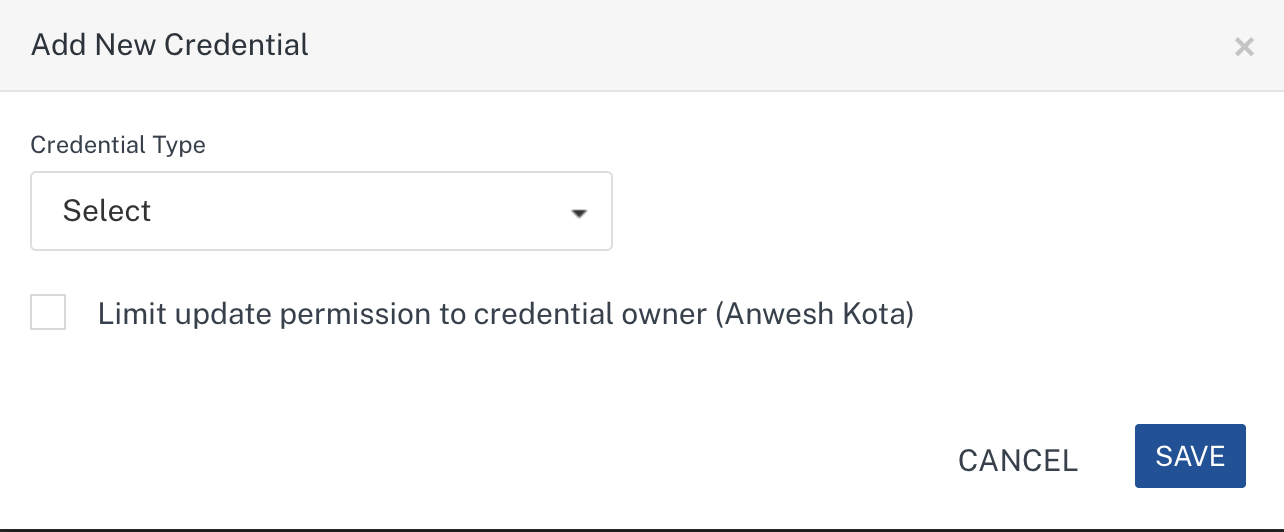

  3. Click ADD CREDENTIALS.

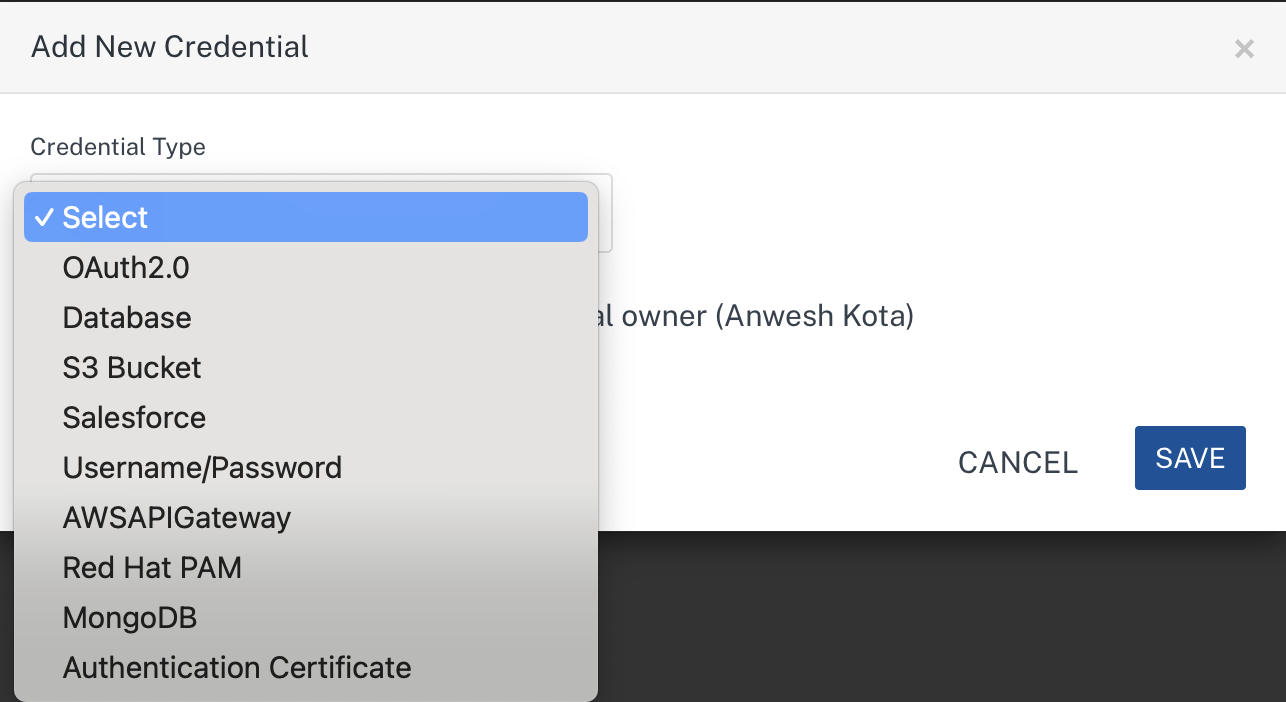

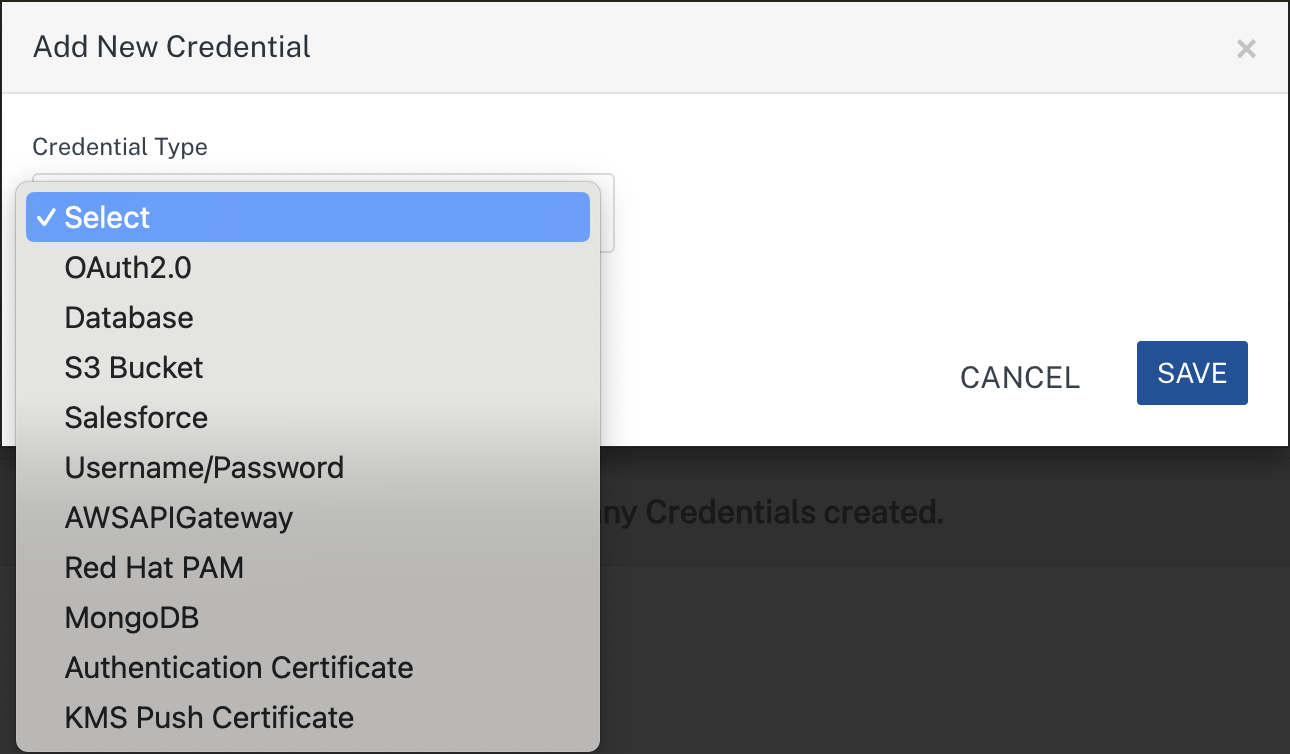

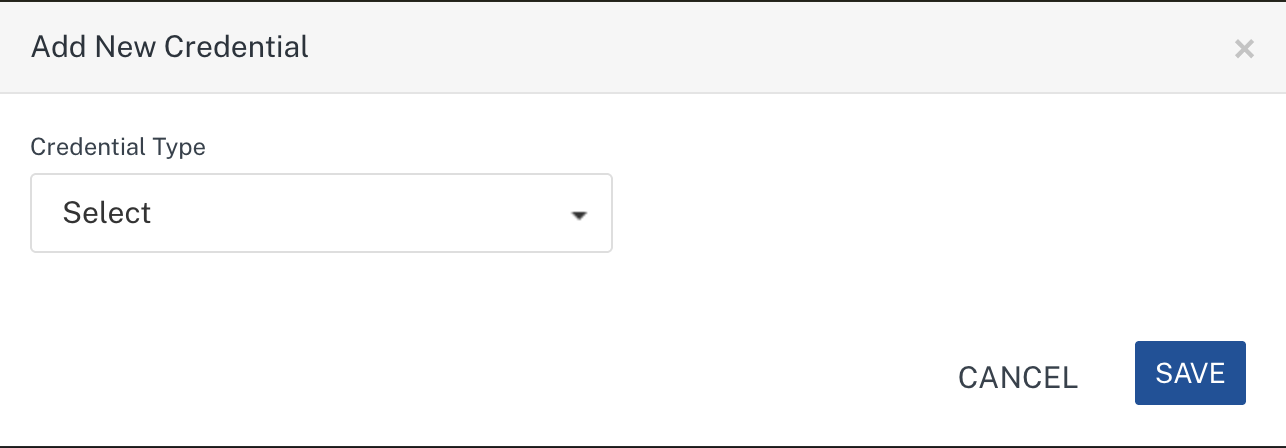

  4. In the Add New Credential dialog, select a Credential Type from the dropdown.

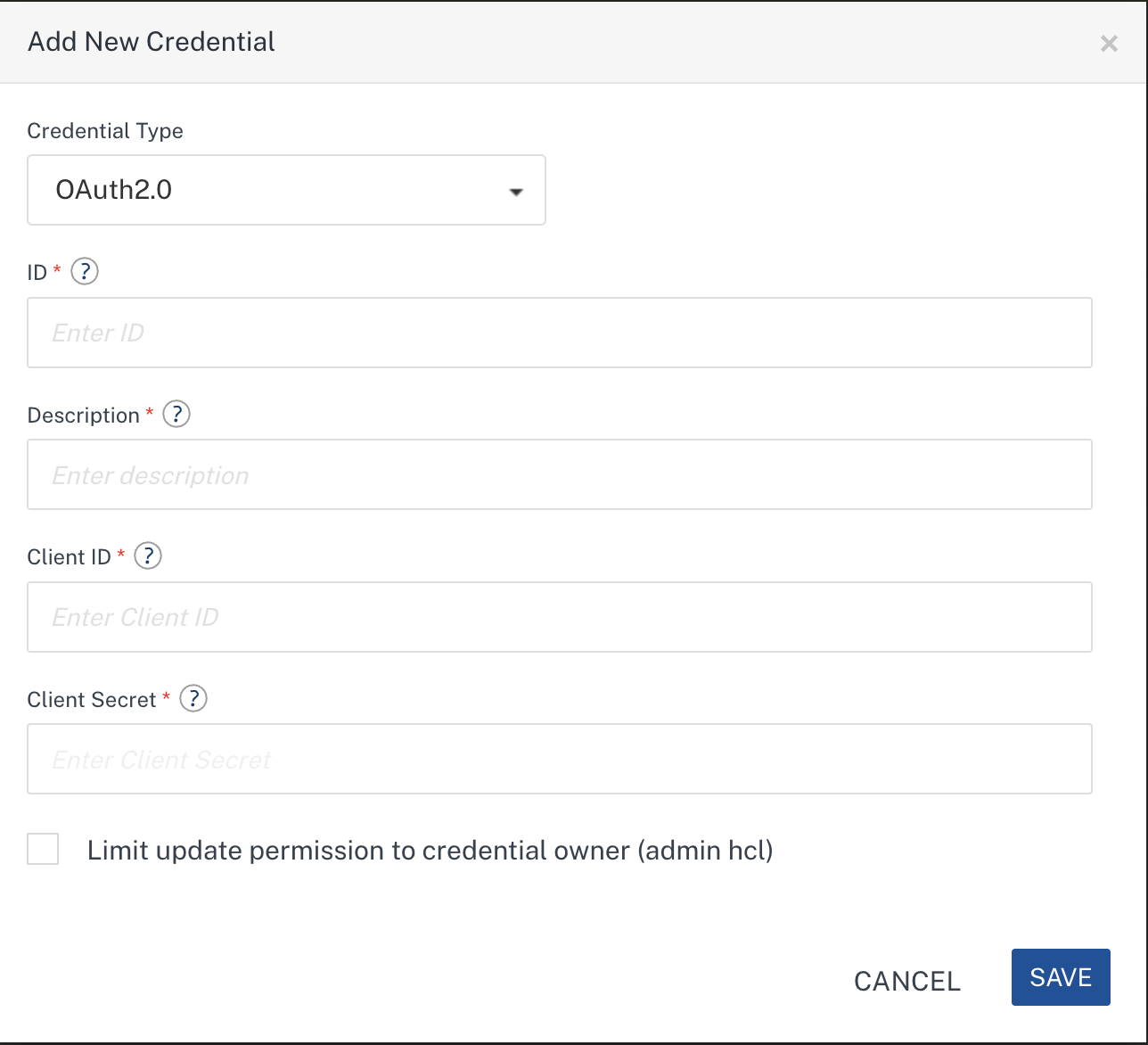

  5. Fill in the required fields based on the selected credential type.

    • ID — A unique identifier for the credential (used by developers to reference it in services).
    • Description — A brief description of the credential.
    • Type-specific fields (for example, Client ID and Client Secret for OAuth 2.0).

  6. Optionally, select Limit update permission to credential owner to restrict editing to the creator of this credential.

  7. Click Save.

    Note: For the Database credential type, the JDBC URL is validated for connectivity before the credential is saved. If the URL is not valid, an error is displayed.

    Note: For the Authentication Certificate credential type, you can upload .pem, .pfx, or .p12 certificate files. The maximum file size is 1 MB.

Creating Custom Keys

Custom Keys allow you to store structured JSON data that can be referenced in any service configuration using the ${credentialId.key} placeholder syntax.

  1. Navigate to Settings > Enterprise Key Management.
  2. Click the Manage Custom Keys tab.

  3. Click Add New Custom Keys.

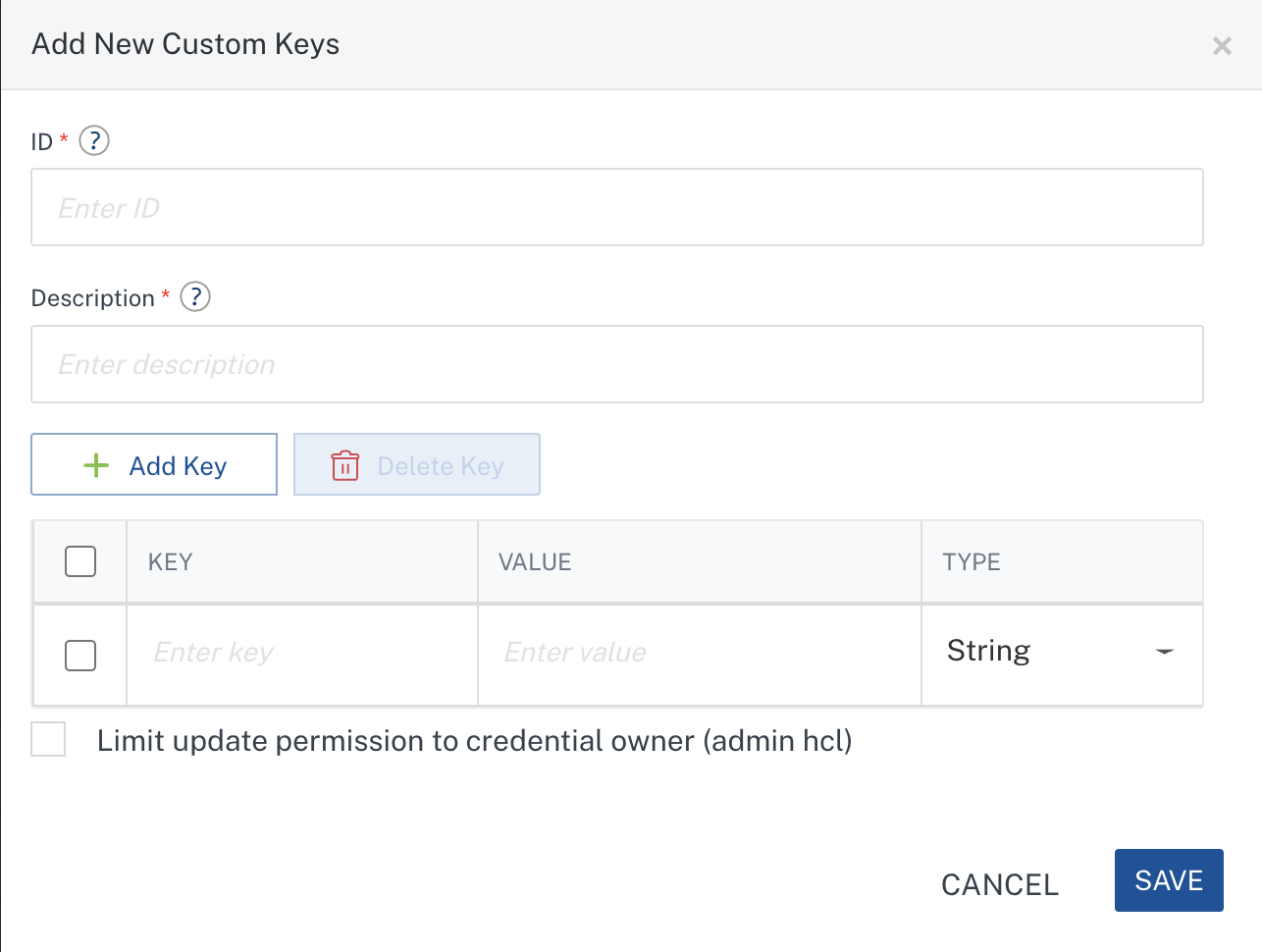

  4. In the Add New Custom Keys dialog:

    • ID — Enter a unique identifier (for example, dbcred, apikeys, or smtp_config). This ID is used by developers in placeholder syntax.
    • Description — A brief description of the credential's purpose.

  5. In the Key/Value Pairs section, add one or more rows:

    • Key — The field name (for example, userid, password, host, or port).
    • Value — The actual secret or configuration value.

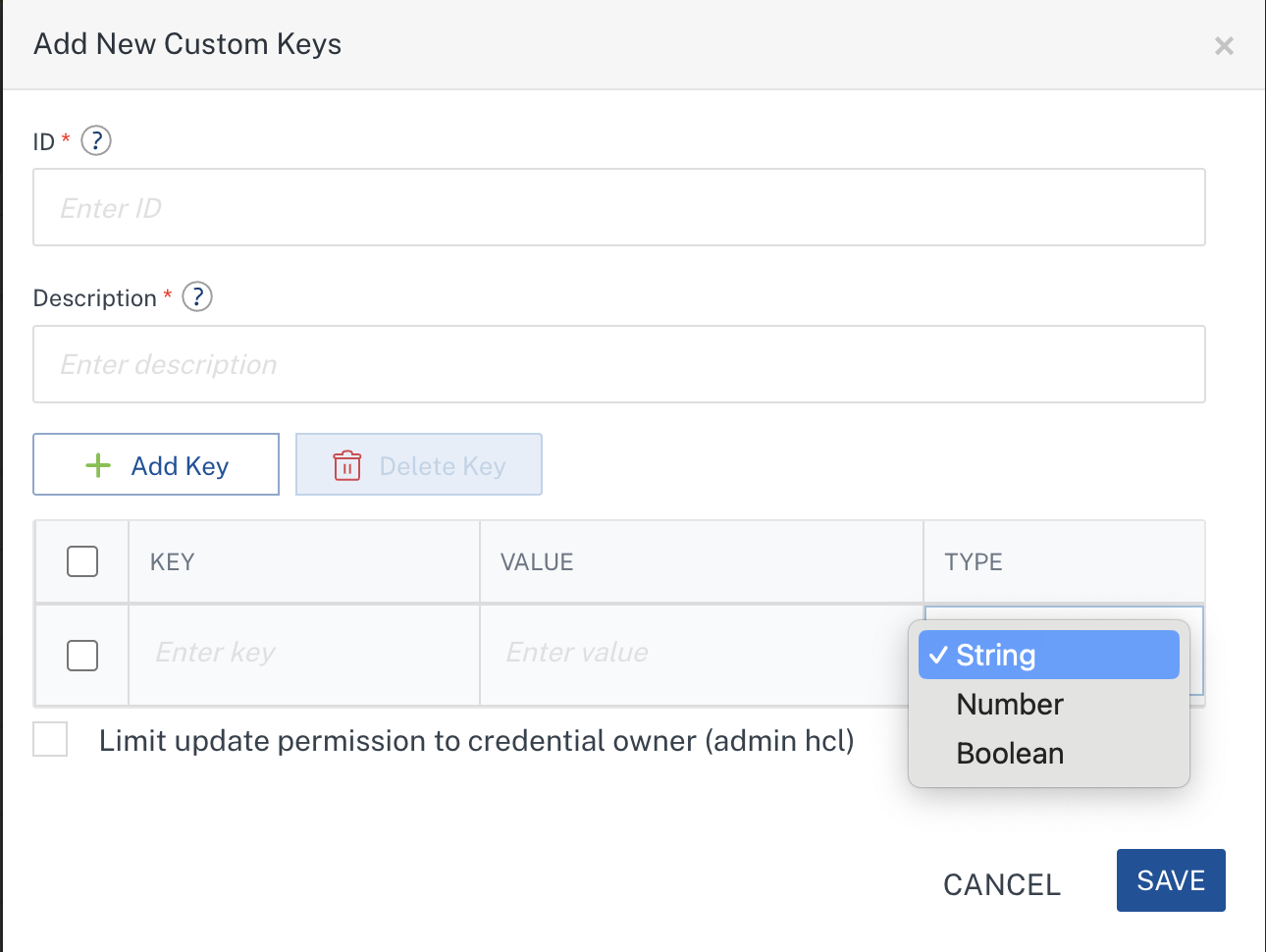

    • Type — Select the value type: String, Number, or Boolean.

  6. Use the Add Key button to add more key/value pairs. Use the checkbox selection and Delete Key to remove rows.

  7. Optionally, select Limit update permission to credential owner to restrict editing to the creator.

  8. Click Save.

Value Type Validation

The Type field enforces input validation to catch errors early:

Type Allowed Values Example
String Any text admin@example.com, jdbc:mysql://host:3306/db
Number Valid numeric values (integers or decimals) 3306, 99.95, -1
Boolean true, false, 1, or 0 true, false

Note: If you select Number and enter a non-numeric value, an error is displayed: "Please enter valid number values for Number type rows." Similarly, for Boolean, only true, false, 1, or 0 are accepted.

Example Custom Credentials

Credential ID: dbcred

Key Value Type
userid app_admin String
password S3cur3P@ss! String
host db-prod.internal.net String
port 5432 Number
useSSL true Boolean

Developers reference this credential in service configurations as: - ${dbcred.userid} → resolves to app_admin - ${dbcred.password} → resolves to S3cur3P@ss! - ${dbcred.host} → resolves to db-prod.internal.net - ${dbcred.port} → resolves to 5432 - ${dbcred.useSSL} → resolves to true

Editing Credentials (Or Custom Keys - Via The Corresponding Screens)

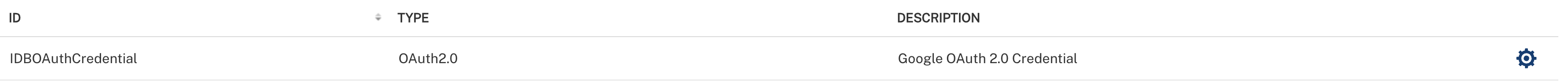

  1. Navigate to Settings > Enterprise Key Management.
  2. Locate the credential in the credentials list (on either the Manage Credentials or Manage Custom Keys tab).

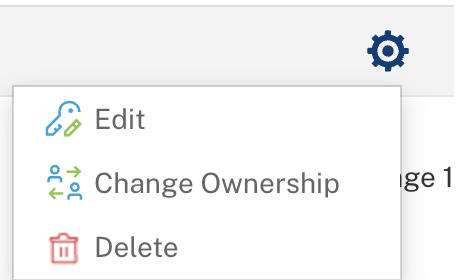

  3. Click the gear icon (⚙) for the credential and select Edit.

  4. Modify the required fields in the Edit Credential dialog.

    Note: The Credential Type and ID cannot be changed after the credential is created.

    Note: Sensitive fields (passwords and secrets) are displayed as ****. If you leave a masked field unchanged, the existing value is retained.

    Note: For Custom Keys, you can add new key/value pairs, remove existing pairs, or update values. Removing a key permanently deletes it from the credential, and any placeholder referencing that key will no longer resolve.

  5. Click Save.

Deleting Credentials (Or Custom Keys - Via The Corresponding Screens)

EKM enforces delete protection for credentials that are actively referenced by services. This prevents accidental deletion of credentials that would break running services.

When No Services Reference the Credential

  1. Navigate to Settings > Enterprise Key Management.
  2. Locate the credential in the credentials list.
  3. Click the gear icon (⚙) on the credential row and select Delete.

  4. A confirmation dialog appears:

    "Are you sure you want to delete?"

  5. Click Delete to confirm.

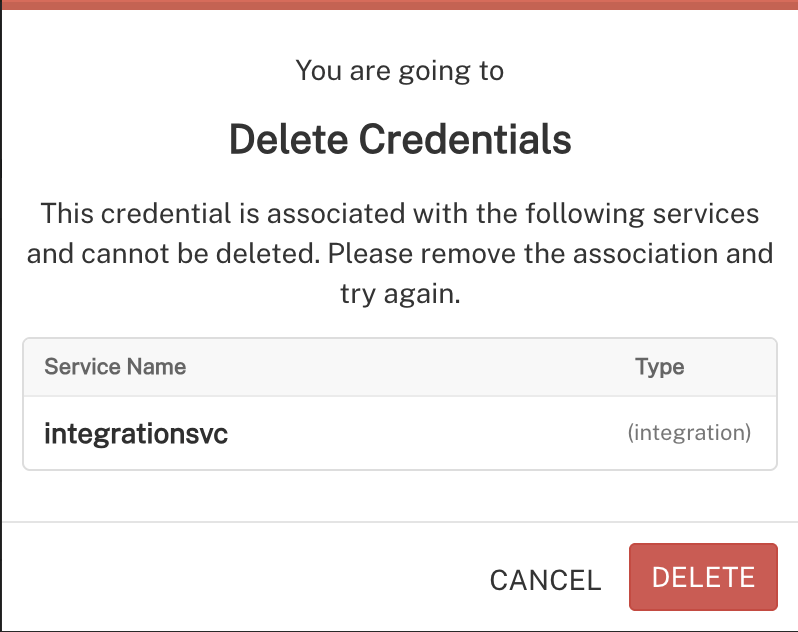

When Services Reference the Credential (Delete Blocked)

If the credential is currently used by one or more services, delete operation is blocked and you will see a message listing the affected services:

"This credential is associated with the following services and cannot be deleted. Please remove the association and try again."

The dialog displays a list of associated services including their name and type (Identity, Integration, Object, or Engagement).

Resolution Steps:

  1. Open each listed service configuration.
  2. Remove or replace the credential reference:
  3. For credentials: Select a different credential from the dropdown, or uncheck Use credentials from Enterprise Key Management and enter credentials manually.
  4. For custom keys: Update any ${credentialId.key} placeholders to reference a different credential or replace with direct values.
  5. Save the service configurations.
  6. Return to EKM settings and retry delete operation.

Important: This protection ensures you never accidentally break published services by removing the credentials they depend on.

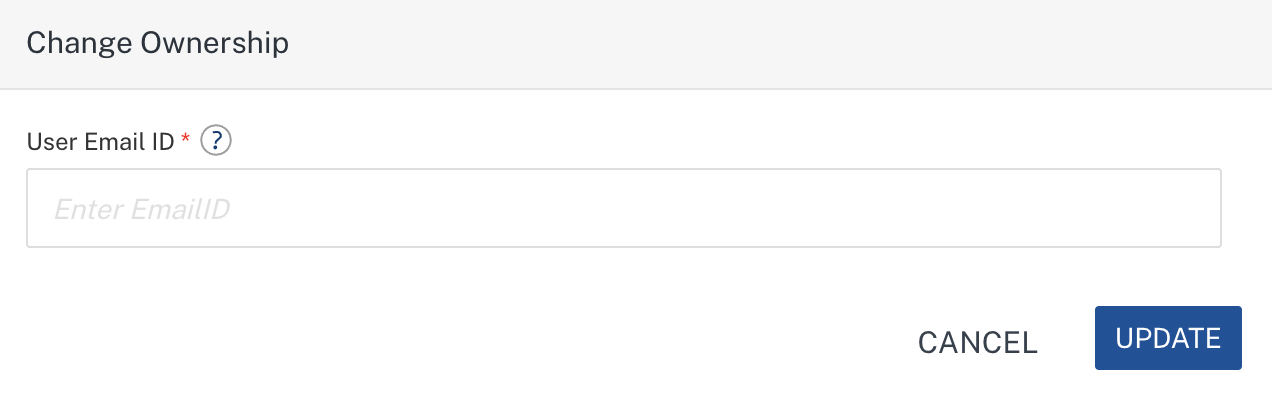

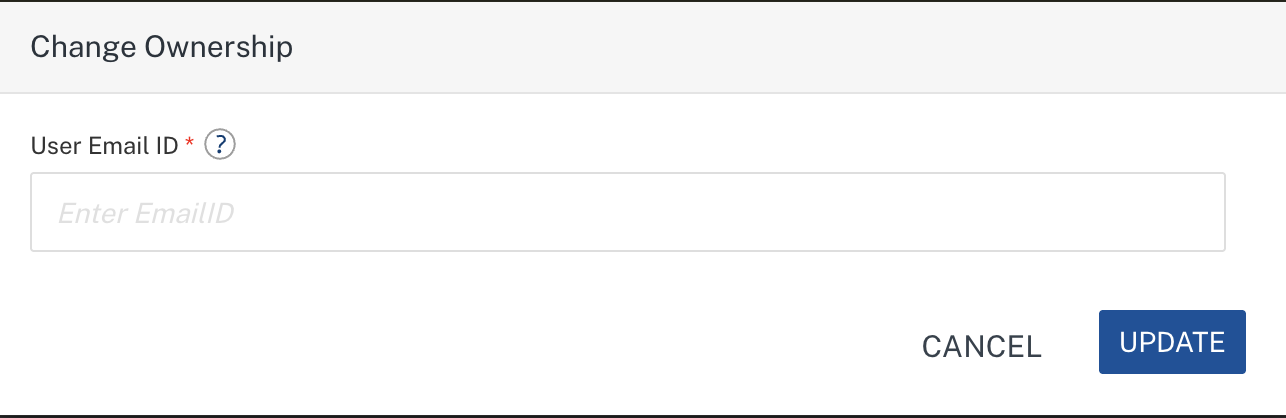

Changing Credentials (Or Custom Keys - Via The Corresponding Screens) Ownership

  1. Navigate to Settings > Enterprise Key Management.
  2. Locate the credential in the credentials list.
  3. Click the gear icon (⚙) for the credential and select Change Ownership.

  4. Enter the email ID of the new owner.

  5. Click UPDATE.

    Note: The new owner must have the Admin or Owner role for the account. Ownership cannot be transferred to users with the Member or Developer role.

Using EKM Keys in Services

Developers can reference EKM keys when configuring Identity, Integration, Object, and Engagement services. EKM supports two usage models:

  1. Credentials Selection — Select a credential ID from a dropdown; the platform automatically maps credential fields to service adapter fields.
  2. Custom Keys — Enter ${credentialId.key} syntax in any configuration field; the platform resolves the placeholder to the actual value at test/publish time.

Both models can co-exist within the same service configuration.

Using Custom Keys

Custom Keys uses a placeholder syntax that developers enter directly into service configuration fields:

Syntax: ${credentialId.key}

Where: - credentialId — The unique ID of the Custom Keys (as created by an Admin). - key — The specific key within that credential's JSON metadata.

Naming Constraints: - Both credentialId and key may only contain: letters (A-Z, a-z), digits (0-9), underscores (_), and hyphens (-). - IDs and keys are case-sensitive.

Supported Services

Custom Keys Pair (${credentialId.key}) can be used in:

Service Type Supported Fields
Identity Services Provider configuration fields (Client ID, Client Secret, OAuth URLs, custom parameters)
Integration Services Endpoint URL, authentication fields, custom headers, request parameters, connection parameters
Object Services Endpoint configuration fields, connection parameters

How Placeholder Resolution Works

  1. At design time: Developers enter placeholders like ${dbcred.userid} in configuration fields. The placeholder text is stored as-is — no secret values are exposed in the console.

  2. At test time: When a developer tests a service, the platform resolves all placeholders in the configuration before executing the test. The resolved values are used only for the duration of the test and are never stored in the service configuration.

  3. At publish time: When an application is published to a runtime environment, all placeholders are resolved and the actual values are securely embedded into the published artifacts.

Note: If a placeholder cannot be resolved (e.g., the credential ID does not exist, or the key is not found in the credential's metadata), the placeholder text remains unchanged in the configuration. For custom keys this is the best match resolution — it will not cause rejection of the pattern but the service may not function correctly at runtime until the credential is properly configured. For credentials, if the corresponding id is not found, publishing the corresponding service is blocked.

Example: Using Custom Keys in an Integration Service

Suppose an Admin has created Custom Keys with ID orderdb:

Key Value
jdbcUrl jdbc:mysql://prod-db:3306/orders
user order_svc
pass Prod!Secret

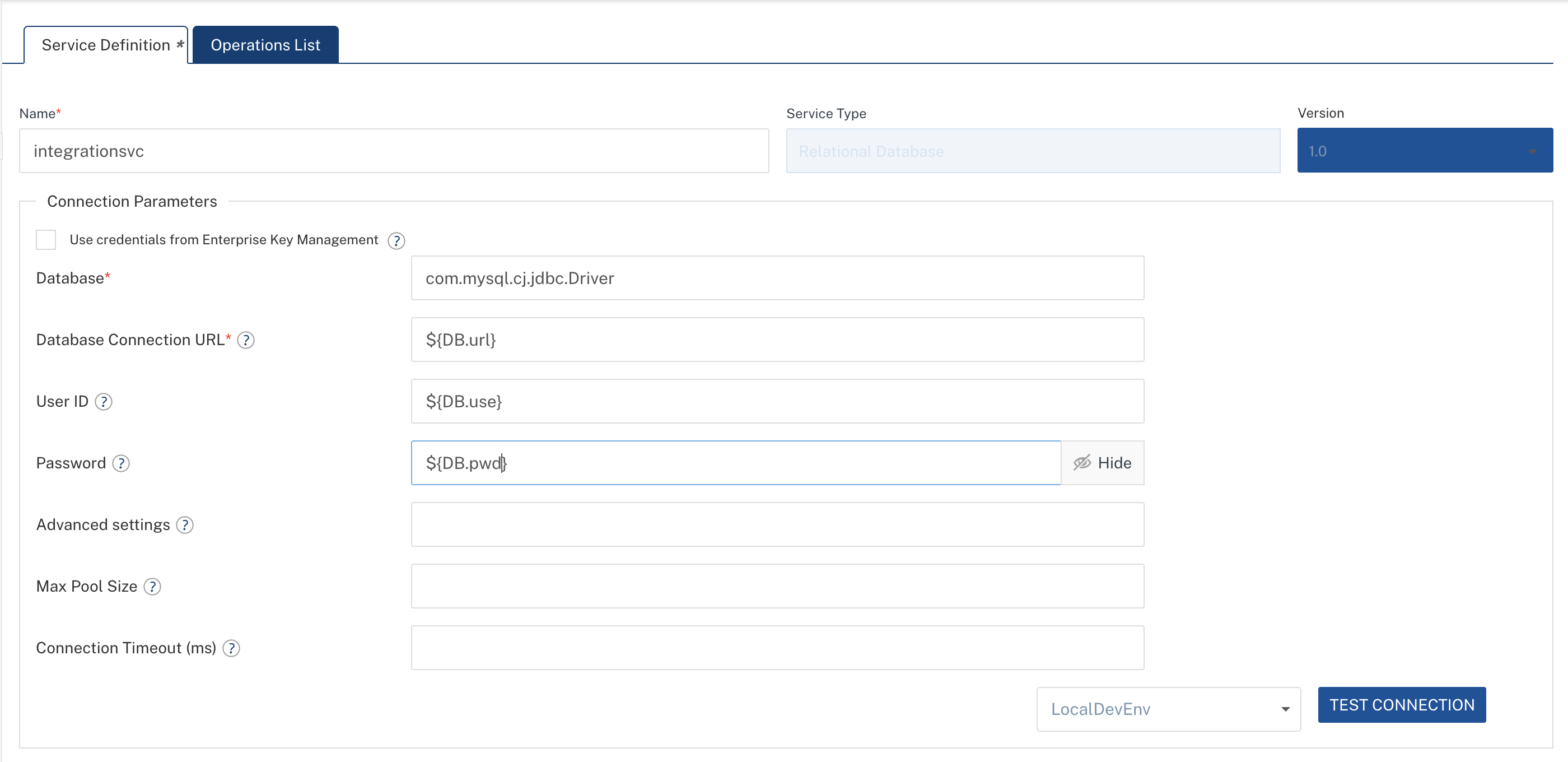

A developer configuring a Database Integration service can enter:

Field Value Entered
Database URL ${orderdb.jdbcUrl}
User ID ${orderdb.user}
Password ${orderdb.pass}

When the developer clicks Test Connection, the platform resolves these placeholders securely and tests connectivity with the actual values. The developer never sees the resolved secrets.

Identity Services (OAuth2.0)

EKM custom Keys can be used in any identity providers.

EKM credentials can be used in OAuth2 identity providers (e.g., Okta, Google, Microsoft, Facebook, LinkedIn, Amazon, Yahoo, Instagram, Box).

Using Credentials

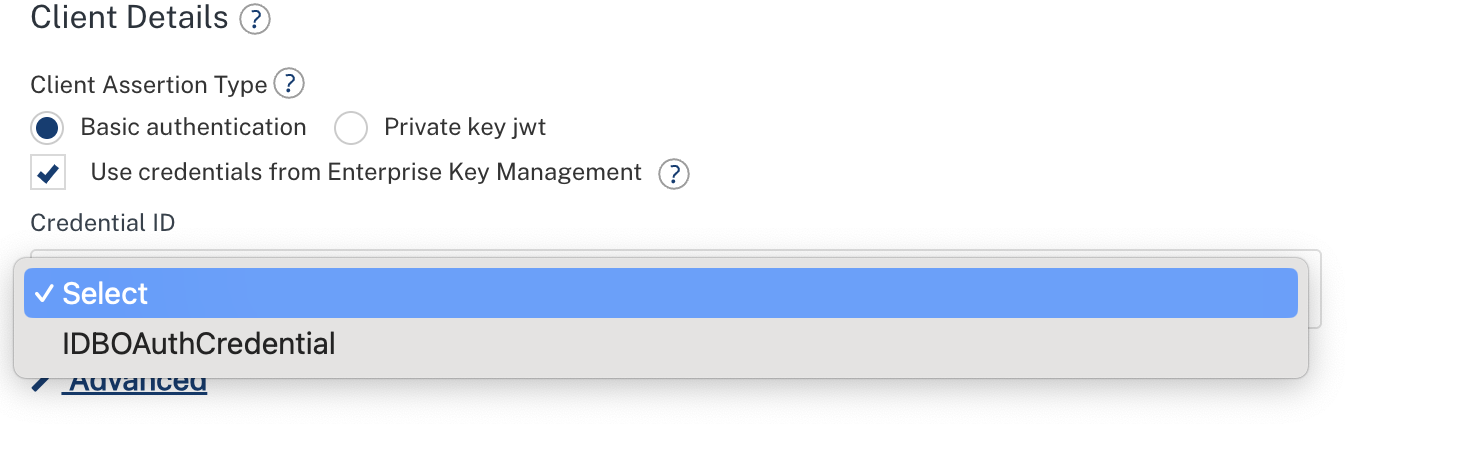

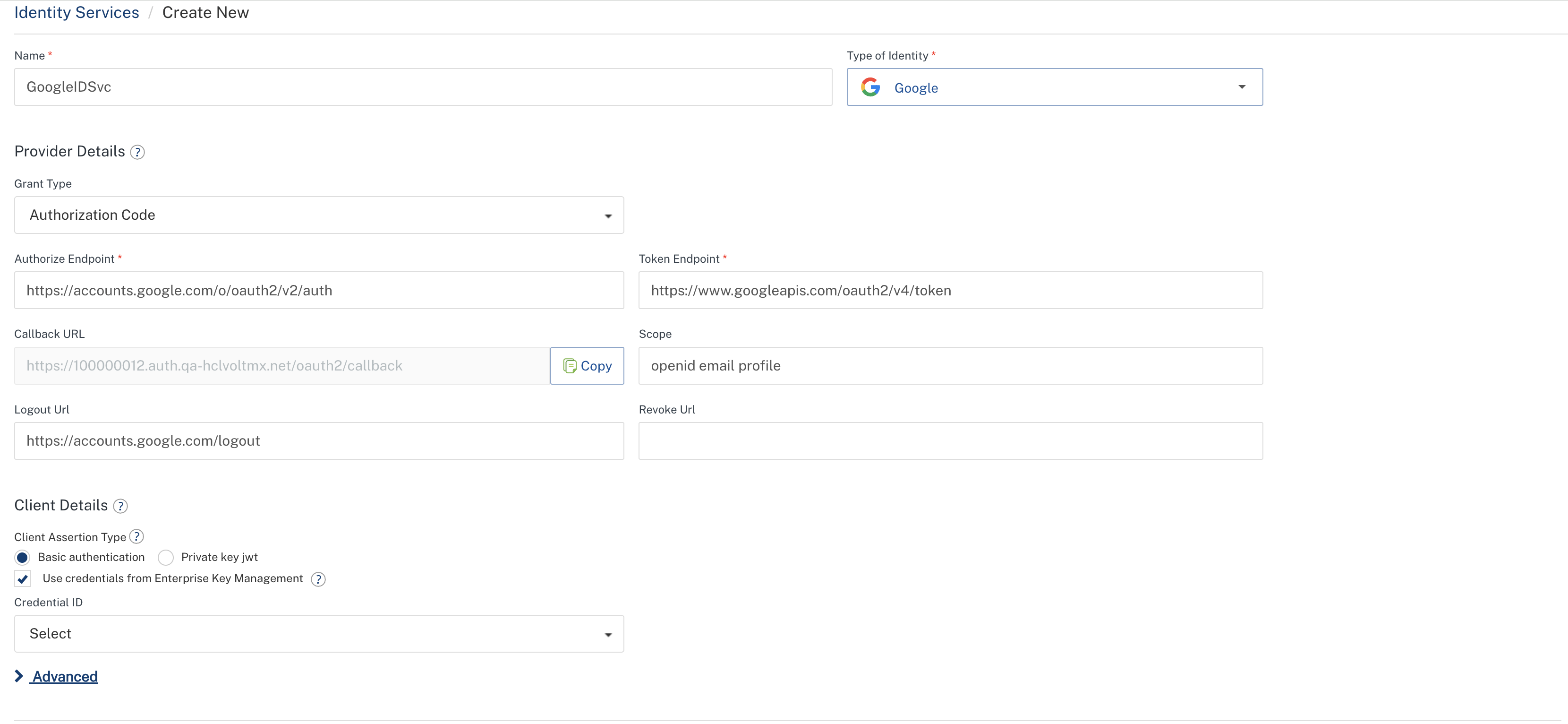

  1. Navigate to your app, then go to Identity, and select or create an OAuth2 provider.

  2. The Use credentials from Enterprise Key Management checkbox is automatically selected if a corresponding credential exists in Enterprise Key Management. If no matching credential exists, the checkbox remains unselected.

  3. A Credential ID drop-down list appears. Select the appropriate credential ID.

  4. When Enterprise Key Management is enabled, the Client ID and Client Secret fields are hidden. These values are automatically resolved from the selected Enterprise Key Management credential.

  5. Save the identity provider configuration.

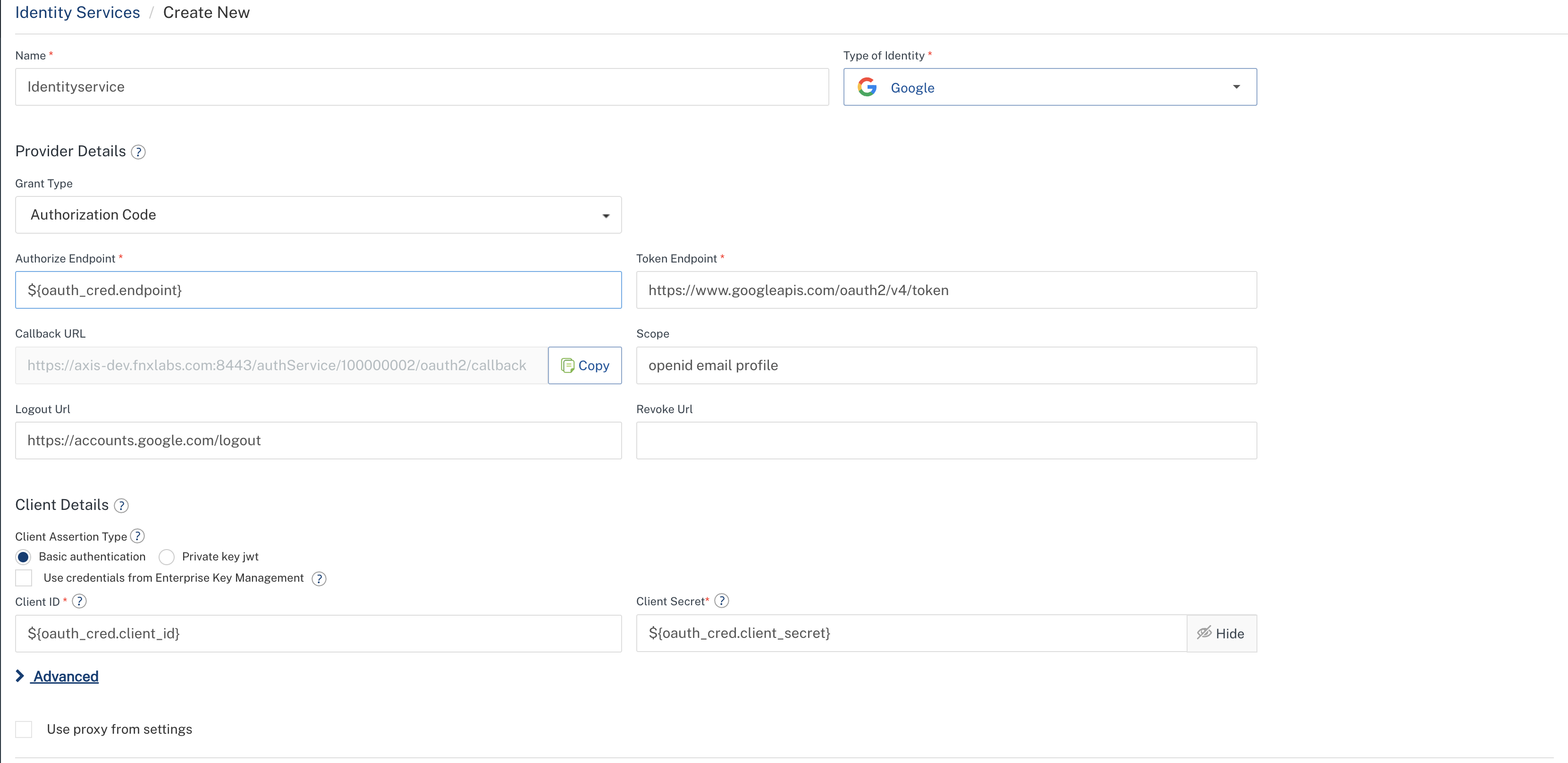

Using Custom Keys

  1. Navigate to your app > Identity > select or create a provider.
  2. In any supported configuration field, enter ${credentialId.key} (e.g., ${oauth_cred.client_id}).
  3. Save the identity provider configuration.
  4. When testing login or at publish time, placeholders are resolved automatically.

Note: The Test Login functionality works with both credentials and custom keys. When testing, the credential values are resolved securely before authenticating with the provider.

Integration Services

EKM Custom Keys can be used in any integration service adapters.

EKM Credentials can be used with the following integration service adapters:

  • Technology Adapters:

  • XML, SOAP, JSON, API Proxy, Text — Use Username/Password credentials for Basic or NTLM authentication.

  • Business Adapters:

  • AWS API Gateway — Use AWSAPIGateway credentials.

  • Salesforce — Use Salesforce credentials.
  • Relational Database — Use Database credentials.
  • MongoDB — Use MongoDB credentials.
  • AWS S3, Cloudian — Use S3 Bucket credentials.
  • Red Hat PAM — Use Red Hat PAM credentials.

Steps to Configure Credentials For Usage

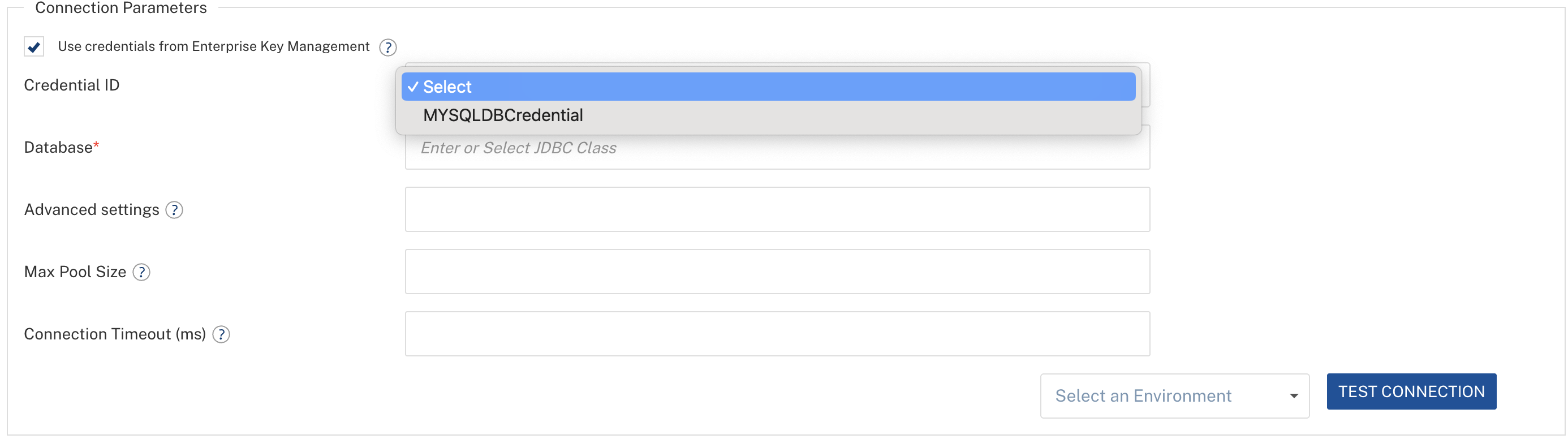

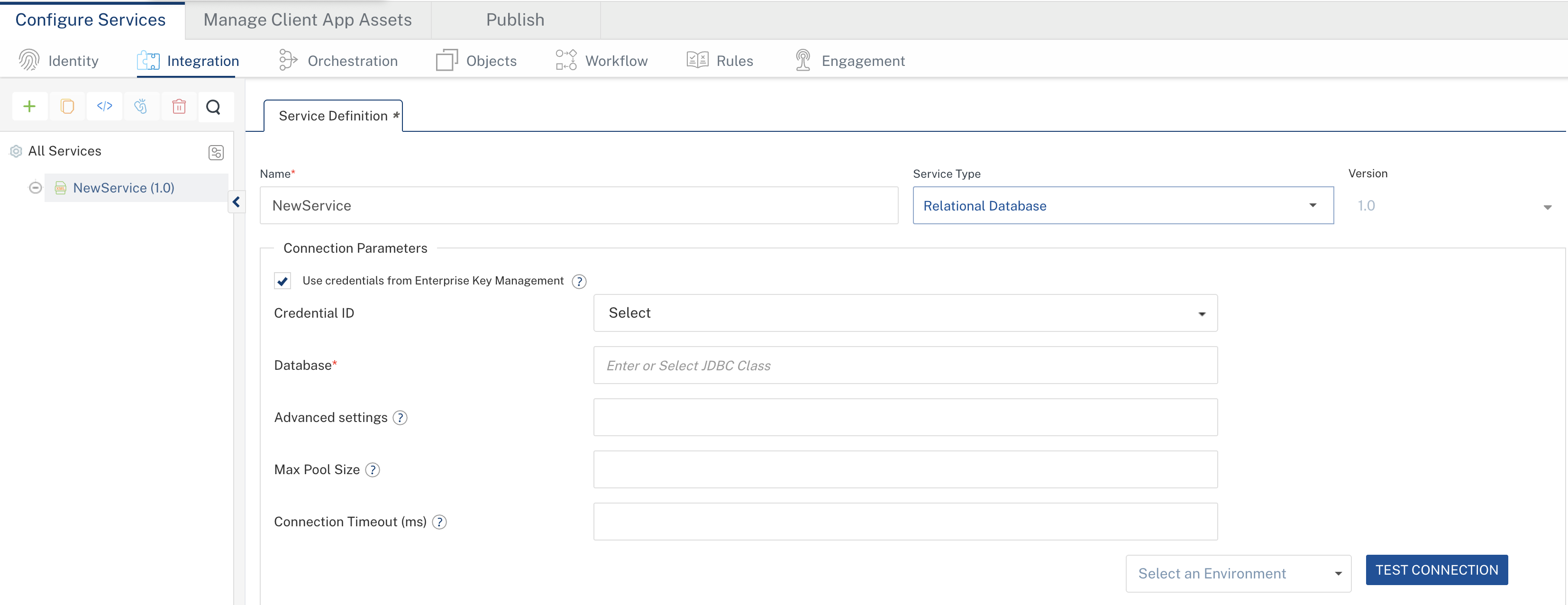

  1. Navigate to your app, then go to Integration, and select or create a service.
  2. In the service configuration, locate the Authentication section (for technology adapters) or the Connection Parameters section (for business adapters).

  3. The Use credentials from Enterprise Key Management checkbox is automatically selected if a corresponding credential exists in Enterprise Key Management.

  4. A Credential ID drop-down list appears. Select the appropriate credential ID.

  5. The individual credential fields (such as User ID, Password, and Access Key) are hidden. Their values are automatically resolved from the selected Enterprise Key Management credential.

  6. Save the service configuration.

Steps to Configure Custom Keys For Usage

  1. Navigate to your app > Integration > select or create a service.
  2. In any configuration field (endpoint URL, username, password, custom headers, etc.), enter the placeholder syntax: ${credentialId.key}.
  3. Save the service configuration.
  4. Use Test to verify connectivity — placeholders are resolved before the test request is sent.

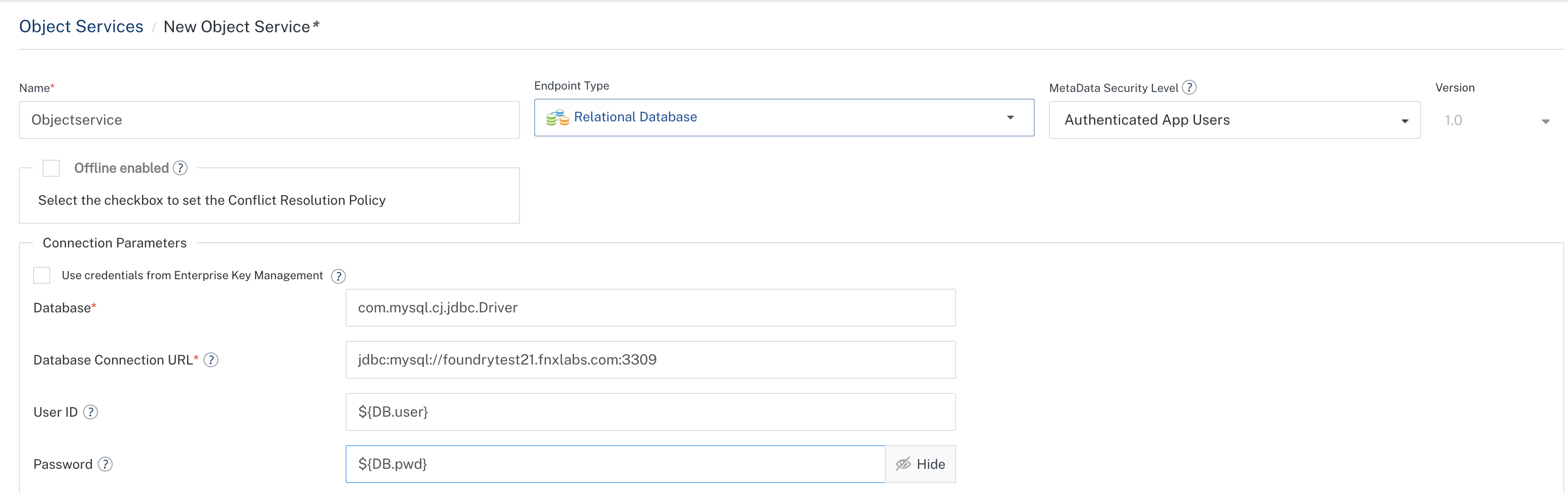

Object Services

EKM Custom Keys can be used in any Object service adapters.

EKM credentials can be used with the following Object service adapters:

  • Salesforce — Use Salesforce credentials.
  • Relational Database — Use Database credentials.
  • MongoDB — Use MongoDB credentials.
  • AWS S3, Cloudian — Use S3 Bucket credentials.

Steps to Configure Credentials For Usage

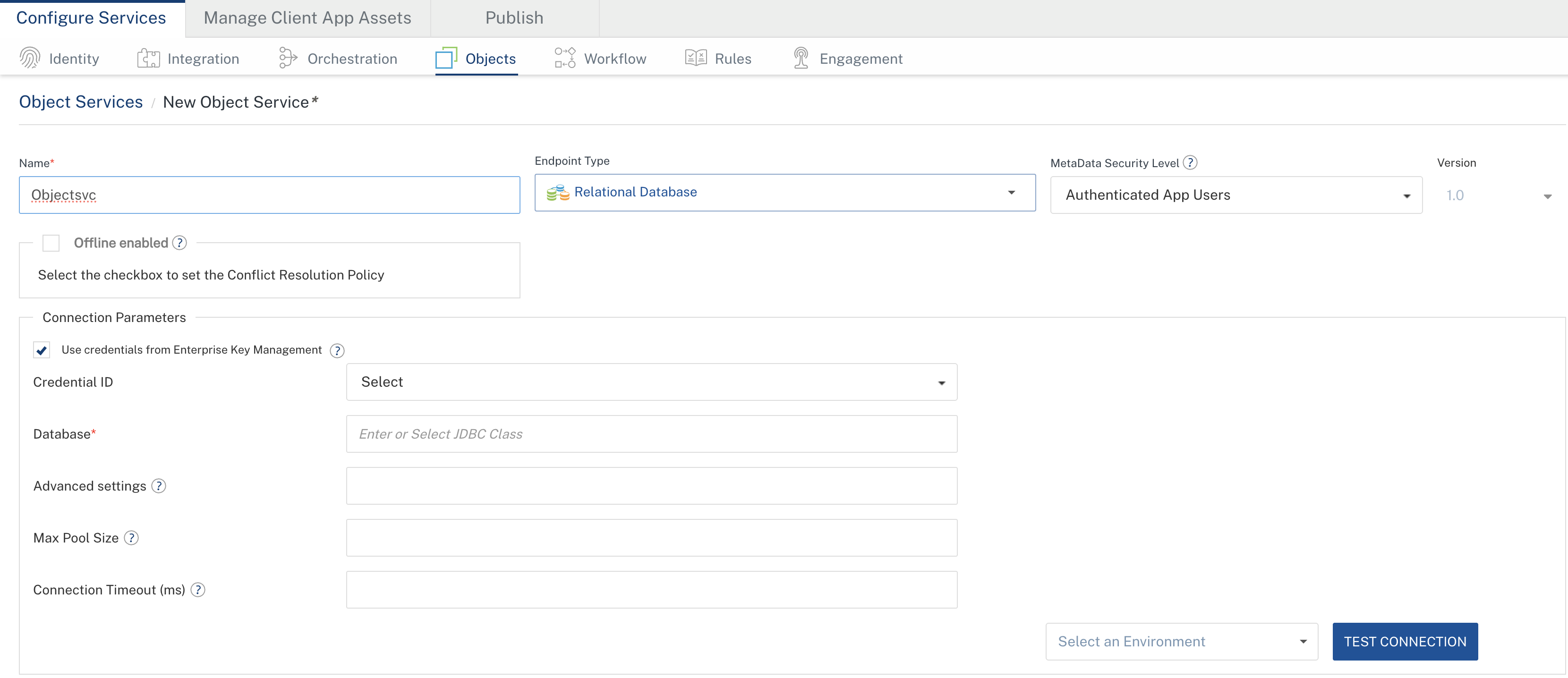

  1. Navigate to your app, then go to Objects, and select or create an Object service.

  2. The Use credentials from Enterprise Key Management checkbox is automatically selected if a corresponding credential exists in Enterprise Key Management.

  3. Select the appropriate Credential ID from the drop-down list.

  4. Save the endpoint configuration.

Steps to Configure Custom Keys For Usage

  1. Navigate to your app > Objects > select or create an Object service.
  2. In supported endpoint configuration fields, enter ${credentialId.key} placeholders.
  3. Save the endpoint configuration.

Engagement Services

EKM credentials can be used with Engagement (messaging) services for managing iOS push notification certificates.

EKM custom keys cannot be used in Engagement services.

Using Credentials (KMS Push Certificate)

EKM supports separate push certificate credentials for each iOS device profile:

Device Profile Description
iPhone Production Push certificate for iPhone production builds
iPad Production Push certificate for iPad production builds
iPhone Development Push certificate for iPhone development/debug builds
iPad Development Push certificate for iPad development/debug builds

Each device profile has its own EKM credential toggle and credential ID selection.

  1. Navigate to your Engagement service configuration (Engagement > iOS).
  2. Enable the Use credentials from Enterprise Key Management toggle for the desired device profile (iPhone Prod, iPad Prod, iPhone Dev, or iPad Dev).
  3. Select the Credential ID from the dropdown (must be a KMS Push Certificate credential type).
  4. The certificate fields are resolved from the selected EKM credential during runtime.
  5. Save the configuration.

Credentials / Custom Keys Resolution During App Publish

When an application is published to a runtime environment, all EKM credentials / custom keys references in the service configurations are automatically resolved to their actual secret values. This resolution happens securely during the publish process:

  • At design time, service configurations reference only credential IDs (via dropdown selection or ${credentialId.key} placeholders) — no actual secrets are stored in app configurations.
  • At publish time, credential IDs and placeholders are resolved to actual values and securely embedded into the published application artifacts.
  • At runtime, the middleware operates with the resolved actual credentials.

Import and Export Behavior

Exporting Applications with EKM References

When you export a Foundry application that uses EKM credentials:

  • Service configurations contain only credential IDs and placeholder references (e.g., ${dbcred.userid}).
  • No actual secret values are included in the export package. This ensures credentials are not leaked when sharing application packages.

Importing Applications with EKM References

When importing a Foundry application package into a target environment, the platform validates EKM credential references and provides warnings for credentials / custom keys that cannot be mapped in the local configuration.

Import Validation Behavior

During the import process, the platform scans the application package for:

  1. Credentials — Credential IDs referenced via the preConfigCredValue field in service configurations.
  2. Custom Keys — All ${credentialId.key} patterns found in service configuration values.

For each referenced credential, the platform checks whether it exists in the target workspace. Missing credentials are collected and returned as warnings in the import response.

Import Warning Behavior

  • Warnings do not block the import. The application is imported successfully even if some keys are missing.
  • Warnings are displayed in the import result dialog, so administrators can take corrective action.
  • Warning messages follow the format: EKM credential with ID <credentialId> not found

Resolving Import Warnings

After importing an application with EKM warnings:

  1. Review the list of missing keys in the import result.
  2. Navigate to Settings > Enterprise Key Management.
  3. Create the missing credentials with the same IDs as referenced in the imported application.
  4. Verify service configurations in the imported app — once credentials exist, services will resolve correctly on next test or publish.

Important: Always create the required EKM credentials in the target environment before publishing the imported application. Publishing with missing credentials may cause runtime failures.

EKM APIs for CI/CD Automation

You can automate EKM credential management using the Foundry workspace REST APIs. These APIs help automate creating, updating, deleting, and listing credentials without using the Foundry Console.

Note: All EKM APIs are secured and require authentication via the X-VoltMX-Authorization header.

Supported EKM APIs

API Description
createCredentials Create a new EKM credential (Credentials or Custom Keys)
getCredentials Retrieve all credentials in the account
getCredentialIDByType Retrieve credential IDs filtered by type
updateCredential Update an existing credential
deleteCredential Delete a credential by ID (blocked if in use)
changeOwnership Transfer credential ownership to another admin
service-maps View which services reference a credential

Base URL

https://<workspace-host>/api/v1/ws/{workspaceId}/ekm

Replace <workspace-host> with your workspace URL (e.g., 100000012.workspace.sit-hclvoltmx.net for Cloud, or your on-premises hostname).

createCredentials

Endpoint:

POST https://<workspace-host>/api/v1/ws/{workspaceId}/ekm/createCredentials

Headers:

Header Required Description
X-VoltMX-Authorization Yes Auth token
Content-Type Yes application/json

Request Body (Credential):

{
    "credentialId": "my_oauth_cred",
    "credentialType": "OAuth2.0",
    "description": "OAuth credential for Okta",
    "credOwnerOnly": false,
    "meta": "{\"client_id\":\"abc123\",\"client_secret\":\"secret456\"}"
}

Request Body (Custom Keys):

{
    "credentialId": "dbcred",
    "credentialType": "Custom Key/Value Pair",
    "description": "Database credentials for order service",
    "credOwnerOnly": false,
    "meta": "{\"userid\":\"app_admin\",\"password\":\"S3cur3P@ss!\",\"host\":\"db-prod.internal.net\",\"port\":5432,\"useSSL\":true}"
}

Request Body Fields:

Field Type Required Description
credentialId String Yes Unique identifier (max 50 chars)
credentialType String Yes One of the supported credential types (see table below)
description String Yes Brief description (max 80 chars)
credOwnerOnly Boolean No If true, only the creator and Owners can edit/delete
meta String Yes JSON string containing type-specific key-value pairs

Supported credentialType Values:

Value Credential Type
OAuth2.0 OAuth2.0
Database Database
S3 Bucket S3 Bucket
Salesforce Salesforce
Username/Password Username/Password
AWSAPIGateway AWS API Gateway
Red Hat PAM Red Hat PAM
MongoDB MongoDB
Secret Text Credentials Secret Text
Authentication Certificate Authentication Certificate
KMS Push Certificate KMS Push Certificate
Custom Key/Value Pair Custom Key/Value Pair

Meta Fields by Credential Type:

Credential Type Meta Fields
OAuth2.0 client_id, client_secret
Database jdbcUrl, userId, password
S3 Bucket accessKey, accessSecret, backendURL, region, bucketPath, serviceNamespace
Salesforce loginUrl, clientId, clientSecret, username, password
Username/Password userid, pwd
AWSAPIGateway AWSAPIGatewayAccessKeyId, AWSAPIGatewaySecretKey
Red Hat PAM endPointUrl, username, password
MongoDB host, port, databaseName, username, password
Secret Text Credentials secretText
Authentication Certificate See Authentication Certificate Sub-Types
KMS Push Certificate certificate_file, certificate_file_name, certificate_password, bundle_identifier
Custom Key/Value Pair Any user-defined keys with String, Number, or Boolean values

Sample Response (201 Created):

{
    "credentialId": "my_oauth_cred",
    "credentialType": "OAuth2.0",
    "workspaceId": "100000012",
    "meta": "{\"client_id\":\"abc123\",\"client_secret\":\"****\"}",
    "description": "OAuth credential for Okta",
    "credOwnerOnly": false,
    "createdBy": "admin@example.com",
    "updatedBy": "admin@example.com",
    "createdAt": "2026-03-31T10:00:00Z",
    "updatedAt": "2026-03-31T10:00:00Z"
}

Note: Sensitive fields in the response are always masked as ****.

Validations:

  • credentialId must be unique within the workspace.
  • credentialType must be a supported type.
  • For Credentials, meta must contain only the allowed keys for the selected type.
  • For Custom Keys, meta can contain any user-defined keys. Values must be of type String, Number, or Boolean.
  • Only Admin or Owner users can call this API.

getCredentials

Endpoint:

GET https://<workspace-host>/api/v1/ws/{workspaceId}/ekm/getCredentials

Headers:

Header Required Description
X-VoltMX-Authorization Yes Auth token

Sample Response (200 OK):

[
    {
        "credentialId": "my_oauth_cred",
        "credentialType": "OAuth2.0",
        "workspaceId": "100000012",
        "meta": "{\"client_id\":\"abc123\",\"client_secret\":\"****\"}",
        "description": "OAuth credential for Okta",
        "credOwnerOnly": false,
        "createdBy": "admin@example.com",
        "updatedBy": "admin@example.com",
        "createdAt": "2026-03-31T10:00:00Z",
        "updatedAt": "2026-03-31T10:00:00Z"
    },
    {
        "credentialId": "dbcred",
        "credentialType": "Custom Key/Value Pair",
        "workspaceId": "100000012",
        "meta": "{\"userid\":\"****\",\"password\":\"****\",\"host\":\"****\",\"port\":\"****\",\"useSSL\":\"****\"}",
        "description": "Database credentials for order service",
        "credOwnerOnly": false,
        "createdBy": "admin@example.com",
        "updatedBy": "admin@example.com",
        "createdAt": "2026-06-15T08:30:00Z",
        "updatedAt": "2026-06-15T08:30:00Z"
    }
]

Validations:

  • Only Admin or Owner users can call this API.

getCredentialIDByType

Endpoint:

GET https://<workspace-host>/api/v1/ws/{workspaceId}/ekm/getCredentialIDByType?credentialType={type}

Query Parameters:

Parameter Required Description
credentialType Yes Filter by credential type (e.g., OAuth2.0, Custom Key/Value Pair)

Headers:

Header Required Description
X-VoltMX-Authorization Yes Auth token

Sample Response (200 OK):

["my_oauth_cred", "prod_oauth_cred"]

Note: This API returns only credential IDs (not full details) and is used by the Foundry Console to populate credential dropdowns. All roles (including Members/Developers) can call this API.

updateCredential

Endpoint:

PUT https://<workspace-host>/api/v1/ws/{workspaceId}/ekm/updateCredential

Headers:

Header Required Description
X-VoltMX-Authorization Yes Auth token
Content-Type Yes application/json

Request Body:

{
    "credentialId": "dbcred",
    "credentialType": "Custom Key/Value Pair",
    "description": "Updated DB credentials",
    "credOwnerOnly": true,
    "meta": "{\"userid\":\"new_admin\",\"password\":\"NewP@ss!\",\"host\":\"db-prod-v2.internal.net\",\"port\":5432,\"useSSL\":true}"
}

Note: credentialType and credentialId cannot be changed. Include them for identification.

Note: To keep an existing sensitive value unchanged, pass its masked value (****). The system will preserve the original value.

Validations:

  • Only Admin or Owner users can call this API.
  • If credOwnerOnly is true on the credential, only the credential owner and account Owners can update it.
  • For Credentials, meta must contain only allowed keys for the credential type.
  • For Custom Keys, keys can be added or removed freely. Removed keys are deleted from storage.

Sample Response (200 OK): Same structure as Create Credential response.

deleteCredential

Endpoint:

DELETE https://<workspace-host>/api/v1/ws/{workspaceId}/ekm/deleteCredential/{credentialID}

Path Parameters:

Parameter Required Description
credentialID Yes The credential ID to delete

Headers:

Header Required Description
X-VoltMX-Authorization Yes Auth token

Behavior:

  • If the credential is not referenced by any services: delete succeeds and returns 200 OK with empty body.
  • If the credential is referenced by one or more services: delete is blocked and returns an error response with the list of associated services.

Sample Error Response (Credential In Use):

{
    "message": "This credential is associated with services and cannot be deleted. Remove association first.",
    "associatedServices": [
        {
            "serviceName": "OrderService",
            "serviceType": "integration"
        },
        {
            "serviceName": "UserAuth",
            "serviceType": "identity"
        }
    ]
}

Validations:

  • Only Admin or Owner users can call this API.
  • If credOwnerOnly is true on the credential, only the credential owner and account Owners can delete it.
  • Delete is blocked if the credential is actively referenced by any services (checked via credential-service mapping).

changeOwnership

Endpoint:

PUT https://<workspace-host>/api/v1/ws/{workspaceId}/ekm/changeOwnership

Headers:

Header Required Description
X-VoltMX-Authorization Yes Auth token
Content-Type Yes application/json

Request Body:

{
    "id": "my_oauth_cred",
    "emailID": "newowner@example.com"
}

Request Body Fields:

Field Type Required Description
id String Yes The credential ID to transfer
emailID String Yes Email of the new owner

Validations:

  • Only Admin or Owner users can call this API.
  • The new owner must be an Admin or Owner on the account.
  • If credOwnerOnly is true, only the current credential owner and account Owners can transfer ownership.

Sample Response (200 OK): Returns the updated credential with masked meta.

service-maps

Endpoint:

GET https://<workspace-host>/api/v1/ws/{workspaceId}/ekm/{credentialID}/service-maps

Path Parameters:

Parameter Required Description
credentialID Yes The credential ID to look up

Headers:

Header Required Description
X-VoltMX-Authorization Yes Auth token

Purpose: Retrieve a list of all services that reference a specific credential. Useful for understanding credential dependencies before making changes.

Sample Response (200 OK):

[
    {
        "credentialId": "dbcred",
        "workspaceId": "100000012",
        "serviceId": "svc-guid-001",
        "serviceName": "OrderService",
        "serviceType": "integration",
        "appId": "app-guid-001",
        "createdAt": "2026-06-15T08:30:00Z",
        "updatedAt": "2026-06-15T08:30:00Z"
    },
    {
        "credentialId": "dbcred",
        "workspaceId": "100000012",
        "serviceId": "svc-guid-002",
        "serviceName": "InventoryObjects",
        "serviceType": "object",
        "appId": "app-guid-001",
        "createdAt": "2026-06-15T09:00:00Z",
        "updatedAt": "2026-06-15T09:00:00Z"
    }
]

Validations:

  • Only Admin or Owner users can call this API.

Limitations

  • EKM is only available for Admin and Owner roles. Members and Developers can only select credential IDs or use placeholder syntax when configuring services.
  • Credential types and IDs cannot be changed after creation.
  • Each credential ID must be unique within an account.
  • Certificate file uploads for the Authentication Certificate type are limited to 1 MB.
  • Custom Keys resolution is best match. If a key is not found, the placeholder text remains unchanged — it does not cause an error during save.
  • Custom Keys support only flat key/value structures. Nested JSON objects within credential values are not supported.
  • The ${credentialId.key} placeholder syntax is reserved by EKM. Avoid using ${...} patterns in configuration values, particularly with EKM configured keys, for non-EKM purposes.

Notes

  • All credential values are encrypted and securely stored.
  • Sensitive fields (passwords, secrets, access keys) are populated as **** in the Foundry Console and API responses.
  • EKM is an account-level feature. Credentials created in one account are not accessible from other accounts.
  • When editing a credential, if you leave a masked sensitive field unchanged, the original value is preserved.
  • Ownership transfer requires the new owner to be an Admin or Owner on the account.
  • When the Limit update permission to credential owner option is enabled, only the key's creator (and account Owners) can edit or delete.
  • The credential-service mapping is automatically maintained by the platform when services are saved, cloned, imported, or deleted. No manual action is required to keep mappings current.

Troubleshooting

Service Test Fails After Adding Placeholder

Symptom: A service test returns an error (e.g., authentication failure or connection refused) after adding ${credentialId.key} placeholders.

Possible Causes:

  1. Credential ID is misspelled. Verify the ID matches exactly (case-sensitive) with the credential created in EKM settings.
  2. Key name is wrong. Verify the key name after the dot matches a key in the credential's metadata (case-sensitive).
  3. Credential does not exist. Ensure the credential has been created in the current workspace. Credentials from other accounts/workspaces are not accessible.
  4. Developer does not have access. Ensure the credential's workspace matches where the service is configured.

Resolution: Navigate to Settings > Enterprise Key Management > Manage Custom Keys and verify the credential ID and key names match what is used in the service configuration.

Cannot Delete a Credential / Custom Key

Symptom: Clicking Delete on a credential shows an error listing associated services.

Cause: The key is referenced by one or more services. Delete protection prevents removal of key's that are actively in use.

Resolution:

  1. Review the list of associated services shown in the error message.
  2. Open each service and either:
  3. Remove the EKM credential reference and enter values manually, OR
  4. Switch to a different credential ID.
  5. Save the updated service configurations.
  6. Retry delete operation.

Import Shows EKM Warnings

Symptom: After importing a Foundry application, the import result shows warnings like EKM credential with ID <credentialId> not found.

Cause: The imported application references EKM credentials that do not exist in the target workspace.

Resolution:

  1. Note the credential IDs listed in the warnings.
  2. Create the unmapped credentials in Settings > Enterprise Key Management with the exact same IDs.
  3. Ensure the keys (hierarchy) match what the imported services expect.
  4. Test the imported services to verify functionality.

Tip: If you are migrating an application between environments (e.g., Dev → QA → Prod), create the required EKM credentials in each target environment before importing the application. The credential values can differ per environment (e.g., different database hosts) while keeping the same credential IDs.

Placeholder Not Resolving (Remains as Literal Text)

Symptom: After publishing, a service uses the literal placeholder text (e.g., ${dbcred.userid}) instead of the actual value.

Possible Causes:

  1. Credential ID is misspelled. Verify the ID matches exactly (case-sensitive) with the credential created in EKM settings.
  2. Key name is wrong. Verify the key name after the dot matches a key in the credential's metadata (case-sensitive).
  3. Syntax error in the placeholder (e.g., missing $, extra spaces, wrong brackets).

Resolution:

  1. Verify the credential exists: Settings > Enterprise Key Management > Manage Custom Keys.
  2. Verify the key exists within the credential metadata.
  3. Verify the placeholder syntax is exactly ${credentialId.key} — no spaces, no extra characters.
  4. Re-publish the application after confirming the credential and keys are in place.

Engagement Service Not Picking Up EKM Credential

Symptom: Engagement (messaging) push notifications fail after configuring EKM credential for iOS KMS.

Possible Causes:

  1. Wrong credential type. Engagement KMS expects a KMS Push Certificate credential type.
  2. Bundle identifier mismatch between the credential and the app configuration.

Resolution:

  1. Verify the credential type is KMS Push Certificate in EKM settings.
  2. Verify the certificate file and bundle identifier are correct.
  3. Re-save the Engagement service configuration and test.

Frequently Asked Questions

Q: Who can create and manage EKM credentials?

Only users with Admin or Owner roles can create, update, delete, and manage credentials. Developers and Members can only reference credential IDs in service configurations.

Q: Can developers see the actual credential values?

No. Credential values are always masked (****) in the Console and API responses. Developers can only see and select credential IDs or enter placeholder syntax.

Q: What happens if I delete a credential that is used by a service?

You cannot delete a credential that is actively used by services (from version 10.0.9.0). The platform blocks the delete and shows a list of associated services. You must first remove the credential references from those services.

Q: Can I use the same credential in multiple services?

Yes. A single EKM credential (Credentials or Custom Keys) can be referenced by multiple Identity, Integration, Object, and Engagement services.

Q: Is EKM usage mandatory?

No. Existing services that use directly configured credentials continue to work as before. EKM is an opt-in feature — developers choose to enable it per service by checking the Use credentials from Enterprise Key Management checkbox or by using ${credentialId.key} placeholders.

Q: What is the "Limit update permission to credential owner" option?

When enabled, only the user who created the key (and account Owners) can edit or delete that key. Other Admins cannot modify it, but owners have unrestricted permission.

Q: Can I change the credential type after creation?

No. The credential type and ID are immutable after creation.

Q: Does EKM support Test Login for Identity services?

Yes. When testing an OAuth2 identity provider that uses EKM credentials (either Credentials or Custom Keys), the system securely resolves the credential values before performing the test authentication.

Q: What is the difference between Credentials and Custom Keys?

Aspect Credentials Custom Keys
Structure Fixed fields per credential type User-defined key/value pairs
Usage Selected from a dropdown in service config Referenced as ${credentialId.key} in any field
Service types Specific adapters per type Any service type
Flexibility Fields are predefined by the adapter Any number of keys with any names
Best for Standard adapter authentication Multi-field configs, shared across services, environment-specific values

Q: Can I mix Credentials and Custom Keys in the same service?

Yes. A service can use a Credentials (via dropdown) for its primary authentication AND have additional configuration fields that use ${credentialId.key} placeholders from Custom Keys.

Q: What happens during import if EKM credentials are unmapped in the target environment?

The import completes successfully but returns warnings listing the missing credential IDs. The imported services will not function correctly until you create the unmapped credentials in the target environment.

Q: Does the platform automatically track which services use which credentials?

Yes. Every time a service is saved, cloned, or imported, the platform automatically scans for EKM credential references and updates an internal mapping. This mapping powers the delete protection and the service associations view.

Q: Can I use ${credentialId.key} syntax in any text field?

The syntax is supported in service configuration fields that participate in credential resolution (endpoint URLs, authentication fields, connection parameters, custom headers, and provider configuration fields). It is not supported in metadata fields like service names or descriptions.

Q: What if I use a custom keys that doesn't exist in a placeholder?

The placeholder will remain as literal text (e.g., ${nonexistent.key} stays as-is). The service may fail at test or runtime due to the unresolved placeholder. No error is thrown during save — this allows you to configure services before the credential is created.

Q: How do I migrate EKM credentials across environments?

Create credentials with the same credential IDs in each environment (Dev, QA, Prod) but with environment-appropriate values (e.g., different database URLs or API keys per environment). When you import the application into each environment, the services will automatically resolve to the correct environment-specific values.

Q: Why do I see a "Type" field (String/Number/Boolean) when creating Custom Keys credentials?

The Type field helps validate your input at creation time and preserves data fidelity. For example, selecting "Number" ensures the value you enter is a valid number, catching typos before the credential is saved. The type also ensures values are stored in the correct format (e.g., 3306 as a number rather than a string).

Known Limitations

  • Identity Service & External Authentication: Credential substitution (both credential and custom keys) is not supported when using external authentication providers with the Identity Service.
  • SAP Gateway Integration: Credential substitution (both credential and custom keys) is not compatible with SAP Gateway connectors in the Object Service.
  • Relational Database Support: Credential substitution (both credential and custom keys) for SQL Server and Oracle relational databases is not supported on cloud. Credential substitution for these database types is supported only on-premises deployments.
