Nutanix

Available from 9.2.17. Nutanix is one of the virtualization technologies supported by BigFix Inventory.

Purpose

Nutanix solutions are built on the hyperconverged infrastructure (HCI) technology. Nutanix Acropolis is a foundation of Nutanix Enterprise Cloud platform that provides built-in virtualization, storage services, networking and cross-hypervisor application mobility. Nutanix supports all of the leading hypervisors, including virtualization solutions from VMware, Microsoft, Citrix, and the native Nutanix hypervisor, AHV (Acropolis Hypervisor) which is a native virtualization solution that supports IBM Power and x86 based hosts depending on version.

Required permission

The account used for the connection must have at least the Viewer role.

AHV support

Support for Linux guests on AHV 5.11+ on IBM Power CS appliances, managed by Nutanix PRISM.
Support for Linux and Windows guests on AHV 5.11+ on x86 appliances, managed by Nutanix PRISM.

Prism

Nutanix Prism is a management pane that provides unified interface for Nutanix clusters. It is used to monitor and manage entities across Nutanix clusters through a web console. It allows to run a mixed environment, or easily switch hypervisors to meet changing needs.

PRISM Element

Supported API version: PRISM Element API v2.0

Default URL:

https://<NUTANIX_PRISM_ELEMENT_IP_ADDRESS>:9440/PrismGateway/services/rest/v2.0

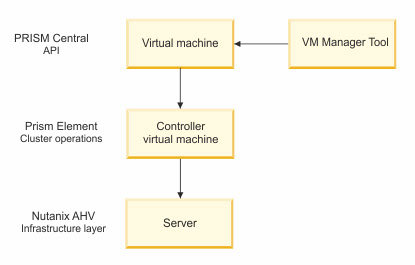

Figure 1. Nutanix PRISM Element

PRISM Central

Supported API version: Nutanix Intentful API v3.1.0

Default URL:

https://<NUTANIX_PRISM_CENTRAL_IP_ADDRESS>:9440/api/nutanix/v3

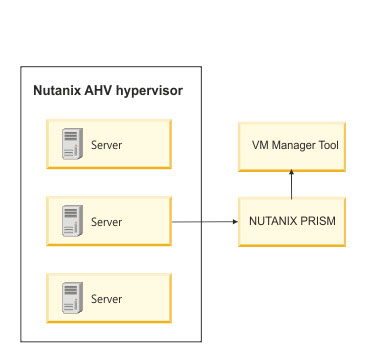

Figure 2. Nutanix PRISM Central

Supported versions

For a full list of supported versions, see: Supported virtualization types.
