Configuring the Middleware download plug-in settings

Use the Manage Download Plug-ins dashboard to configure proxy settings or specify the vendor for the Middleware download plug-in.

About this task

Use the Download Plug-in before configuring the proxy settings to run the software. Note that existing configurations are overwritten when you configure the download plug-in.

Procedure

  1. From the Patch Management domain, click All Patch Management > Dashboards > Manage Download Plug-ins dashboard.
  2. From the Servers and Relays table, select the server or relay on which the download plug-in is to be configured.
  3. From the Plug-ins table, select Middleware Plug-in.
  4. Click Configure.

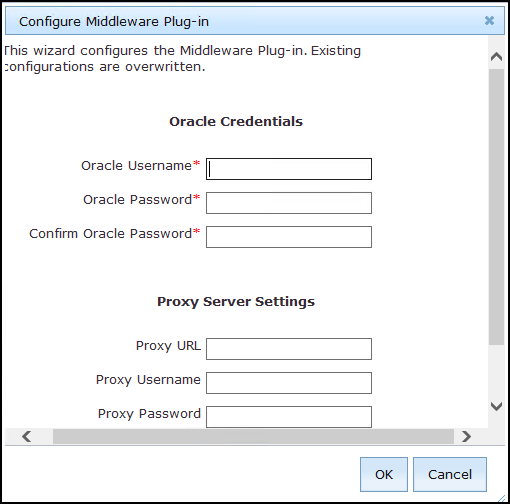

    The Configure Middleware Plug-in wizard displays.
  5. Enter the proxy parameters only if the user has the option to configure proxy settings and the downloads must go through a proxy server.
    Proxy settings
    Proxy URL
    The URL of your proxy server. It must be a well-formed URL that contains a protocol and a host name. The URL is usually the IP address or DNS name of your proxy server and its port, which is separated by a colon. For example: http://192.168.100.10:8080.
    Proxy Username
    Your proxy user name if your proxy server requires authentication. It is usually in the form of domain\username.
    Proxy Password
    Your proxy password if your proxy server requires authentication.
    Confirm Proxy Password
    Your proxy password for confirmation.
  6. Click OK.
    The Take Action dialog displays.
  7. Select the target computer.
  8. Click OK.

Results

Once the action completes successfully, you have successfully applied the settings that you configured.
