CMEP App in WebUI - Overview

The CMEP App overview provides a quick status summary of antivirus products deployed on all the devices managed by BigFix.

To navigate to the CMEP App, log in to WebUI and select CMEP from the Apps menu.

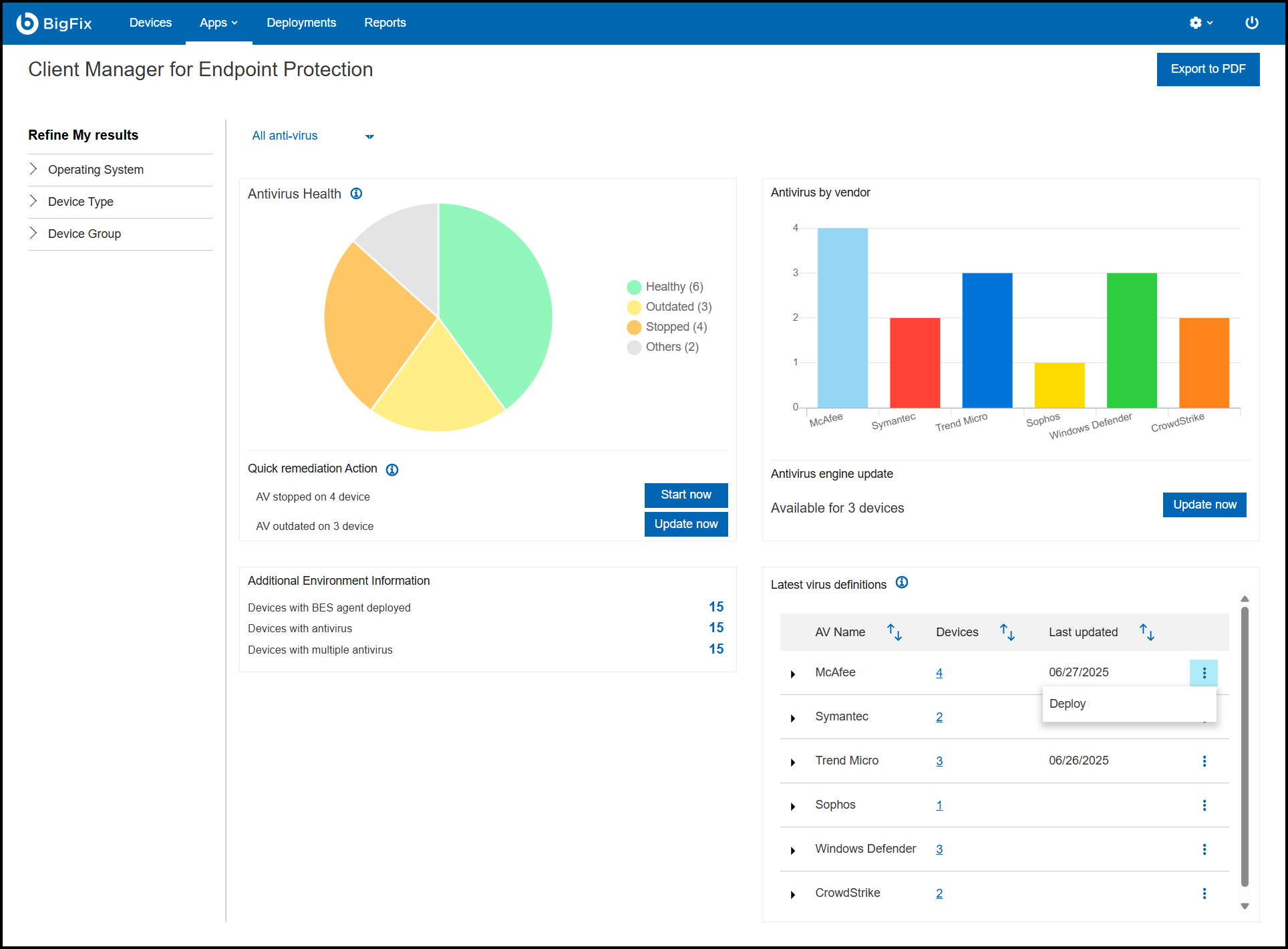

Figure 1. CMEP App in WebUI - Overview


The overview page contains four tiles:
  • Antivirus Health: The pie chart in the Antivirus Health window represents the status of the antivirus product installed on the devices. These are the possible statuses:
    Healthy
    Devices with at least one antivirus product installed, updated and running.
    Outdated
    The antivirus definition is out of date and needs to be updated on the device.
    Stopped
    The installed antivirus application is not running.
    Others
    This device has an antivirus product that is not supported by CMEP, or no antivirus product is installed.
    • A status summary with quick remediation action buttons (Start now and Update now).
      Start now
      Allows you to restart an antivirus product.
      Update now
      Allows you to update an outdated antivirus definition.
  • Antivirus by vendor: A bar graph, which displays the number of antivirus product installed by an individual vendor.
  • Additional Environment Information: This tile provides information about the number of devices with BES agent deployed, devices with antivirus, and devices with multiple antivirus (antivirus product installed by vendor and Windows Defender).
  • Latest virus definitions: This component contains the vendor’s product name with the number of installed device and the last updated date. You can also Deploy an antivirus definition package by clicking the vertical ellipsis. For more information about uploading a package and deploying it, see Deploying Latest antivirus definitions.

The left panel of the homepage has Device Filter that you use to set the criteria of what is shown in the Overview Report.

The upper-right corner includes the Export to PDF button.

Individual vendor dashboard - Overview

CMEP provides a consistent dashboard for each supported antivirus product.

To view the individual vendor dashboard, click All anti-Virus dropdown menu in the CMEP App overview page and select the antivirus vendor.
Figure 2. McAfee dashboard


The individual vendor dashboard overview page contains four tiles:
  • Antivirus Health: The pie chart in the Antivirus Health represents the status of the antivirus product installed on the devices. These are the possible statuses:
    Healthy
    Devices with at least one antivirus product installed, updated and running.
    Outdated
    The antivirus definition is out of date and needs to be updated on the device.
    Stopped
    The installed antivirus application is not running.
    • A status summary with quick remediation action buttons (Start now and Update now).
      Start now
      Allows you to restart an antivirus product.
      Update now
      Allows you to update an outdated antivirus definition.
  • Antivirus definition updates: This component contains the vendor’s product name and version number with the number of installed device and the last updated date. You can also Upload or Deploy an antivirus definition package by clicking the vertical ellipsis as shown in the following screenshot. For more information about uploading a package and deploying it, see Deploying Latest antivirus definitions.
    Figure 3. Antivirus definition updates


  • Antivirus engine information: An antivirus product may have multiple antivirus engine versions. Information about the engine that various antivirus product use (installed on the subscribed device) with the number devices having that engine installed.
    Note: All engine versions are currently supported in CMEP App and hence the total number of devices listed here may or may not match the total applicable device count of the vendor.
  • Antivirus signature version information: An antivirus signature version may not be same for different device. The number of devices that have the signature version or definition version of the antivirus signatures of the antivirus product.
