SNMP Trap Receiver - Event

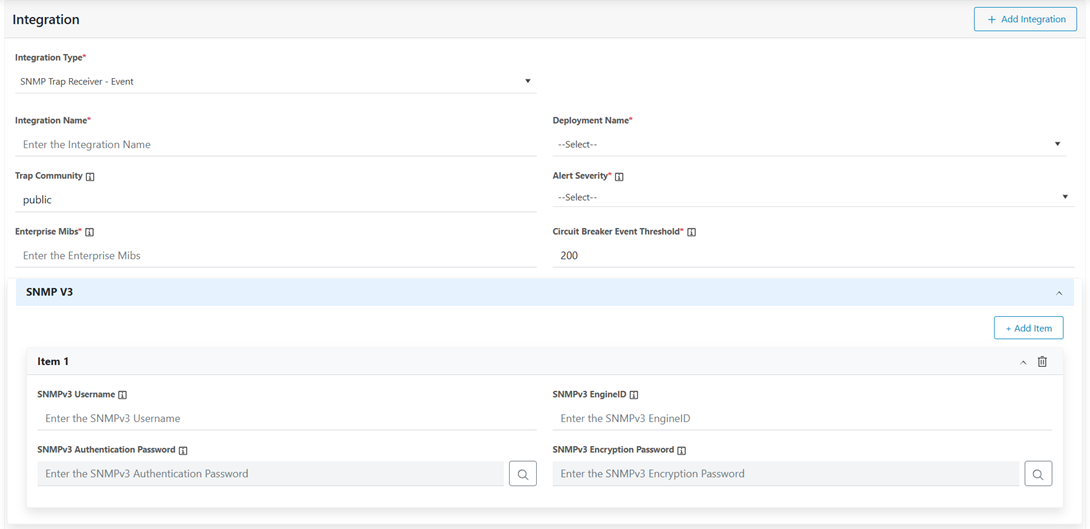

Refer to the table below to understand the fields mentioned in the above figure.
| Fields | Description |
| Integration Name | This field contains the Integration Name for Integration. |
| Deployment Name | This field contains the Deployment name; we can select deployment from all Deployments. |
| Circuit Breaker Event Threshold | Circuit breaker Event Threshold Value (Per NiFi Node): Min value: 100, Max value: 90000. |
| Trap Community | SNMP community string. Multiple snmp community string can be provided as commas (,) separated. Do not provide space in between example communitystring1, communitystring2 |
| Alert Severity | Severity of Alerts generated by SNMP Traps |
| Enterprise Mibs | Comma-separated list of MIB names to load for decoding traps. E.g. IF-MIB, IP-MIB, CISCO-SMI |
| SNMPv3 Username | SNMPv3 Username |
| SNMPv3 EngineID | Unique Identifier of SNMP engine used in authentication and security |
| SNMPv3 Authentication Password | Password secured with the SHA algorithm of SNMPv3 authentication |
| SNMPv3 Encryption Password | Password secured with the AES128 algorithm for SNMPv3 encryption |
